WHEEL SPEED SENSOR
TSB Revision
ANTI-LOCK BRAKING SYSTEM (ABS)
35B-193
INSPECTION
M1352008400783
.

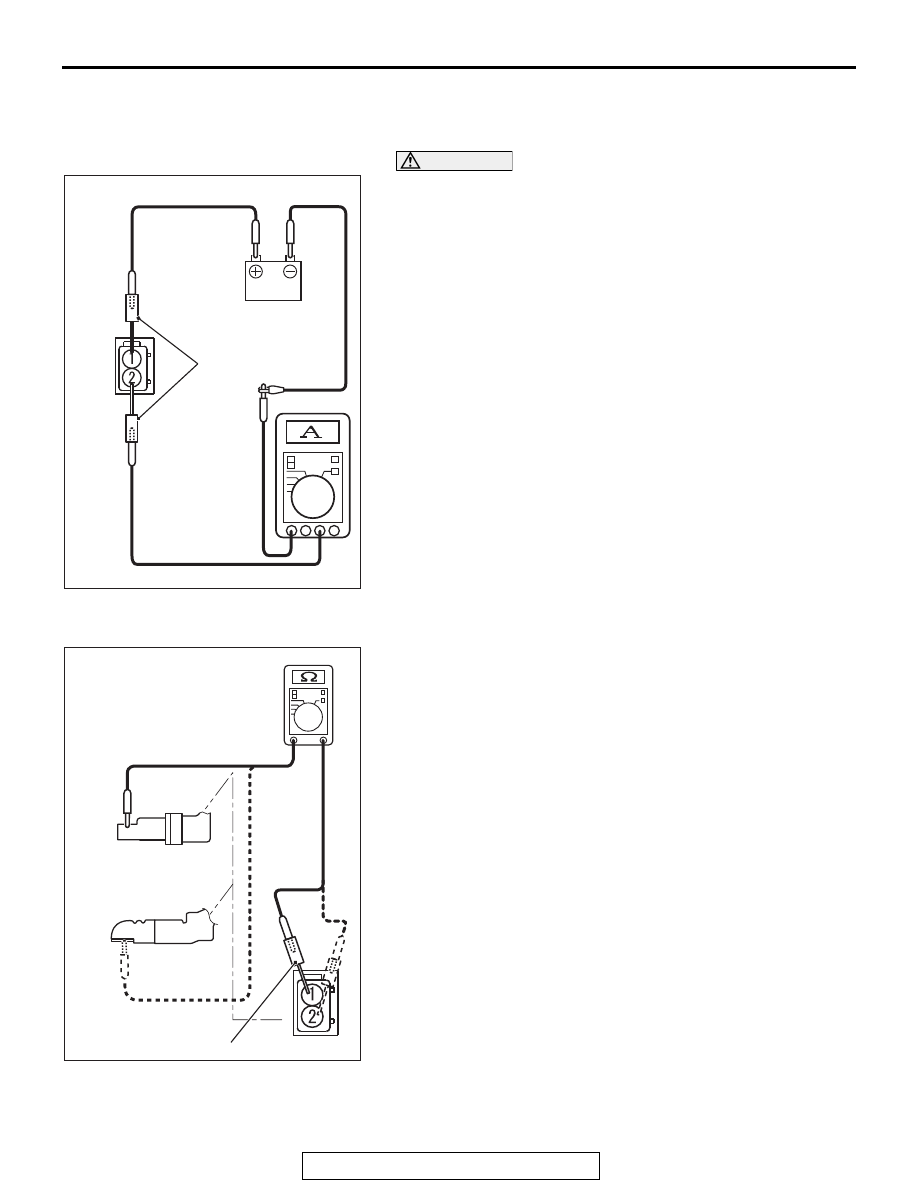

WHEEL SPEED SENSOR CURRENT CHECK
CAUTION
Do not connect the battery terminals in reverse as the
wheel speed sensor may be damaged.
1. Connect the circuit tester to the wheel speed sensor using
the special tool extra fine probe (MB992006), and measure
the sensor current as a single unit.
Standard value: 5.9 to 8.4 mA or 11.8 to 16.8 mA
2. If the measurement value is not within the standard value
range, replace the wheel speed sensor with a new one.
.
WHEEL SPEED SENSOR INSULATION CHECK
1. Connect the circuit tester to the wheel speed sensor using
the special tool extra fine probe (MB992006), and measure
the insulation resistance between terminal No. 1/2 and the
wheel speed sensor body as a single unit.
Standard value: 5 M
Ω or more
2. If the insulation resistance is not within the standard value
range, replace the wheel speed sensor with a new one.
AC608846
MB992006
AB
AC608847
MB992006
<Front>
<Rear>
AB
