WHEEL SPEED SENSOR

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-189

REMOVAL SERVICE POINT

.

<<A>> HYDRAULIC UNIT (ABS-ECU) REMOVAL

CAUTION

• Be careful when removing the hydraulic unit because it

is heavy.

• Never loosen the nuts and the bolts because the

hydraulic unit cannot be disassembled.

• Do not drop or shock the hydraulic unit.
• Do not turn the hydraulic unit upside down or lay down

the unit because the inner air becomes difficult to be
bled.

INSTALLATION SERVICE POINT

.

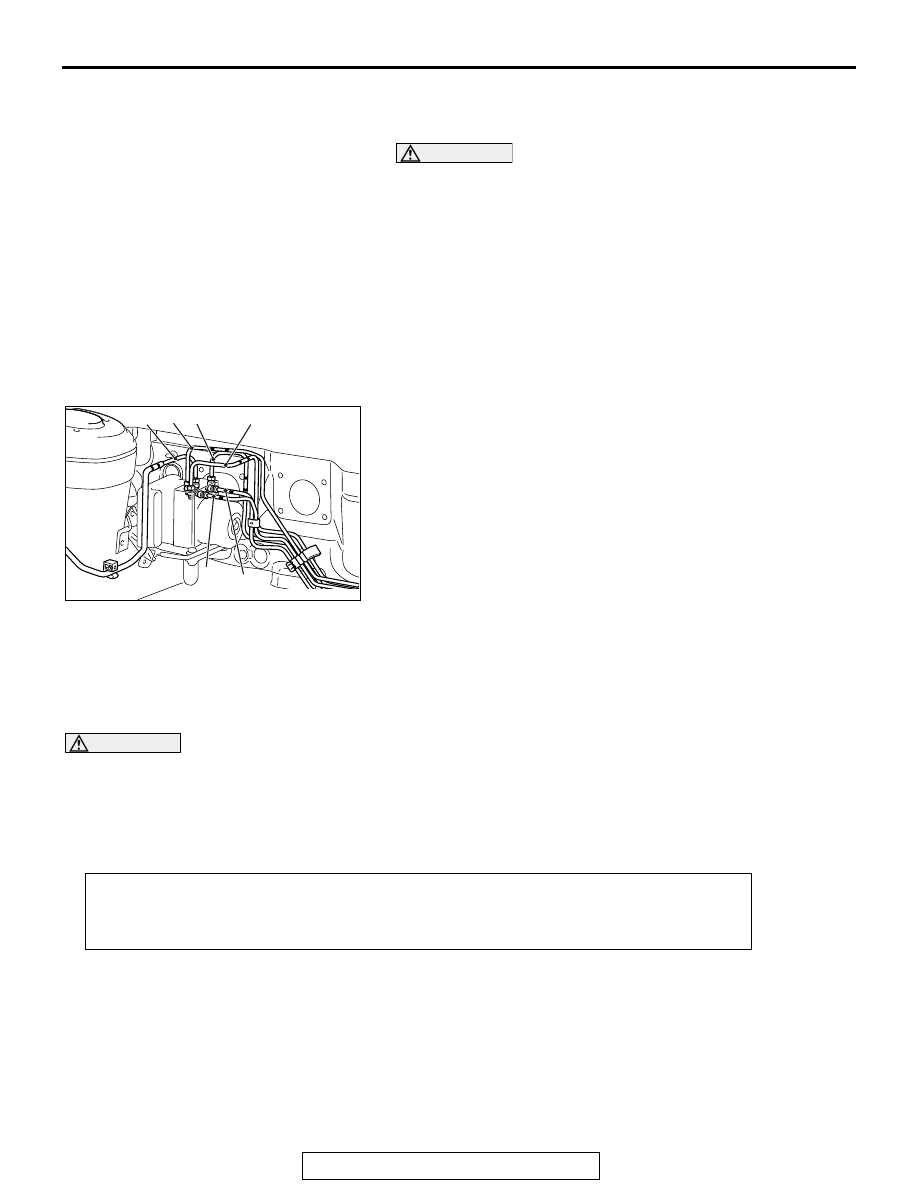

>>A<< BRAKE TUBE CONNECTION

Install the brake pipe to the hydraulic unit as shown in the fig-
ure.

1. To rear brake (RH) <Marking color: White>
2. From master cylinder (secondary) <Marking color: Yellow>
3. To front brake (LH) <Marking color: Red and white>
4. To front brake (RH) <Marking color: Orange and white>
5. From master cylinder (primary) <Marking color: Blue>
6. To rear brake (LH) <Marking color: Pink>

WHEEL SPEED SENSOR

REMOVAL AND INSTALLATION

M1352008301574

CAUTION

The vehicle speed detection encoder collects any
metallic particle easily, because it is magnetized.
Make sure that the encoder should not collect
any metallic particle. Check that there is not any
trouble prior to reassembling it.

ZC601084

AC703834AB

1

6

5

3

4

2

Pre-removal and post-installation operation
• Air cleaner body assembly removal and installation <Refer to GROUP 15 − Air Cleaner

P.15-5

 (3000)>.

Front wheel speed sensor (LH)

• Quarter trim removal and installation (Refer to GROUP 52A − Trim

P.52A-10

). Rear wheel speed sensor

WHEEL SPEED SENSOR

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-190

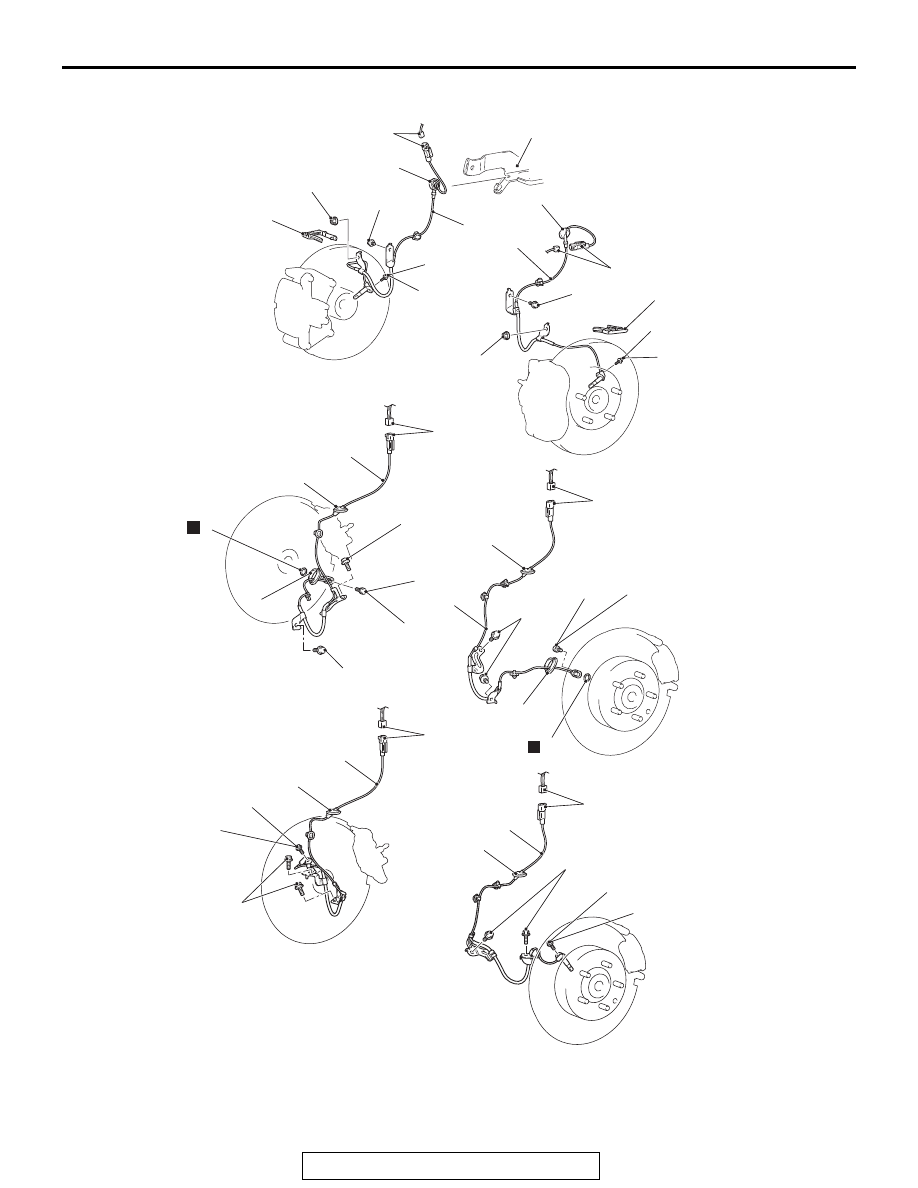

ACA01999

<Rear (vehicles with 5 seating capacity)>

3

<Front>

2

1

1

2

3

4

5

13 ± 2 N·m
111 ± 22 in-lb

5

11 ± 2 N·m
98 ± 17 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

13 ± 2 N·m
111 ± 22 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

AB

4

11 ± 2 N·m

6

8

9

10

8

9

10

6

11

11

7

7

N

N

8.5 ± 1.5 N·m
76 ± 13 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

Hydraulic unit bracket

<Rear (vehicles with 7 seating capacity)>

8

8

9

10

9

10

8.5 ± 1.5 N·m
76 ± 13 in-lb

11 ± 2 N·m
98 ± 17 in-lb

11 ± 2 N·m
98 ± 17 in-lb

8.5 ± 1.5 N·m
76 ± 13 in-lb

6

6

WHEEL SPEED SENSOR

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-191

NOTE: The vehicle speed detection encoder is inte-
grated with the front wheel bearing and the rear hub
assembly, which cannot be disassembled.

INSTALLATION SERVICE POINTS

.

>>A<< REAR WHEEL SPEED SENSOR, O-RING,
AND BOLT (CONNECTION OF REAR WHEEL
SPEED SENSOR WITH REAR WHEEL HUB
ASSEMBLY) INSTALLATION <VEHICLES WITH 5
SEATING CAPACITY>

1. Align the mounting bolt hole position of rear wheel speed

sensor with the mounting bolt hole position of rear wheel
hub assembly.

CAUTION

• Do not insert the rear wheel speed sensor at an angle

or by prying the sensor because it may be possible that
the O-ring of rear wheel speed sensor cannot be
mounted properly.

• After the insertion, do not perform an alignment of

mounting bolt hole positions by rotating the rear wheel
speed sensor.

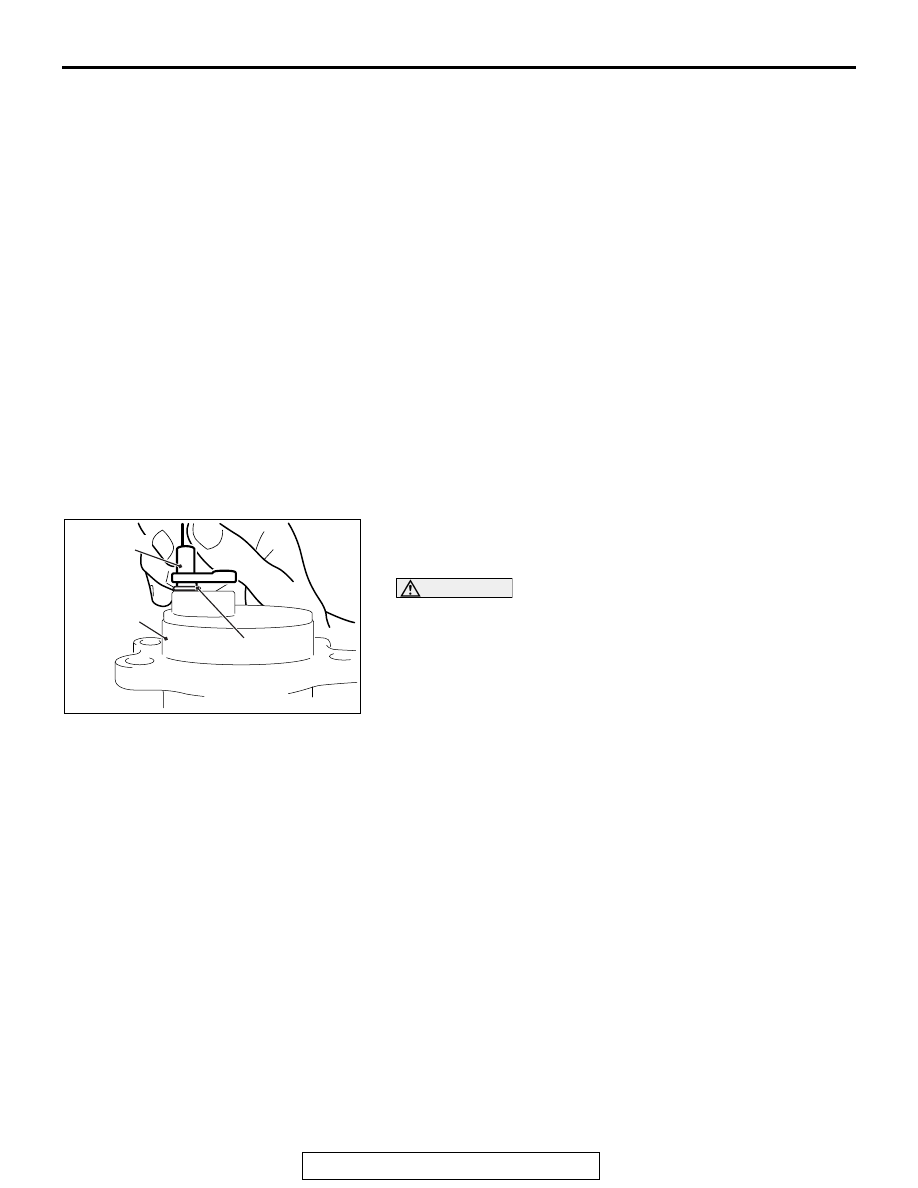

2. As shown in the figure, mount the rear wheel speed sensor

while keeping the sensor perpendicular to the rear wheel
hub assembly.

.

Front wheel speed sensor
removal steps

1.

Bolt (front wheel speed sensor and
knuckle connection)

2.

Front wheel speed sensor
connector

>>

C

<< 3.

Front wheel speed sensor grommet

4.

Front wheel speed sensor

>>

B

<< 5.

Harness clip

Rear wheel speed sensor
removal steps

>>

A

<< 6.

Bolt (rear wheel speed sensor and
rear wheel hub assembly
connection)

>>

A

<< 7.

O-ring

8.

Rear wheel speed sensor
connector

>>

C

<< 9.

Rear wheel speed sensor grommet

>>

A

<< 10. Rear wheel speed sensor

11. Protector

AC807126AD

O ring

Rear wheel
hub assembly

Rear wheel
speed sensor

WHEEL SPEED SENSOR

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-192

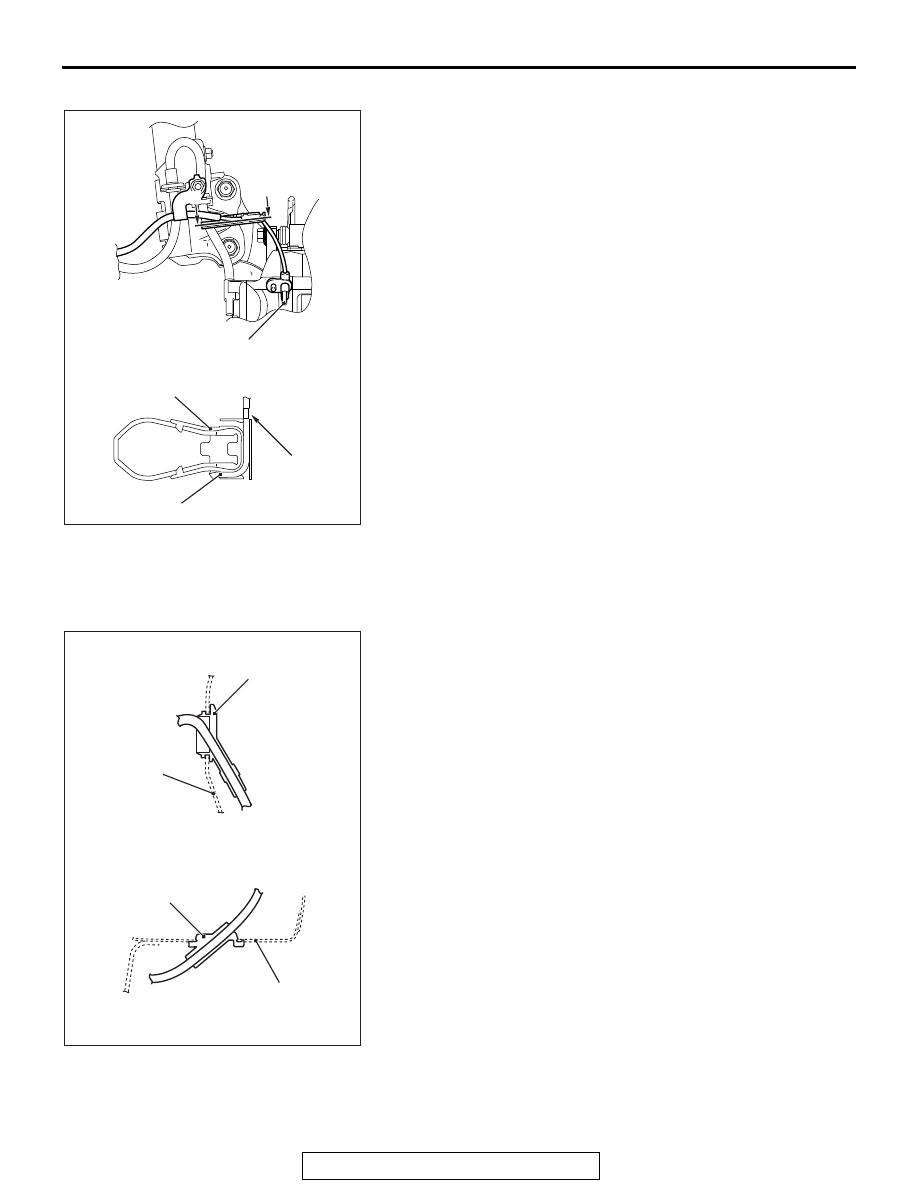

>>B<< HARNESS CLIP INSTALLATION

Install the front wheel speed sensor to the harness clip as
shown in the figure.

.

>>C<< FRONT WHEEL SPEED SENSOR
GROMMET/REAR WHEEL SPEED SENSOR
GROMMET INSTALLATION

Install the front wheel speed sensor grommet and the rear
wheel speed sensor grommet to the body panel snugly as
shown in the figure.

AC608814AB

A

A

Wheel speed sensor

Marking

Harness clip

Wheel speed sensor harness

Section A - A

AC608809

<Front>

<Rear>

AB

Front wheel speed
sensor grommet

Body panel

Body panel

Rear wheel speed
sensor grommet
