ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-13

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, DTCs will not be set. Check
the battery if scan tool MB991958 does not display.

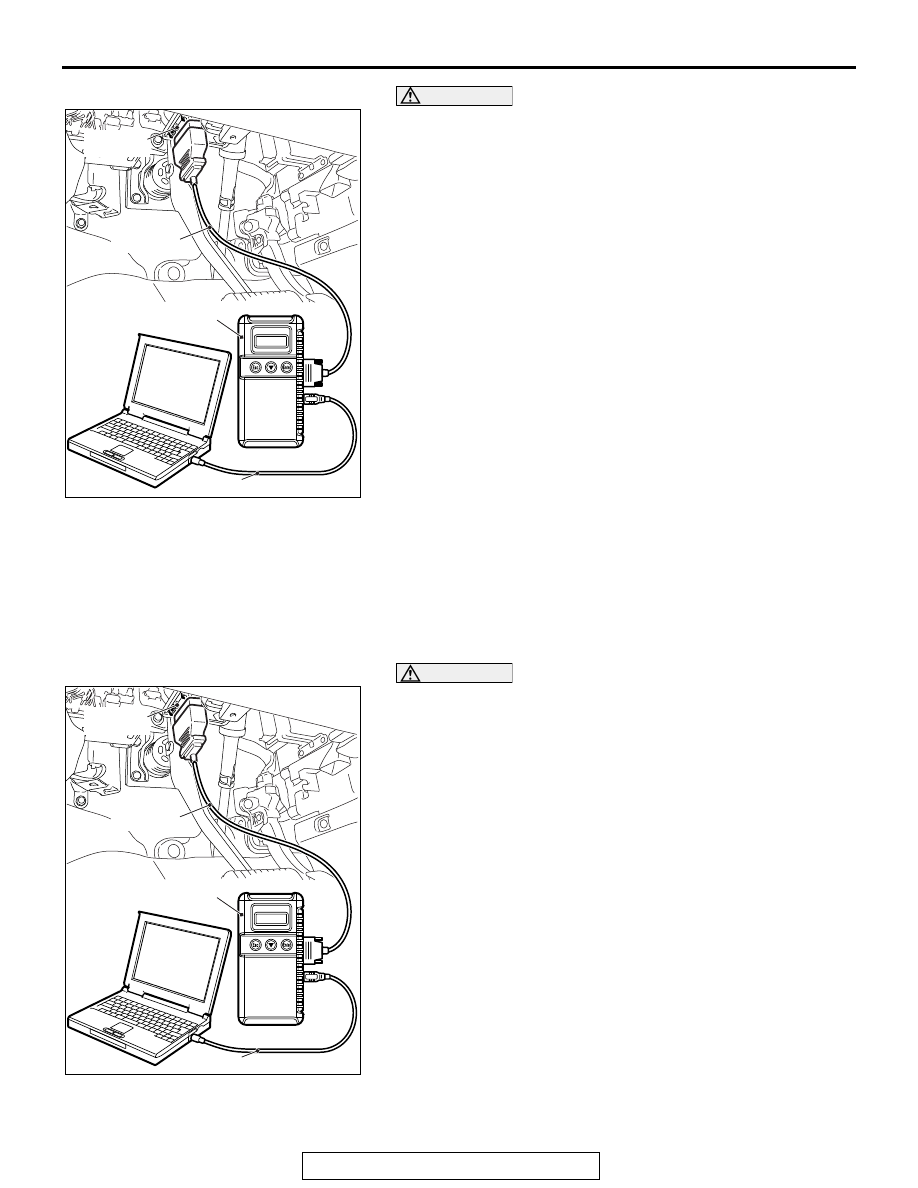

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System Select."
4. Select "ABS/ASC/ASTC" from the system list, and select the

"OK" button.

5. Select "Diagnostic Trouble Code." to read the DTC.
6. If a DTC is set, it is shown.
7. Choose "DTC erase" to erase the DTC.

HOW TO READ DATA LIST

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System Select."
4. Select "ABS/ASC/ASTC" from the system list, and select the

"OK" button.

5. Select "Data List."

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-14

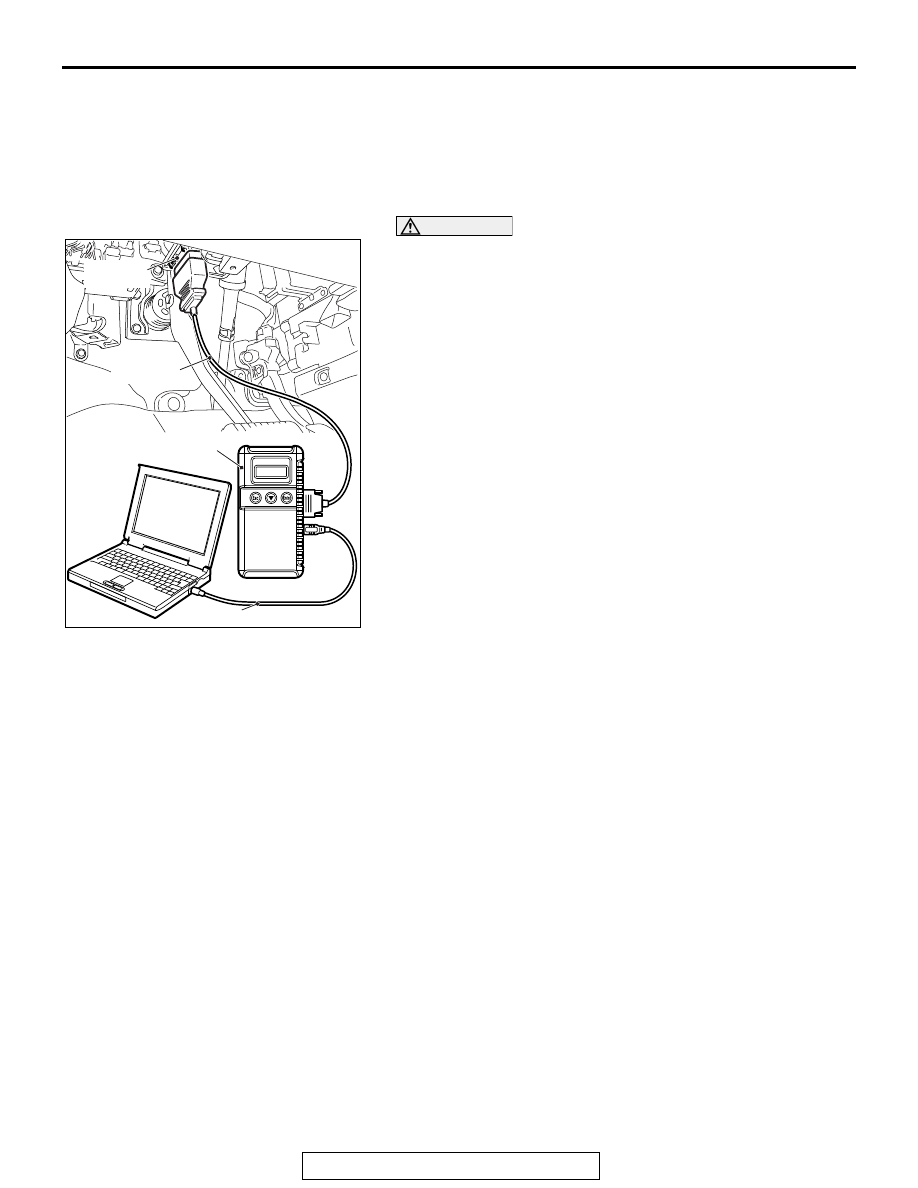

HOW TO PERFORM ACTUATOR TEST

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System Select."
4. Select "ABS/ASC/ASTC" from the system list, and select the

"OK" button.

5. Choose "Actuator Test" from "ABS" screen.
6. Choose an appropriate item and select the "OK" button.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-15

DIAGNOSTIC TROUBLE CODE CHART

M1352011301701

CAUTION

During diagnosis, a DTC code associated with other systems may be set when the ignition switch is
turned on with connector(s) disconnected. On completion, check all systems for DTCs. If DTC
code(s) are set, erase them all.

DTC

Inspection item

Reference page

C100A

Abnormality in FL wheel speed sensor circuit

P.35B-17

C1015

Abnormality in FR wheel speed sensor circuit

P.35B-22

C1020

Abnormality in RL wheel speed sensor circuit

P.35B-28

C102B

Abnormality in RR wheel speed sensor circuit

P.35B-33

C1011

Abnormality in FL wheel speed sensor signal

P.35B-39

C101C

Abnormality in FR wheel speed sensor signal

P.35B-43

C1027

Abnormality in RL wheel speed sensor signal

P.35B-48

C1032

Abnormality in RR wheel speed sensor signal

P.35B-53

C1014

Mutual monitoring of FL wheel speed sensor

P.35B-58

C101F

Mutual monitoring of FR wheel speed sensor

P.35B-61

C102A

Mutual monitoring of RL wheel speed sensor

P.35B-65

C1035

Mutual monitoring of RR wheel speed sensor

P.35B-68

C1041

Abnormality in periodical signal for FL wheel speed sensor

P.35B-72

C1042

Abnormality in periodical signal for FR wheel speed sensor

P.35B-75

C1043

Abnormality in periodical signal for RL wheel speed sensor

P.35B-79

C1044

Abnormality in periodical signal for RR wheel speed sensor

P.35B-82

C1046

FL wheel speed sensor control phase time exceeded

P.35B-86

C1047

FR wheel speed sensor control phase time exceeded

P.35B-90

C1048

RL wheel speed sensor control phase time exceeded

P.35B-95

C1049

RR wheel speed sensor control phase time exceeded

P.35B-99

C104B

Abnormality in FL wheel inlet valve system

P.35B-104

C104F

Abnormality in FR wheel inlet valve system

C1053

Abnormality in RL wheel inlet valve system

C1057

Abnormality in RR wheel inlet valve system

C105F

Abnormality in FL wheel outlet valve system

C1063

Abnormality in FR wheel outlet valve system

C1067

Abnormality in RL wheel outlet valve system

C105B

Abnormality in RR wheel outlet valve system

C2104

Malfunction of valve power supply circuit

P.35B-106

C1073

Malfunction of motor drive circuit

P.35B-111

C2116

Abnormality in pump motor power supply voltage

P.35B-116

ABS DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-16

NOTE:

.

•

*

: This DTC is not set within the vehicle speed of 12 mph (20 km/h) or less.

C1000

Abnormality in stop light switch circuit

P.35B-121

C2200

Abnormality in ABS-ECU

P.35B-124

C2100

*

Abnormality in battery
voltage (low voltage)

9.7

± 0.3 V or less

P.35B-125

C2101

Abnormality in battery
voltage (high voltage)

18.0

± 1.0 V or more

P.35B-133

C1395

Brake fluid filling not completed

P.35B-134

C2203

VIN not written

P.35B-135

C1608

Implausible diagnosis data

P.35B-137

U0001

Bus-off

P.35B-143

U0100

Engine time-out error

P.35B-143

U0141

ETACS time-out error

U1415

Variant coding not implemented

P.35B-145

U1417

Invalid variant coding value (including wrong assembly)

P.35B-146

DTC

Inspection item

Reference page
