MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) <VEHICLES WITHOUT AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-242

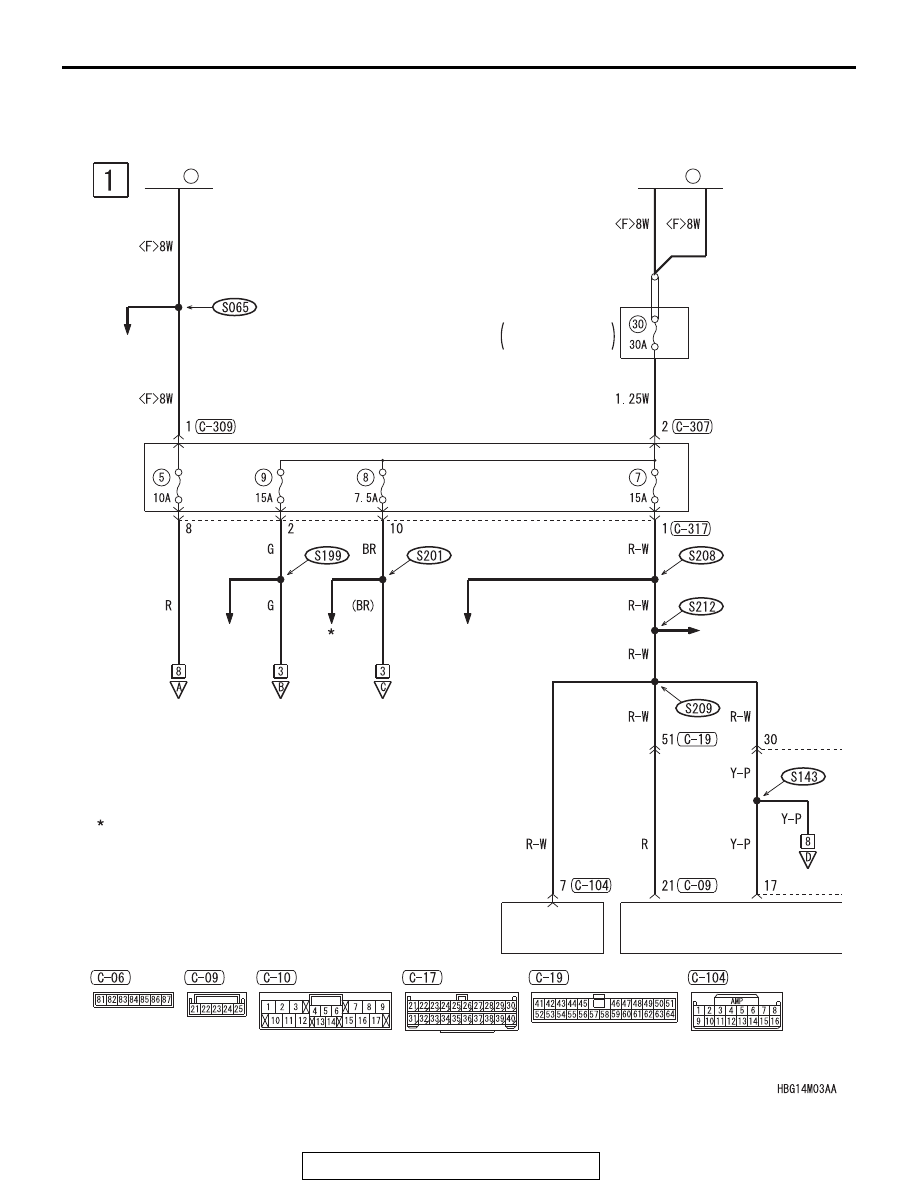

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS)

<VEHICLES WITHOUT AUDIO AMPLIFIER>

M1901007502118

ETACS-
ECU

RELAY BOX

ENGINE
COMPARTMENT

·HANDS-FREE
 INTERFACE SYSTEM
·REAR SEAT
 ENTERTAINMENT
 SYSTEM
·SPARE CONNECTOR
 (FOR HANDS-FREE
 INTERFACE SYSTEM)
·SPARE CONNECTOR
 (FOR REAR DISPLAY)

THEFT-ALARM
SYSTEM

POWER
DISTRIBUTION
SYSTEM

FUSIBLE
LINK

34

FUSIBLE
LINK

36

SPARE CONNECTOR
(FOR SATELLITE RADIO)

NOTE

: ·AIR CONDITIONING SYSTEM

·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER TONE
 ALARM <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM

·KEYLESS OPERATING SYSTEM (KOS)
·REAR WIPER AND WASHER
·TAILLIGHT, POSITION LIGHT,
 REAR SIDE MARKER LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
 SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

CENTER
PANEL UNIT

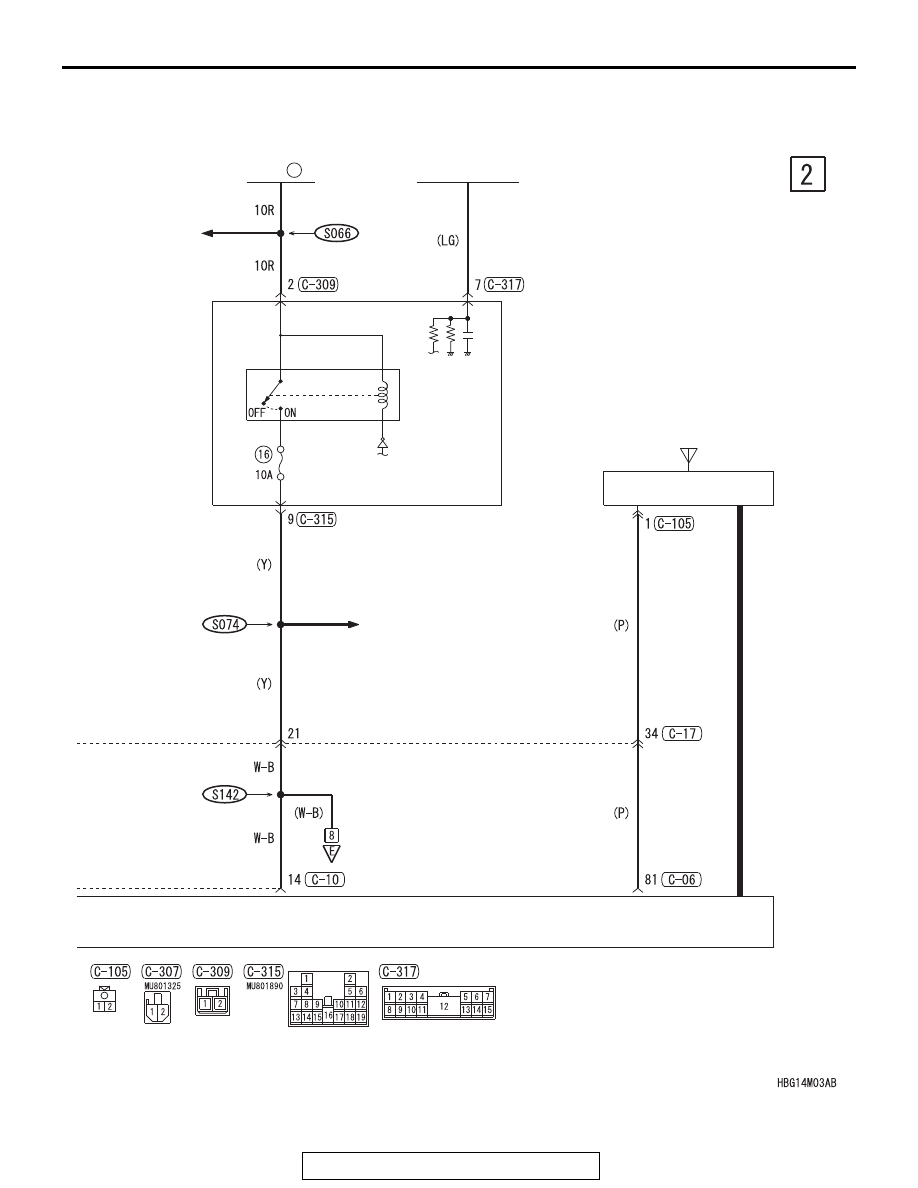

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) <VEHICLES WITHOUT AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-243

ACC
RELAY 2

ROOF ANTENNA

ANTENNA
AMPLIFIER

ANTENNA FEEDER CABLE

ETACS-
ECU

MULTIVISION DISPLAY

IGNITION
SWITCH (ACC)

FUSIBLE
LINK

37

·REAR SEAT ENTERTAINMENT
 SYSTEM
·REMOTE CONTROLLED
 MIRROR
·SPARE CONNECTOR
 (FOR REAR DISPLAY)

POWER
DISTRIBUTION
SYSTEM

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) <VEHICLES WITHOUT AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-244

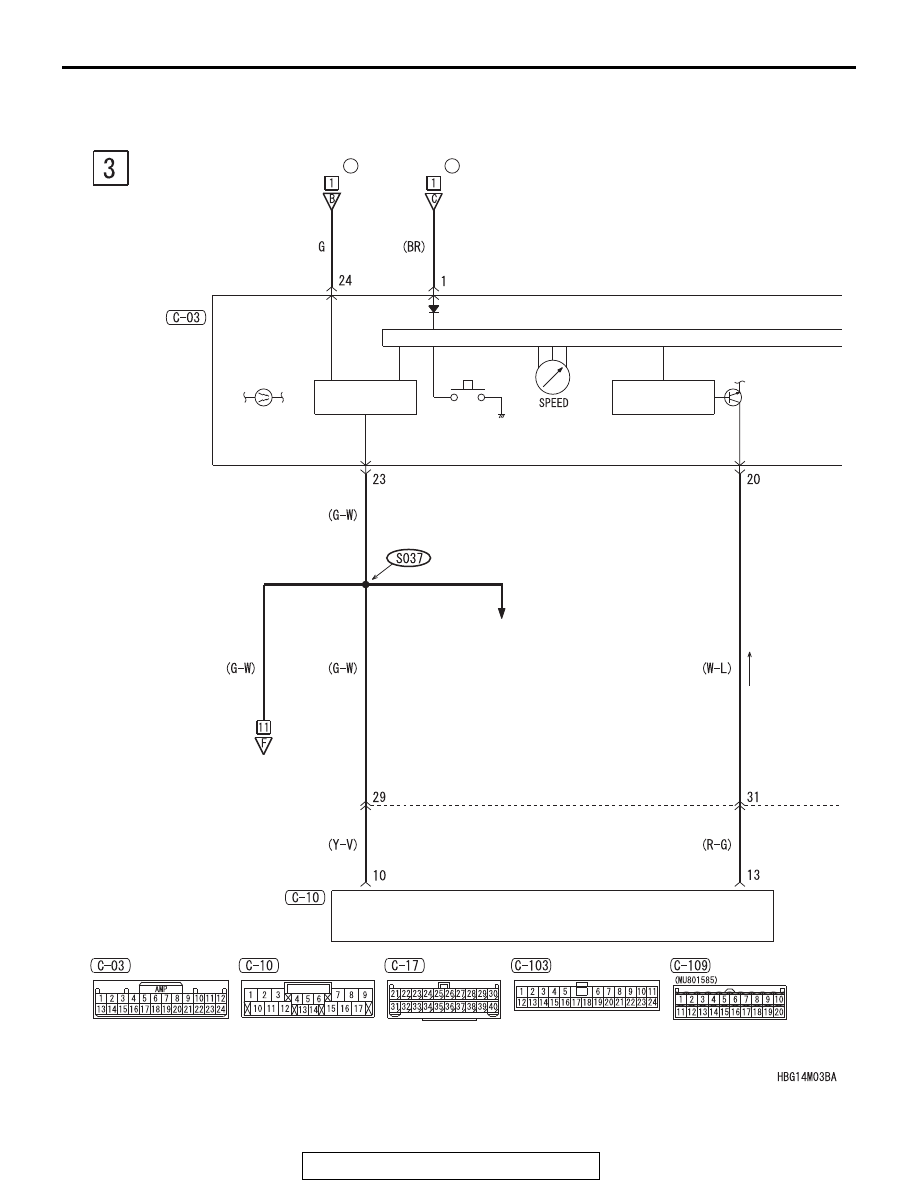

MITSUBISHI MULTI-COMMUNICATION SYSTEM (MMCS) <VEHICLES WITHOUT AUDIO AMPLIFIER>
(CONTINUED)

COMBINATION
METER

INTERFACE
CIRCUIT

CPU

ETACS-ECU

(FUSE     )

9

ETACS-ECU

(FUSE     )

8

RHEOSTAT

TONE
ALARM

INTERFACE
CIRCUIT

MULTIVISION DISPLAY

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
 AND ACTIVE STABILITY CONTROL
 SYSTEM (ASC)
·ELECTRONIC CONTROLLED AWD
·HEADLIGHT MANUAL
 LEVELING SYSTEM
·INVECS-II 6A/T
·REAR SEAT
 ENTERTAINMENT SYSTEM
·S-AWC
·SPARE CONNECTOR
 (FOR REAR DISPLAY)
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
