HEATED DOOR MIRROR

TSB Revision

CIRCUIT DIAGRAMS

90-221

NOTES

REMOTE CONTROLLED MIRROR

TSB Revision

CIRCUIT DIAGRAMS

90-222

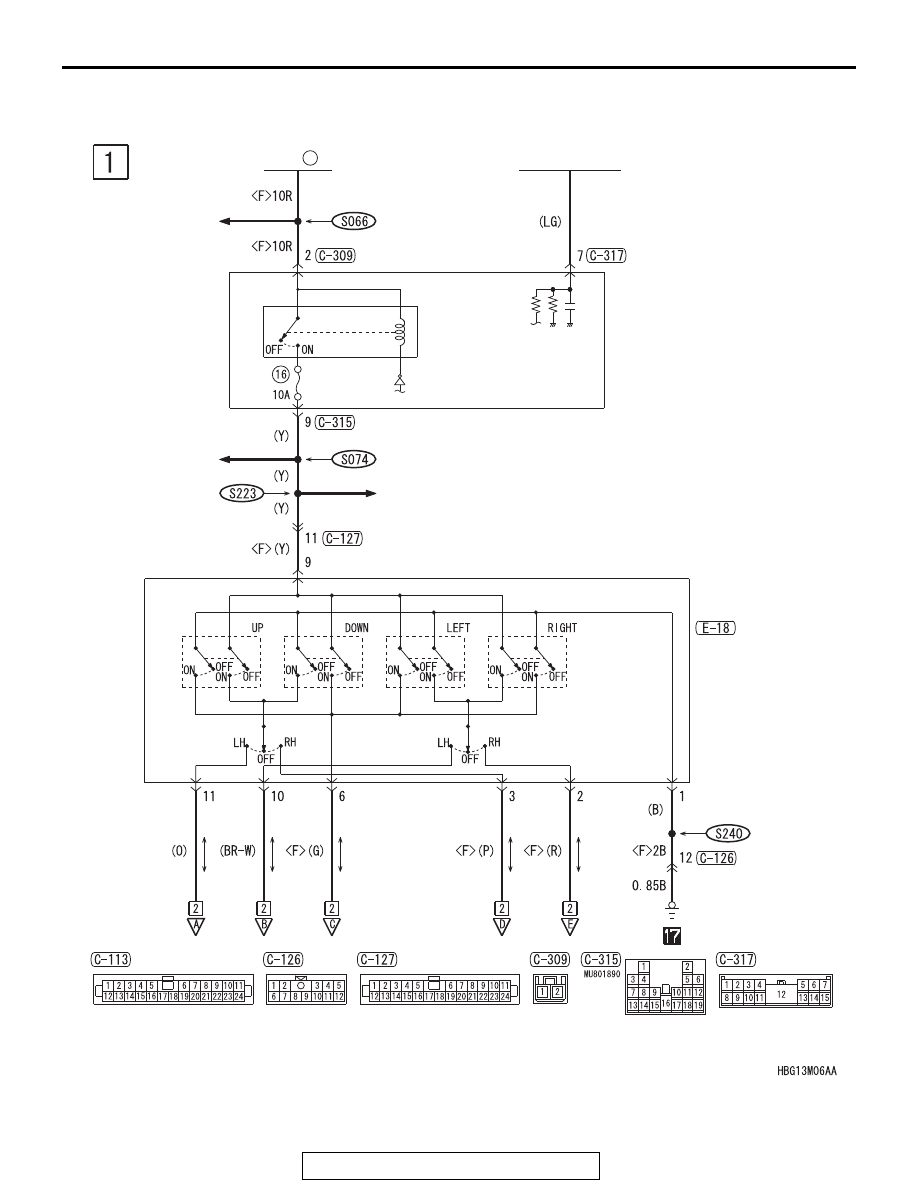

REMOTE CONTROLLED MIRROR

M1901006503442

POWER
DISTRIBUTION
SYSTEM

FUSIBLE
LINK

37

REMOTE
CONTROLLED
MIRROR SWITCH

ACC
RELAY 2

IGNITION
SWITCH (ACC)

ETACS-
ECU

·AUDIO SYSTEM
·MITSUBISHI
 MULTI-COMMUNICATION
 SYSTEM (MMCS)

·REAR SEAT
 ENTERTAINMENT
 SYSTEM
·SPARE CONNECTOR
 (FOR REAR DISPLAY)

REMOTE CONTROLLED MIRROR

TSB Revision

CIRCUIT DIAGRAMS

90-223

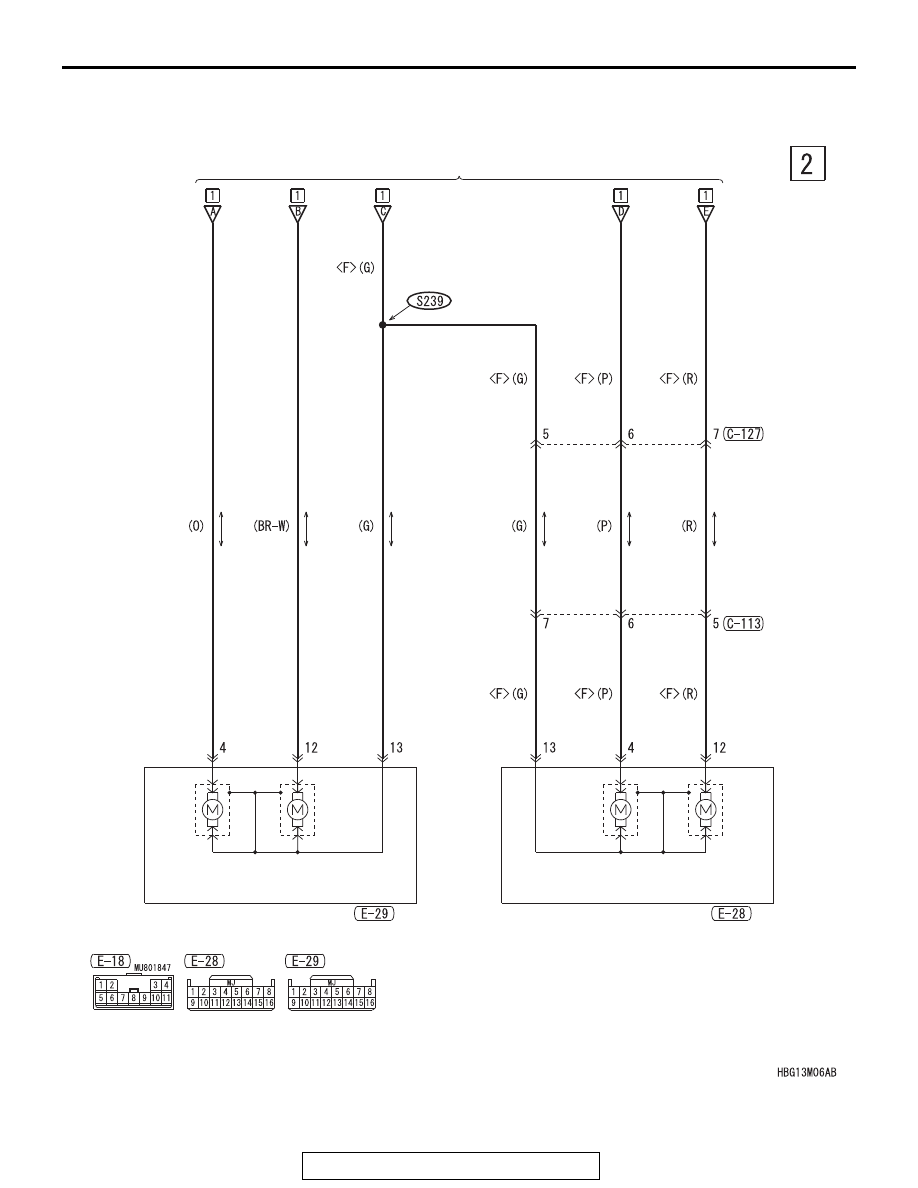

DOOR MIRROR ASSEMBLY (LH)

VERTICAL
MOVEMENT
MOTOR

HORIZONTAL
MOVEMENT
MOTOR

DOOR MIRROR ASSEMBLY (RH)

VERTICAL
MOVEMENT
MOTOR

HORIZONTAL
MOVEMENT
MOTOR

REMOTE CONTROLLED
MIRROR SWITCH

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

AUDIO SYSTEM <VEHICLES WITHOUT AUDIO AMPLIFIER>

TSB Revision

CIRCUIT DIAGRAMS

90-224

AUDIO SYSTEM

<VEHICLES WITHOUT AUDIO AMPLIFIER>

M1901015606305

FUSIBLE
LINK

34

FUSIBLE
LINK

36

CENTER PANEL UNIT

ETACS-
ECU

AUDIO SWITCH PANEL

LCD PANEL (AUDIO, CLOCK)

RELAY BOX

ENGINE
COMPARTMENT

SPARE CONNECTOR
(FOR NAVIGATION SYSTEM)

SPARE CONNECTOR
(FOR SATELLITE RADIO)

POWER
DISTRIBUTION
SYSTEM

·HANDS-FREE INTERFACE SYSTEM
·REAR SEAT ENTERTAINMENT SYSTEM
·SPARE CONNECTOR
 (FOR HANDS-FREE INTERFACE SYSTEM)
·SPARE CONNECTOR (FOR REAR DISPLAY)

THEFT-ALARM
SYSTEM
