METER AND GAUGE

TSB Revision

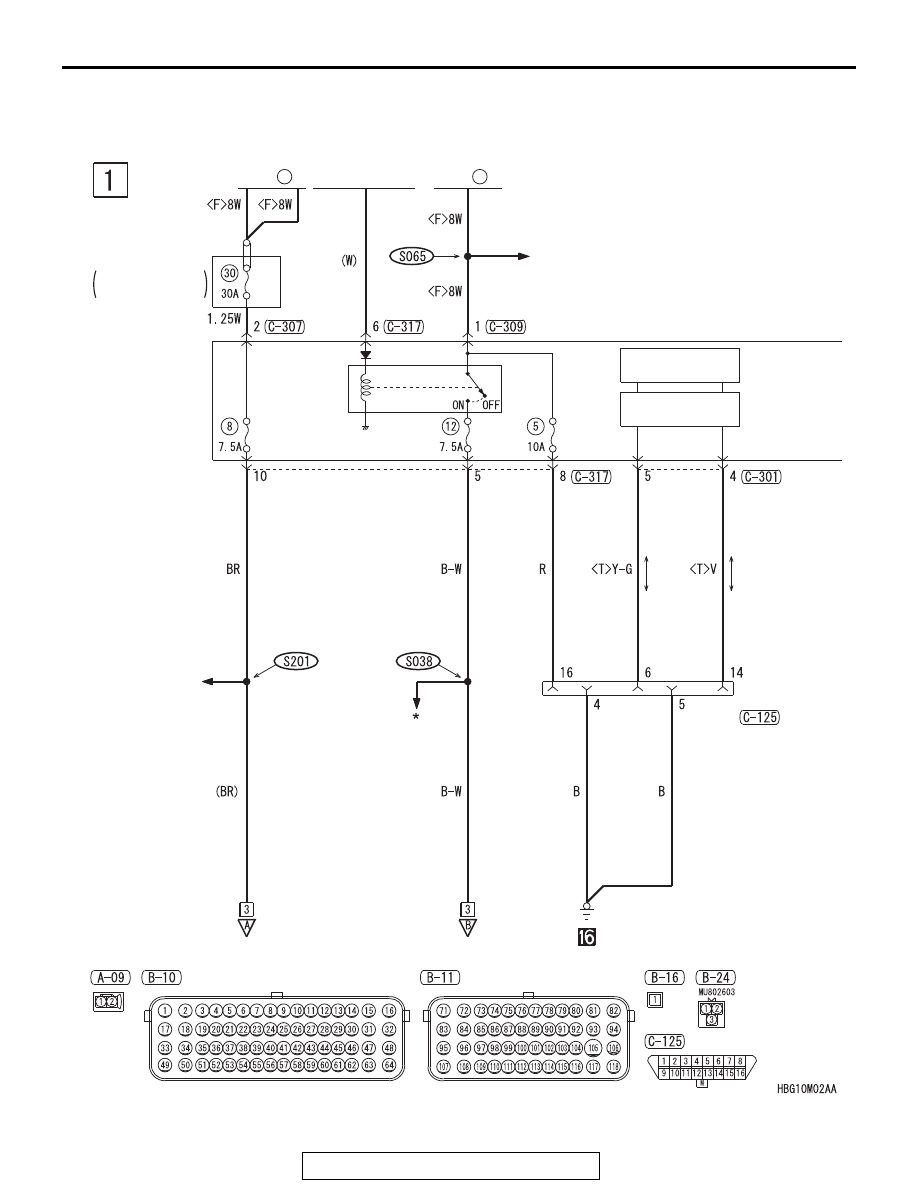

CIRCUIT DIAGRAMS

90-165

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

FUEL
LEVEL
SENSOR
(SUB)

FUEL
PUMP
MODULE

FUEL LEVEL
SENSOR
(MAIN)

TONE
ALARM

FWD

AWD

·FROST
·FUEL GAUGE
·ODO/TRIP
·OUTSIDE TEMPERATURE
·SERVICE REMINDER
·TEMPERATURE GAUGE

LCD

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

BRAKE WARNING LIGHT, FUEL WARNING LIGHT AND OIL PRESSURE WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-166

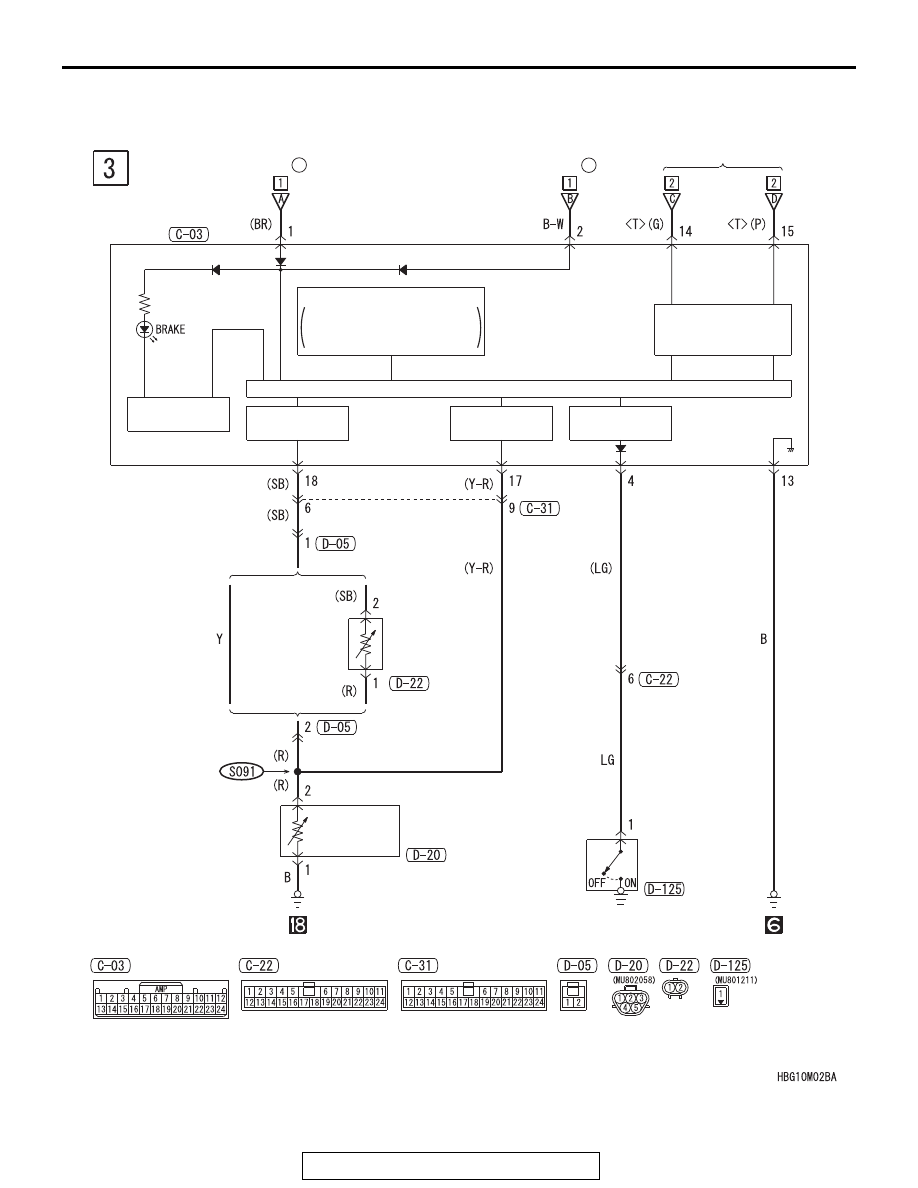

BRAKE WARNING LIGHT, FUEL WARNING LIGHT AND

OIL PRESSURE WARNING LIGHT

M1901020000583

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

IG1
RELAY

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

34

FUSIBLE
LINK

36

FRONT SIDE

POWER
DISTRIBUTION
SYSTEM

ENGINE
COMPARTMENT

RELAY BOX

DATA LINK
CONNECTOR

·AIR CONDITIONING
 SYSTEM
·CENTRAL DOOR
 LOCKING SYSTEM
·DAYTIME RUNNING
 LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT
 AND IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY
 REMINDER TONE ALARM
 <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING
 SYSTEM (KOS)
·REAR WIPER AND
 WASHER
·TAILLIGHT, POSITION
 LIGHT, REAR SIDE
 MARKER LIGHT,
 LICENSE PLATE
 LIGHT AND LIGHTING
 MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE
 MONITORING SYSTEM
 (TPMS)
·TURN-SIGNAL LIGHT
 AND HAZARD
 WARNING LIGHT
·WINDSHIELD WIPER
 AND WASHER

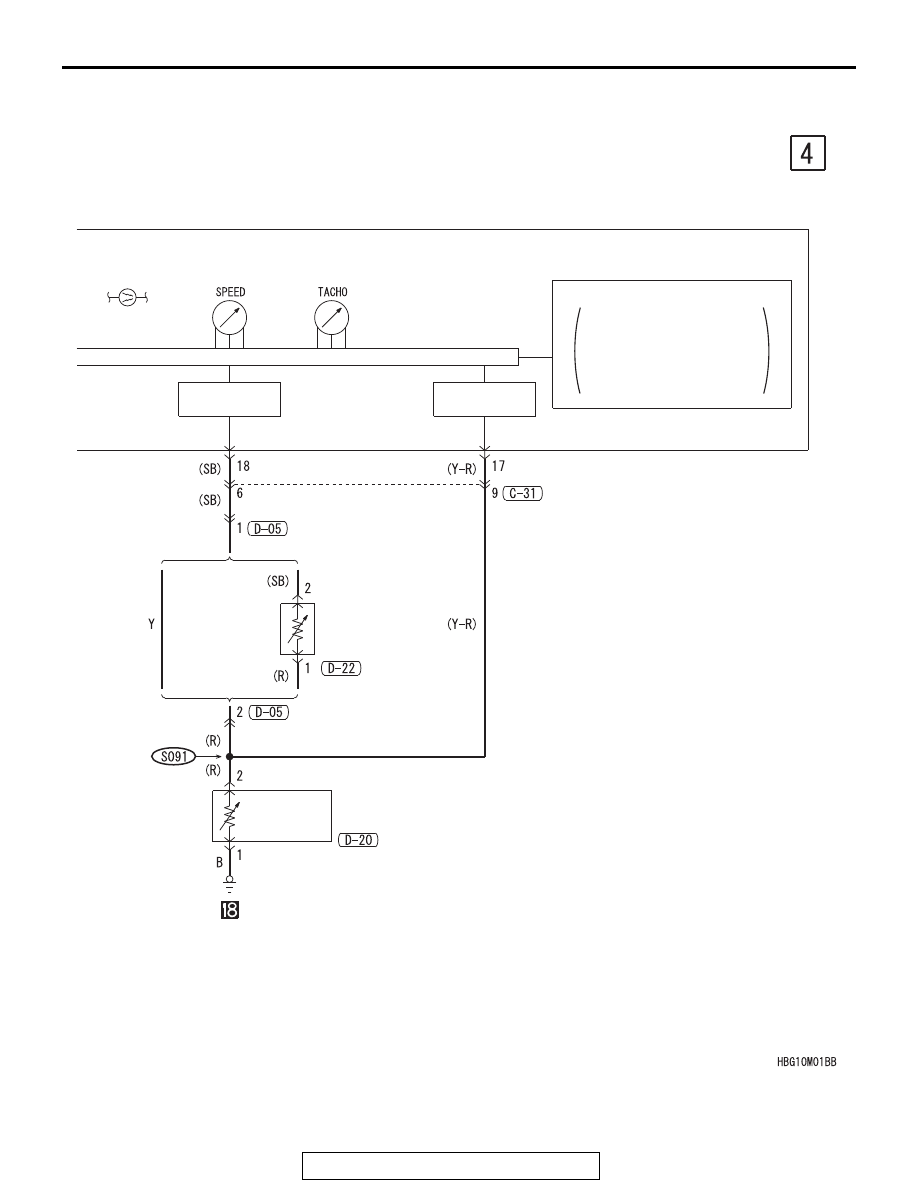

BRAKE WARNING LIGHT, FUEL WARNING LIGHT AND OIL PRESSURE WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-167

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE CIRCUIT

ETACS-
ECU

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

BRAKE
FLUID
LEVEL
SWITCH

ENGINE
CONTROL
MODULE

NOTE

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
 AND ACTIVE STABILITY CONTROL
 SYSTEM (ASC)
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT AND IGNITION
 KEY HOLE ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT

·SUNROOF
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT, REAR SIDE
 MARKER LIGHT, LICENSE PLATE LIGHT
 AND LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING SYSTEM
 (TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
 WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

:

·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE
 ALARM <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·INVECS-II 6A/T
·INVECS-III CVT
·KEYLESS OPERATING SYSTEM (KOS)
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM

JOINT
CONNECTOR
(CAN3)

JOINT
CONNECTOR
(CAN2)

JOINT
CONNECTOR
(CAN1)

2.4L
ENGINE

3.0L
ENGINE

ENGINE OIL
PRESSURE SWITCH

LOW ENGINE
OIL PRESSURE: ON

BRAKE WARNING LIGHT, FUEL WARNING LIGHT AND OIL PRESSURE WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-168

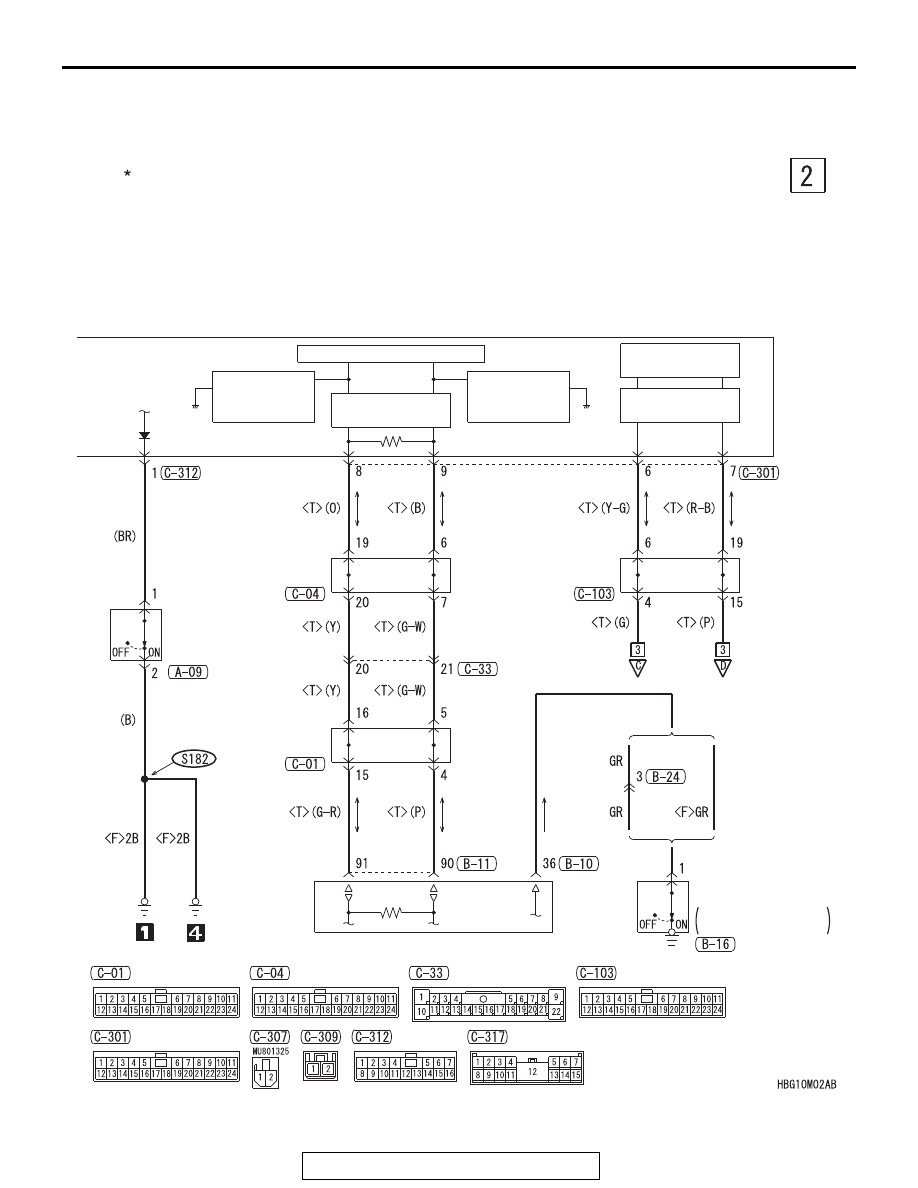

BRAKE WARNING LIGHT, FUEL WARNING LIGHT AND OIL PRESSURE WARNING LIGHT



(CONTINUED)

FUEL
LEVEL
SENSOR
(SUB)

FUEL
PUMP
MODULE

FUEL LEVEL
SENSOR
(MAIN)

FWD

AWD

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CPU

CAN
TRANSCEIVER
CIRCUIT

LED DRIVE
CIRCUIT

COMBINATION
METER

ETACS-ECU

(FUSE     )

8

(FUSE     )

12

ETACS-ECU

PARKING
BRAKE
SWITCH

LCD

BRAKE
FUEL WARNING
OIL PRESSURE WARNING

JOINT CONNECTOR
(CAN1)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER
