HORN

TSB Revision

CIRCUIT DIAGRAMS

90-161

NOTES

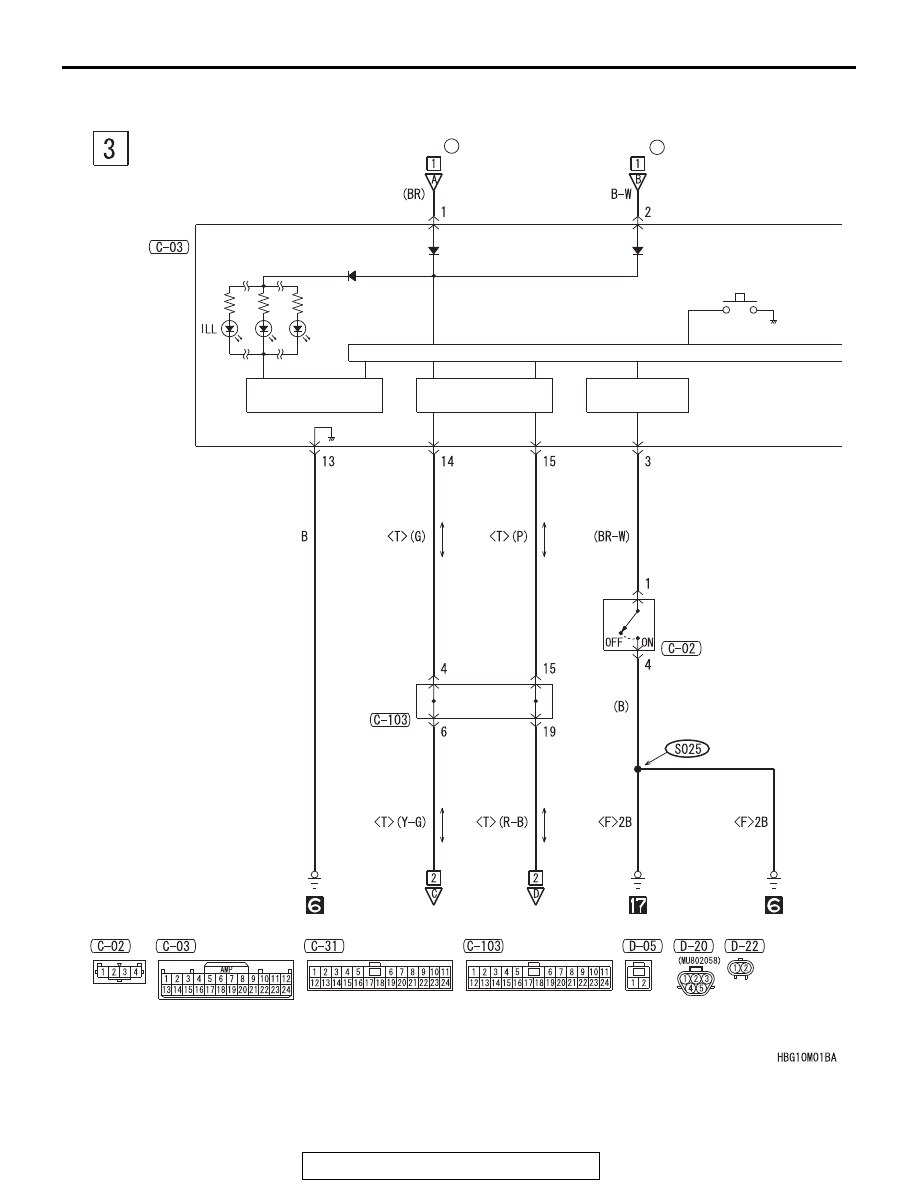

METER AND GAUGE

TSB Revision

CIRCUIT DIAGRAMS

90-162

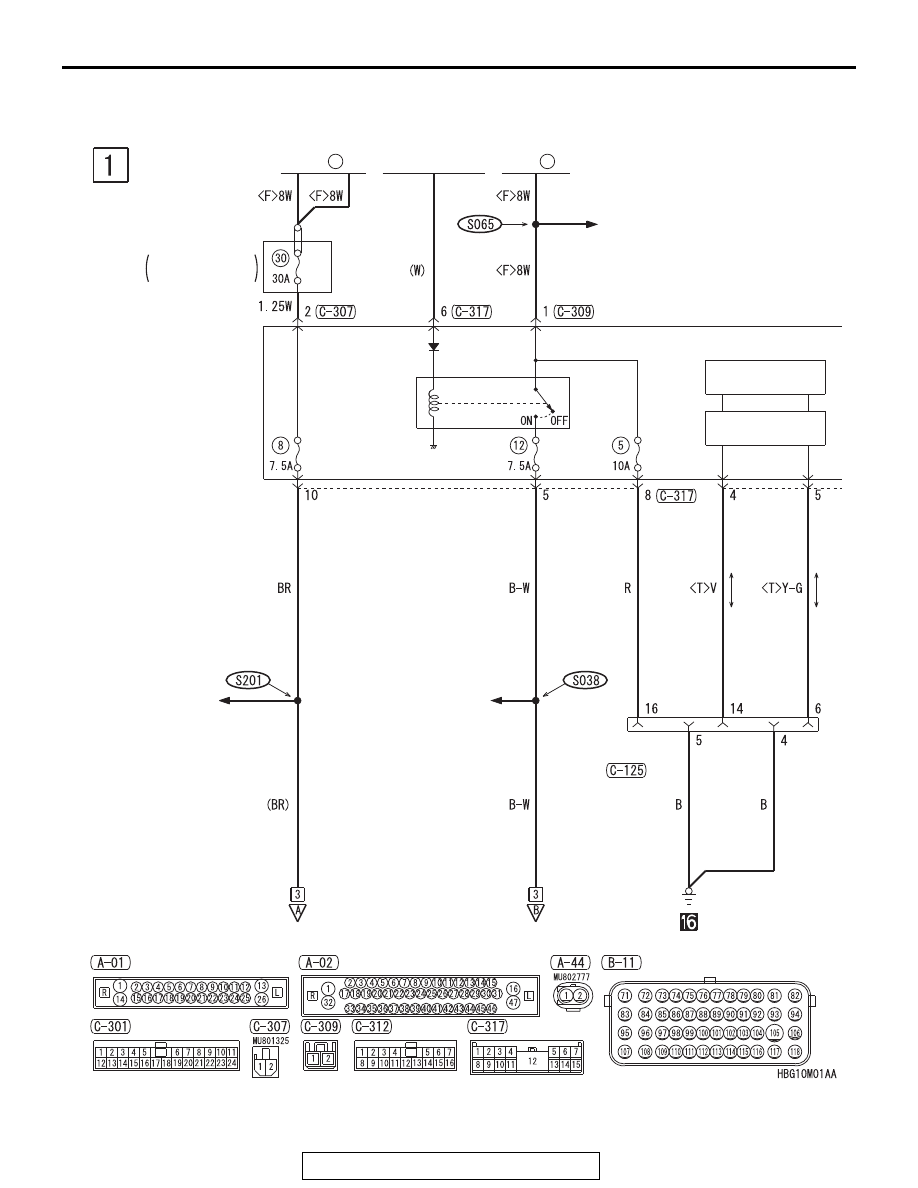

METER AND GAUGE

M1901003506798

FUSIBLE
LINK

36

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

34

RELAY BOX

ENGINE
COMPARTMENT

ETACS-
ECU

IG1
RELAY

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

DATA LINK
CONNECTOR

·AIR CONDITIONING SYSTEM
·CENTRAL DOOR LOCKING
 SYSTEM
·DAYTIME RUNNING LIGHT
 (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER
 TONE ALARM
 <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·KEYLESS OPERATING
 SYSTEM (KOS)
·REAR WIPER AND WASHER
·TAILLIGHT, POSITION LIGHT,
 REAR SIDE MARKER LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR TONE
 ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE
 MONITORING SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND
 WASHER

POWER
DISTRIBUTION
SYSTEM

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS)
 AND ACTIVE STABILITY CONTROL
 SYSTEM (ASC)
·CENTRAL DOOR LOCKING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOME LIGHT, LUGGAGE
 COMPARTMENT LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·HEATED DOOR MIRROR
·HEATED SEAT
·IGNITION KEY REMINDER TONE
 ALARM <VEHICLES WITH KOS>
·IMMOBILIZER SYSTEM
·INVECS-II 6A/T
·INVECS-III CVT
·KEYLESS OPERATING SYSTEM
 (KOS)
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
 SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT,
 REAR SIDE MARKER LIGHT,
 LICENSE PLATE LIGHT AND
 LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
·TIRE PRESSURE MONITORING
 SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
 WARNING LIGHT
·WINDSHIELD WIPER AND WASHER

METER AND GAUGE

TSB Revision

CIRCUIT DIAGRAMS

90-163

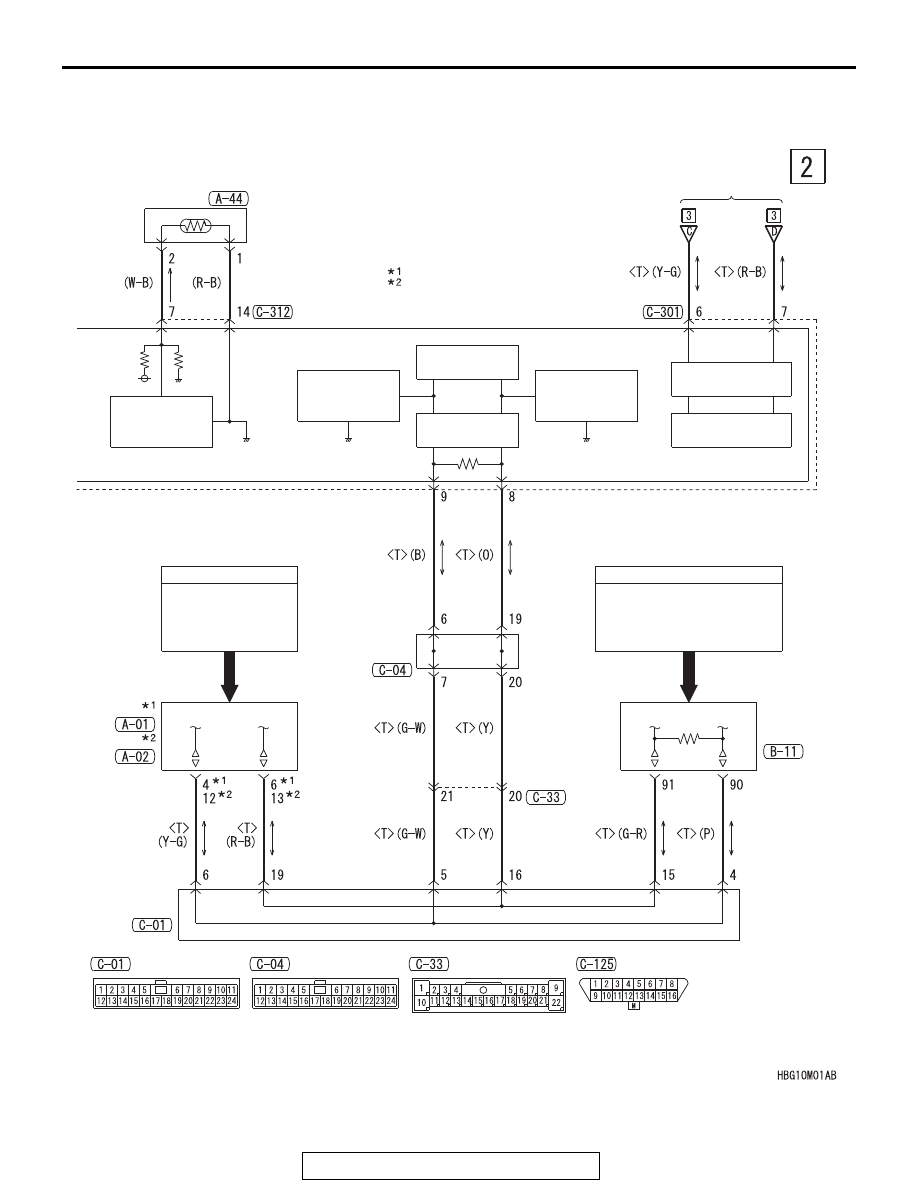

ANALOG
INTERFACE
CIRCUIT

AMBIENT AIR
TEMPERATURE
SENSOR

ANALOG
INTERFACE
CIRCUIT

ANALOG
INTERFACE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INPUT SIGNAL

·CRANKSHAFT POSITION
 SENSOR
·ENGINE COOLANT
 TEMPERATURE SENSOR

INPUT SIGNAL

·FRONT WHEEL
 SPEED SENSOR
·REAR WHEEL
 SPEED SENSOR

ENGINE
CONTROL
MODULE

JOINT
CONNECTOR
(CAN3)

JOINT
CONNECTOR
(CAN2)

JOINT
CONNECTOR
(CAN1)

ASC-ECU

ABS-ECU

FRONT SIDE

NOTE

: VEHICLES WITHOUT ASC
: VEHICLES WITH ASC

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

METER AND GAUGE

TSB Revision

CIRCUIT DIAGRAMS

90-164

METER AND GAUGE (CONTINUED)

INTERFACE
CIRCUIT

LED DRIVE
CIRCUIT

COMBINATION
METER

CAN TRANSCEIVER
CIRCUIT

CPU

ETACS-ECU

(FUSE     )

8

METER
INFORMATION
SWITCH

RHEOSTAT

(FUSE     )

12

ETACS-ECU

JOINT
CONNECTOR
(CAN1)
