TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-153

(FUSE     )

ETACS-ECU

8

DATA LINK
CONNECTOR

CAN TRANSCEIVER
CIRCUIT

LED DRIVE CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

INTERFACE
CIRCUIT

CAN DRIVE
CIRCUIT

FUSIBLE
LINK

34

JOINT
CONNECTOR
(CAN1)

ETACS-ECU

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

INPUT SIGNAL

·COLUMN SWITCH
 (LIGHTING SWITCH)
·LIGHTING
 CONTROL SENSOR
 <VEHICLES WITH
 AUTOMATIC LIGHT>

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-154

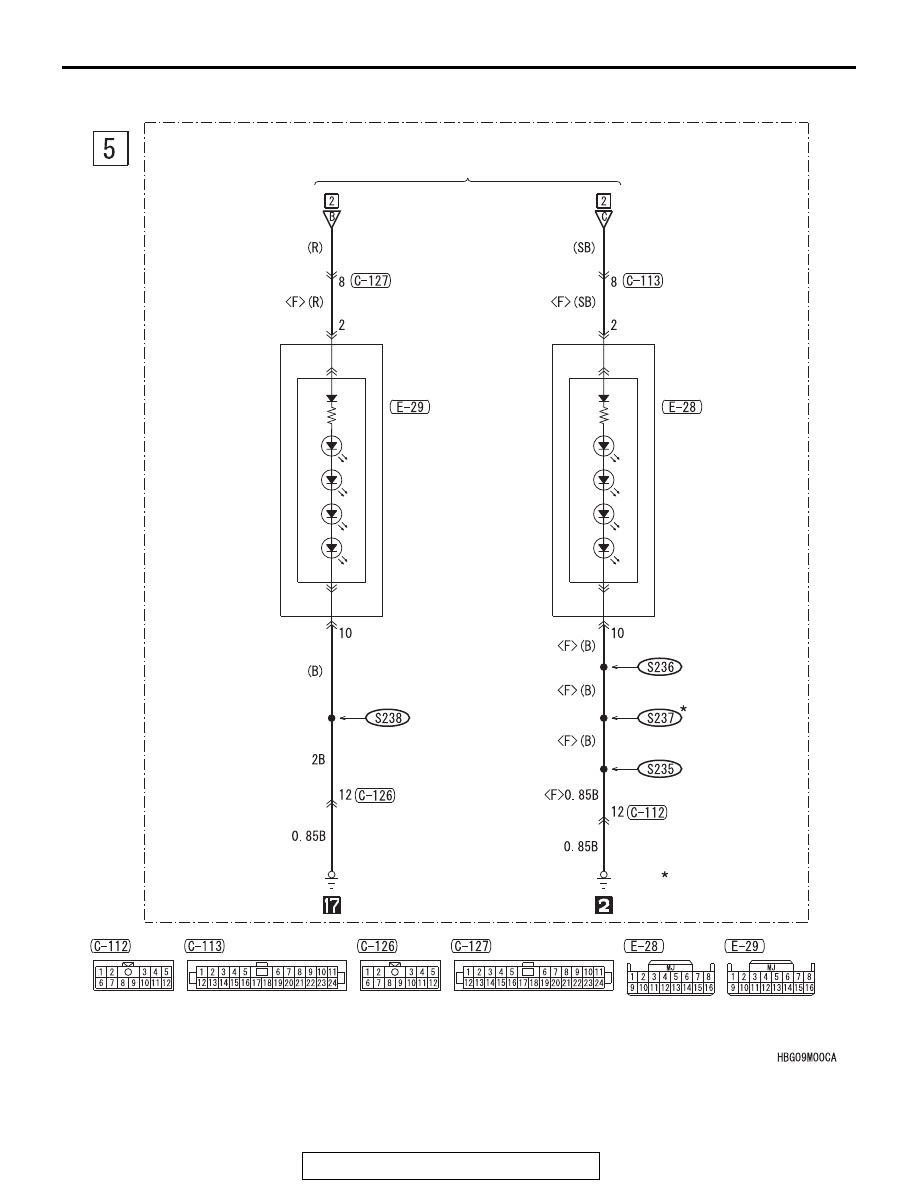

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT (CONTINUED)

ETACS-ECU

(TURN-SIGNAL LIGHT CONTROL CIRCUIT)

<DOOR MIRROR TYPE>

DOOR
MIRROR
ASSEMBLY
(LH)

DOOR
MIRROR
ASSEMBLY
(RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

NOTE

: VEHICLES WITH KOS

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-155

NOTES

STOPLIGHT

TSB Revision

CIRCUIT DIAGRAMS

90-156

STOPLIGHT

M1901003004399

FUSIBLE
LINK

34

STOPLIGHT
SWITCH

STOPLIGHT
RELAY

ETACS-
ECU

POWER
DISTRIBUTION
SYSTEM

·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS) AND
 ACTIVE STABILITY CONTROL SYSTEM (ASC)
·CRUISE CONTROL SYSTEM
·INVECS-II 6A/T
·INVECS-III CVT
·MFI SYSTEM
·SHIFT LOCK MECHANISM

SHIFT LOCK
MECHANISM
