DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT
TSB Revision

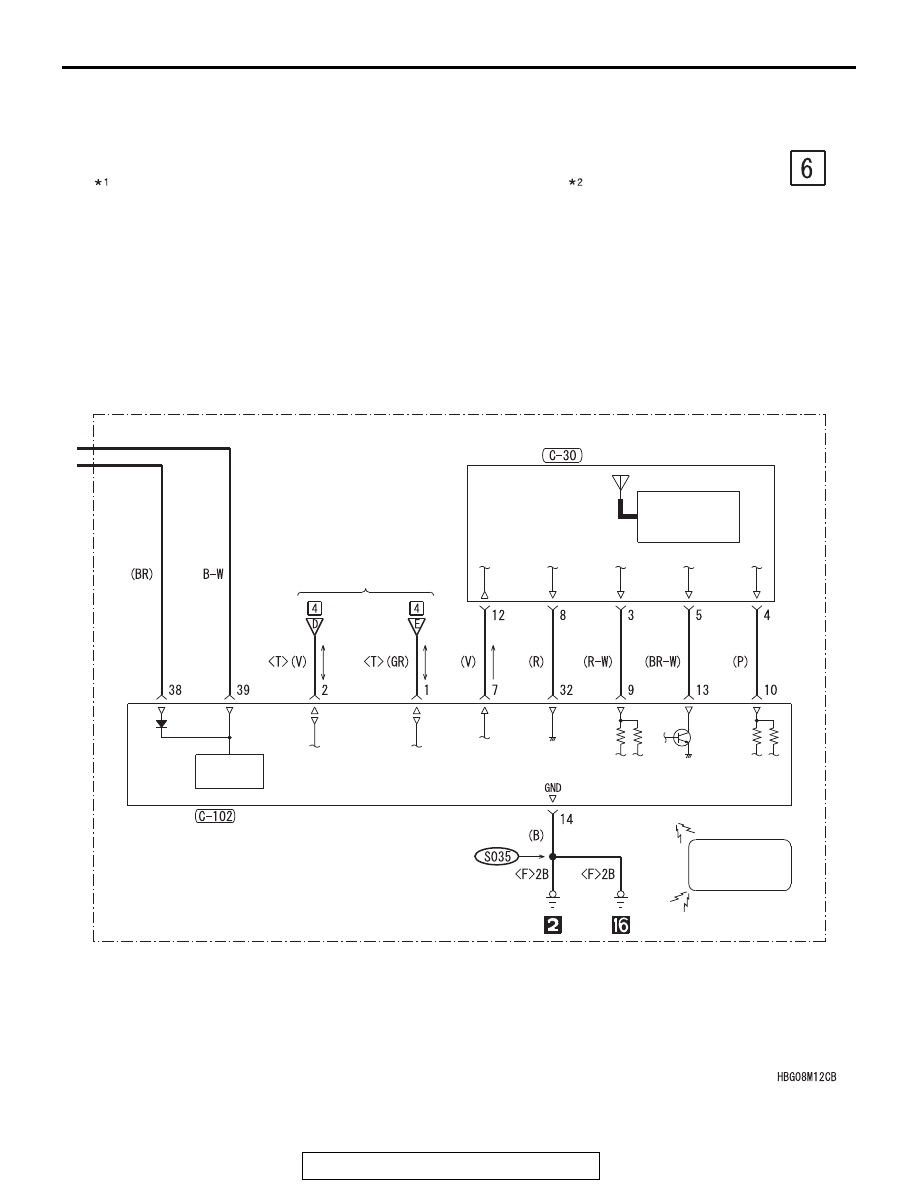

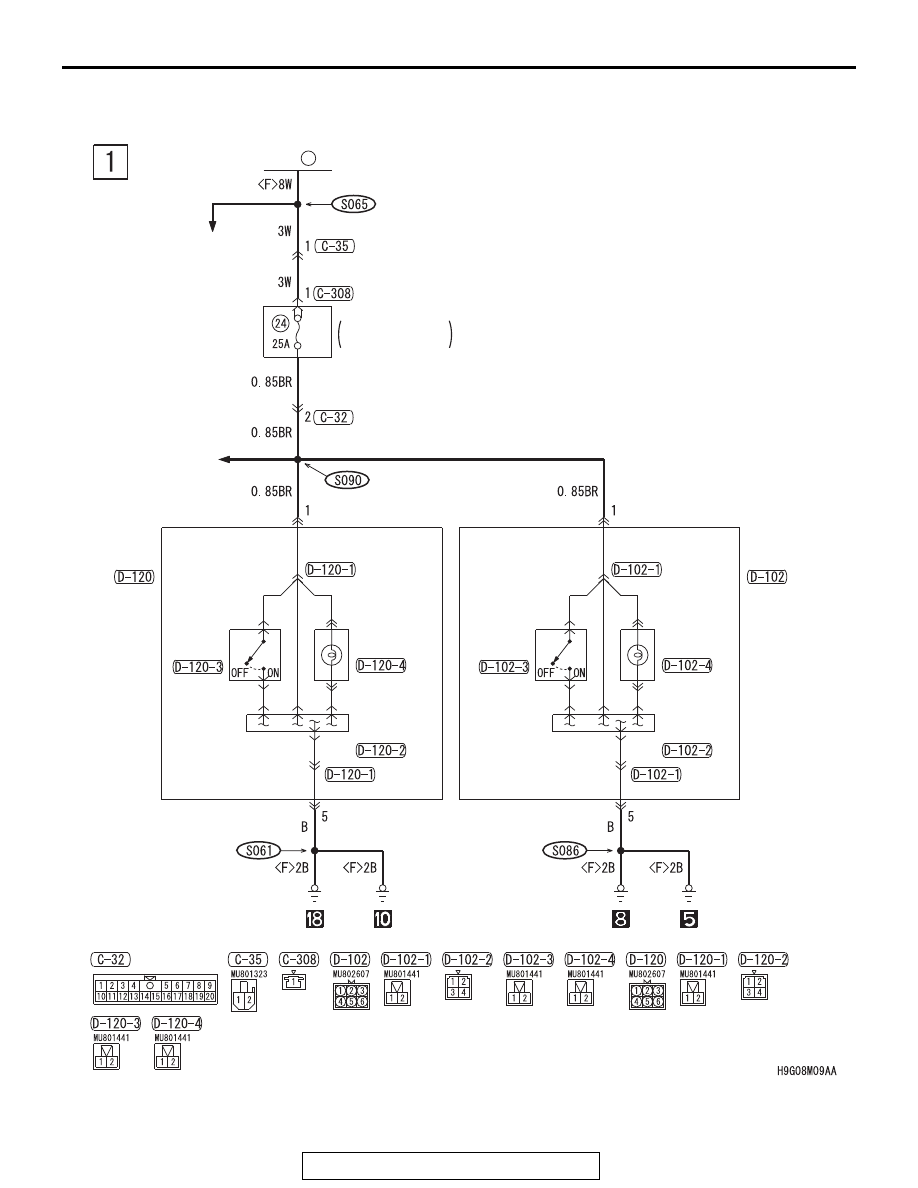

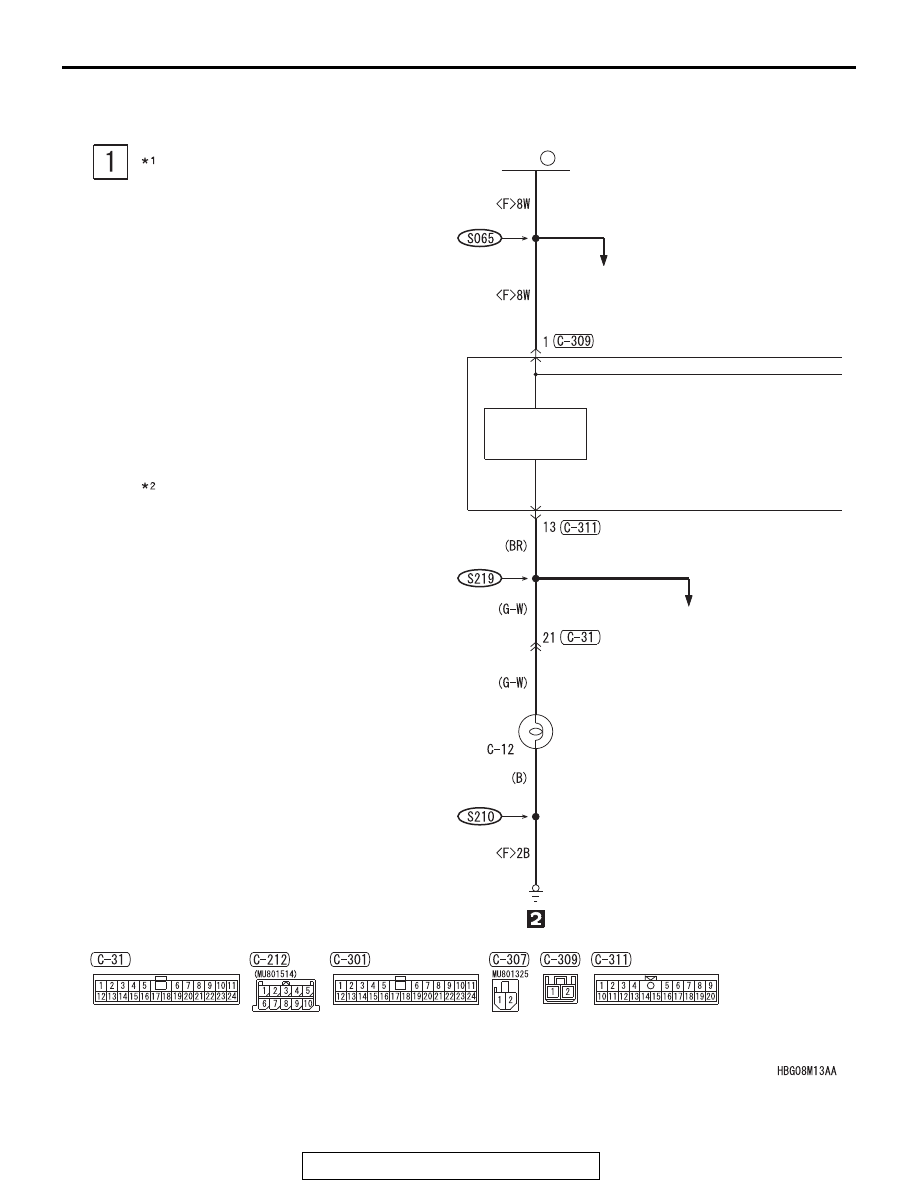

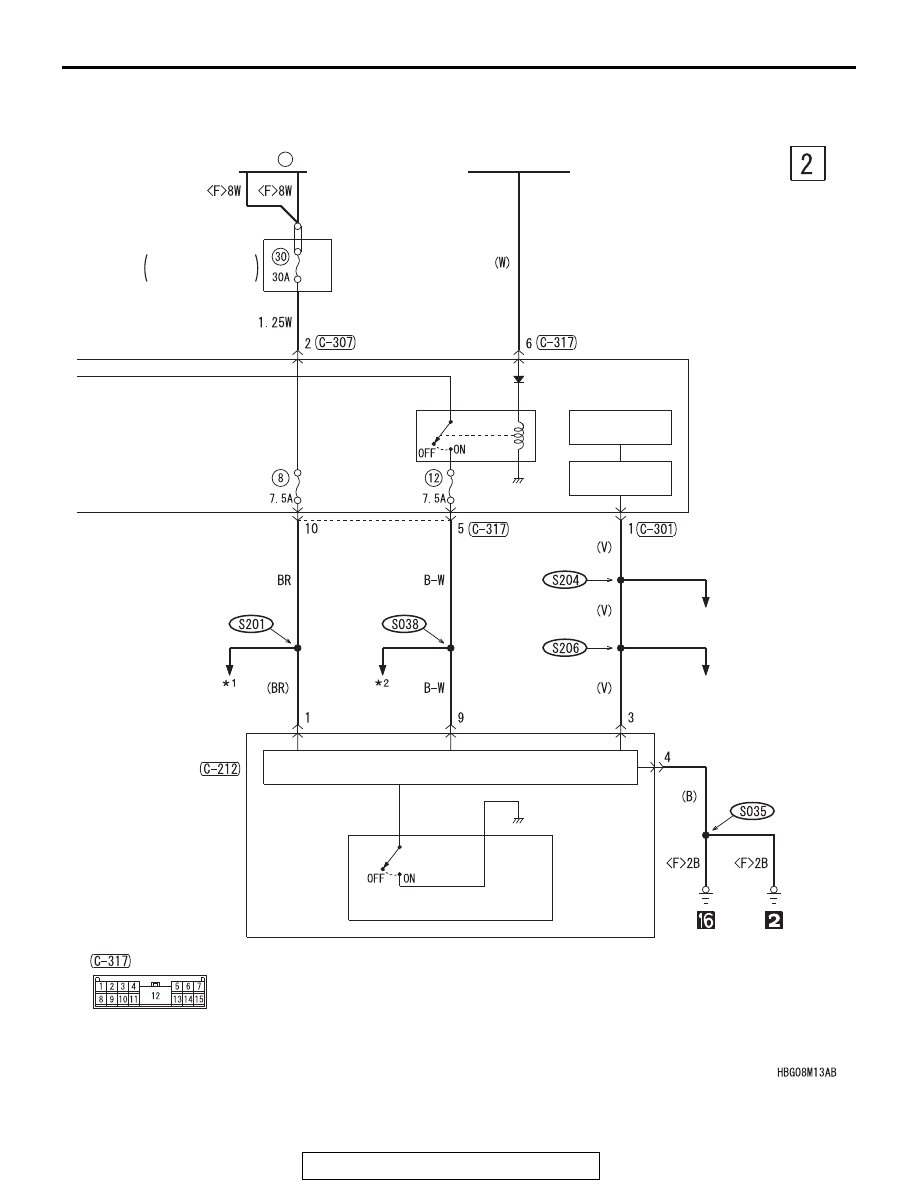

CIRCUIT DIAGRAMS
90-145
KEYLESS
ENTRY
RECEIVER
<VEHICLES WITH KOS>
JOINT CONNECTOR
(CAN1)
RECEIVER ANTENNA
MODULE
KEYLESS
OPERATION
KEY
POWER
SUPPLY
KOS-ECU
: ·AIR CONDITIONING SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·FOG LIGHT
·GLOVE BOX LIGHT
·HEADLIGHT
·IGNITION KEY REMINDER TONE ALARM
<VEHICLES WITH KOS>
·KEYLESS OPERATING SYSTEM (KOS)
·REAR WIPER AND WASHER
·TAILLIGHT, POSITION LIGHT, REAR SIDE
MARKER LIGHT, LICENSE PLATE LIGHT
AND LIGHTING MONITOR TONE ALARM
·THEFT-ALARM SYSTEM
<VEHICLES WITH THEFT-ALARM
SENSOR>
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM (ABS)
·ANTI-LOCK BRAKING SYSTEM (ABS) AND
ACTIVE STABILITY CONTROL SYSTEM (ASC)
·BRAKE WARNING LIGHT,
FUEL WARNING LIGHT AND
OIL PRESSURE WARNING LIGHT
·CHARGING SYSTEM
·COOLING SYSTEM
·CRUISE CONTROL SYSTEM
·DAYTIME RUNNING LIGHT (DRL)
·DOOR AJAR WARNING TONE ALARM
·ELECTRONIC CONTROLLED AWD
·FOG LIGHT
·GLOVE BOX LIGHT
·HANDS-FREE INTERFACE SYSTEM
·HEADLIGHT
·HEATED DOOR MIRROR
·HEATED SEAT
·INVECS-II 6A/T
·INVECS-III CVT
·METER AND GAUGE
·MFI SYSTEM
·PARKING BRAKE REMINDER
TONE ALARM
·REAR WINDOW DEFOGGER
·REAR WIPER AND WASHER
·S-AWC
·SEAT BELT WARNING TONE ALARM
·SHIFT LOCK MECHANISM
·SUNROOF
·SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
·TAILLIGHT, POSITION LIGHT, REAR SIDE
MARKER LIGHT, LICENSE PLATE LIGHT
AND LIGHTING MONITOR TONE ALARM
·TIRE PRESSURE MONITORING
SYSTEM (TPMS)
·TURN-SIGNAL LIGHT AND HAZARD
WARNING LIGHT
·WINDSHIELD WIPER AND WASHER
:
NOTE
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
