Mitsubishi Outlander GS45X. Manual - part 252
INVECS-III CVT
TSB Revision

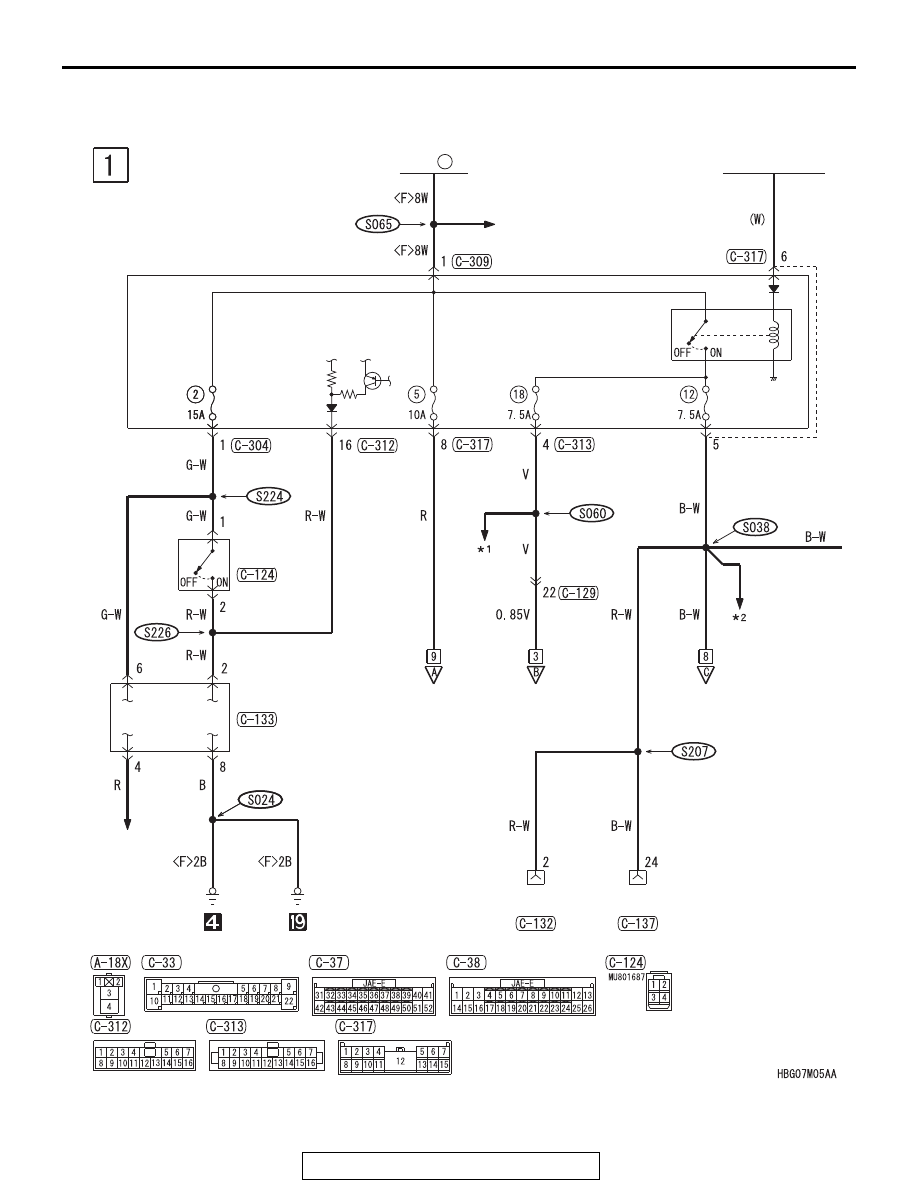

CIRCUIT DIAGRAMS
90-89
ETACS-ECU
(CAN DRIVE CIRCUIT)
ETACS-ECU
INTERFACE
CIRCUIT
INTERFACE
CIRCUIT
CAN TRANSCEIVER
CIRCUIT
LCD
CVT POSITION
CVT TEMPERATURE
CVT FAILURE
COMBINATION METER
RHEOSTAT
RELAY BOX
(FUSE )
30
ETACS-ECU
12
(FUSE )
CPU
TONE
ALARM
·AIR CONDITIONING
SYSTEM
·ANTI-LOCK BRAKING
SYSTEM (ABS) AND
ACTIVE STABILITY
CONTROL SYSTEM (ASC)
·AUDIO SYSTEM
·CRUISE CONTROL
SYSTEM
·ELECTRONIC
CONTROLLED AWD
·HANDS-FREE
INTERFACE SYSTEM
·REAR SEAT
ENTERTAINMENT SYSTEM
·SPARE CONNECTOR
(FOR REAR DISPLAY)
·TURN-SIGNAL LIGHT AND
HAZARD WARNING LIGHT
·UNIVERSAL SERIAL
BUS (USB) BOX
THEFT-ALARM
SYSTEM
JOINT
CONNECTOR
(CAN1)
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE W : WHITE Y : YELLOW SB : SKY BLUE
BR : BROWN O : ORANGE GR : GRAY R : RED P : PINK V : VIOLET PU : PURPLE SI : SILVER
