Mitsubishi Outlander GS45X. Manual - part 251

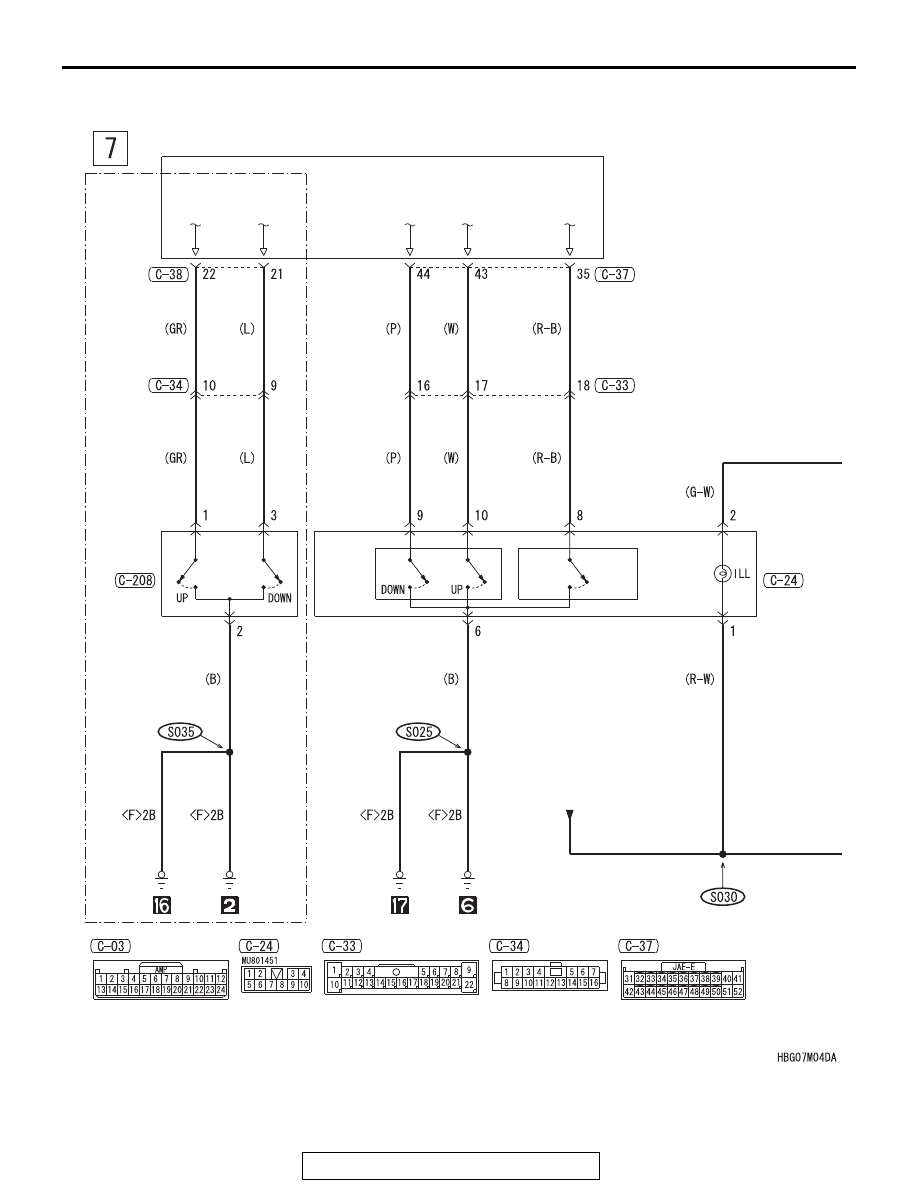

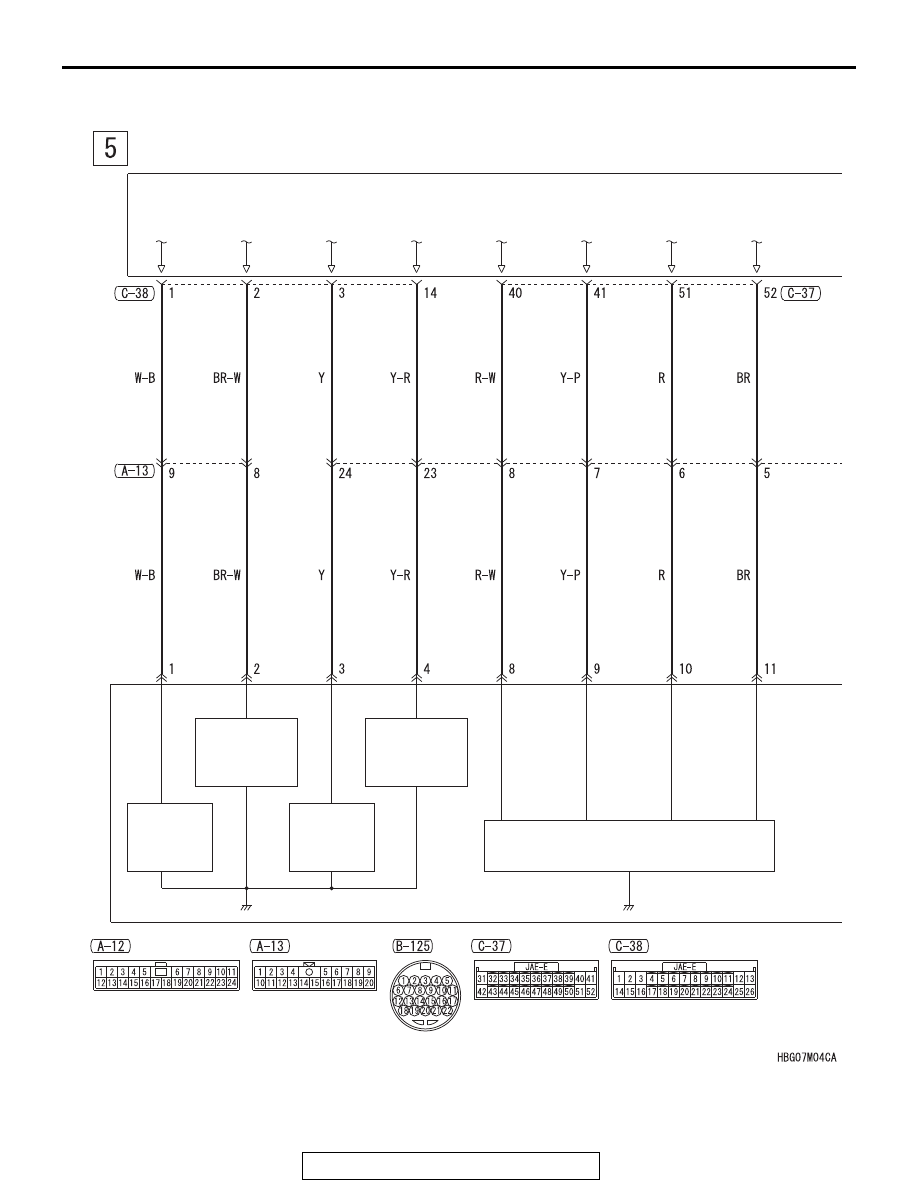

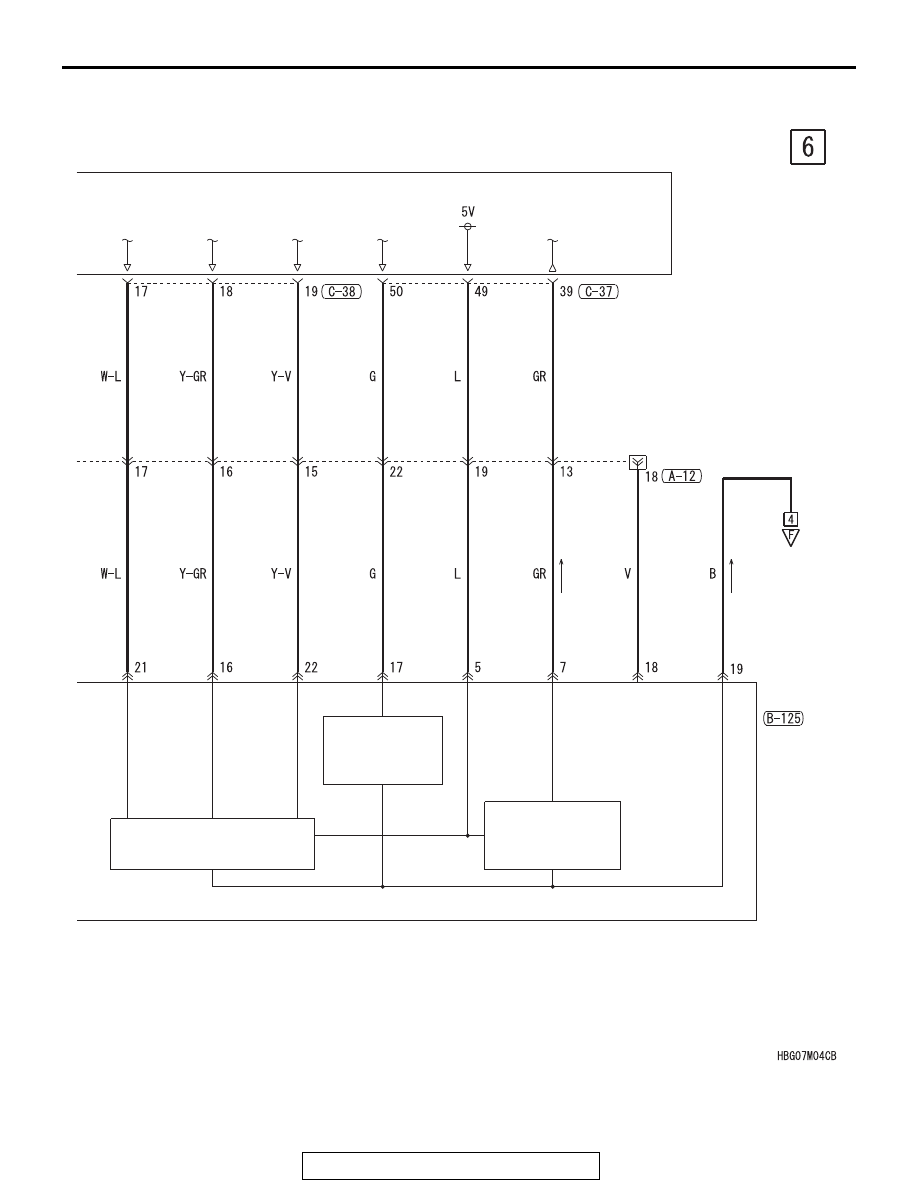

INVECS-III CVT

TSB Revision

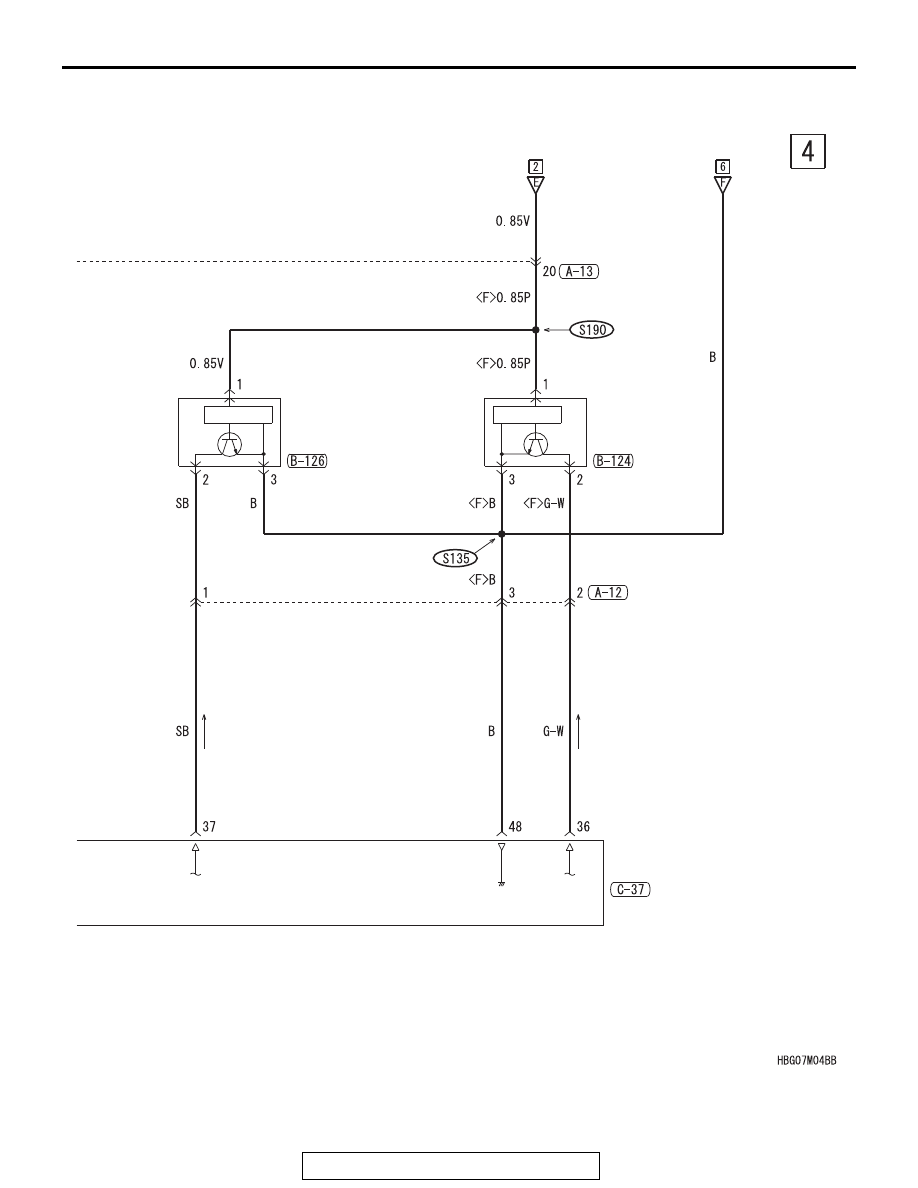

CIRCUIT DIAGRAMS

90-85

CVT
CONTROL RELAY

CVT
ASSEMBLY

SECONDARY
PULLEY
SPEED
SENSOR

PRIMARY
PULLEY
SPEED
SENSOR

TRANSAXLE
CONTROL
MODULE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

INVECS-III CVT

TSB Revision

CIRCUIT DIAGRAMS

90-86

INVECS-III CVT (CONTINUED)

LINE
PRESSURE
SOLENOID
VALVE

SECONDARY
PRESSURE
SOLENOID
VALVE

LOCK-UP
SOLENOID
VALVE

LOCK-UP
SELECTION
SOLENOID
VALVE

STEPPER MOTOR

INVECS-III CVT

TSB Revision

CIRCUIT DIAGRAMS

90-87

ROM-ASSEMBLY

TRANSMISSION
FLUID
TEMPERATURE
SENSOR

SECONDARY
TRANSMISSION
FLUID PRESSURE
SENSOR

CVT
ASSEMBLY

TRANSAXLE
CONTROL
MODULE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW     SB : SKY BLUE
BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET     PU : PURPLE     SI : SILVER

INVECS-III CVT

TSB Revision

CIRCUIT DIAGRAMS

90-88

INVECS-III CVT (CONTINUED)

PADDLE
SHIFT
SWITCH

SHIFT
SWITCH

SPORT
MODE

AUTO
MODE

SELECT
SWITCH

SELECTOR
LEVER
ASSEMBLY

<VEHICLES WITH
PADDLE SHIFT>

·AIR CONDITIONING SYSTEM
·ANTI-LOCK BRAKING SYSTEM
 (ABS) AND ACTIVE STABILITY
 CONTROL SYSTEM (ASC)
·AUDIO SYSTEM
·ELECTRONIC CONTROLLED AWD
·HANDS-FREE INTERFACE SYSTEM
·TURN-SIGNAL LIGHT AND
 HAZARD WARNING LIGHT
·UNIVERSAL SERIAL BUS (USB) BOX

TRANSAXLE
CONTROL
MODULE
