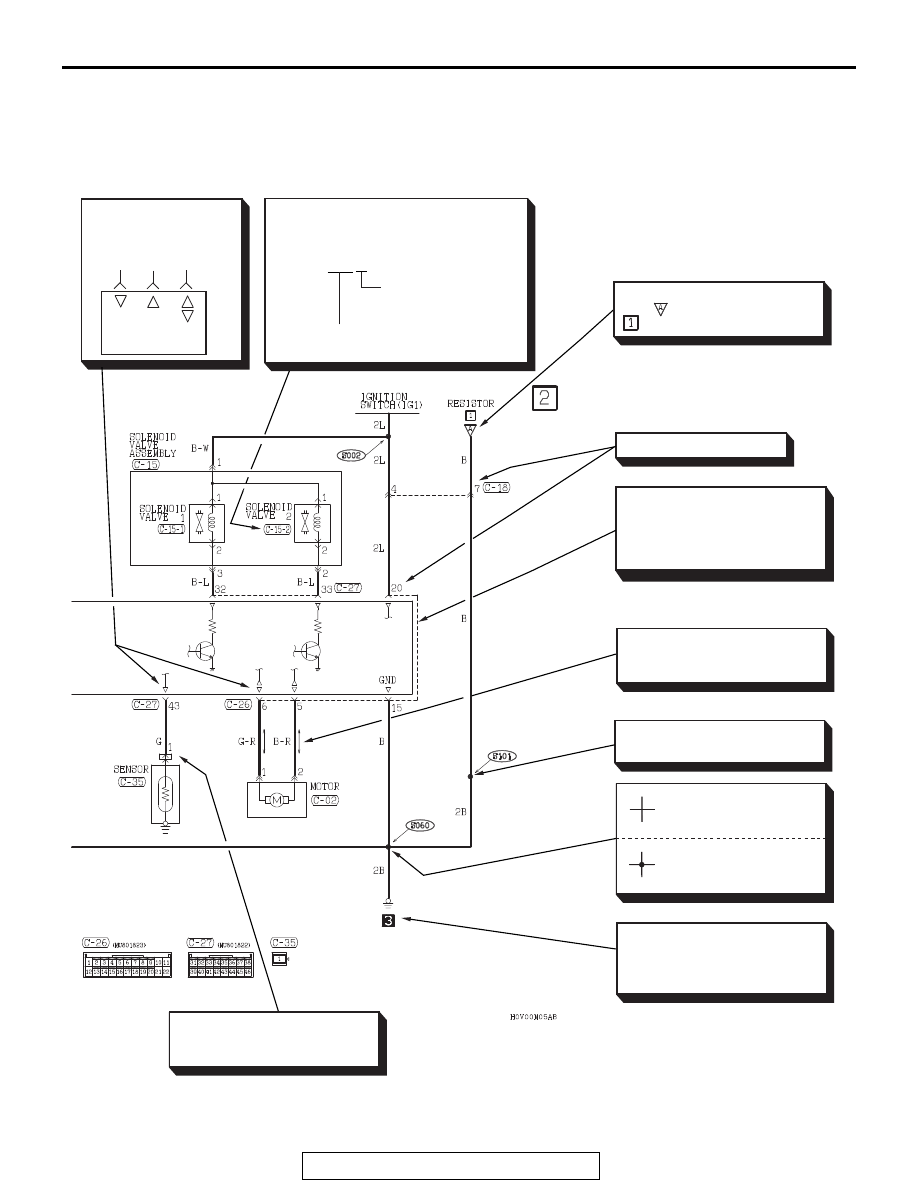

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-5

AC106604

Indicates representative vehicle
body ground point. (Same
number as that of ground point in
GROUNDING LOCATION).

Indicates harness junction where
wire diameter or color changes.

In case two or more connectors
are connected to the same de-
vice, markings indicating
the same connector is
connected by a broken line.

Indicates terminal number.

Indicates intersections at
which the lead wires are
not connected.

Indicates intersections at
which the lead wires are
connected.

Indicates input/output
to/from control unit
(current flow direction).

Input Output

Input/
output

AE

Indicates that the diagram comes
from        which belongs to the
       block in the same circuit.

Indicates a wiring connector which is inside
the equipment and which is not shown in
the wiring harness configuration diagram.

Example  C-15-2

Indicates a connector
which is inside the
equipment, numbered
in order starting from 1.

Indicates the connector number shown in
the wiring harness configuration diagram.

Bi-directional arrow indicates
that current flows in both direc-
tions due to control by an ECU.

Indicates that the terminal is a
spare one if the device (sensor
in this case) is not provided.

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-6

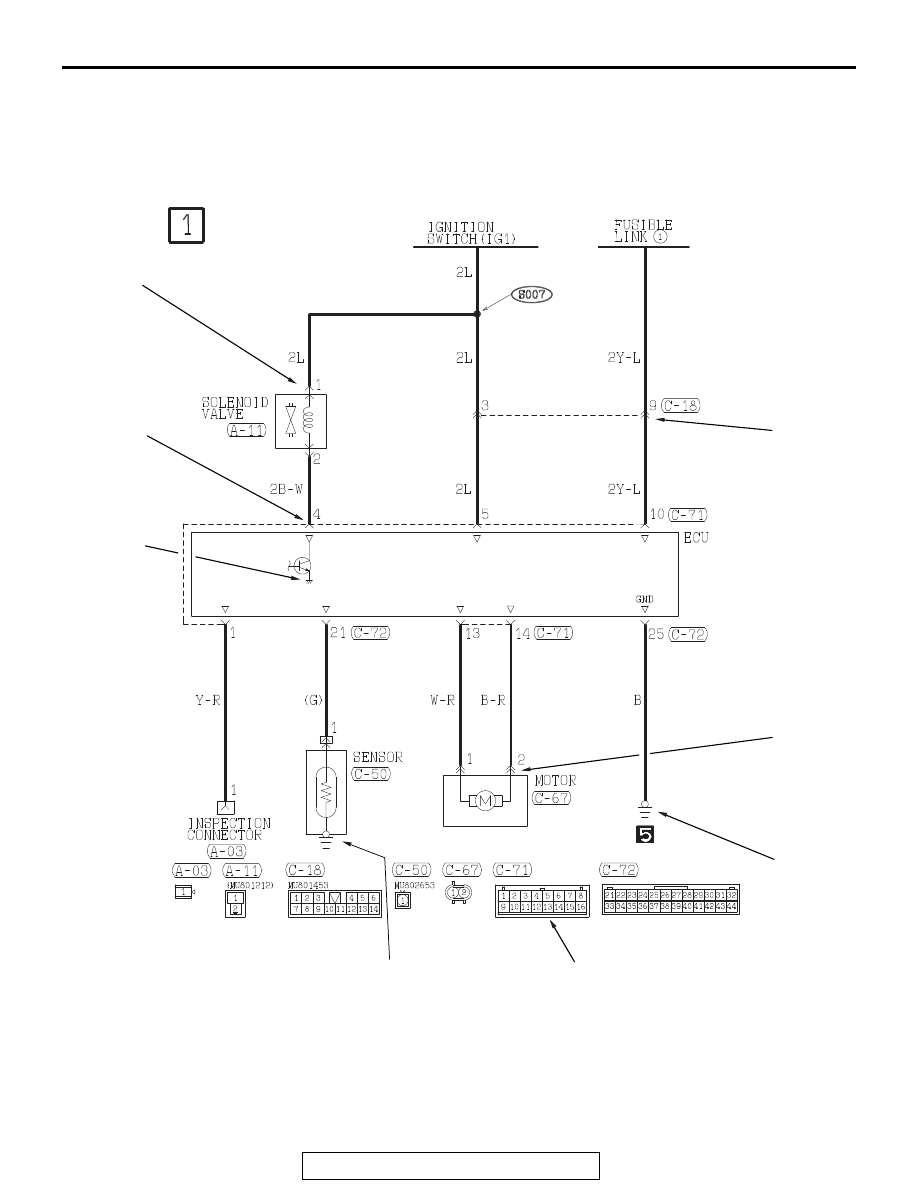

CONNECTOR/GROUNDING INDICATIONS

ACX02364AC

3

1

8

7

2

6

4

5

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-7

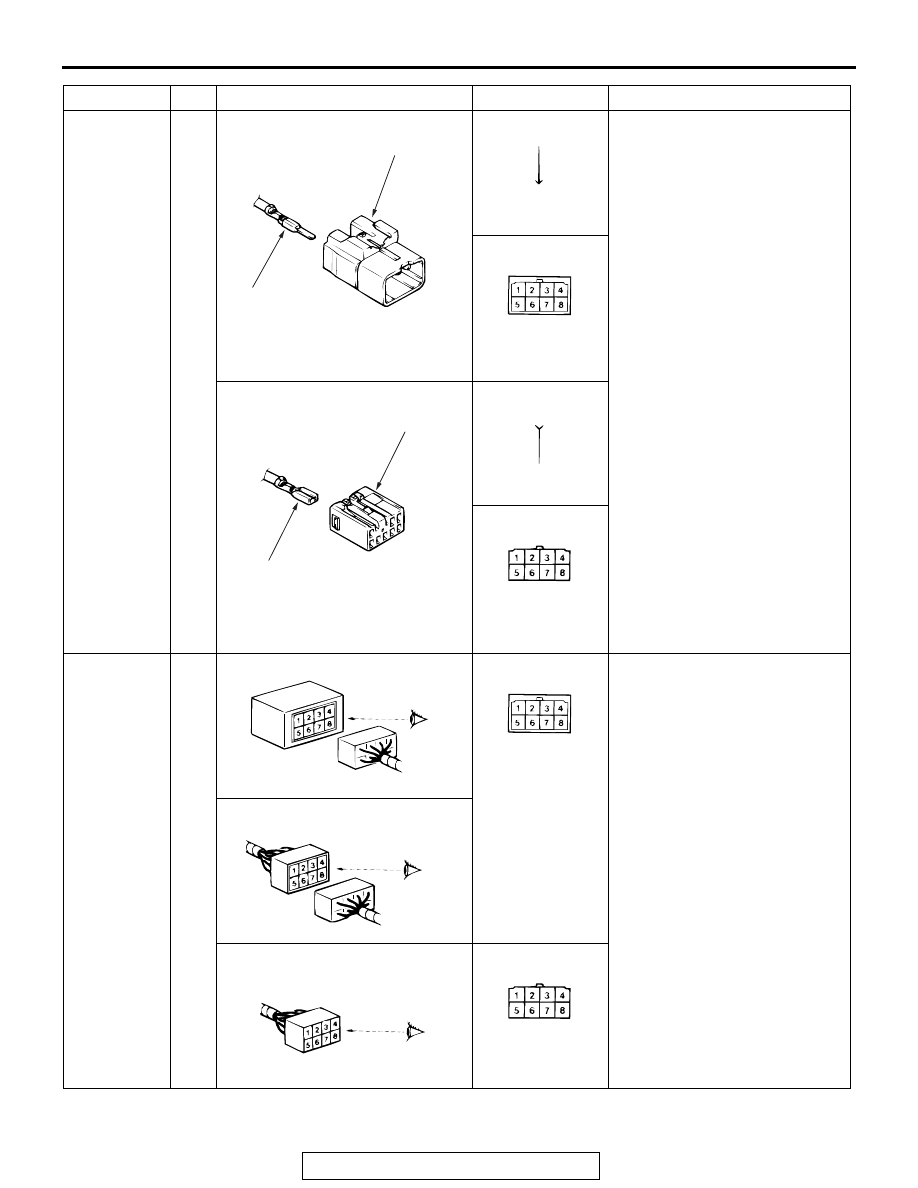

Item

No.

Connector/ Grounding

Symbol

Contents

Connector
and terminal
marking

1

The male and female terminals
are indicated as shown. The
connector with male terminal(s)
is called as male connector and
indicated by two connector
contour lines, while the
connector with female
terminal(s) is called as female
connector and indicated by
single connector contour line.

Connector
symbol
marking

2

The symbol indicates the
connector is viewed as shown.
At a device connection, the
connector symbol on the device
side is shown. For an
intermediate connector, the
male connector symbol is
shown. For spare connectors
and check connectors, no
device is connected, and so the
harness-side connector symbol
is shown for these connectors.
However, a data link connector
is exceptional.

ACX01251AB

Male terminal

Male connector

ACX01252AB

Male terminal

ACX01253 AB

Male connector

ACX01254 AB

Female terminal

Female connector

ACX01255AB

Female terminal

ACX01256 AB

Female connector

ACX01257AB

Device

ACX01253

ACX01258AB

Intermediate connector

ACX01816

Spare connector, check connector

AB

ACX01256

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-8

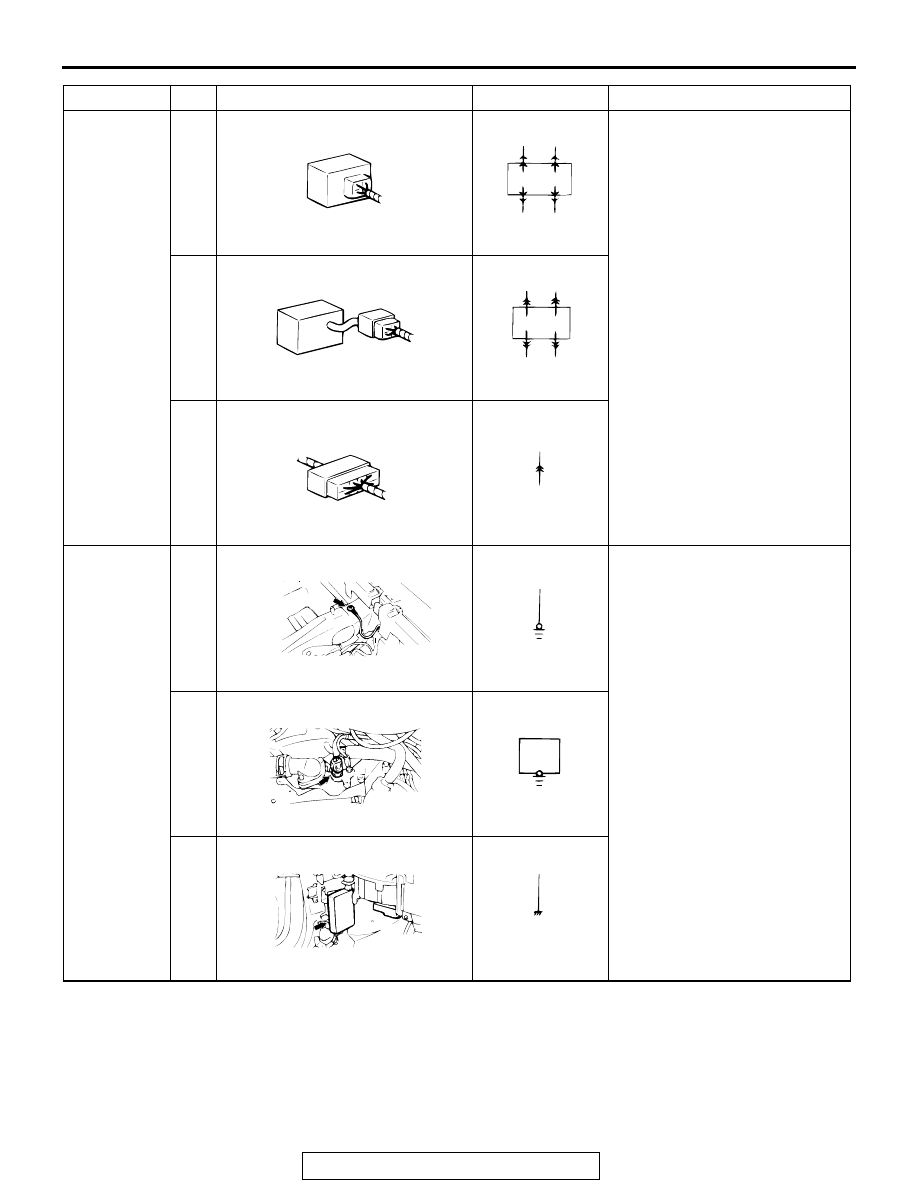

Connector
connection
marking

3

Connection between a device
and the harness is either by
direct insertion in the device
(direct connection type) or by
connection with a harness
connector furnished on the
device side (harness
connection type). The two types
are indicated as illustrated.

4

5

Ground
marking

6

Grounding is either by body
ground, device ground or
control unit interior ground.
These are indicated as
illustrated.

7

8

Item

No.

Connector/ Grounding

Symbol

Contents

ACX01260 AB

Direct connection type

ACX01261

ACX01262 AB

Harness connection type

ACX01263

ACX01264AB

Intermediate connector

ACX01265

ACX01273

AB

Body ground

ACX01274

ACX01275

AB

Device ground

ACX01276

ACX01277

AB

Ground in control unit

ACX01278
