90-1

GROUP 90

CIRCUIT DIAGRAMS

CONTENTS

HOW TO READ CIRCUIT



DIAGRAMS  . . . . . . . . . . . . . . . . . . . .

90-4

ETACS-ECU. . . . . . . . . . . . . . . . . . . .

90-10

CENTRALIZED JUNCTION . . . . . . . .

90-14

POWER DISTRIBUTION SYSTEM . .

90-24

STARTING SYSTEM . . . . . . . . . . . . .

90-32

IGNITION SYSTEM <2.4L ENGINE>.

90-34

IGNITION SYSTEM <3.0L ENGINE>.

90-38

CHARGING SYSTEM  . . . . . . . . . . . .

90-42

MFI SYSTEM <2.4L ENGINE>. . . . . .

90-48

MFI SYSTEM <3.0L ENGINE>. . . . . .

90-60

COOLING SYSTEM <2.4L ENGINE>

90-72

COOLING SYSTEM <3.0L ENGINE>

90-76

SHIFT LOCK MECHANISM . . . . . . . .

90-80

INVECS-III CVT  . . . . . . . . . . . . . . . . .

90-82

INVECS-II 6A/T . . . . . . . . . . . . . . . . . .

90-92

HEADLIGHT <HALOGEN TYPE>  . . .

90-102

HEADLIGHT <DISCHARGE TYPE>  .

90-110

TAILLIGHT, POSITION LIGHT, REAR SIDE
MARKER LIGHT, LICENSE PLATE LIGHT
AND LIGHTING MONITOR TONE



ALARM . . . . . . . . . . . . . . . . . . . . . . . .

90-118

HEADLIGHT MANUAL LEVELING



SYSTEM . . . . . . . . . . . . . . . . . . . . . . .

90-126

FOG LIGHT . . . . . . . . . . . . . . . . . . . . .

90-130

DAYTIME RUNNING LIGHT (DRL)



<VEHICLES WITH HALOGEN TYPE
HEADLIGHT> . . . . . . . . . . . . . . . . . . .

90-132

DAYTIME RUNNING LIGHT (DRL)



<VEHICLES WITH DISCHARGE TYPE
HEADLIGHT> . . . . . . . . . . . . . . . . . . .

90-136

DOME LIGHT, LUGGAGE COMPARTMENT
LIGHT AND IGNITION KEY HOLE
ILLUMINATION LIGHT . . . . . . . . . . . .

90-140

Continued on next page

90-2

GLOVE BOX LIGHT. . . . . . . . . . . . . .

90-146

FOOT LIGHT  . . . . . . . . . . . . . . . . . . .

90-148

VANITY MIRROR LIGHT . . . . . . . . . .

90-149

TURN-SIGNAL LIGHT AND HAZARD
WARNING LIGHT  . . . . . . . . . . . . . . .

90-150

STOPLIGHT . . . . . . . . . . . . . . . . . . . .

90-156

BACKUP LIGHT. . . . . . . . . . . . . . . . .

90-158

HORN . . . . . . . . . . . . . . . . . . . . . . . . .

90-160

METER AND GAUGE  . . . . . . . . . . . .

90-162

BRAKE WARNING LIGHT, FUEL WARNING
LIGHT AND OIL PRESSURE WARNING



LIGHT . . . . . . . . . . . . . . . . . . . . . . . . .

90-166

POWER WINDOWS . . . . . . . . . . . . . .

90-170

CENTRAL DOOR LOCKING



SYSTEM . . . . . . . . . . . . . . . . . . . . . . .

90-176

KEYLESS OPERATING SYSTEM



(KOS) . . . . . . . . . . . . . . . . . . . . . . . . .

90-186

AIR CONDITIONING SYSTEM  . . . . .

90-196

WINDSHIELD WIPER AND WASHER

90-208

REAR WIPER AND WASHER . . . . . .

90-212

REAR WINDOW DEFOGGER . . . . . .

90-216

HEATED DOOR MIRROR . . . . . . . . .

90-218

REMOTE CONTROLLED MIRROR . .

90-222

AUDIO SYSTEM <VEHICLES WITHOUT
AUDIO AMPLIFIER>  . . . . . . . . . . . . .

90-224

AUDIO SYSTEM <VEHICLES WITH AUDIO
AMPLIFIER> . . . . . . . . . . . . . . . . . . . .

90-230

ACCESSORY SOCKET . . . . . . . . . . .

90-240

MITSUBISHI MULTI-COMMUNICATION
SYSTEM (MMCS) <VEHICLES WITHOUT
AUDIO AMPLIFIER>  . . . . . . . . . . . . .

90-242

MITSUBISHI MULTI-COMMUNICATION
SYSTEM (MMCS) <VEHICLES WITH



AUDIO AMPLIFIER>  . . . . . . . . . . . . .

90-254

UNIVERSAL SERIAL BUS (USB)



BOX. . . . . . . . . . . . . . . . . . . . . . . . . . .

90-268

HANDS-FREE INTERFACE SYSTEM

90-278

REAR SEAT ENTERTAINMENT



SYSTEM . . . . . . . . . . . . . . . . . . . . . . .

90-290

SPARE CONNECTOR (FOR SATELLITE
RADIO) . . . . . . . . . . . . . . . . . . . . . . . .

90-300

SPARE CONNECTOR (FOR NAVIGATION
SYSTEM). . . . . . . . . . . . . . . . . . . . . . .

90-302

SPARE CONNECTOR



(FOR REAR DISPLAY). . . . . . . . . . . .

90-306

ANTI-LOCK BRAKING SYSTEM



(ABS). . . . . . . . . . . . . . . . . . . . . . . . . .

90-312

Continued on next page

90-3

ANTI-LOCK BRAKING SYSTEM (ABS) AND
ACTIVE STABILITY CONTROL SYSTEM
(ASC) . . . . . . . . . . . . . . . . . . . . . . . . .

90-318

SUPPLEMENTAL RESTRAINT SYSTEM



(SRS)  . . . . . . . . . . . . . . . . . . . . . . . . .

90-326

IMMOBILIZER SYSTEM  . . . . . . . . . .

90-336

ELECTRONIC CONTROLLED AWD.

90-340

SUPER ALL WHEEL CONTROL



(S-AWC) . . . . . . . . . . . . . . . . . . . . . . .

90-346

CRUISE CONTROL SYSTEM . . . . . .

90-354

TIRE PRESSURE MONITORING SYSTEM
(TPMS) . . . . . . . . . . . . . . . . . . . . . . . .

90-362

SUNROOF . . . . . . . . . . . . . . . . . . . . .

90-366

POWER SEAT . . . . . . . . . . . . . . . . . .

90-370

HEATED SEAT  . . . . . . . . . . . . . . . . .

90-372

IGNITION KEY REMINDER TONE ALARM
<VEHICLES WITHOUT KOS> . . . . . .

90-376

IGNITION KEY REMINDER TONE ALARM
<VEHICLES WITH KOS> . . . . . . . . . .

90-378

DOOR AJAR WARNING TONE



ALARM . . . . . . . . . . . . . . . . . . . . . . . .

90-382

SEAT BELT WARNING TONE



ALARM . . . . . . . . . . . . . . . . . . . . . . . .

90-386

PARKING BRAKE REMINDER TONE



ALARM . . . . . . . . . . . . . . . . . . . . . . . .

90-390

THEFT-ALARM SYSTEM <VEHICLES
WITHOUT THEFT-ALARM SENSOR>

90-394

THEFT-ALARM SYSTEM <VEHICLES WITH
THEFT-ALARM SENSOR>  . . . . . . . .

90-402

SPARE CONNECTOR (FOR HANDS-FREE
INTERFACE SYSTEM) . . . . . . . . . . . .

90-412

SPARE CONNECTOR (FOR TRAILER
LIGHTS)  . . . . . . . . . . . . . . . . . . . . . . .

90-416

CONTROLLER AREA NETWORK



(CAN)  . . . . . . . . . . . . . . . . . . . . . . . . .

90-418

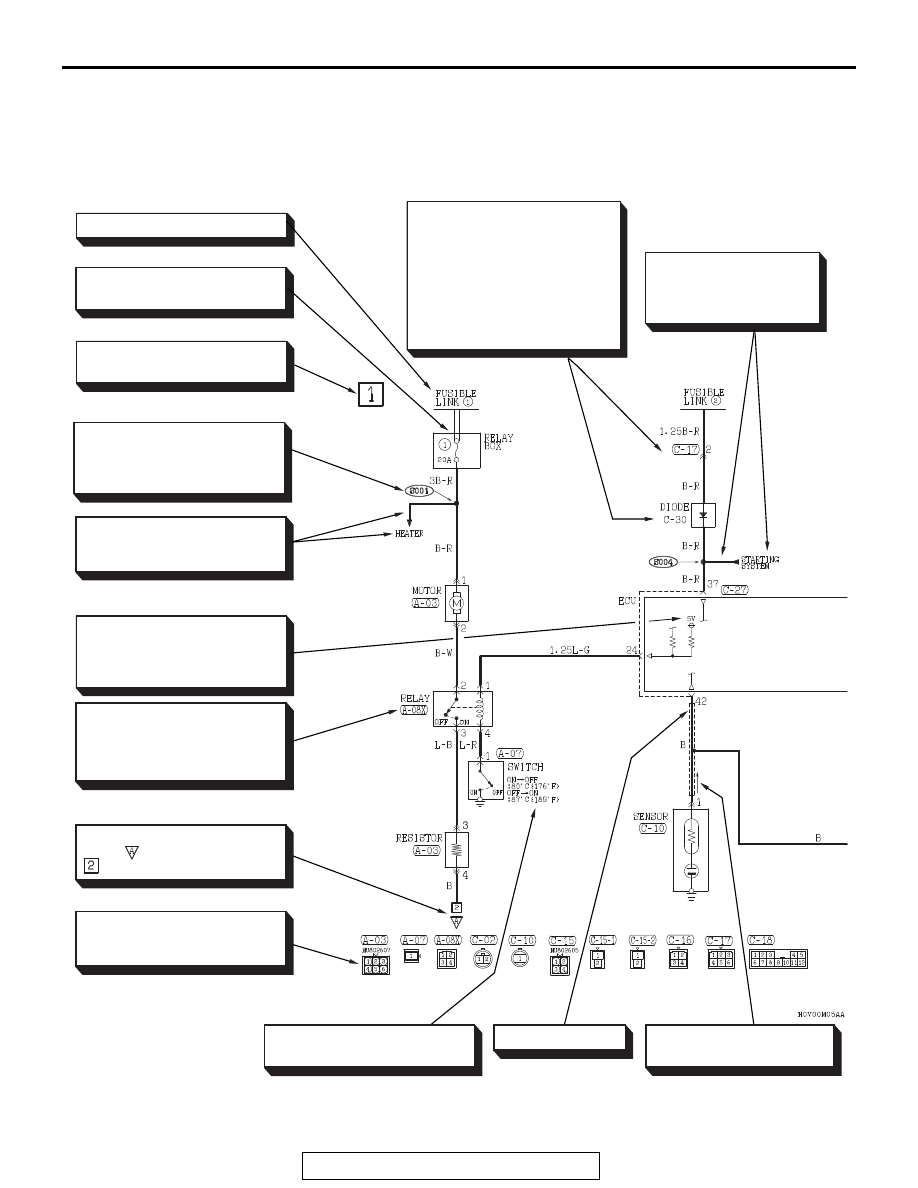

HOW TO READ CIRCUIT DIAGRAMS

TSB Revision

CIRCUIT DIAGRAMS

90-4

HOW TO READ CIRCUIT DIAGRAMS

M1901000100919

The circuit of each system from the fuse (or fusible link) to ground is shown. The power supply is shown at

the top and the ground at the bottom to facilitate understanding of how the current flows. Some variations are

included in one circuit diagram. Accordingly, some diagrams may not be applicable for individual vehicles.The

circuit diagrams show the state when switches are operated.

AC106603

Indicates power source.

Indicates that terminal is conne-
cted via a plate in the relay box.

Each circuit diagram consists of
block(s).

Indicates splice point numbers.
These numbers are identical to
those described in "Splice Loca-
tions."

Indicates the circuit name to be
connected. The arrow indicates
the current flow direction.

Indicates the power supply in
the control unit. If no voltage is
displayed, this indicates battery
positive voltage.

An "X" at the end of a connector
number indicates that the conn-
ector is connected to a central-
ized junction that is shown in the
section "Centralized Junction."

Indicates the connector symbol.
Connectors in the circuit diagram
are indicated in numerical order.

Indicates connector number.
The same number is used in the
wiring harness diagram.
Connector and connector numbers
are shown at the lower part of the
page.
Connector numbers not enclosed
by frame indicate the device incor-
porated into wiring harness.

Indicates the circuit name
to be connected. The arrow
indicates the current flow
direction.

Indicates that the diagram contin-
ues at        which belongs to the
       block in the same circuit.

AG

One-directional arrow indicate
that current flows upwards.

Indicates shield wire.

Indicates the operating conditions
of the engine coolant switch, etc.
