Mitsubishi Outlander GS45X. Manual - part 228

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-23

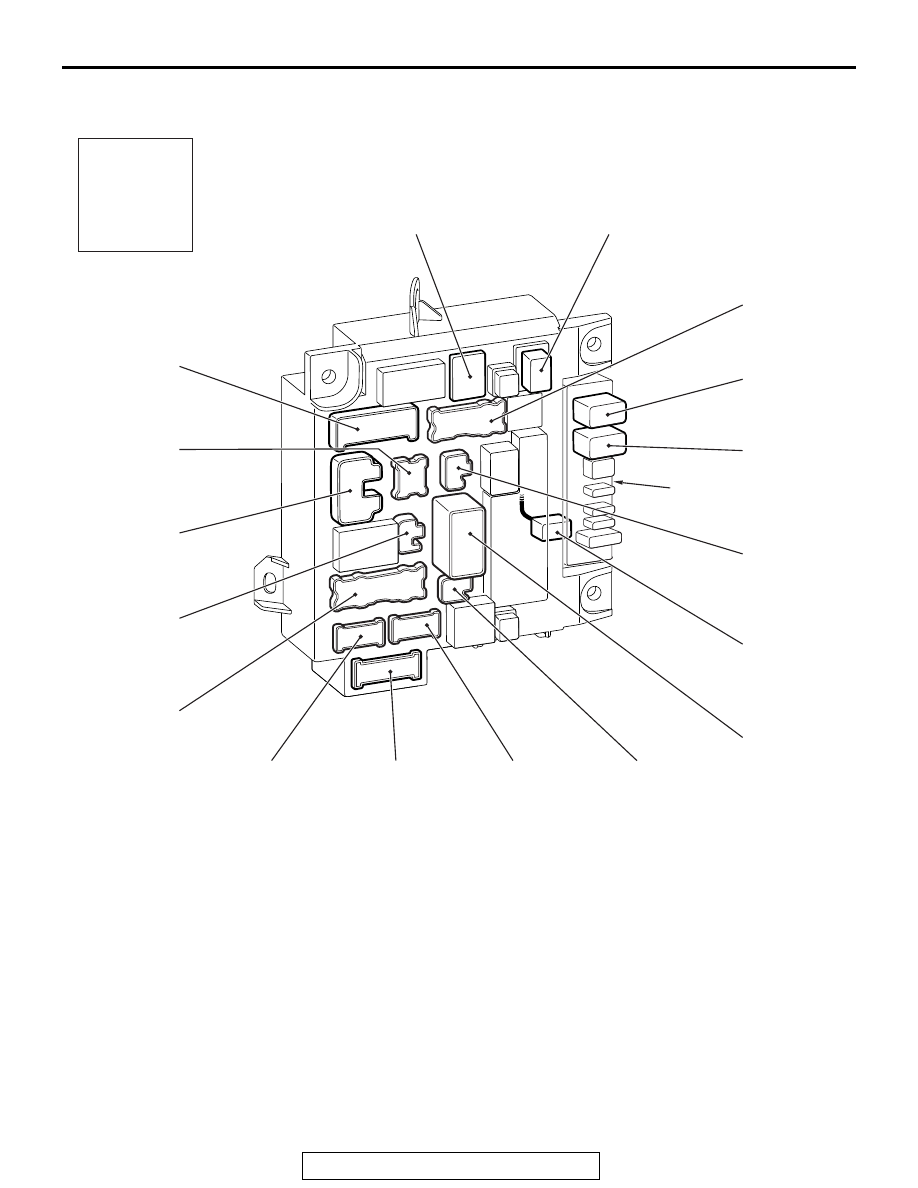

DASH PANEL (CONTINUED)

AC905098

C-302

C-303

Connector
symbol

-301
thru
-317

Relay
box

C-304

C-305

C-306

C-307

C-308

C-309

C-310

C-312

C-301

C-313

C-311

C-314

C-315

C-316

C-317

ETACS-ECU

C-301 (24)

Instrument panel wiring harness and
ETACS-ECU combination

C-302 (4)

No connection

C-303 (4)

Blower relay

C-304 (16)

Front wiring harness and ETACS-ECU
combination

C-305 (4)

Heated seat relay

C-306 (4)

Rear window defogger relay

C-307 (2-B)

Front wiring harness and ETACS-ECU
combination

C-308 (1-GR)

Instrument panel wiring harness and
ETACS-ECU combination

C-309 (2-B)

Front wiring harness and ETACS-ECU
combination

C-310 (4)

No connection

C-311 (20)

Floor wiring harness and ETACS-ECU
combination

C-312 (16)

Front wiring harness and ETACS-ECU
combination

C-313 (16-BR) Floor wiring harness and ETACS-ECU

combination

C-314 (2)

Floor wiring harness and ETACS-ECU
combination

C-315 (19)

Instrument panel wiring harness and
ETACS-ECU combination

C-316 (6)

Roof wiring harness and ETACS-ECU
combination

C-317 (15)

Instrument panel wiring harness and
ETACS-ECU combination

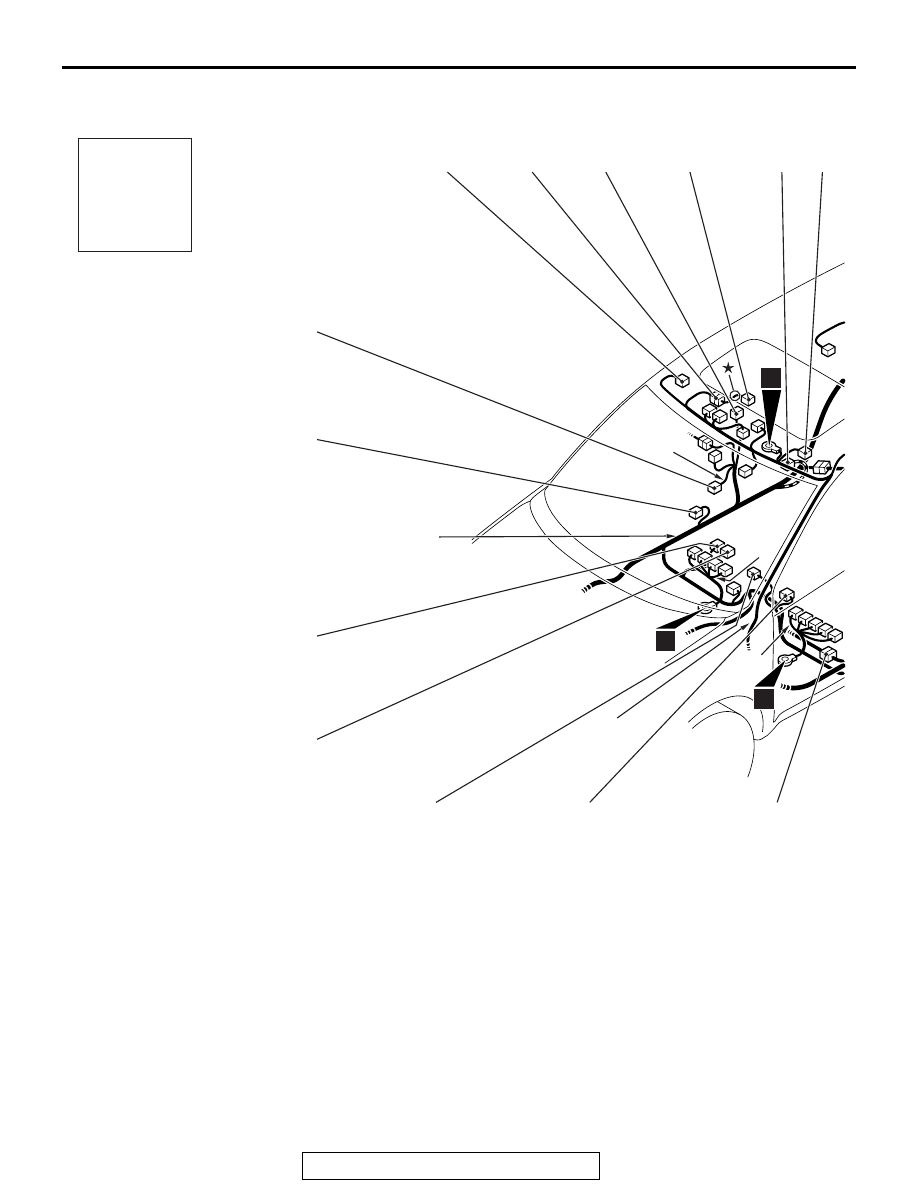

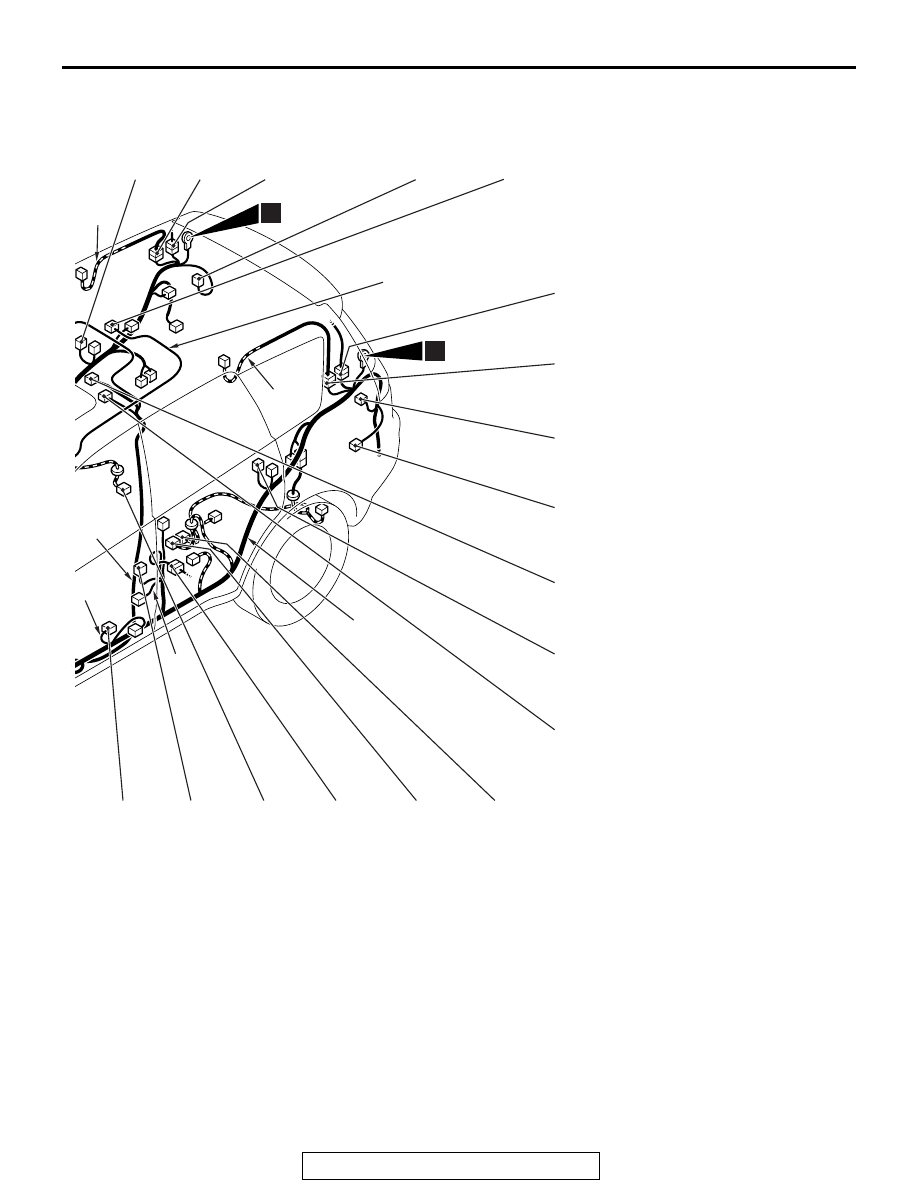

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-24

FLOOR AND ROOF

M1801000905139

ACA01905AB

Connector
symbol

-01
thru
-39

D-25

D-26

D-27

D-28

D-29

D-37
D-30

D-31

D-32

D-33

D-34

D-35

D-36

Floor wiring
harness

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

D-39

D-01

D-02

D-03

D-04

D-05

D-06

D-01

(3)

Microphone unit

D-02

(3)

Front dome light

D-03

(6-B)

Sunroof switch

D-04

(10-GR) Sunroof motor assembly

D-05

(2)

Floor wiring harness and fuel wiring
harness combination

D-06

(22-L)

Rear display unit

D-07

(3)

Rear door switch (RH)

D-08

(2-Y)

Floor wiring harness and curtain air
bag wiring harness (RH) combination

D-09

(4)

Rear combination light (RH)

D-10

(2-GR)

Rear dome light

D-12

(14)

Floor wiring harness and liftgate wiring
harness combination

D-13

(2-Y)

Floor wiring harness and curtain air
bag wiring harness (LH) combination

D-14

(4)

Rear combination light (LH)

D-15

(4-B)

Sub woofer

D-16

(10)

Rear display unit

D-17

(3)

Rear door switch (LH)

D-18

(4)

Spare connector (for rear display)

D-19

(3-B)

Fuel tank differential pressure sensor

D-20

(5-GR)

Fuel pump module

D-21

(10)

Floor wiring harness and rear door
wiring harness (LH) combination

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-25

AC900430AD

D-10

D-12

D-13

D-14

D-15

D-16

D-17

D-18

D-19

D-20

D-21

D-22

D-23

D-24

Floor wiring
harness

Roof wiring
harness

D-07

D-08

D-38

D-09

Rear
display
wiring
harness

D-22

(2)

Fuel level sensor (sub) <AWD>

D-23

(3)

Front door switch (LH)

D-24

(2-B)

Lap pre-tensioner

D-25

(2)

Power seat assembly

D-26

(4-B)

Heated seat assembly (LH)

D-27

(2-GR)

Seat slide sensor

D-28

(4-B)

Seat belt switch (Driver's side)

D-29

(2-Y)

Side-airbag module (squib) (LH)

D-30

(4-B)

No connection <3.0L engine>

D-31

(2-Y)

Side-airbag module (squib) (RH)

D-32

(2-B)

Seat belt switch (Passenger's side)

D-33

(4-B)

Heated seat assembly (RH)

D-34

(6)

Front seat assembly (RH)

D-35

(3)

Front door switch (RH)

D-36

(10)

Floor wiring harness and rear door
wiring harness (RH) combination

D-37

(4-B)

Heated oxygen sensor <2.4L engine>

D-38

(6)

Floor wiring harness and rear view
camera wiring harness combination

D-39

(4)

Lighting control sensor <Vehicles with
automatic light>

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-26

FLOOR AND ROOF (CONTINUED)

ACA01905AC

Connector
symbol

-101
thru
-138

D-123

D-124

D-125

Roof wiring
harness

Connector color
code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
NONE: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow

D-101

D-136

D-135

D-134

D-102

Floor wiring
harness

D-126

D-127

D-129

D-130

D-137

D-101 (3)

Outside transmission antenna
assembly (Passenger's side)

D-102 (6-B)

Foot light (RH)

D-104 (2-B)

Curtain air bag module (squib) (RH)

D-105 (10)

Spare connector (for switch box)

D-106 (3)

Inside transmission antenna assembly

(Rear: Passenger's side)

D-108 (2)

Accessory socket (Lower quarter trim)

D-109 (2-B)

Curtain air bag module (squib) (LH)

D-113 (4)

Floor wiring harness and evaporative

emission ventilation solenoid sub

wiring harness combination

D-114 (2-B)

Rear wheel speed sensor (LH)

D-115 (4-Y)

Side impact sensor (Rear: LH)

D-116 (2-B)

Evaporative emission ventilation
solenoid

D-117 (3)

No connection

D-119 (2)

Electronic control coupling solenoid
<Electronic controlled AWD>

D-120 (6-B)

Foot light (LH)

D-121 (2-B)

Seat belt pre-tensioner (LH)

D-122 (4-Y)

Side impact sensor (Front: LH)
