Mitsubishi Outlander GS45X. Manual - part 185

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-737

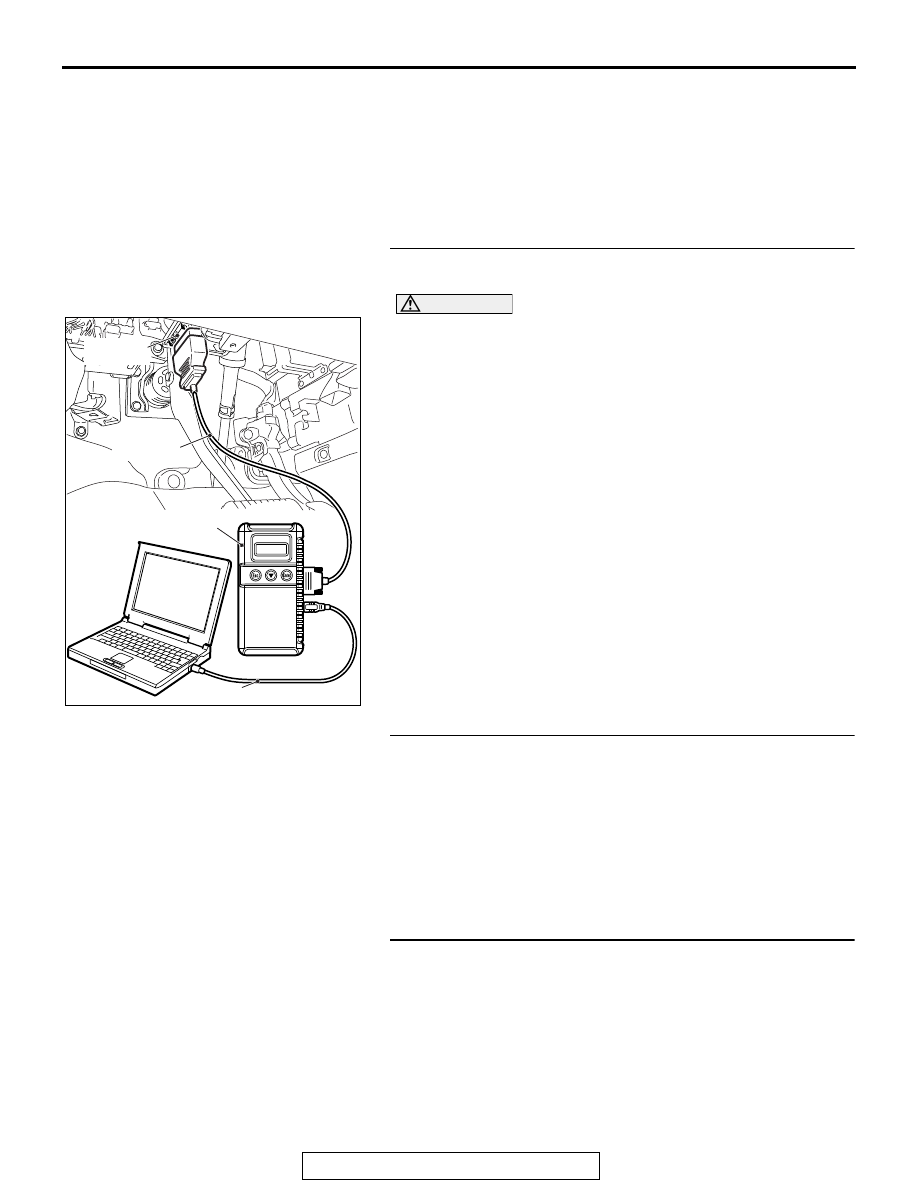

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-730

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the engine
control module diagnostic trouble code.
Check if DTC is set to the engine control module.
Q: Is the DTC set?

YES : Troubleshoot the engine. (Refer to GROUP 13A,

Diagnostic Trouble Code Chart

P.13A-49

 <2.4 L

engine> or GROUP 13B, Diagnostic Trouble Code
Chart

P.13B-50

 <3.0 L engine>.)

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the transaxle
control module diagnostic trouble code.
Check if DTC U0100 is set to the transaxle control module.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-738

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the engine control module.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the engine control module and the
ETACS-ECU. (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

)

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the engine control module and the
ETACS-ECU. (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

)

DTC U0101: Transaxle control module CAN timeout

CAUTION

• If DTC U0101 is set to the ETACS-ECU, always

diagnose the CAN bus line.

• Before replacing the ECU, ensure that the

communication circuit is normal.

.

TROUBLE JUDGMENT

If the signal from transaxle control module cannot be
received, the ETACS-ECU sets the DTC U0101.

.

JUDGMENT CRITERIA

After the following statuses continue to be true for 5
seconds, if the communication with the transaxle
control module cannot be established for 0.6 second
or more, the ETACS-ECU determines that a problem
has occurred.

• No abnormality is present to the network.

• Ignition switch is in the ON position.

• No abnormality is present to the power supply

fuse (IOD fuse), or the odometer value is at 80.5
km (50.0 miles) or more.

• ETACS-ECU system voltage is at 10−16 volts.

.

TROUBLESHOOTING HINTS

• The transaxle control module may be defective.

• The ETACS-ECU may be defective.

• The CAN bus may be defective.

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-739

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-730

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the transaxle
control module diagnostic trouble code.
Check if DTC is set to the transaxle control module.
Q: Is the DTC set?

YES : Troubleshoot the automatic transaxle. (Refer to

GROUP 23A, Diagnosis

P.23A-29

 <CVT> or GROUP

23C, Automatic Transaxle Diagnosis

P.23C-27



<A/T>.)

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read the engine
control module diagnostic trouble code.
Check if the DTC U0101 is set to the engine control module.
Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

AB

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-740

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the transaxle control module.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the transaxle control module and the
ETACS-ECU. (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

)

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO :  The trouble can be an intermittent malfunction such

as a poor connection or open circuit in the CAN bus
lines between the transaxle control module and the
ETACS-ECU. (Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-15

)

DTC U0114: AWD-ECU CAN timeout

CAUTION

• If DTC U0114 is set to the ETACS-ECU, always

diagnose the CAN bus line.

• Before replacing the ECU, ensure that the

communication circuit is normal.

.

TROUBLE JUDGMENT

If the signal from AWD-ECU cannot be received, the
ETACS-ECU sets DTC U0114.

.

JUDGMENT CRITERIA

After the following statuses continue to be true for 5
seconds, if the communication with the AWD-ECU
cannot be established for 0.6 second or more, the
ETACS-ECU determines that a problem has
occurred.

• No abnormality is present to the network.

• Ignition switch is in the ON position.

• No abnormality is present to the power supply

fuse (IOD fuse), or the odometer value is at 80.5
km (50.0 miles) or more.

• ETACS-ECU system voltage is at 10−16 volts.

.

TROUBLESHOOTING HINTS

• The AWD-ECU may be defective.

• The ETACS-ECU may be defective.

• The CAN bus may be defective.
