Mitsubishi Outlander GS45X. Manual - part 184

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-733

DIAGNOSTIC TROUBLE CODE CHART

M1545001101173

Diagnostic trouble
code number

Trouble content

Reference page

U0001

Bus off (CAN-C)

P.54A-735

U0019

Bus off (CAN-B)

U0100

Engine control module CAN timeout

P.54A-736

U0101

Transaxle control module CAN timeout

P.54A-738

U0114

AWD-ECU CAN timeout

P.54A-740

U0121

ABS-ECU or ASC-ECU CAN timeout

P.54A-742

U0126

Steering wheel sensor CAN timeout

P.54A-744

U0151

SRS-ECU CAN timeout

P.54A-746

U0154

Occupant classification-ECU CAN timeout

P.54A-748

U0155

Combination meter CAN timeout

P.54A-750

U0164

A/C-ECU CAN timeout

P.54A-752

U0168

WCM or KOS-ECU CAN timeout

P.54A-754

U0184

Audio CAN timeout

P.54A-756

U0195

Satellite radio tuner CAN timeout

P.54A-758

U0245

CAN box unit CAN timeout

P.54A-760

U1108

Excess CAN-B ECU detection

P.54A-762

U1120

Bus line (CAN-C) low input

P.54A-764

U1121

Bus line (CAN-C) high input

U0169

Sunroof LIN timeout <Vehicles with sunroof>

Refer to GROUP 54B,
Diagnosis

P.54B-6

U0215

P/W SW (DR) LIN timeout

U0231

Lighting control sensor LIN timeout <Vehicles with
auto light function>

U1109

Column SW LIN timeout

U150B

Column SW checksum error

U1006

Theft-alarm siren LIN timeout <Vehicles with
theft-alarm sensor>

U1007

Theft-alarm sensor LIN timeout <Vehicles with
theft-alarm sensor>

U150C

P/W SW (DR) checksum error

U1511

Sun roof checksum error <Vehicles with sunroof>

U1512

Lighting control sensor checksum error <Vehicles with
auto light function>

U1514

Bit error (LIN)

U1515

No-Bus activity error (LIN)

U0331

ECU internal error

P.54A-765

B1034

Ambient air temperature sensor system (short circuit) Refer to GROUP 55A,

Manual A/C Diagnosis

P.55A-11

B1035

Ambient air temperature sensor system (open circuit)

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-734

NOTE:

: If diagnostic trouble codes No. U0331,

B1761, B2206, B2215, or B222C is set, there may be
an error with the coding data stored in the
ETACS-ECU.

B120A

Theft alarm siren error

Refer to

P.54A-841

B120B

Theft alarm sensor error

B120C

Theft alarm siren flat battery

B16A0

Taillight (RH) circuit open <Open circuit in the position
light (RH) circuit, rear side marker light (RH) circuit
and the taillight (RH) circuit>

Refer to

P.54A-228

B16A1

Taillight (LH) circuit open <Open circuit in the position
light (LH) circuit, rear side marker light (LH) circuit,
taillight (LH) circuit and the license plate light circuit>

B16A2

Blown turn-signal light (LH) bulb

Refer to

P.54A-127

B16A3

Turn-signal light (LH) short circuit

B16A4

Blown turn-signal light (RH) bulb

B16A5

Turn-signal light (RH) short circuit

B16A6

Turn-signal fuse blown

Refer to

P.54A-307

B16A7

Taillight (RH) circuit short <Short circuit in the position
light (RH) circuit, rear side marker light (RH) circuit or
the taillight (RH) circuit>

Refer to

P.54A-228

B16A8

Taillight (LH) circuit short <Short circuit in the position
light (LH) circuit, rear side marker light (LH) circuit,
taillight (LH) circuit or the license plate light circuit>

B1761

Chassis number not recorded

P.54A-766

B210A

+B power supply (low input)

P.54A-767

B210B

+B power supply (high input)

B222C

Coding incomplete

P.54A-771

B2206

Chassis number does not match

P.54A-772

B2215

ECU internal error

P.54A-774

B2350

Lighting switch

Refer to

P.54A-321

B2351

Washer switch

B2353

Ignition power supply (low input)

P.54A-774

B2354

Ignition power supply (high input)

Diagnostic trouble
code number

Trouble content

Reference page

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-735

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC U0001: Bus off (CAN-C)

DTC U0019: Bus off (CAN-B)

CAUTION

• If DTC U0001 or U0019 is set to the

ETACS-ECU, always diagnose the CAN bus
line.

• Before replacing the ECU, ensure that the

communication circuit is normal.

TROUBLE JUDGMENT

When the ETACS-ECU is returned from the bus off
state, or when the bus off error is indicated to the
ETACS-ECU state, the DTC U0001 (CAN-C) or
U0019 (CAN-B) is stored.

TECHNICAL DESCRIPTION (COMMENT)

The ETACS-ECU may have a malfunction, or the
ETACS-ECU power supply or ground circuit may
have a problem.

TROUBLESHOOTING HINTS

• The ETACS-ECU may be defective.

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

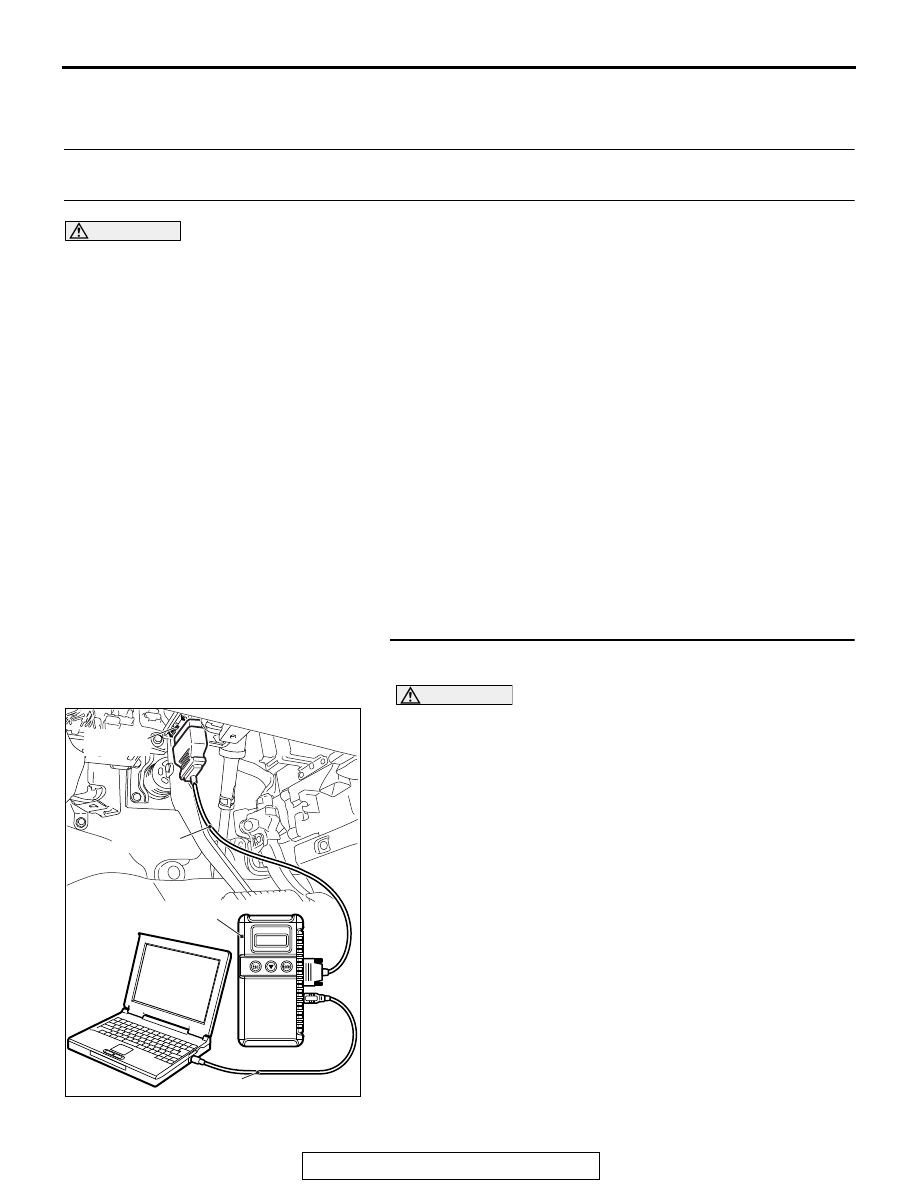

(1) Connect scan tool MB991958. Refer to "How to connect the

Scan Tool (M.U.T.-III)

P.54A-730

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO : Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

ZC501967

AC404789

AC702802

MB991824

MB991827

MB991910

Data link

connector

ETACS

TSB Revision

CHASSIS ELECTRICAL

54A-736

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the ETACS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the ETACS-ECU.
NO : The trouble can be an intermittent malfunction (Refer

to GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

DTC U0100: Engine control module CAN timeout

CAUTION

• If DTC U0100 is set to the ETACS-ECU, always

diagnose the CAN bus line.

• Before replacing the ECU, ensure that the

communication circuit is normal.

TROUBLE JUDGMENT

If the signal from engine control module cannot be
received, the ETACS-ECU sets DTC U0100.

JUDGMENT CRITERIA

After the following statuses continue to be true for 5
seconds, if the communication with the engine con-
trol module cannot be established for 0.6 second or
more, the ETACS-ECU determines that a problem
has occurred.

• No abnormality is present to the network.

• Ignition switch is in the ON position.

• No abnormality is present to the power supply

fuse (IOD fuse), or the odometer value is at 80.5
km (50.0 miles) or more.

• ETACS-ECU system voltage is at 10−16 volts.

TROUBLESHOOTING HINTS

• The Engine control module may be defective.

• The ETACS-ECU may be defective.

• The CAN bus may be defective.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)
