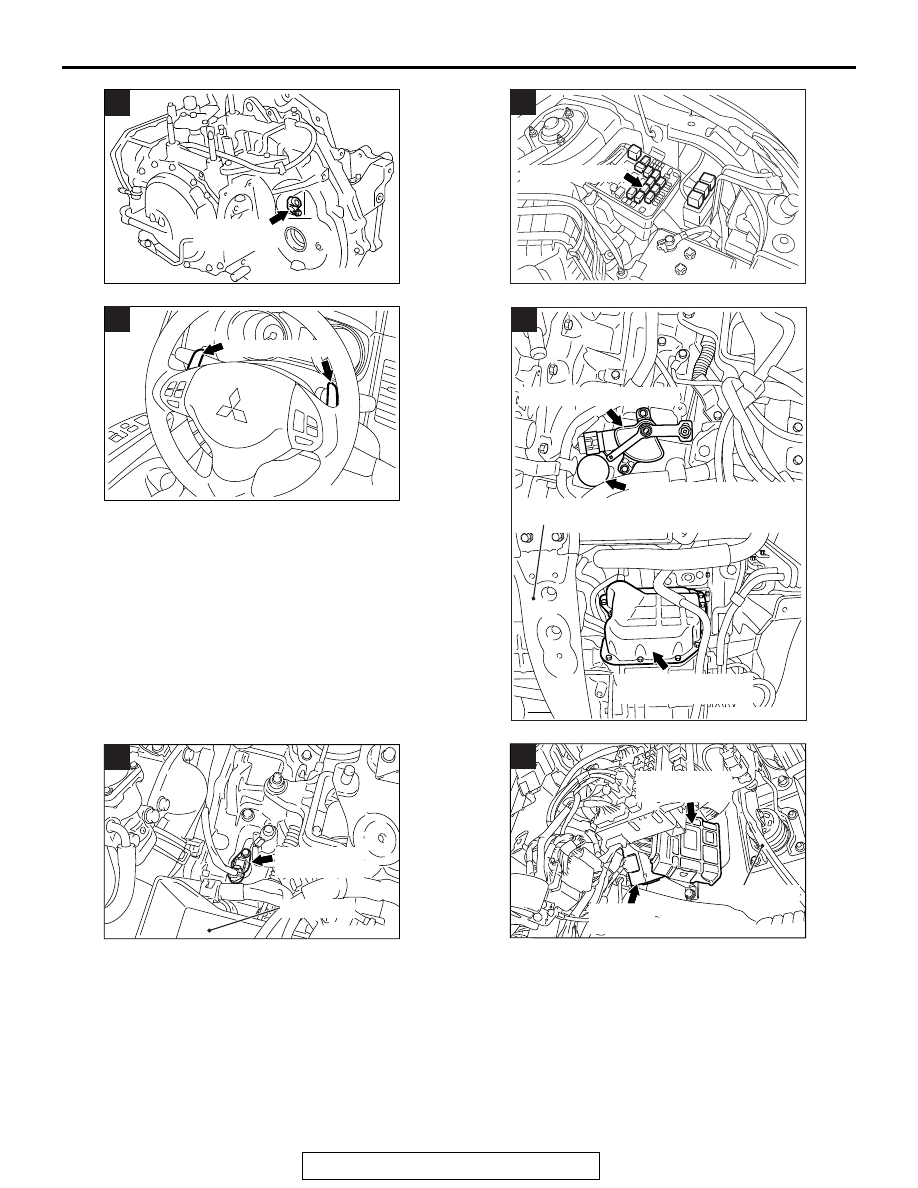

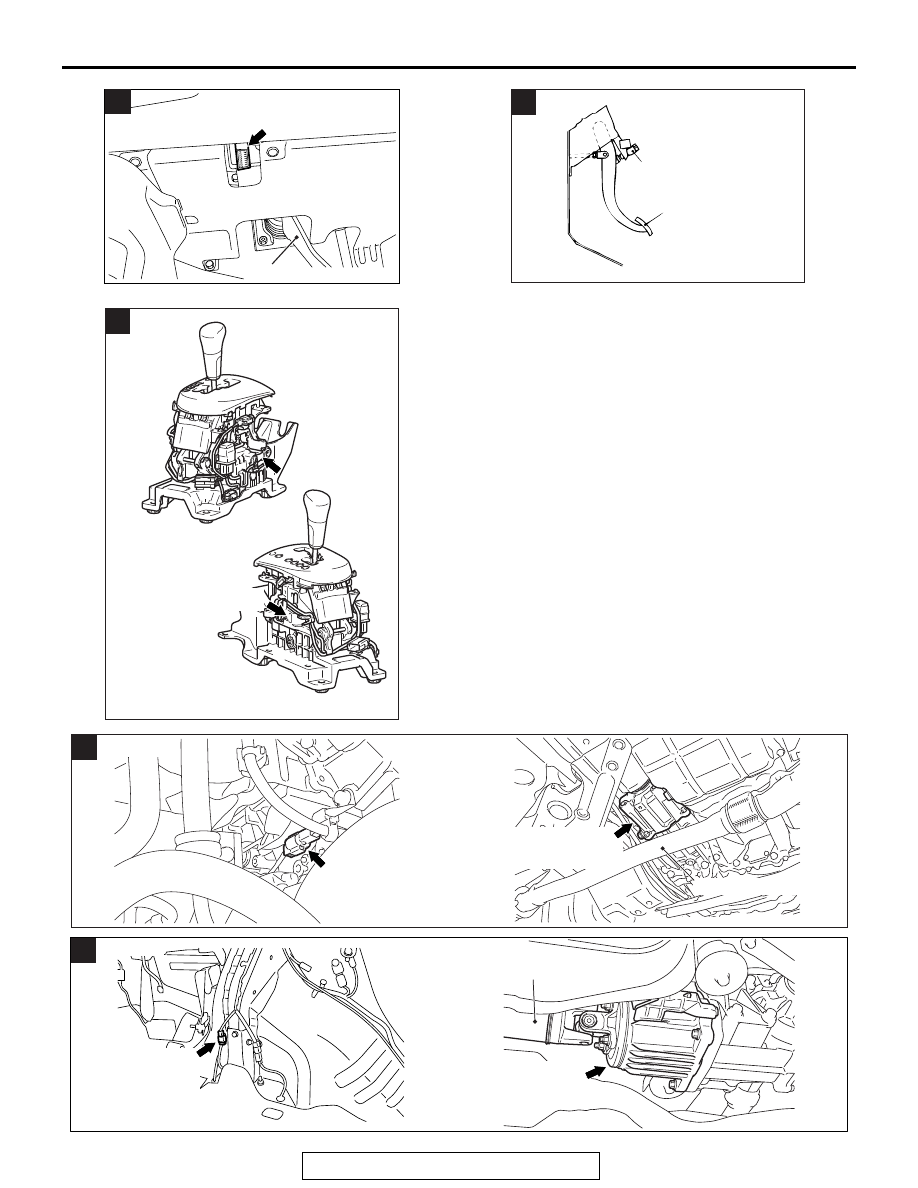

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23C-261

ON-VEHICLE SERVICE

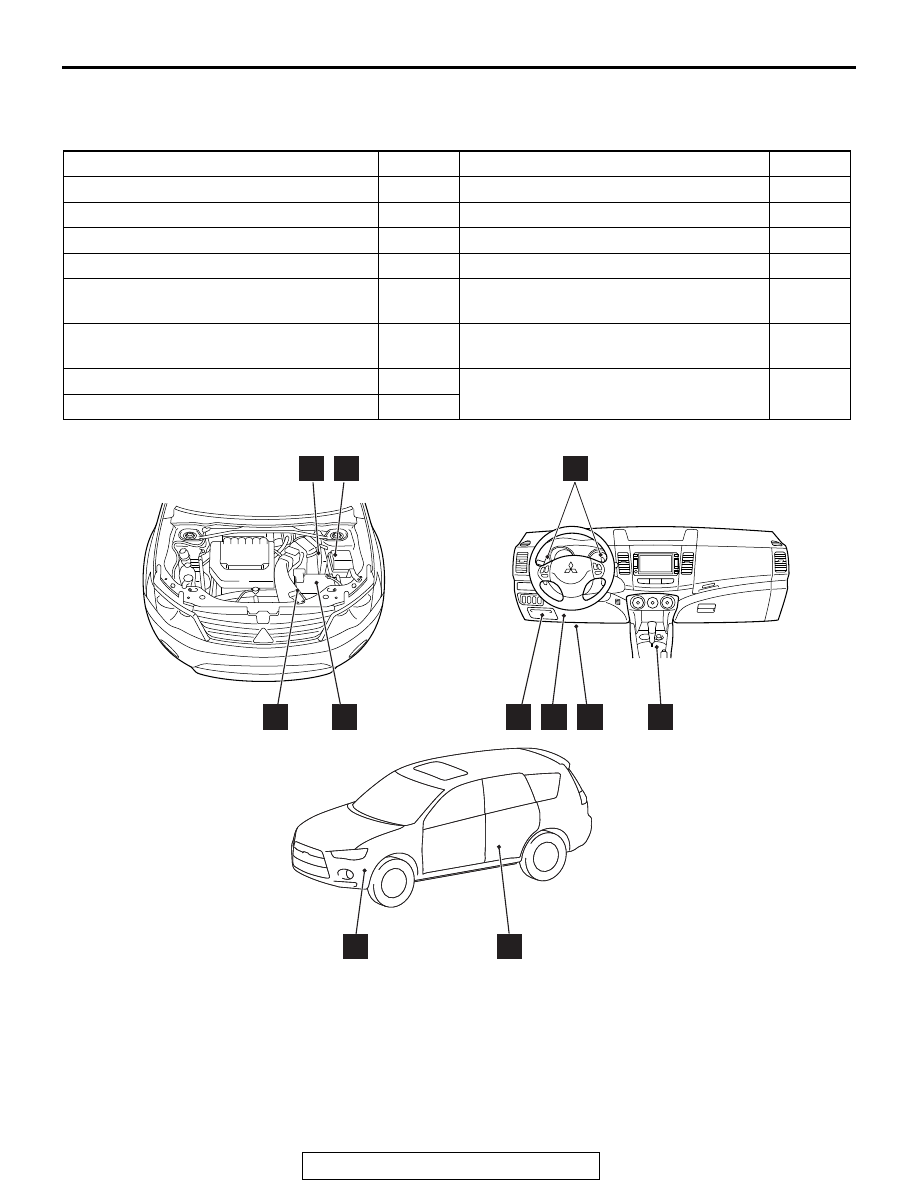

A/T CONTROL COMPONENT LAYOUT

M1231008600730

Name

Symbol

Name

Symbol

A/T control relay

B

Paddle shift switch

C

A/T control solenoid valve assembly

D

Shift lock solenoid

I

AWC-ECU <Vehicles with S-AWC>

F

Stoplight switch

H

Data link connector

G

Shift switch assembly

I

Electronic control coupling solenoid (front)
<Vehicles with S-AWC>

J

Transaxle control module (TCM)

F

Electronic control coupling solenoid
(center) <Vehicles with S-AWC>

K

Transmission fluid temperature sensor

D

Input shaft speed sensor

E

Transmission range switch

D

Output shaft speed sensor

A

AC903762

A

B

D

E

F

G

H

I

C

K

J

AB

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23C-262

AC608500

A

AC

Output shaft
speed sensor

AC608499

B

AC

A/T control relay

AC607737

C

AD

Paddle shift switch

AC703007

D

Transmission range switch

A/T control solenoid valve
assembly connector

Valve body assembly

Centermember

AB

AC608470

E

Input shaft
speed sensor

Battery tray

AB

AC903765

F

Transaxle
control module

Brake pedal

AC

AWC-ECU
<Vehicles with S-AWC>

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23C-263

AC703008

Data link connector

Brake pedal

G

AB

AC703010AD

Stoplight switch

Brake pedal

H

AC703011

I

Shift switch assembly

Shift lock solenoid

AB

AC903763 AB

Electronic control
coupling solenoid
(Front)

Front exhaust pipe

Electronic control
coupling solenoid
(Front) connector

<S-AWC>

J

AC903764AB

Electronic control
coupling solenoid
(Center) connector

<S-AWC>

K

Electronic control
coupling solenoid
(Center)

Propeller shaft

ON-VEHICLE SERVICE

TSB Revision

AUTOMATIC TRANSAXLE

23C-264

ESSENTIAL SERVICE

TRANSMISSION FLUID CHECK

M1231021400179

1. Drive the vehicle until the transmission fluid temperature

rises to the normal operating temperature [70

− 80°C (158 −

176

°F)].

NOTE: The transmission fluid temperature is measured with
scan tool MB991958 (M.U.T.-III sub assembly).
NOTE: If it takes some amount of time until the transmission
fluid reaches its normal operating temperature [70

−

 80

°

C

(158

−

 176

°

F)], check the transmission fluid level by refer-

ring to the left diagram.

2. Park the vehicle on a level surface.
3. Move the selector lever through all positions to fill the torque

converter and the hydraulic circuits with fluid, and then move
the selector lever to the "N" position.

4. After wiping off any dirt around the dipstick, remove the

dipstick and check the condition of the transmission fluid.
NOTE: If the transmission fluid smells as if it is burnt, it
means that the transmission fluid has been contaminated by
fine particles from the bushings and friction materials. Tran-
saxle overhaul and cooler line flushing may be necessary.

5. Check transmission fluid level is at the "H" mark on the

dipstick. If the transmission fluid level is less than this, add
DIA QUEEN ATF- J3 until the level reaches the "H" mark.
NOTE: If the transmission fluid level is too low, the oil pump
will draw in air along with the transmission fluid, which will
cause to form bubbles. If the transmission fluid level is too
high, rotating components inside the transaxle will churn the
fluid and air into a foamy liquid. Both conditions (level too
low or too high) will cause the hydraulic pressure to drop,
which will result in late shifting and slipping of the clutches
and brakes.
NOTE: In either case, air bubbles can interfere with normal
valve, clutch, and brake operation. Also, foaming can cause
transmission fluid to escape from the transaxle vent where it
may be mistaken for a leak.

6. Securely insert the dipstick.

NOTE: The transmission fluid should always be replaced
under the following conditions:

.

•

When troubleshooting the transaxle.

•

When overhauling the transaxle.

•

When the transmission fluid is noticeably dirty or burnt
(driving under severe conditions).

AC607745

Fluid level [mm]

Fluid temperature [˚C (˚F)]

AD

H

Dipstick

80

(176)

60

(140)

40

(104)

– 20 (– 0.8)

20 (0.8)

– 10 (– 0.4)

0 (0)

10 (0.4)

AC803399

<Top side view>

<Back side view>
