Mitsubishi Outlander GS45X. Manual - part 1738





DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-257

TEST

1. The test can be performed only when all the

following conditions are satisfied.

• Every wheel speed sensor input is 20 km/h (12

mph) or less.

• No system malfunction is detected.

• The steering angle of steering wheel is within

±30° from the neutral position.

2. With the test, when any of the conditions below is

met, the forced activation will be cancelled.

• Any of the wheel speed sensors detects an input

of 20 km/h (12 mph) or more (excluding item No.
4 "Control OFF").

• A system malfunction is detected.

• The forced activation time has elapsed.

• M.U.T.-III is removed.

• M.U.T.-III clear key is operated.

Item
No.

Display on M.U.T.-III

Test content

Normal conditions

4

Control OFF

The electronic control coupling
(front/center) operation stops

Refer to the electronic control coupling
(front/center) operation check.

5

Front coupling operation
check

The electronic control coupling
(Front) maximum restraint

Refer to the electronic control coupling
(Front) operation check.

6

center coupling
operation check

The electronic control coupling
(center) maximum restraint

The electronic control coupling (center)
operation check.

DIAGNOSIS <S-AWC(SUPER ALL WHEEL CONTROL)>

TSB Revision

AUTOMATIC TRANSAXLE

23C-258

CHECK AT AWC-ECU TERMINAL

M1235004800013

AC506684

22

9

16

15

2

14

1

3

19

6

18

17

4 5

20

7

21

8

25

12

23

10

24

11

26

13

JAE-E

39

50

44

4243

32

31

33

JAE-E

47

36

45 46

34 35

49

48

3738

52

51

40 41

C-139

AN

Ter
mina
l No.

Inspection Items

Inspection requirement

Normal Condition

1

Electronic control
coupling solenoid
(front)

Using M.U.T.-III, perform "Test Item No. 4: Control
OFF" of "SPECIAL FUNCTION"

1 V or less

Using M.U.T.-III, perform "Test Item No. 5: Front
coupling operation check" of "SPECIAL FUNCTION"

Approximately 8 V

2

Electronic control
coupling solenoid
(center)

Using M.U.T.-III, perform "Test Item No. 4: Control
OFF" of "SPECIAL FUNCTION"

1 V or less

Using M.U.T.-III, perform "Test Item No. 6: center
coupling operation check" of "SPECIAL FUNCTION"

Approximately 8 V

3

Electronic control
coupling solenoid
(center)

Always

1 V or less

6

S-AWC control mode
selector signal1

Ignition switch: ON

S-AWC control mode
selector: SNOW or OFF
ROAD

Battery positive
voltage

S-AWC control mode
selector: NORMAL

1 V or less

7

S-AWC control mode
selector signal2

Ignition switch: ON

S-AWC control mode
selector: SNOW or
NORMAL

Battery positive
voltage

S-AWC control mode
selector: OFF ROAD

1 V or less

12

Power supply

Always

Battery positive
voltage

13

Ground

Always

1 V or less

14

Electronic control
coupling solenoid
(front)

Always

1 V or less

16

Ignition switch

Ignition switch: ON

Battery positive
voltage

Ignition switch: OFF

1 V or less

17

Back up power supply

Always

Battery positive
voltage

23

CAN-H

24

CAN-L

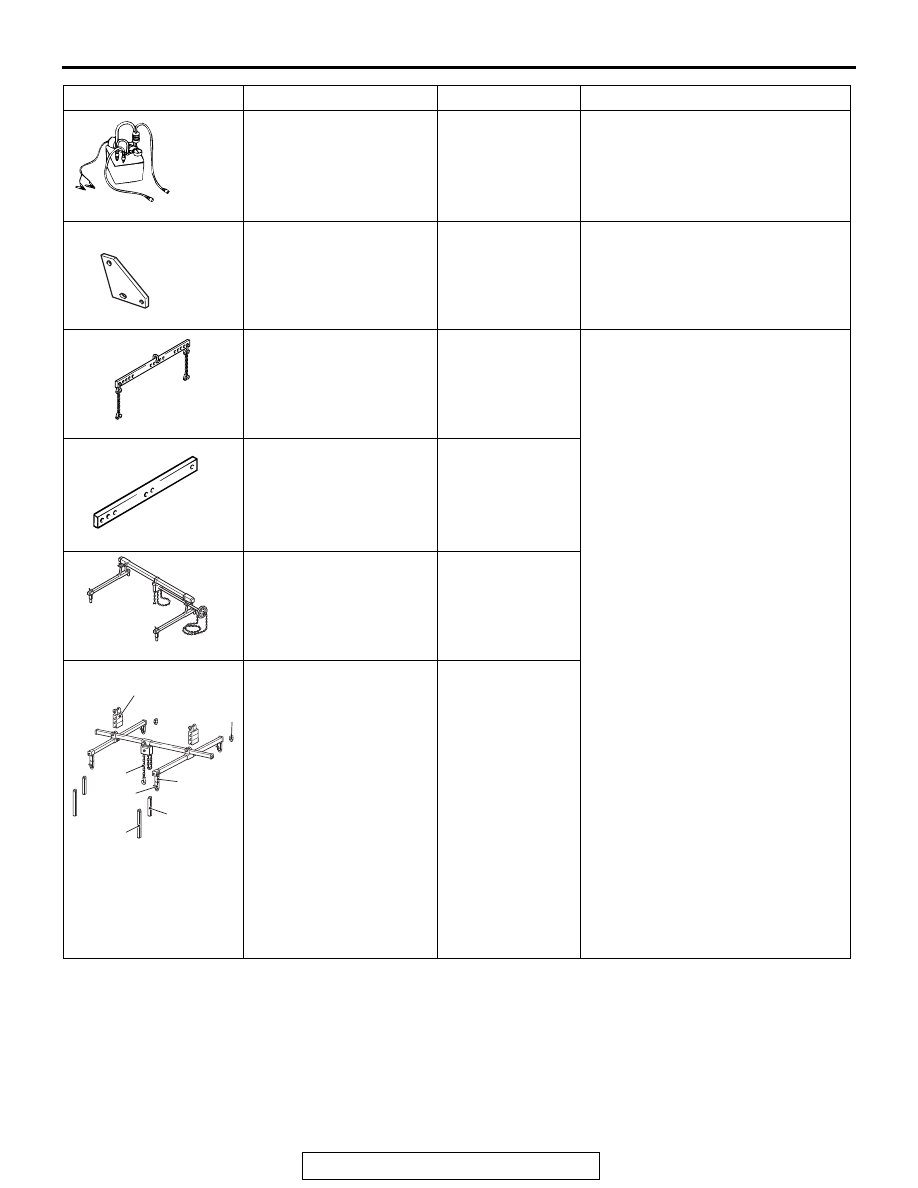

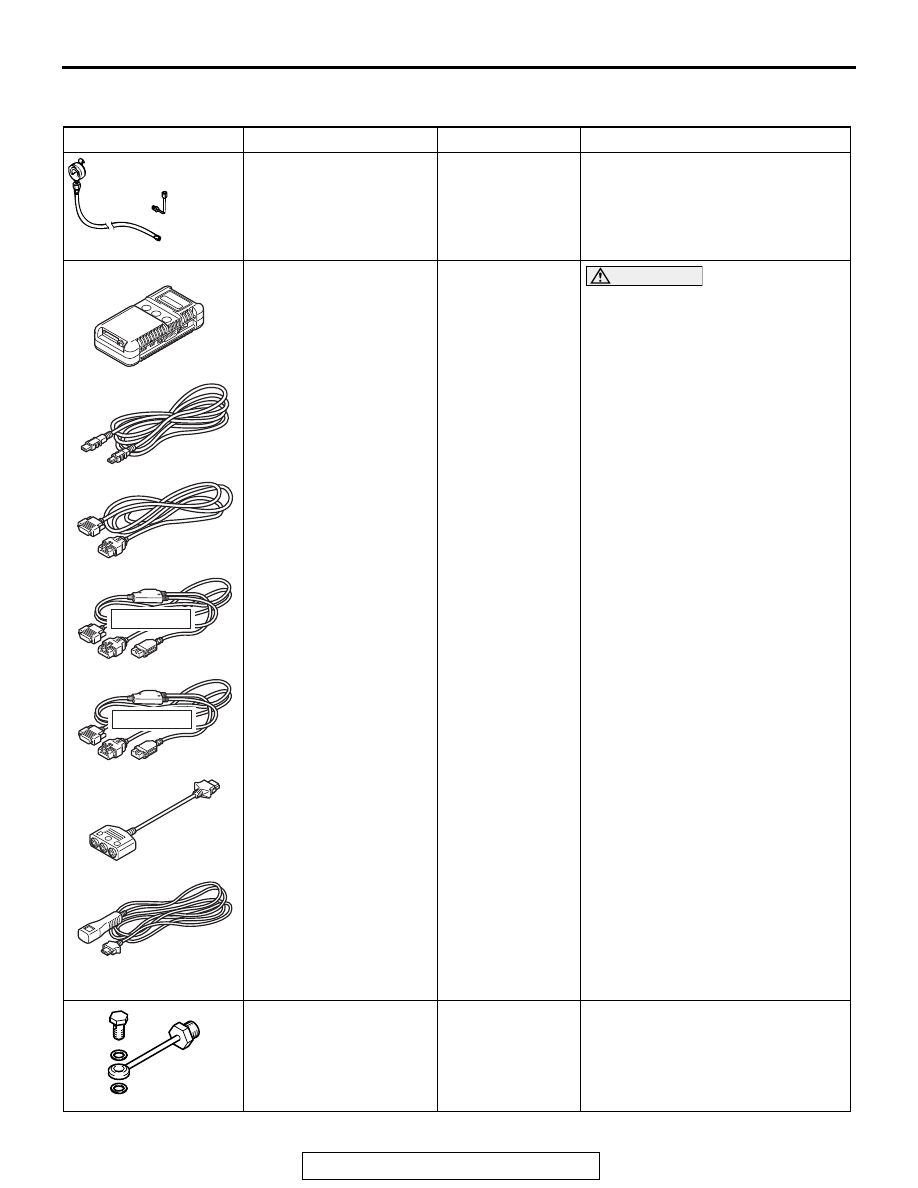

SPECIAL TOOLS

TSB Revision

AUTOMATIC TRANSAXLE

23C-259

SPECIAL TOOLS

M1231000601115

Tool

Tool number and name Supersession

Application

MD998330 (Includes
MD998331)
Oil pressure gauge (3.0
MPa, 427 psi)

MD998330-01

Measurement of hydraulic pressure

MB991958

a. MB991824
b. MB991827
c. MB991910
d. MB991911
e. MB991914
f. MB991825
g. MB991826

M.U.T.-III sub assembly

a. Vehicle

communication
interface (V.C.I.)

b. M.U.T.-III USB cable
c. M.U.T.-III main

harness A (Vehicles
with CAN
communication
system)

d. M.U.T.-III main

harness B (Vehicles
without CAN
communication
system)

e. M.U.T.-III main

harness C (for
Chrysler models only)

f. M.U.T.-III

measurement adapter

g. M.U.T.-III trigger

harness

MB991824-KIT
NOTE: g:
MB991826
M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I.
ENTER key.

CAUTION

M.U.T.-III main harness A
(MB991910) should be used.
M.U.T.-III main harness B and C
should not be used for this
vehicle.
A/T system check (Diagnostic
trouble code, service data)

MB992127
Adapter

-

Connection for oil pressure gauge

AC103525

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

a

b

c

d

e

f

g

Do not use

SPECIAL TOOLS

TSB Revision

AUTOMATIC TRANSAXLE

23C-260

MB995062
Flushing tool

MLR-6906B or
Equivalent

Flushing cooler and tube

MB992208
Engine hanger plate A

General Service
Tool

Supporting the engine assembly
during removal and installation of
the transaxle assembly

MB991454
Engine hanger balancer

MZ203827-01

When the engine hanger is used:
Supporting the engine assembly
during removal and installation of
the transaxle assembly
NOTE: Special tool MB991454 is a
part of engine hanger attachment
set MB991453.

MB991527
Hanger

Tool not available

MB991895
Engine hanger

Tool not available

MB991928
Engine hanger

a: MB991929

Joint (50) x 2

b: MB991930

Joint (90) x 2

c: MB991931

Joint (140) x 2

d: MB991932

Foot (standard) x 4

e: MB991933

Foot (short) x 2

f: MB991934

Chain and fork
assembly

Tool not available

Tool

Tool number and name Supersession

Application

MB992208

B991454

B991527

MB991895

B991928

a

b

c

d

e

f

Slide bracket (HI)
