Mitsubishi Outlander GS45X. Manual - part 1703





AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-117

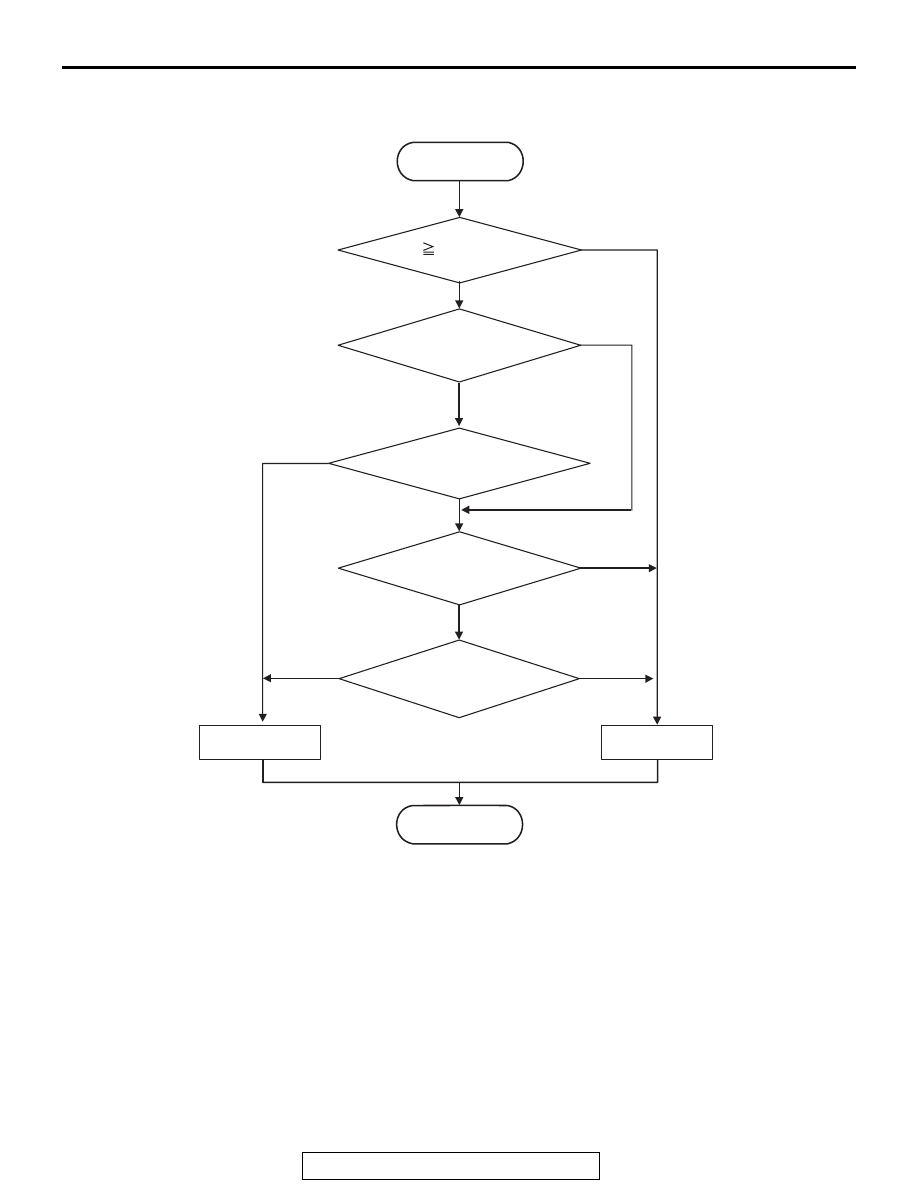

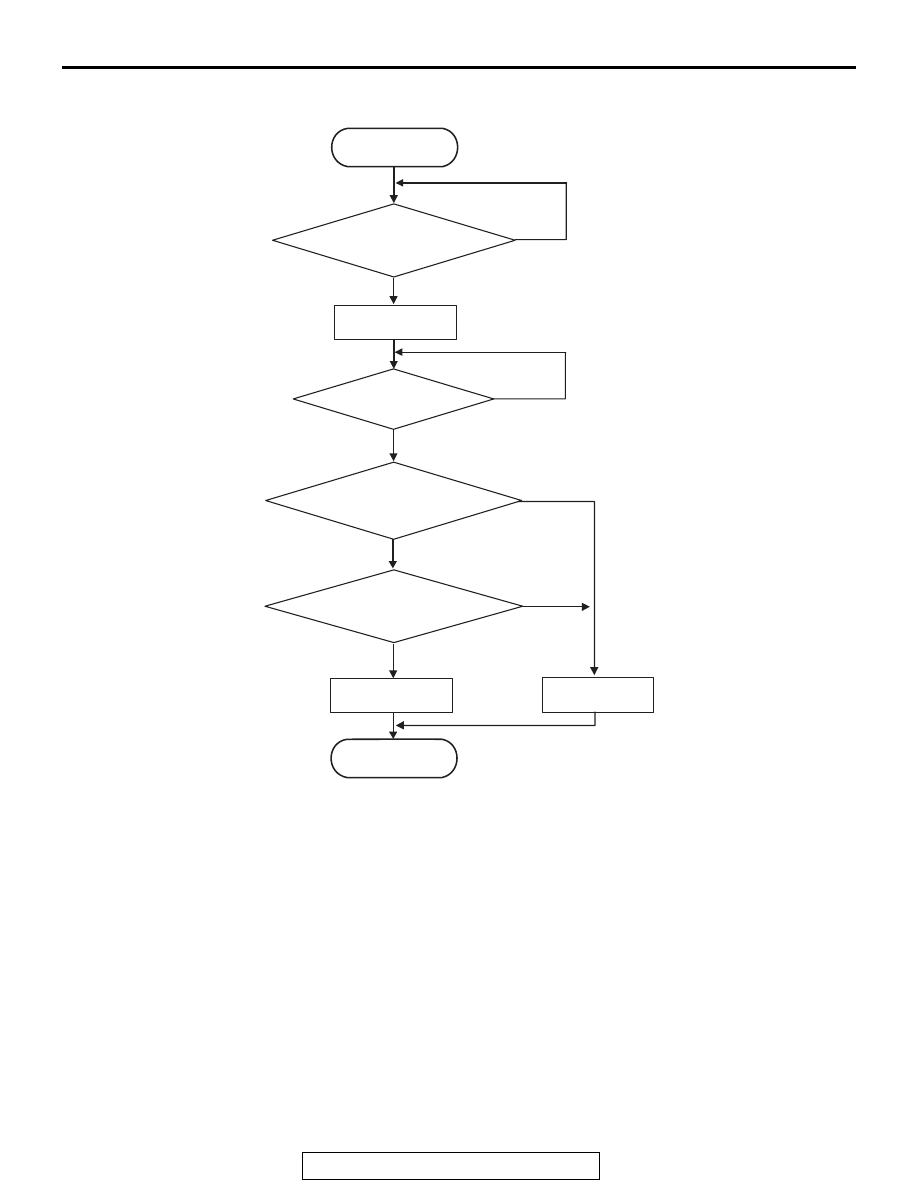

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions <Throttle position sensor>

• TCM is started: more than 1.05 seconds.

• Vehicle speed: 5 km/h(3.1 mph) or more.

Judgement Criteria <Throttle position sensor>

• Throttle position sensor signal: fail. (5.5 seconds)

Check Conditions <Accelerator pedal position

sensor>

• TCM is started: more than 1.05 seconds.

Judgement Criteria <Accelerator pedal position

sensor>

• Accelerator pedal position sensor signal: fail. (3

seconds)

.

Good

Malfunction

END

No

No

No

No

No

AC802680

START

Yes

Yes

Yes

Yes

Yes

Voss     5 km/h (3.1 mph)

TPS fail signal reception

Accelerator pedal position
           signal failure

Continuous failure for 3 secs.

Continuous failure for 5.5 secs.

Voss: Calculated vehicle speed
          by output shaft speed sensor

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-118

OBD-II DRIVE CYCLE PATTERN

Drive with the vehicle speed 5 km/h (3.1 mph) or
more for 5 seconds or more.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the CAN

• Malfunction of the ECM

• Damaged harness or connector

• Malfunction of the throttle position sensor

• Malfunction of the TCM

DIAGNOSIS

STEP 1. Check for CAN communication system
malfunction.
Q: Are the DTC U0001, U0100, U0141, P1705, P1706 set?

YES : Check and repair the CAN communication system.
NO :  Go to Step 2.

STEP 2. Check the throttle position sensor and ECM-side
main unit and connector wiring.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair or replace the failure section.

STEP 3. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Replace the TCM.

DTC P1706: Accelerator Pedal Position Information

.

DESCRIPTIONS OF MONITOR METHODS

• When approx. 1 second has elapsed after TCM

started, the throttle pedal position signal seizure
is detected for 3 seconds.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0712: Malfunction of the transmission fluid tem-

perature sensor (Short circuit)

• P0715: Malfunction of the Input shaft speed sen-

sor system

Sensor (The sensor below is determined to be

normal)

• Transmission fluid temperature sensor

• Input shaft speed sensor

.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-119

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• TCM is started: more than 1.05 seconds.

Judgement Criteria

• Accelerator pedal position sensor signal: fail. (3

seconds)

.

OBD-II DRIVE CYCLE PATTERN

With the ignition switch ON, maintain the status for
10 seconds or more.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the CAN

• Malfunction of the ECM

• Damaged harness or connector

• Malfunction of the throttle position sensor

Good

Malfunction

END

TCM is started

Continuous failure
      for 3 secs.

Yes

No

No

Yes

No

Timer start

Timer > 1.05 secs.

Yes

Yes

No

AC802681

START

Accelerator pedal position
           signal failure

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-120

DIAGNOSIS

STEP 1. Is the DTC code for ECM displayed?
Check that the failure related to the engine does not occur.
Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair or replace the failure section.

STEP 2. Check the throttle position sensor and ECM-side
main unit and connector wiring.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair or replace the failure section.

STEP 3. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Return to START.

DTC P1731: 1st Engine Brake Detection

.

DESCRIPTIONS OF MONITOR METHODS

• With the mode other than SPORT MODE and

with the accelerator angle is smaller than 6/8, the
correlation between the lock-up and low-reverse
brake linear solenoid valve control current and
the low-reverse brake pressure switch ON/OFF is
abnormal.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Transaxle assembly powertrain parts failure

• Malfunction of the valve assembly (Malfunction of

hydraulic valve and hydraulic switch)

• Malfunction of the TCM

• Malfunction of the lock-up and low-reverse brake

linear solenoid valve (valve assembly)

• Malfunction of the low-reverse brake pressure

switch (valve assembly)

• Malfunction of the low clutch pressure switch

(valve assembly)

• Malfunction of the low clutch linear solenoid valve

(valve assembly)

• Malfunction of the low-reverse brake shift sole-

noid valve (valve assembly)

• Malfunction of the low clutch, low-reverse brake

DIAGNOSIS

STEP 1. Check the DTC.
Check that P0988 (Low-reverse brake pressure switch) is set.
Q: Is the DTC set?

YES : Check and repair the relevant DTC system.
NO :  Go to Step 2.
