AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-109

STEP 9. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Return to START.

DTC P0893: Interlock Detection

.

DESCRIPTIONS OF MONITOR METHODS

When sudden deceleration (2.5 m/s

2

) exceeding the

setting time is detected with combination as follows;
Stoplight switch: correct, output shaft speed sensor:
correct, hydraulic switch: incorrect.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-110

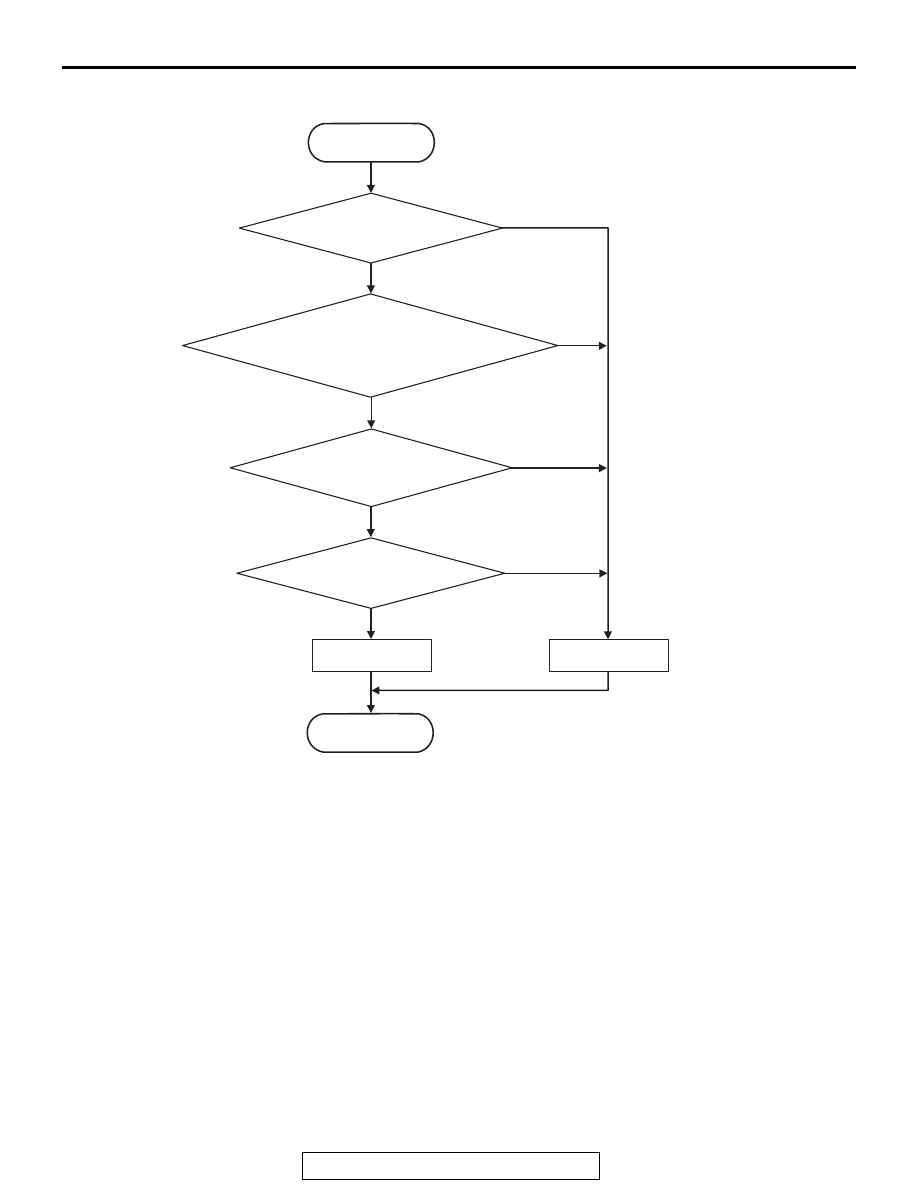

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Fluid pressure switch status combination: not

designed combination

• Stoplight switch signal: OFF.

Judgement Criteria

• Deceleration: more than threshold value. (1.9

second)

.

OBD-II DRIVE CYCLE PATTERN

Start the engine, drive at 60 km/h (37.3 mph) or more
for 15 minutes in total.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the P0720: output shaft speed

sensor system circuit

• Damaged harness or connector

• Malfunction of the P0743: lock-up and

low-reverse brake linear solenoid valve system
circuit

• Malfunction of the P0753: low clutch linear sole-

noid valve system circuit

• Malfunction of the P0758: 2-6 brake linear sole-

noid valve system circuit

• Malfunction of the P0763: 3-5 reverse clutch lin-

ear solenoid valve system circuit

• Malfunction of the P0768: high clutch linear sole-

noid valve system circuit

END

No

No

Malfunction

No

No

Deceleration > threshold value

Good

AC802679

START

Yes

Yes

Yes

Yes

Stoplight switch signal is off

Fluid pressure switch status
           combination is
not designed combination

Continuous failure for 1.9 secs.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-111

• Malfunction of the P1753: low clutch shift sole-

noid valve system circuit

• Malfunction of the P1758: low-reverse brake shift

solenoid valve system circuit

• Malfunction of the P0846: 2-6 brake pressure

switch system circuit

• Malfunction of the P0876: high clutch pressure

switch system circuit

• Malfunction of the P0988: low-reverse brake

pressure switch system circuit

DIAGNOSIS

STEP 1. Check the DTC.
Check if the following DTCs are set.

• P0720 output shaft speed sensor

• P0743 lock-up and low-reverse brake linear solenoid valve

• P0753 low clutch linear solenoid valve

• P0758 2-6 brake linear solenoid valve

• P0763 3-5 reverse clutch linear solenoid valve

• P0768 high clutch linear solenoid valve

• P1753 low clutch shift solenoid valve

• P1758 low-reverse brake shift solenoid valve

• P0846 2-6 brake pressure switch

• P0876 high clutch pressure switch

• P0988 low-reverse brake pressure switch

Q: Is the check result normal?

YES : Go to Step 2.
NO :  Repair or replace the failure section.

STEP 2. Check TCM related to the solenoid, pressure
switch and output shaft speed sensor, the A/T control
solenoid valve assembly connector pin terminals, and the
connection status.
Q: Is the check result normal?

YES : Replace the TCM, and then go to Step 3.
NO :  Repair or replace the failure section.

STEP 3. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Replace the transaxle assembly.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-112

DTC P0988: Low-Reverse Brake Pressure Switch System

.

PRESSURE SWITCH SYSTEM CIRCUIT

Refer to

P.23C-100

.

.

DESCRIPTIONS OF MONITOR METHODS

• During reverse driving, the switch OFF status

continues for 2 seconds. (The detection is
achieved twice during 1 driving cycle

*1

, and it

continues for 2 driving cycles.)

*1

: Indicates the series of driving cycle "ignition

key OFF

→ ON → drive → OFF." The "1 driving

cycle," "2 driving cycle," and so on indicates how
many cycles are required to detect a failure.

.

MONITOR EXECUTION

• Reverse gear driving

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.
