AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-77

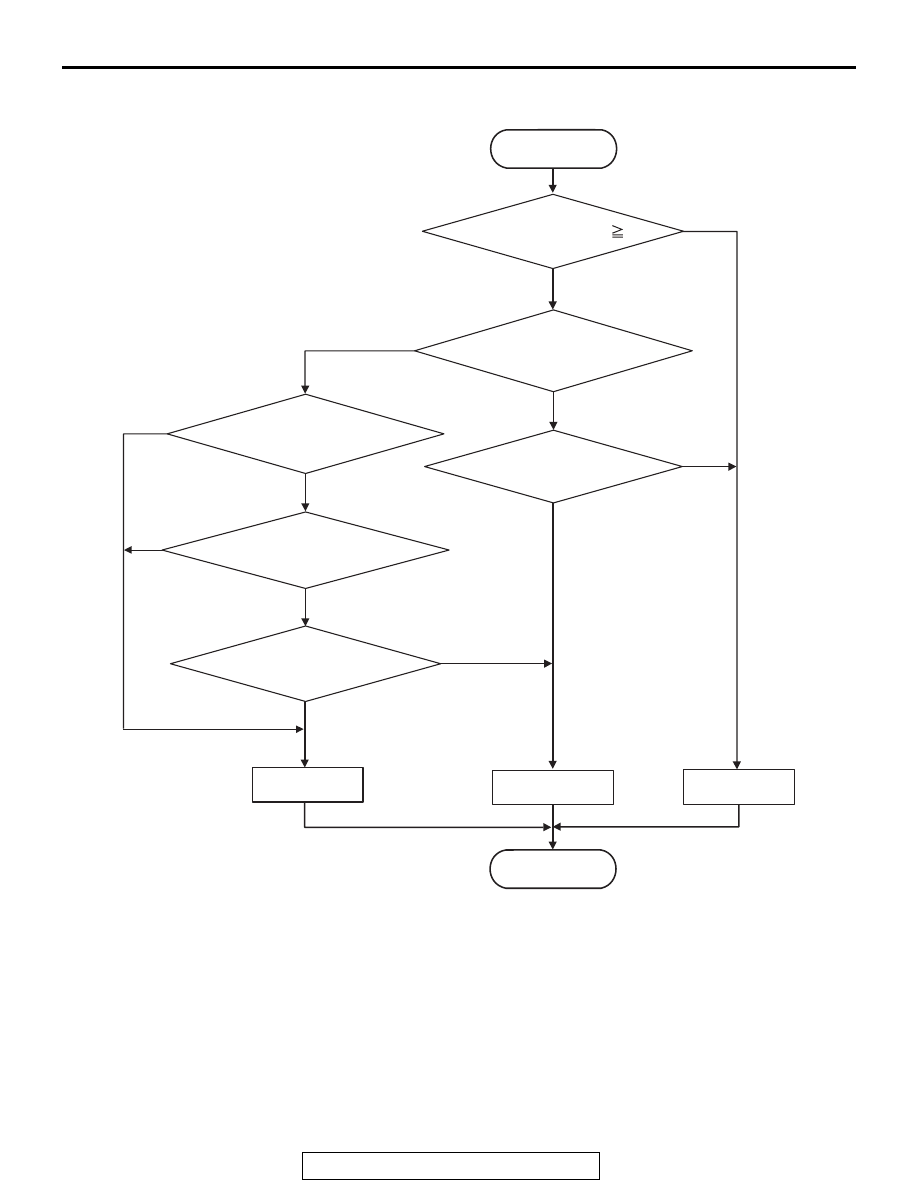

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions <Circuit continuity ground>

• Voltage of battery: 2 volts or more.

Judgment Criteria <Circuit continuity ground>

• Line pressure linear solenoid valve actual cur-

rent: more than 1.7 A (1 second)

Check Conditions <Circuit continuity open>

• Voltage of battery: 2 volts or more.

• Line pressure linear solenoid valve activation

command: more than 625 mA

Judgment Criteria <Circuit continuity open>

• Line pressure linear solenoid valve actual cur-

rent: less than 190 mA. (5 seconds)

.

AC802671

Good

Malfunction

END

No

No

No

Good

No

No

No

Yes

Yes

Yes

Yes

Yes

Yes

START

Battery positive voltage     2 V

Continuous failure for 1 sec.

Continuous failure for 5 secs.

Actual solenoid current > 1.7 A

Actual solenoid
current < 190 mA

Solenoid activation
command > 625 mA

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-78

OBD-II DRIVE CYCLE PATTERN

Start the engine, and maintain the status for approxi-
mately 10 seconds. Then, turn the ignition switch
from OFF to ON, restart the engine, and then main-
tain the status for approximately 10 seconds.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the line pressure linear solenoid

valve system circuit

• Damaged harness or connector

• Malfunction of the TCM

• Malfunction of the line pressure linear solenoid

valve (valve body assembly)

DIAGNOSIS

STEP 1. Check the TCM terminal voltage.
[C-37 TCM connector (vehicle side, connected)]
Measure the voltage between the terminal No. 40 and body
ground.

• While driving: 300 Hz

• Other than above: 0 V

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Go to Step 2.

STEP 2. Check between the TCM connector and A/T
control solenoid valve assembly connector.
Check for continuity between C-37 TCM connector and B-111
A/T control solenoid valve assembly connector.
NOTE: Prior to the wiring harness inspection, check the inter-
mediate connectors A-12 and repair that if necessary.

• Between C-37 terminal No. 40 and B-111 terminal No. 9:

Continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair or replace the failure section.

STEP 3. Check the line pressure linear solenoid.
Refer to

P.23C-275

.

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Go to Step 4.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-79

STEP 4. Check between the A/T control solenoid valve
assembly connector and the line pressure linear solenoid
valve connector.
Check for continuity between the A/T control solenoid valve
assembly connector terminals and the line pressure linear sole-
noid valve connector terminals.

• Between C-111 terminal No. 9 and line pressure linear sole-

noid valve: Continuity exists.

Q: Is the check result satisfactory?

YES : Replace the valve body assembly.
NO :  Repair or replace the failure section.

STEP 5. Check the TCM and A/T control solenoid valve
assembly connector pin terminals and the connection
status.
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Repair or replace the failure section.

STEP 6. Check the TCM and A/T control solenoid valve
assembly connector pin terminals and the connection
status.
Q: Is the check result normal?

YES : Replace the TCM.
NO :  Repair or replace the failure section.

STEP 7. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Return to START.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-80

DTC P0753: Low Clutch Linear Solenoid Valve System

.

SOLENOID VALVE SYSTEM CIRCUIT

Refer to

P.23C-72

.

.

DESCRIPTIONS OF MONITOR METHODS

1st to 4th gear driving

• Open or short circuit is detected for 5 seconds.

• The control current of solenoid valve is abnor-

mally large or small.

.

MONITOR EXECUTION

• 1st to 4th gear driving

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0731: Malfunction of the 1st gear incorrect ratio

• P0732: Malfunction of the 2nd gear incorrect ratio

• P0733: Malfunction of the 3rd gear incorrect ratio

• P0734: Malfunction of the 4th gear incorrect ratio

• P0735: Malfunction of the 5th gear incorrect ratio

• P0729: Malfunction of the 6th gear incorrect ratio

Sensor (The sensor below is determined to be

normal)

• Not applicable

.
