AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-73

.

DESCRIPTIONS OF MONITOR METHODS

• While driving with the sport mode (1st gear) or

lock-up activated (2nd to 6th gear), when open or
short circuit is detected for 5 seconds

• The control current of solenoid valve is abnor-

mally large or small.

.

MONITOR EXECUTION

• Sport mode: 1st gear driving

• Transmission range: D (lock-up activated)

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0731: Malfunction of the 1st gear incorrect ratio

• P0732: Malfunction of the 2nd gear incorrect ratio

• P0733: Malfunction of the 3rd gear incorrect ratio

• P0734: Malfunction of the 4th gear incorrect ratio

• P0735: Malfunction of the 5th gear incorrect ratio

• P0729: Malfunction of the 6th gear incorrect ratio

• P0741: Malfunction of the Malfunction of the

Torque converter clutch system (Stuck off)

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

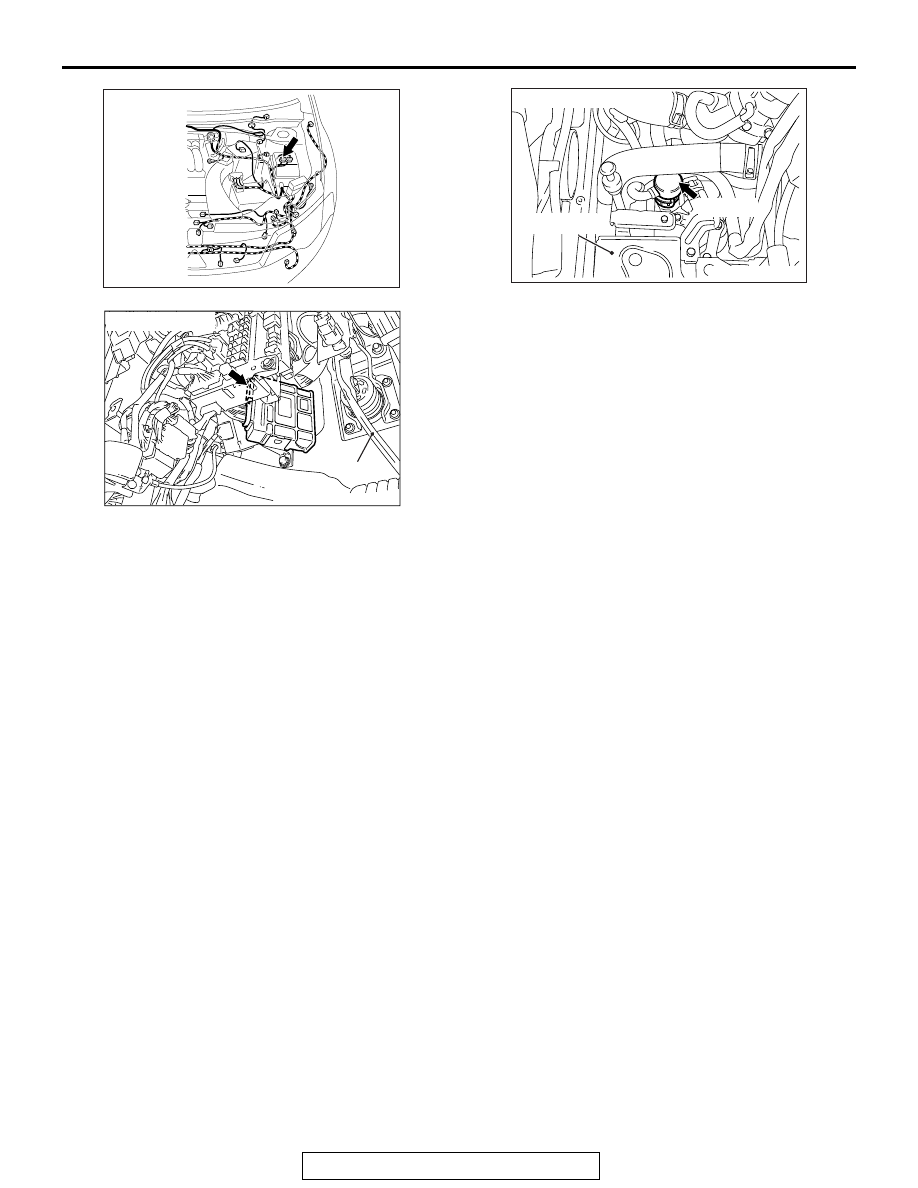

AC702932

Connector: A-12

AH

AC703256

B-111 (B)

Connector: B-111

Battery tray

AB

AC703253

Connector: C-38

Brake pedal

AB

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-74

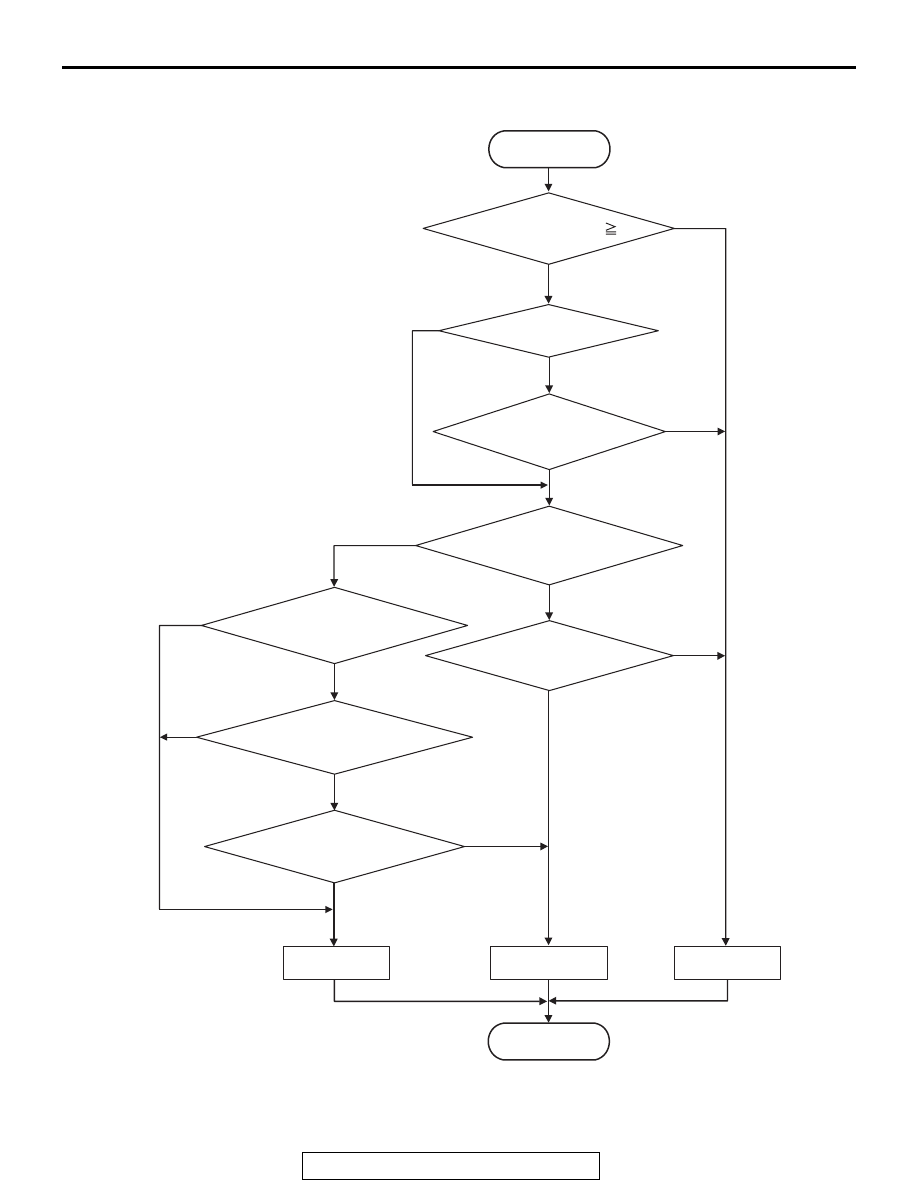

LOGIC FLOW CHARTS (Monitor Sequence)

.

Good

Malfunction

END

No

No

No

No

No

Good

No

No

No

No

AC802670

Yes

Yes

Yes

Yes

Yes

Yes

Yes

START

Sport mode 1st

Lock-up engaged in
   2nd to 6th gear

Battery positive voltage     2 V

Continuous failure for 1 sec.

Continuous failure for 5 secs.

Actual solenoid current > 1.7 A

Actual solenoid
current < 190 mA

Solenoid activation
command > 612 mA

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-75

DTC SET CONDITIONS

Check Conditions <Circuit continuity ground>

• Sport mode: 1st or Lock-up status: engaging (2nd

to 6th).

Judgment Criteria <Circuit continuity ground>

• Lock-up and low-reverse brake linear solenoid

valve actual current: more than 1.7 A (1 second)

Check Conditions <Circuit continuity open>

• Sport mode: 1st or Lock-up status: engaging (2nd

to 6th).

• Lock-up and low-reverse brake linear solenoid

valve actual command: more than 612 mA

Judgment Criteria <Circuit continuity open>

• Lock-up and low-reverse brake linear solenoid

valve actual current: less than 190 mA. (5 sec-
onds)

.

OBD-II DRIVE CYCLE PATTERN

Drive with the sport mode (1st gear) for approxi-
mately 10 seconds, and then drive with the transmis-
sion range D, throttle valve opening 50% or less, and
vehicle speed 60 km/h (37.3 mph) or more for
approximately 10 seconds continuously.

.

TROUBLESHOOTING HINTS (THE MOST
LIKELY CAUSES FOR THIS CODE TO BE
SET ARE:)

• Malfunction of the lock-up and low-reverse brake

linear solenoid valve system circuit

• Damaged harness or connector

• Malfunction of the TCM

• Malfunction of the lock-up and low-reverse brake

linear solenoid valve (valve body assembly)

DIAGNOSIS

STEP 1. Check the TCM terminal voltage.
[C-37 TCM connector (vehicle side, connected)]
Measure the voltage between the terminal No. 52 and body
ground.

• Lock-up released: 0 V

• Lock-up engaged: 300 Hz

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Go to Step 2.

STEP 2. Check between the TCM connector and A/T
control solenoid valve assembly connector.
Check for continuity between C-37 TCM connector and B-111
A/T control solenoid valve assembly connector.
NOTE: Prior to the wiring harness inspection, check the inter-
mediate connectors A-12 and repair that if necessary.

• Between C-37 terminal No. 52 and B-111 terminal No. 4:

Continuity exists.

When the continuity check result is OK, check that the wiring
harness is not shorted to the body and other wiring harness.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair or replace the failure section.

STEP 3. Check the lock-up and low-reverse brake linear
solenoid.
Refer to

P.23C-275

.

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Go to Step 4.

AUTOMATIC TRANSAXLE DIAGNOSIS <A/T>

TSB Revision

AUTOMATIC TRANSAXLE

23C-76

STEP 4. Check between the A/T control solenoid valve
assembly connector and the lock-up and low-reverse
brake linear solenoid valve connector.
Check for continuity between the A/T control solenoid valve
assembly connector and the lock-up and low-reverse brake lin-
ear solenoid valve connector terminals.

• Between C-111 terminal No. 4 and the lock-up and

low-reverse brake linear solenoid valve: Continuity exists.

Q: Is the check result satisfactory?

YES : Replace the valve body assembly.
NO :  Repair or replace the failure section.

STEP 5. Check the TCM and A/T control solenoid valve
assembly connector pin terminals and the connection
status.
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Repair or replace the failure section.

STEP 6. Check the TCM and A/T control solenoid valve
assembly connector pin terminals and the connection
status.
Q: Is the check result normal?

YES : Replace the TCM.
NO :  Repair or replace the failure section.

STEP 7. Erase the DTC code, and drive the vehicle for a
while.
Check that the normal code is displayed.
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Return to START.

DTC P0748: Line Pressure Linear Solenoid Valve System

.

SOLENOID VALVE SYSTEM CIRCUIT

Refer to

P.23C-72

.

.

DESCRIPTIONS OF MONITOR METHODS

When the battery voltage is 2 V or more

• Open or short circuit is detected for 5 seconds.

• The control current of solenoid valve is abnor-

mally large or small.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.
