GENERAL INFORMATION

TSB Revision

AUTOMATIC TRANSAXLE

23C-5

COMPONENTS AND FUNCTIONS

FUNCTION ELEMENT TABLE

×: Function element     −: Not applicable

Parts name

Function

Low clutch

Works with 1st, 2nd, 3rd, and 4th gears, and transfers the input from 3-5 reverse
clutch drum to the front internal gear.

3-5 reverse clutch

Works with 3rd, 5th, and reverse gears, and transfers the reduction internal gear
input to the front sun gear.

High clutch

Works with 4th, 5th, and 6th gears, and transfers the input shaft input to the rear
carrier.

Low and reverse
brake

Works with engine brake, 1st and reverse gears, and fixes the rear carrier.

2-6 brake

Works with 2nd and 6th, and fixes the rear sun gear rotation.

One-way clutch

Works when in 1st gear under acceleration status, and fixes the rear carrier.

Transmission range

Low clutch 3-5 reverse

clutch

High clutch Low and

reverse
brake

2-6 brake

One-way
clutch

P

−

−

−

−

−

−

R

−

×

−

×

−

−

N

−

−

−

−

−

−

D

1st

×

−

−

−

−

×

1st gear
engine brake

×

−

−

×

−

−

2nd

×

−

−

−

×

−

3rd

×

×

−

−

−

−

4th

×

−

×

−

−

−

5th

−

×

×

−

−

−

6th

−

−

×

−

×

−

GENERAL INFORMATION

TSB Revision

AUTOMATIC TRANSAXLE

23C-6

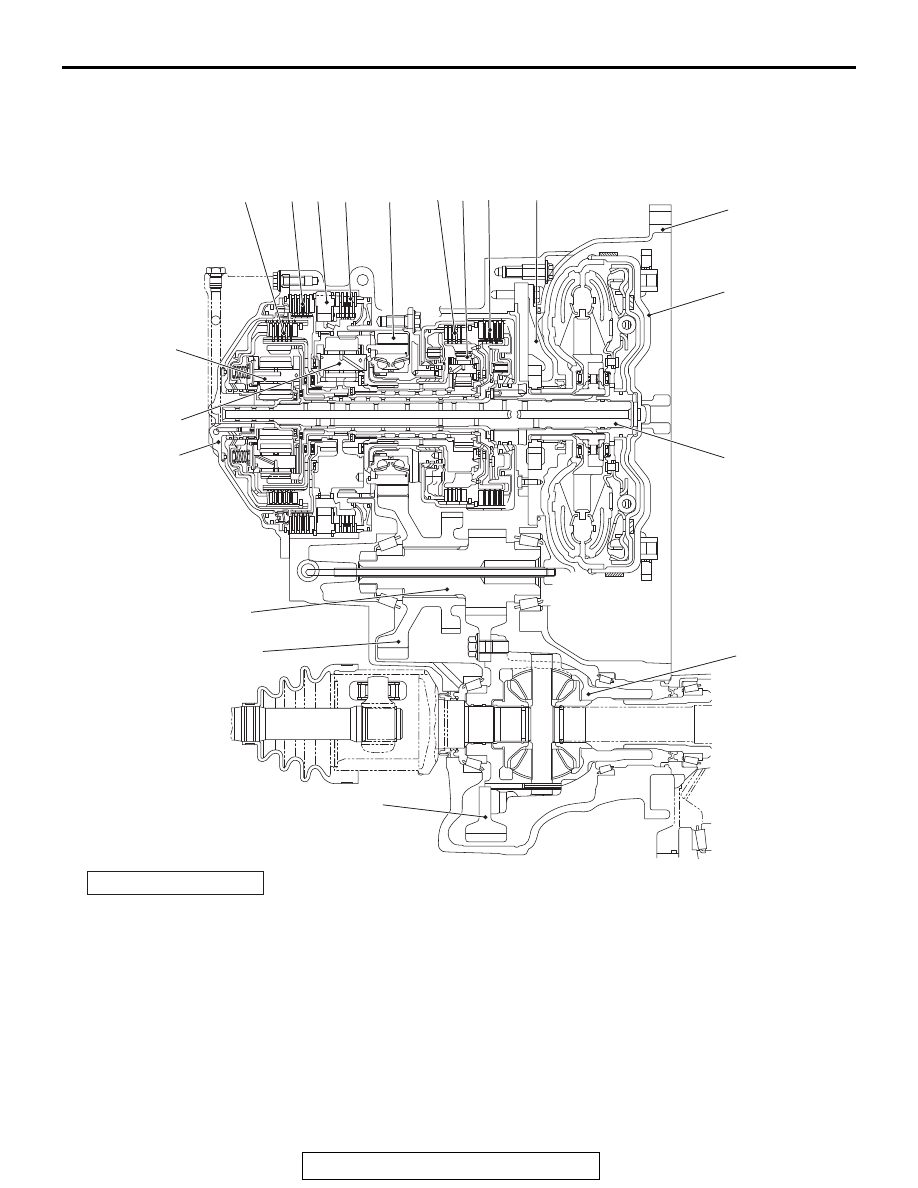

SECTIONAL VIEW
<F6AJA>

AC702758

2

19

18

17

16

15

14

13

12

11

10

9 8

7

1

6

5 4 3

Based on lepelletier system

AB

1.

Converter housing



2.

Oil pump

3.

3-5 reverse clutch

4.

Front planetary gear

5.

Low clutch

6.

Output gear

7.

Low and reverse brake

8.

One-way clutch

9.

2-6 brake

10. High clutch

11. Reduction planetary gear
12. Rear planetary gear
13. Side cover
14. Reduction pinion gear
15. Idler gear
16. Final gear
17. Differential case
18. Input shaft
19. Torque converter

GENERAL INFORMATION

TSB Revision

AUTOMATIC TRANSAXLE

23C-7

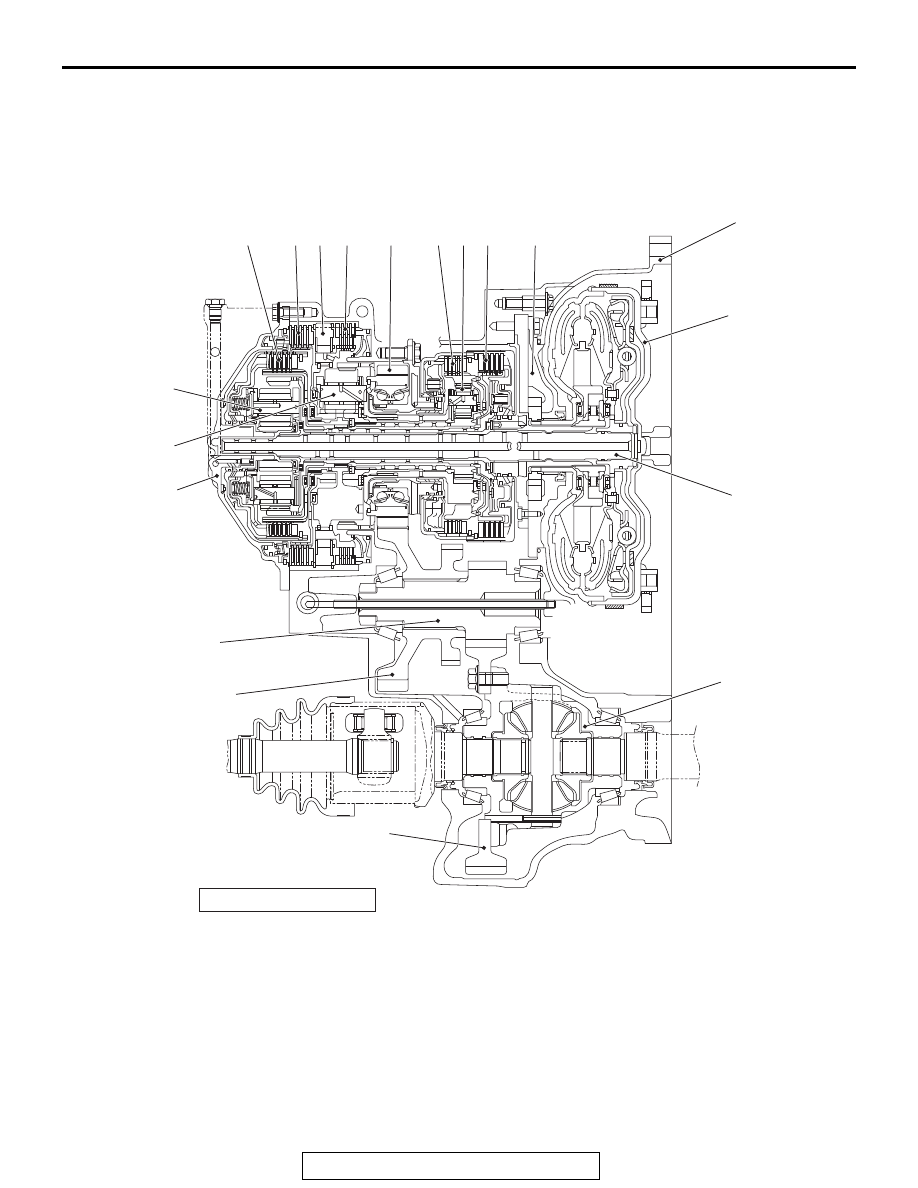

<W6AJA>

AC607448AG

2

19

18

17

16

15

14

13

12

11

10

9

8

7

1

6

5 4

3

Based on lepelletier system

1.

Converter housing



2.

Oil pump

3.

3-5 reverse clutch

4.

Front planetary gear

5.

Low clutch

6.

Output gear

7.

Low and reverse brake

8.

One-way clutch

9.

2-6 brake

10. High clutch

11. Reduction planetary gear
12. Rear planetary gear
13. Side cover
14. Reduction pinion gear
15. Idler gear
16. Final gear
17. Differential case
18. Input shaft
19. Torque converter

GENERAL INFORMATION

TSB Revision

AUTOMATIC TRANSAXLE

23C-8

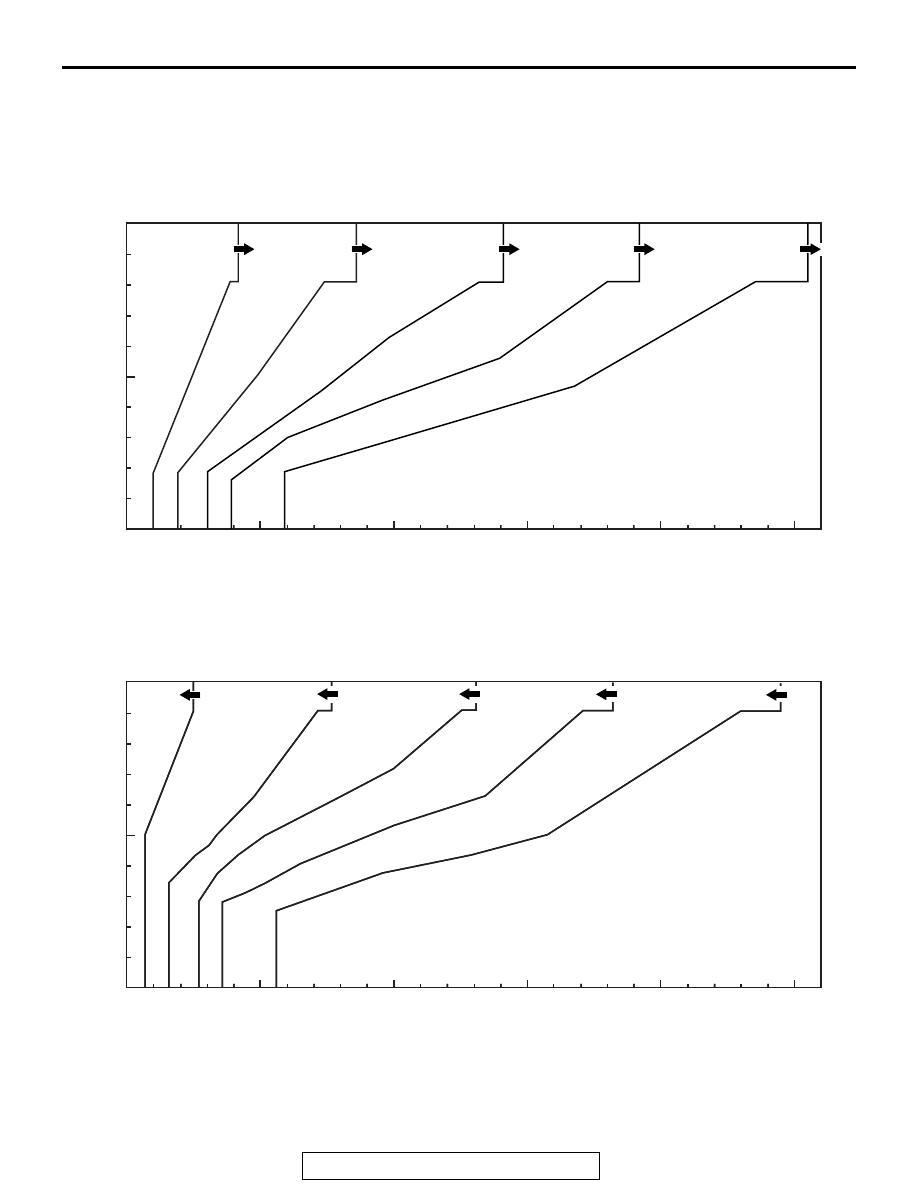

STANDARD SHIFT PATTERN CONTROL

.

UPSHIFT PATTERN

.

DOWNSHIFT PATTERN

AC902402

1

2

2

3

3

4

4

5

5

6

100

50

Throttle

Opening (%)

0 (0)

250 (155)

50 (31)

100 (62)

150 (93)

200 (124)

AB

Vehicle speed km/h (mph)

AC902403

0 (0)

250 (155)

50 (31)

100 (62)

150 (93)

200 (124)

Vehicle speed km/h (mph)

AC902403

100

50

Throttle

Opening (%)

1

2

2

3

3

4

4

5

5

6

AB
