TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-57

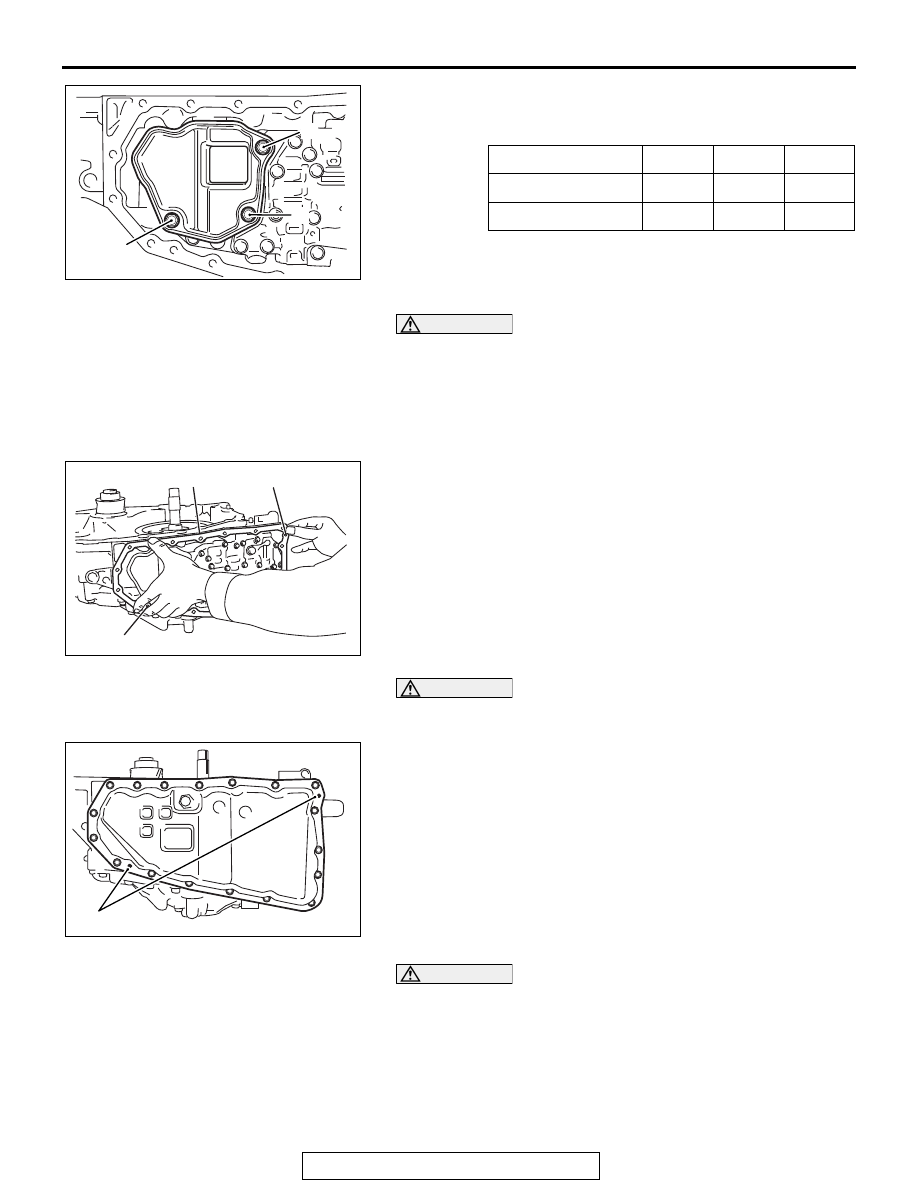

39.Install the oil strainer and tighten the bolt to the specified

torque.

Tightening torque: 7.9 N

⋅m (70 in-lb)

CAUTION

• Do not re-use the oil pan gasket.
• Remove any moisture, oil, and used gasket from the

mounting surface of oil pan gasket.

• When installing the oil pan gasket, align the dowel pins

of transaxle case with dowel pin holes A of the oil pan
gasket.

40.Install the oil pan gasket on the transaxle case.
41.Install the magnet on the oil pan.

CAUTION

When installing the oil pan, align the dowel pins of tran-
saxle case with dowel pin holes A of the oil pan.
42.Install the oil pan on the transaxle case and tighten the bolts

to the specified torque.

Tightening torque: 7.9 N

⋅m (70 in-lb)

CAUTION

Do not re-use the drain plug gasket.
43.Install the drain plug and drain plug gasket on the transaxle

case and tighten the bolt to the specified torque.

Tightening torque: 34.3 N

⋅m (25 ft-lb)

Bolt symbol

A

B

C

Shank length mm

12

44

12

Quantity

1

1

1

AK502222AD

C

B

A

AK502278AE

Oil pan gasket

A

A

AK502220

A

AD

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-58

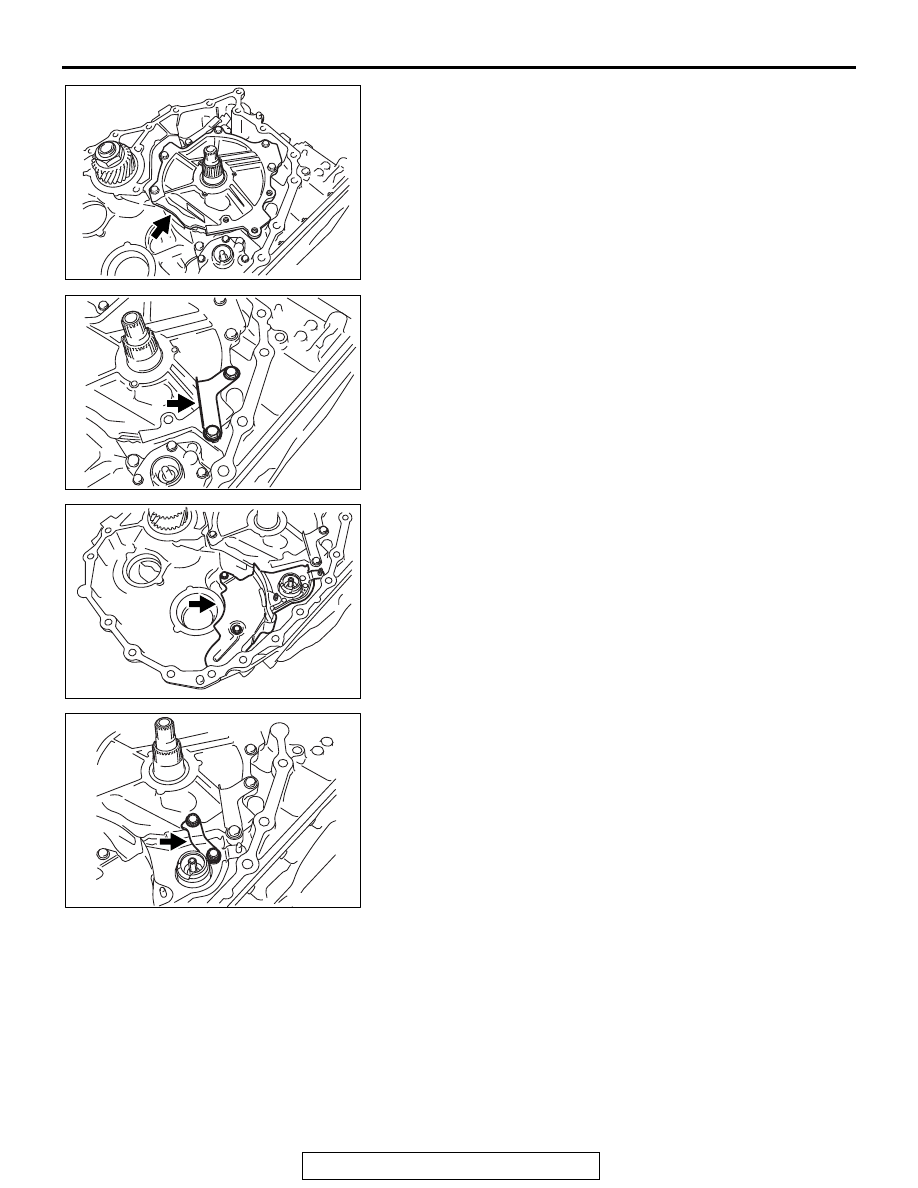

44.Install the oil pump cover on the transaxle case, and fix the

fastening bolts temporarily.

45.Install the baffle plate, and fix the fastening bolts

temporarily.

46.Install the oil guide and tighten the bolt to the specified

torque.

Tightening torque: 5.9 N

⋅m (52 in-lb)

47.Install the bracket, and tighten the fastening bolts of the

bracket to the bolts to the specified torque.

Tightening torque: 26 N

⋅m (19 ft-lb)

48.Tighten the fastening bolts of the oil pump cover and baffle

plate to the bolts to the specified torque.

Tightening torque: 19 N

⋅m (14 ft-lb)

AK502217AD

AK502216AE

AK502215AE

AK502214AD

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-59

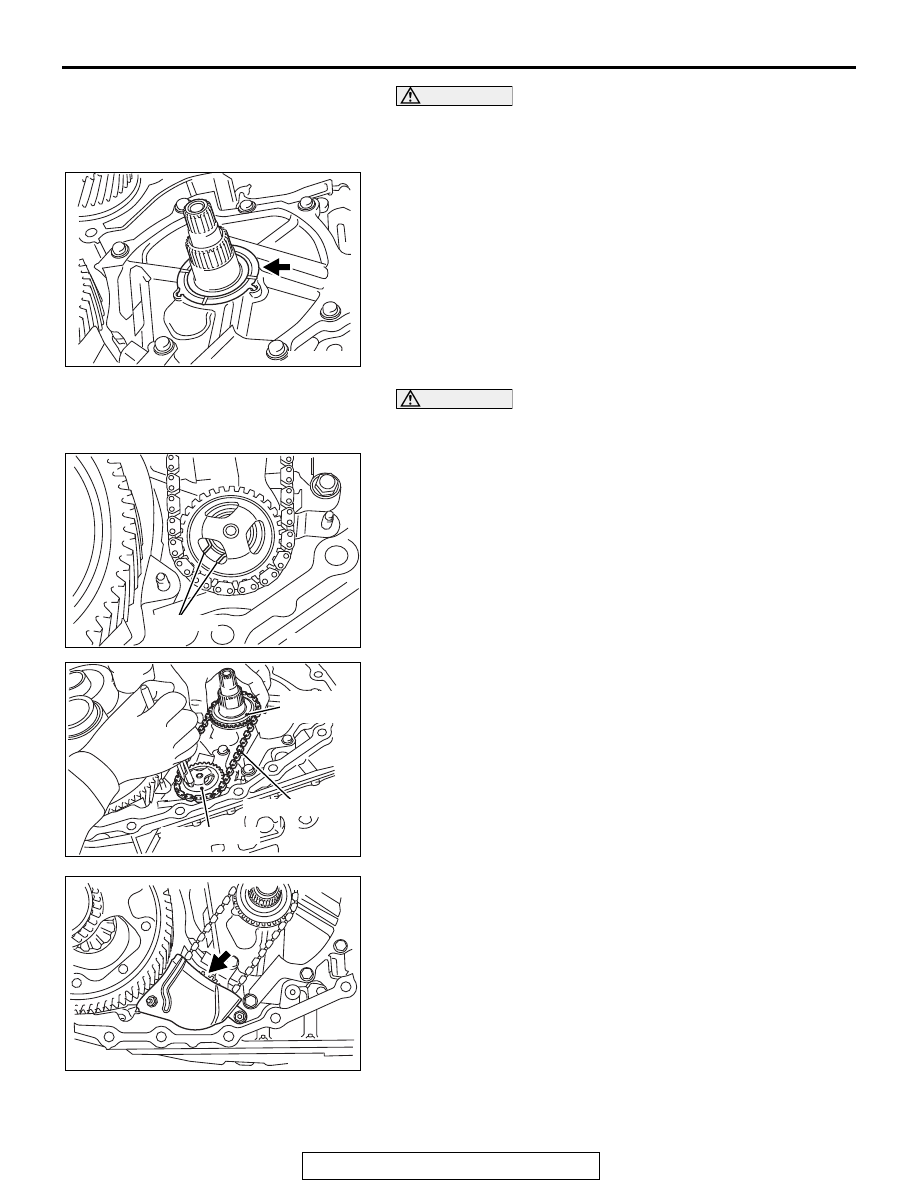

CAUTION

• Make sure the tang of thrust washer is aligned with the

mounting hole of oil pump cover.

• Apply vaseline when installing the thrust washer.

49.Install the thrust washer on the oil pump cover.

CAUTION

Pull the driven sprocket up softly to make sure it is
securely attached.
50.Expand the snap ring, and install the driven sprocket, oil

pump chain, and drive sprocket.

51.Install the chain cover, and tighten the fastening nuts to the

specified torque.

Tightening torque: 5.9 N

⋅m (52 in-lb)

AK502210AD

AK502208AD

Snap ring

AK502209AE

Driven sprocket

Oil pump chain

Drive
sprocket

AK502207AE

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-60

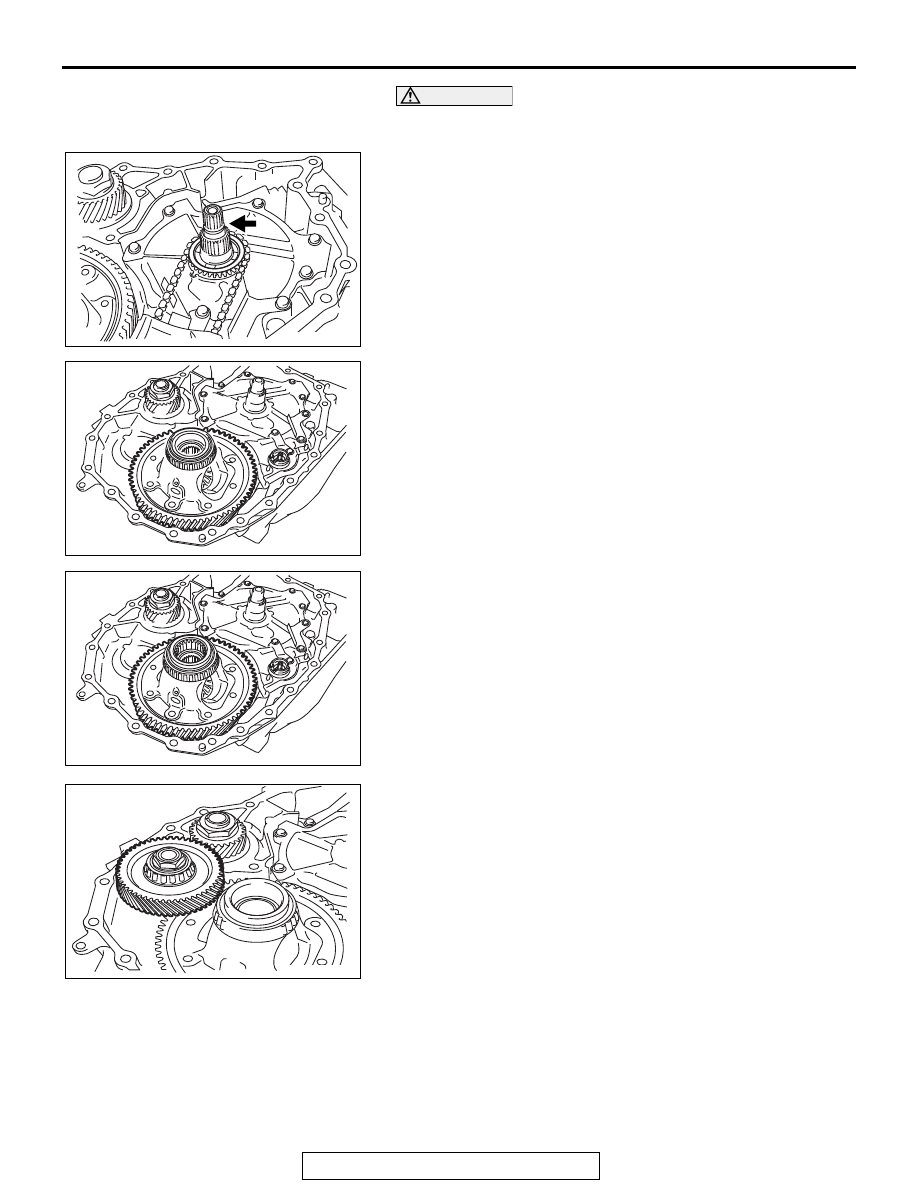

CAUTION

• Do not re-use the O-ring.
• Apply transmission fluid when installing the O-ring.

52.Install the O-ring on the input shaft.

53.Install the differential assembly on the transaxle case.

54.Install the reduction gear assembly on the transaxle case.

AK502206AF

AK605044

<F1CJA>

AC

AK502213

<W1CJA>

AD

AK502212
