TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-49

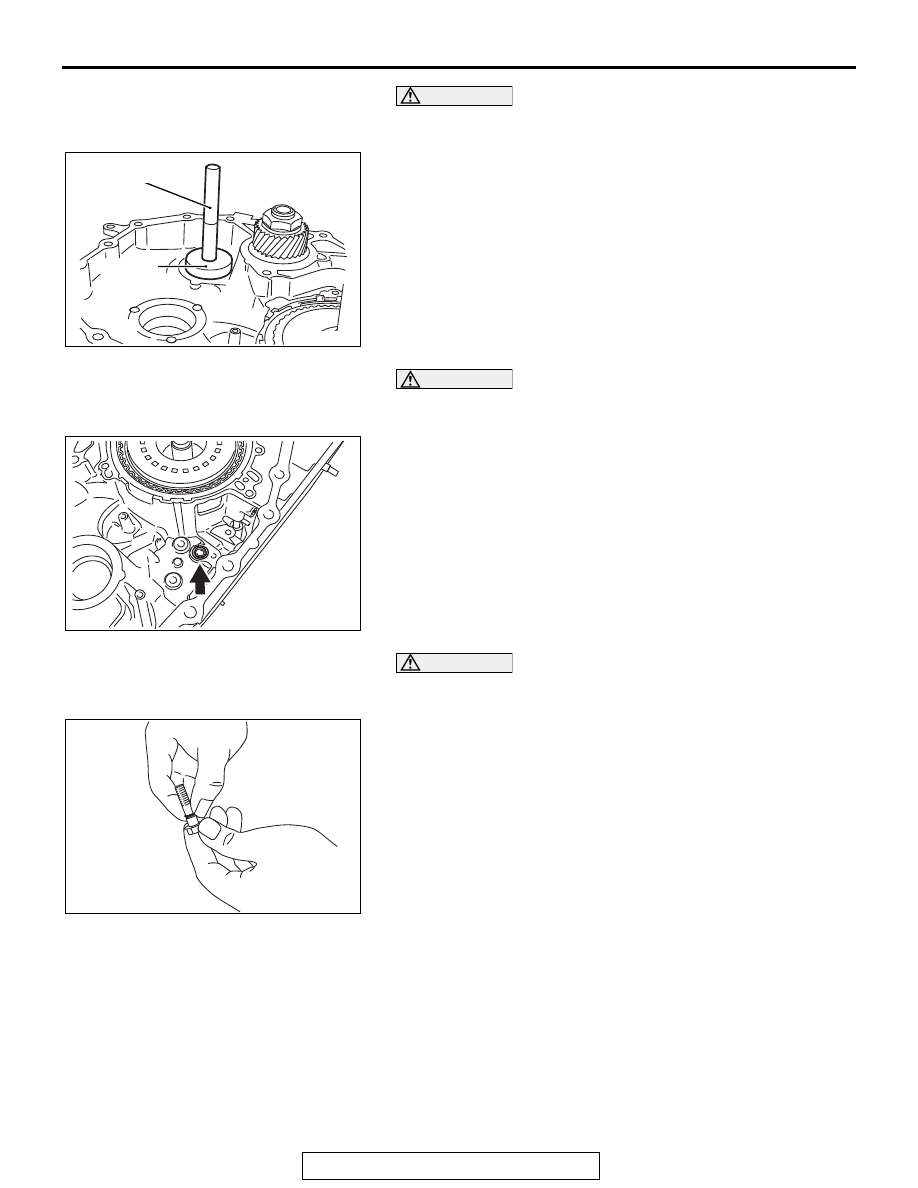

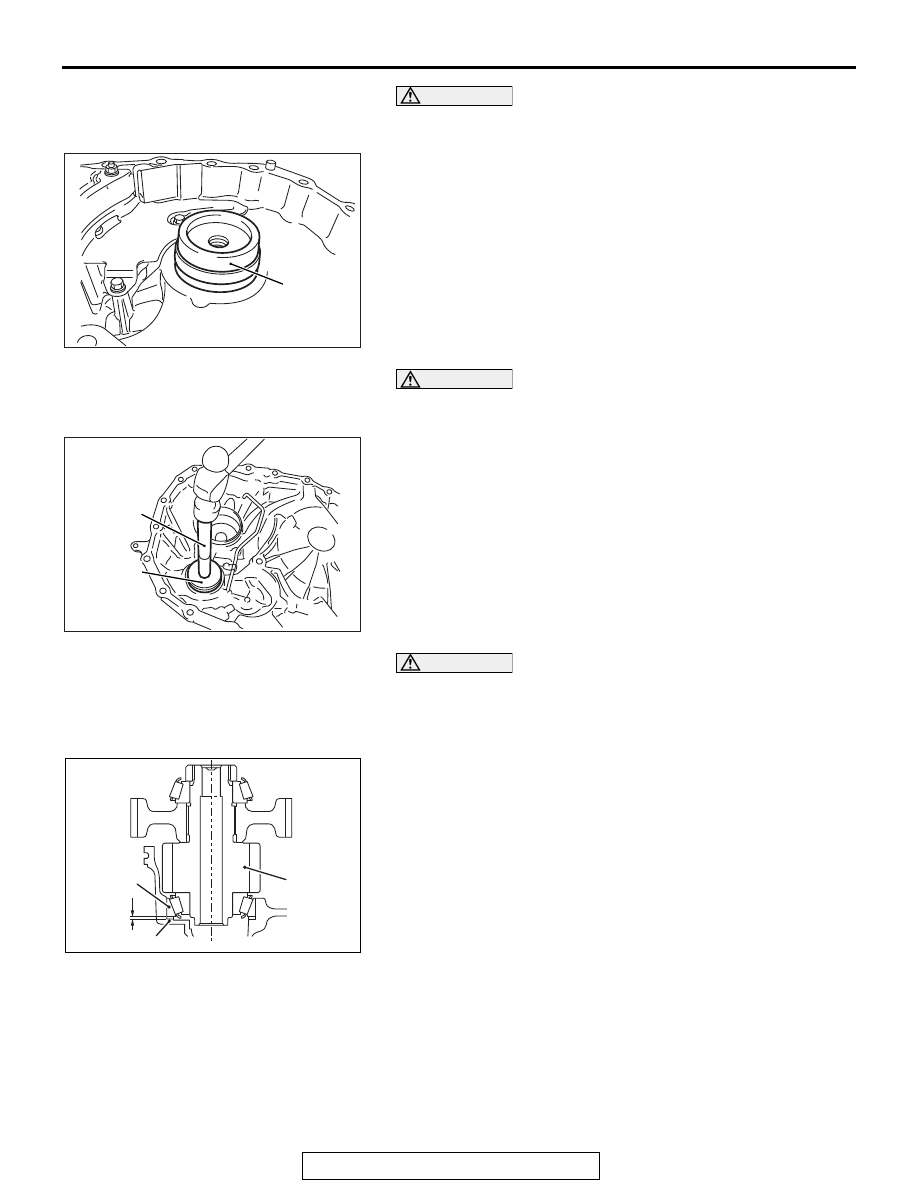

CAUTION

• Do not re-use the outer race.
• Replace the outer race together with the inner race.

24.Using the special tool MB990780, install the outer race of

differential side bearing on the transaxle case.

CAUTION

• Do not re-use the outer race.
• Replace the outer race together with the inner race.

25.Using the special tools MB990932 and MB990938, install

the outer race of reduction gear bearing on the converter
housing.

CAUTION

• When adjusting the preload, apply transmission fluid to

the bearing to make it roll smoothly.

• When conducting measurements, measure two or more

places, and find the average value.

26.Measure the preload A of the reduction gear assembly in

the following way.

AK502846AD

MB990780

AK604111AC

MB990938

MB990932

AK502269AD

A

Reduction gear

Transmission case

Bearing
outer race

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-50

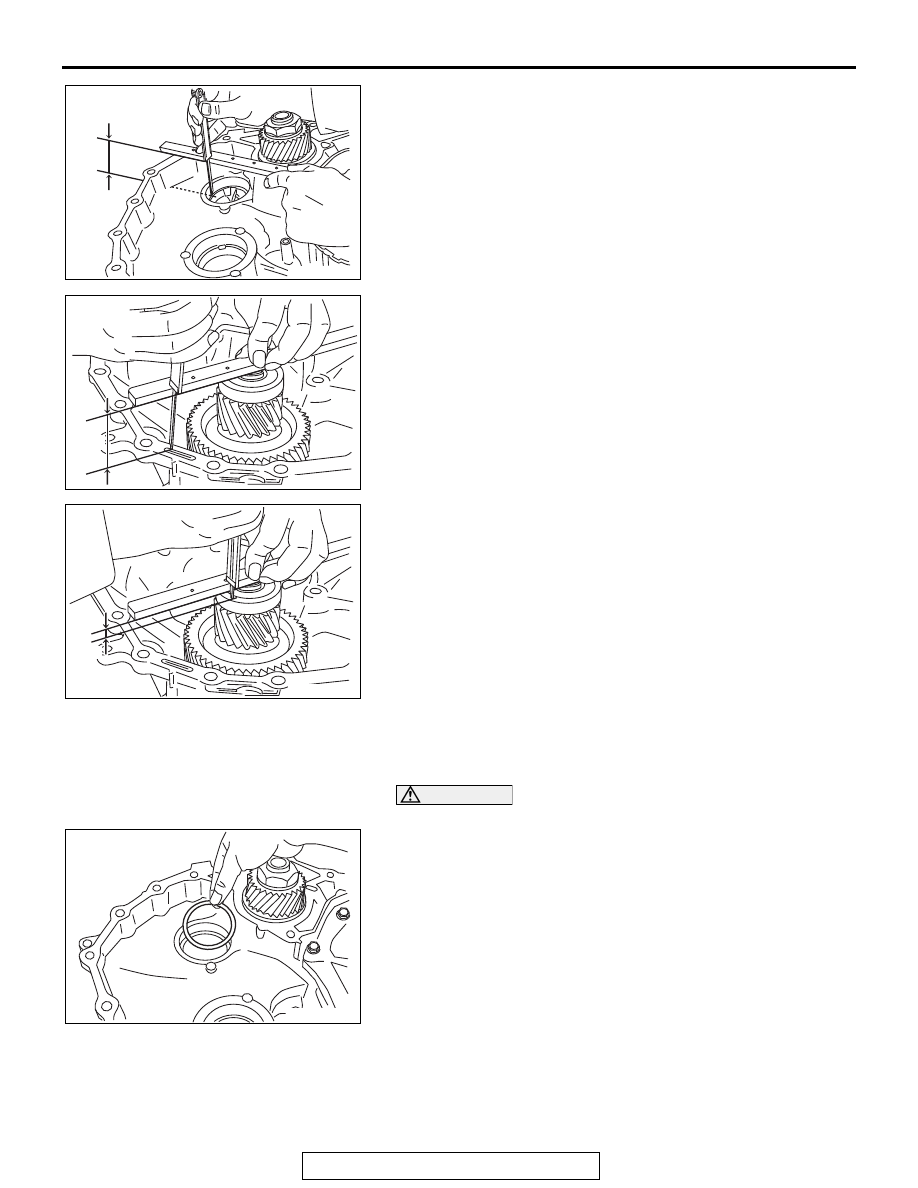

(1) Measure the distance M7 from the edge of transaxle case

to the mounting surface of adjusting shim.

(2) Install the reduction gear assembly on the converter

housing, and measure the distance M8 from the edge of
reduction gear assembly to the edge of converter
housing.

(3) Install the outer race of reduction gear side bearing on

the bearing, and measure the distance M9 from the edge
of reduction gear assembly to the outer race of reduction
gear bearing.

(4) Using the following expression, calculate the difference

M10 from the outer race of reduction gear bearing to the
edge of converter housing.

M10 = M8

− M9

(5) Using the following expression, calculate the thickness of

adjusting shim.

Thickness of adjusting shim = M7

− M10 + preload

Standard value: 0.11

− 0.17 mm (0.004 − 0.006 in)

(For reduction gear preload)

CAUTION

Do not re-use the adjusting shim.
27.Install the selected adjusting shim on the transaxle case.

For selection of the adjusting shim, refer to "SERVICE
SPECIFICATIONS."

AK502270

M7

AD

AK502271AD

M8

AK502272 AD

M9

AK502241

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-51

CAUTION

• Do not re-use the outer race.
• Replace the outer race together with the inner race.

28.Using the special tools MB990932 and MB990938, install

the outer race of reduction gear bearing on the transaxle
case.

CAUTION

• Do not re-use the lip seal.
• Apply transmission fluid when installing the lip seal.

29.Install the lip seal on the transaxle case.

CAUTION

• Do not re-use the O-rings.
• Apply transmission fluid when installing the O-rings.

30.Install the O-rings on the oil pump fastening bolts.

AK502951AD

MB990938

MB990932

AK502237AD

AK502236

TRANSAXLE

TSB Revision

CONTINUOUSLY VARIABLE TRANSAXLE OVERHAUL

23B-52

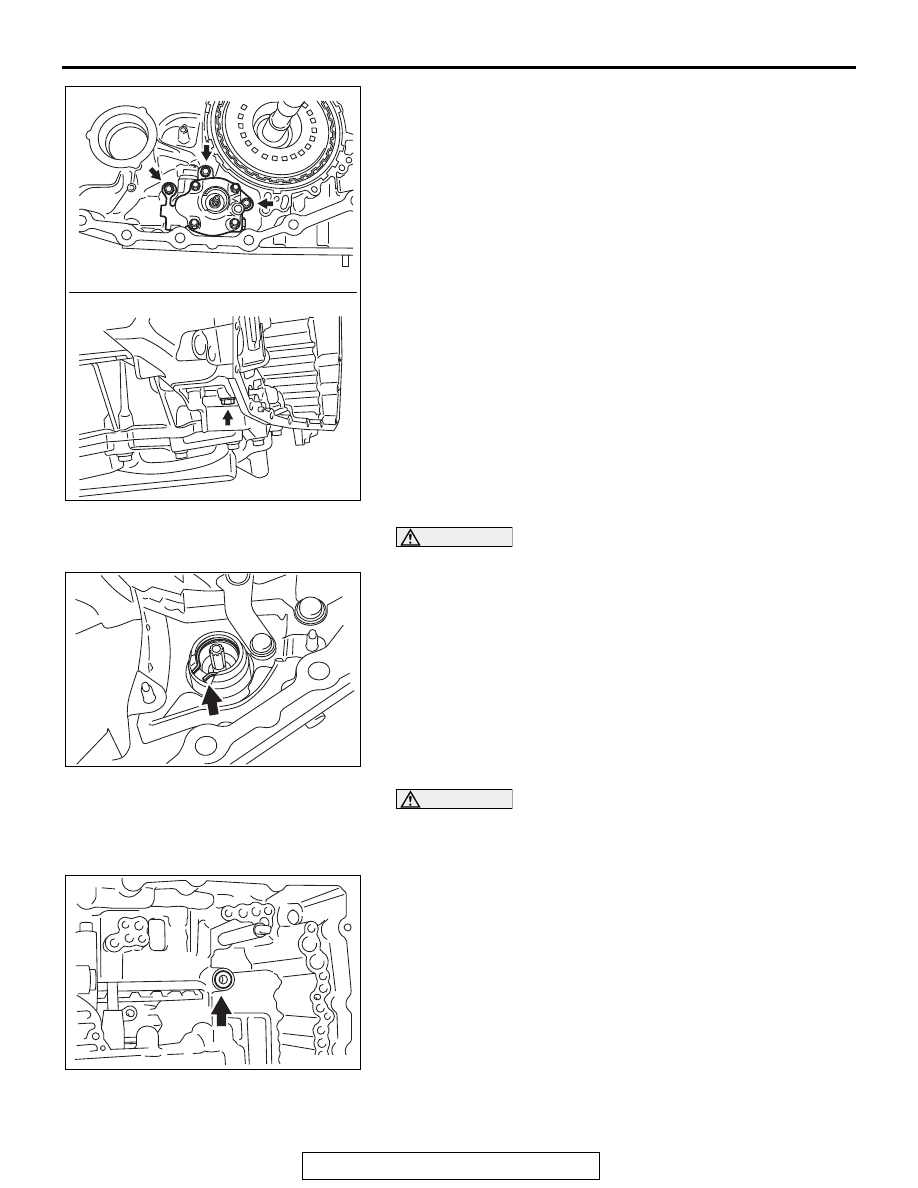

31.Install the oil pump on the transaxle case and tighten the

bolt to the specified torque. (One fastening bolt is installed at
the backside from the transaxle case side. Only this bolt
should be tightened to the specified torque of 28 N

⋅m [21

ft-lb].)

Tightening torque: 19 N

⋅m (14 ft-lb)

CAUTION

Do not re-use the snap ring.
32.Install the snap ring on the oil pump.

CAUTION

• Do not re-use the lip seal.
• Apply transmission fluid or vaseline when installing the

lip seal.

33.Install the lip seal on the transaxle case.

AK502235AD

AK502211AD

AK502229AD
