ON-VEHICLE SERVICE

TSB Revision

CVT

23A-149

SELECTOR LEVER OPERATION CHECK

M1231202900298

1. Put on the parking brake.
2. Move the selector lever to every range and check that the

lever moves smoothly with secure feel of engagement.

3. Make sure that the engine starts when the selector lever is in

the N or P range, and does not start when the selector lever
is in other range.

4. Start the engine. Release the parking brake.
5. Make sure that the vehicle moves forward when the selector

lever is moved from the N range to D range, or to the 1st to
6th speed in the sports mode. Also make sure that the
vehicle moves backward when the selector lever is moved
from the N to R range.

6. Stop the engine.
7. Turn ON the ignition switch, and move the selector lever

from the P to R range. Check that the backup lamp comes
on and the tone alarm sounds at this time.
NOTE: Since the vehicle is equipped with the CVT
wrong-operation preventive device, the selector lever cannot
be moved out of the P position without depressing the brake
pedal after turning ON the ignition switch.

KEY INTERLOCK MECHANISM
CHECK/ADJUSTMENT

M1232100200103

1. Carry out the following check.

2. If the normal conditions are not obtained after performing the

above operations, install the key interlock cable in the
following procedures. (Automatic adjustment)

(1) Disconnect the key interlock cable connection (selector

lever side)(Refer to

P.23A-155

).

AC703193

P

R

N

D

AB

: Turn the ignition switch to the
 "ON" position, and operate the lever
 while depressing the brake pedal.

: Only shifting

: Automatic return

Inspectio
n
procedur
e

Check conditions

Items to be checked (Normal conditions)

1

Brake pedal:
Depress

Ignition switch position:
LOCK (OFF) or removed

The selector lever cannot be moved out of P
position.

2

Ignition switch position:
ON

The selector lever can be moved from P position
to other positions smoothly.

3

Transmission range: Other than P

The ignition switch cannot be turned to the
LOCK (OFF) position.

4

Transmission range: P

The ignition switch can be turned to the LOCK
(OFF) position smoothly.

ON-VEHICLE SERVICE

TSB Revision

CVT

23A-150

CAUTION

Leave the ignition switch in the LOCK (OFF) position until
the key interlock cable installation is completed.

(2) Move the selector lever to the P position and turn the

ignition switch to the LOCK (OFF) position.

(3) Install the tip of the key interlock cable to the lock cam of

the selector lever assembly, taking care not to twist the
inner cable.

(4) Install the adjuster case with its lock guide pulled up

(unlocked).

(5) Securely push down the lock guide to lock it.

NOTE: The lock position of the key interlock cable is
automatically adjusted by a spring.

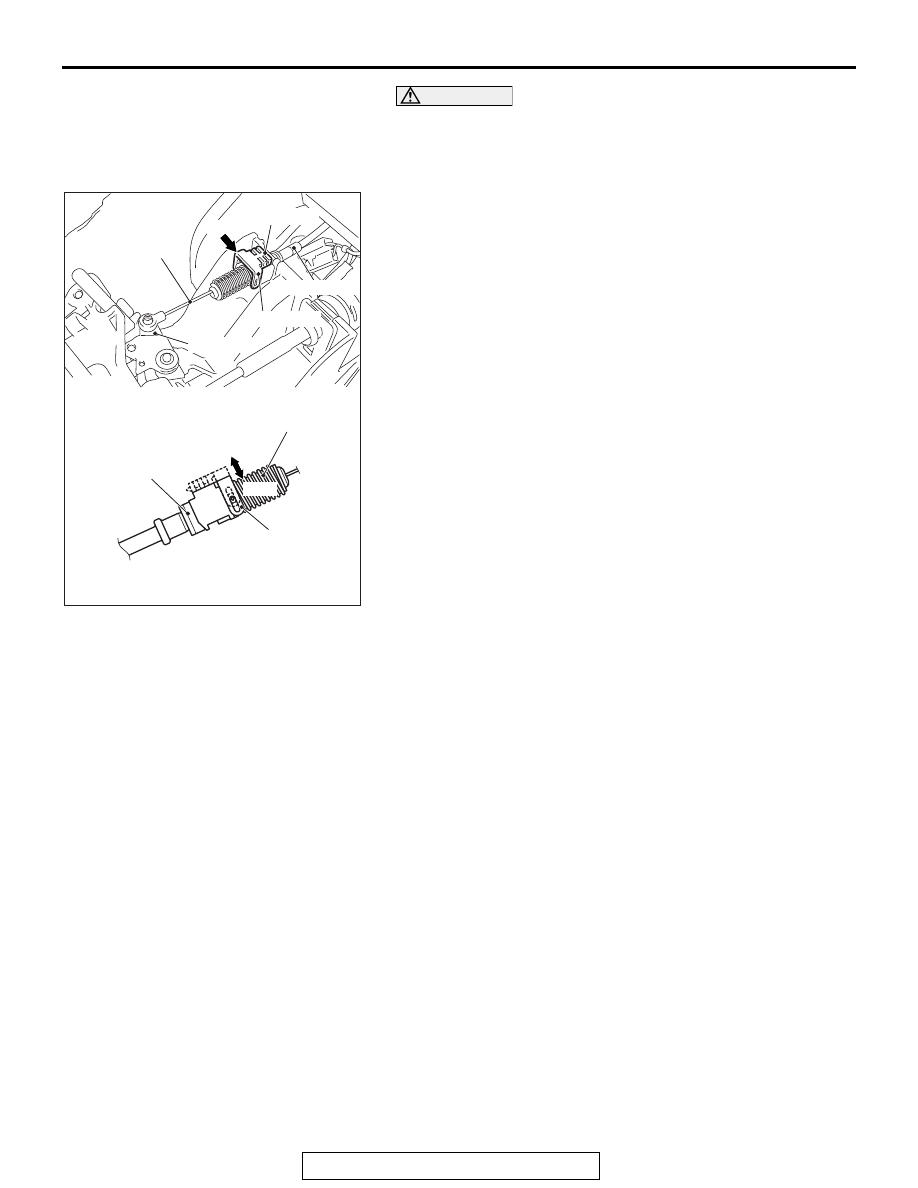

AC709743

Inner cable

Adjuster case

Key inter lock cable

Lock guide

Lock cam

A

AB

View A

Spring

Lock

Adjuster case

Lock guide

Unlock

ON-VEHICLE SERVICE

TSB Revision

CVT

23A-151

SHIFT LOCK MECHANISM CHECK

M1232100300490

SYSTEM CHECK

Inspection
procedure

Check condition

Items to be checked
(Normal conditions)

Possible cause of abnormality

1

Brake pedal not
depressed

Ignition
switch
position:
Other
than ON

The selector lever
cannot be moved out of
the "P" position

• Abnormality in the shift lock link

(stuck, disengaged, broken, etc.)

• Abnormality in the electrical

circuit

• Abnormality in the key interlock

mechanism

2

Brake pedal
depressed

• Abnormality in the electrical

circuit

• Abnormality in the key interlock

mechanism

3

Brake pedal not
depressed

Ignition
switch
position:
ON

• Abnormality in the shift lock link

(stuck, disengaged, broken, etc.)

• Abnormality in the electrical

circuit

4

Brake pedal
depressed

The selector lever can
be moved from the "P"
position to other
positions smoothly.

• Abnormality in the shift lock link

(stuck, disengaged, broken, etc.)

• Abnormality in the electrical

circuit

5

Shift lock release
button pressed

• Abnormality in the shift lock link

(stuck, disengaged, broken, etc.)

6

Brake pedal
depressed / not
depressed

The selector lever can
be moved from the "R"
position to the "P"
position smoothly.

• Abnormality in the shift lock link

(stuck, disengaged, broken, etc.)

ON-VEHICLE SERVICE

TSB Revision

CVT

23A-152

COMPONENT PARTS CHECK

.

SHIFT LOCK LINK

Check each part for damage and disengagement.
Check that the lock lever smoothly moves in the direction of
arrow B in the figure when the shift lock solenoid plunger is
pressed in the direction of arrow A, and smoothly moves back
to the original position when the plunger is released.

.

SHIFT LOCK SOLENOID

1. Measure the resistance between terminal No.3 and No.7 of

the selector lever assembly connector.

Standard value: 24

± 1.2 Ω

2. When the resistance is outside the standard value, replace

the selector lever assembly.

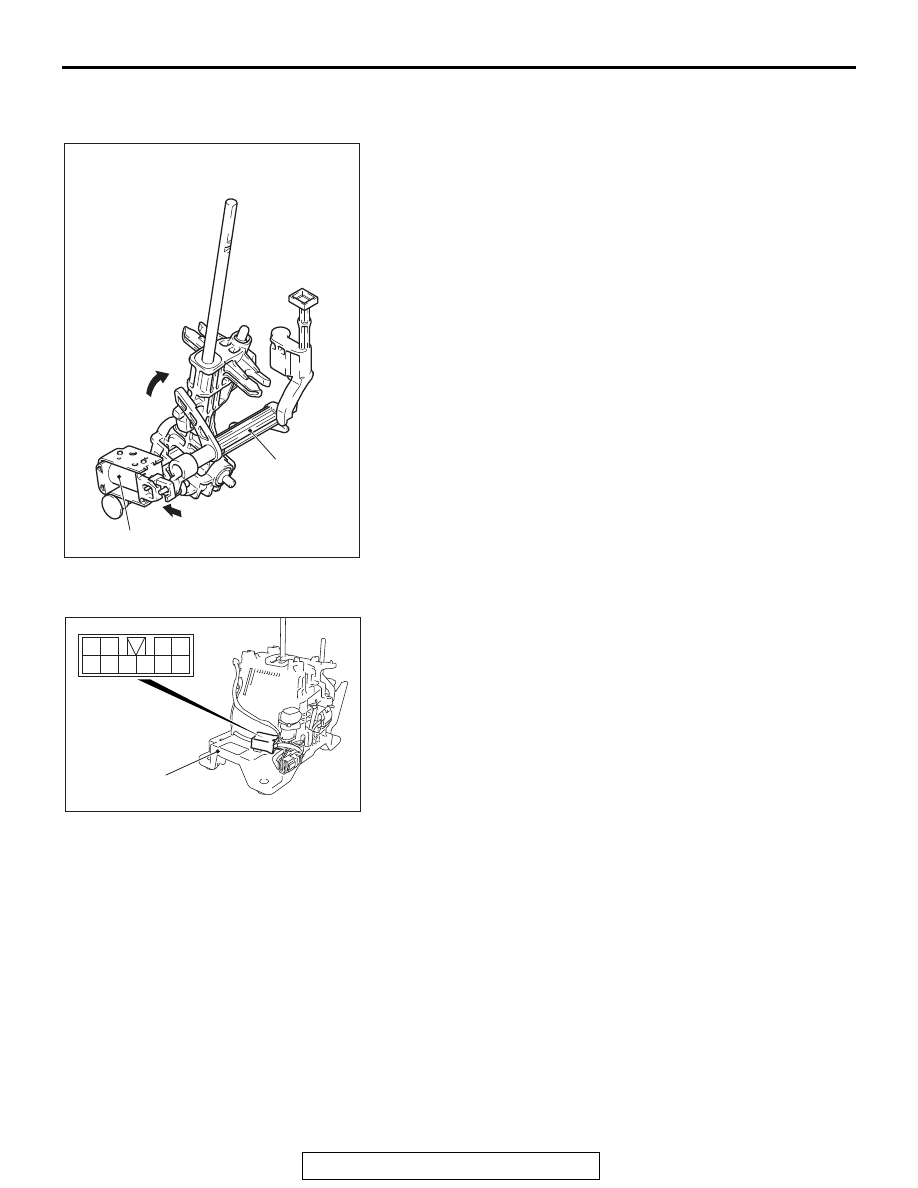

AC607777AB

A

B

Shift lock solenoid

Lock lever

AC507005

9

3

2

1
5 6 7 8

4

10

AB

Selector lever assembly
