ON-VEHICLE SERVICE

TSB Revision

CVT

23A-141

8. Drive the vehicle until the transmission fluid is warmed up to

the normal operating temperature 70

− 80°C (158 − 176°F),

and check the transmission fluid level. It must be within the
"H" area on the oil level gauge.
NOTE: The "C" level is for reference only. Use the "H" level
as the criteria.
NOTE: Use scan tool MB991958 to measure the transmis-
sion fluid temperature.
NOTE:

When a certain amount of time is required to warm

up the transmission fluid to the normal operating tempera-
ture 70

 80

°

C (158

 176

°

F), check the oil level referring to

the characteristics chart.

9. Adjust the transmission fluid level to the specified level.

Refill the transmission fluid when the fluid level is low, and
drain the transmission fluid through the drain plug when the
fluid level is high.

10.Securely insert the oil level gauge into the oil filler tube.
11.TCM records the deterioration level of the transmission fluid.

After replacing the transmission fluid with new one, use scan
tool MB991958 to reset the deterioration level recorded in
TCM.

FLUSHING COOLERS AND TUBES

M1231212700013

Required Special Tool:
MB995062: Flushing Tool

WARNING

Wear protective eyewear that meets the require-
ments of ANSI Z87.1

 1968 and OSHA. Wear stan-

dard industrial rubber gloves.

Keep lighted cigarettes, sparks, flames, and other
ignition sources away from the area to prevent the
ignition of combustible liquids and gases. Keep a
class B fire extinguisher in the area where the
flushing tool will be used. Keep the area well venti-
lated. Do not let flushing solvent come in contact
with eyes or skin. If it does, flush with water for 15
to 20 seconds. Remove contaminated clothing and
wash affected skin with soap and water. Seek med-
ical attention.

AC805082

AC508088

HOT

AB

40 (104)

60 (140)

80 (176)

-30 (-1.2)

-20 (-0.8)

-10 (-0.4)

0 (0)

10 (0.4)

Fluid temperature ˚C (˚F)

Dipstick

Fluid level mm (in)

ON-VEHICLE SERVICE

TSB Revision

CVT

23A-142

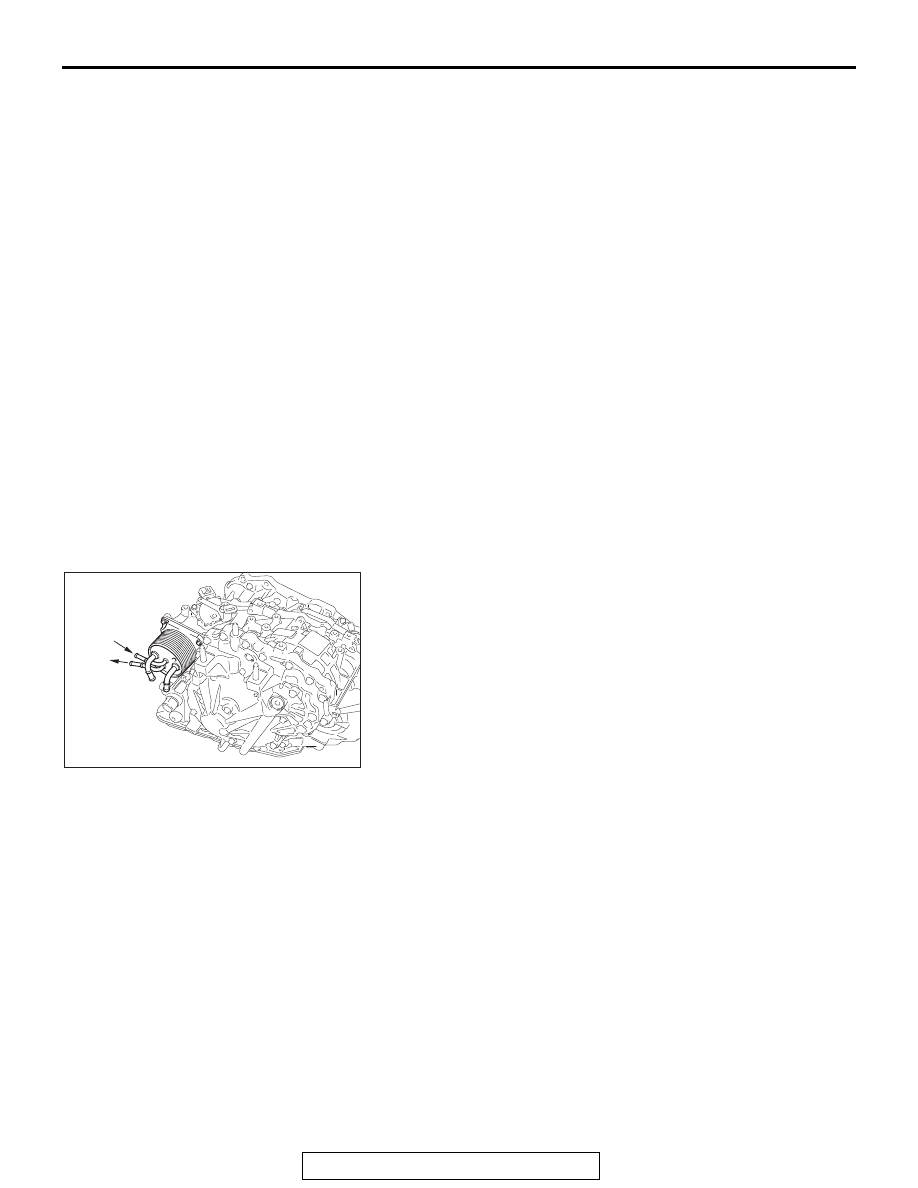

When a transaxle failure has contaminated the transmission
fluid, the transaxle must be flushed. The transmission fluid
warmer (transmission fluid cooler) on the transaxle must also
be replaced. The torque converter must also be replaced with
an exchange unit. This will ensure that metal particles or
sludged transmission fluid are not later transferred back into
the reconditioned (or replaced) transaxle. There are two differ-
ent procedures for flushing coolers and lines. The recom-
mended procedure is to use special tool MB995062 Flushing
Tool. The other procedure is to use a hand suction gun and
mineral spirits.
1. Remove the cover plate filler plug on special tool

MB995062. Fill the reservoir 1/2 to 3/4 full with fresh flushing
solution. Flushing solvents are petroleum based solutions
generally used to clean transaxle components. Do not use
solvents containing acids, water, gasoline, or any other
corrosive liquids.

2. Reinstall the filler plug on special tool MB995062.
3. Verify that the pump power switch is turned "OFF." Connect

the red alligator clip to the positive battery terminal. Connect
the black alligator clip to a good ground.

4. Disconnect the cooler lines at the transaxle.

NOTE: When flushing the transaxle cooler and lines, always
reverse flush.

5. Connect the pressure line to the OUTLET line (from cooler).
6. Connect the return line to the INLET line (to cooler).
7. Turn the pump "ON" for two to three minutes to flush the

cooler(s) and lines. Monitor the pressure readings. Clear the
return lines. Pressure readings should stabilize below 138
kPa (20 psi) for vehicles equipped with a single cooler and
208 kPa (30 psi) for vehicles equipped with dual coolers. If
flow is intermittent or exceeds these pressures, replace the
cooler(s).

8. Turn the pump "OFF."
9. Disconnect the suction line from the reservoir at the cover

plate. Disconnect the return line at the cover plate and place
it in a drain pan.

10.Turn the pump "ON" for 30 seconds to purge flushing

solution from the cooler(s) and lines. Turn the pump "OFF."

11.Place the suction line into a one quart container of DIA

QUEEN CVTF-J1 transmission fluid.

12.Turn the pump "ON" until all transmission fluid is removed

from the one quart container and lines. This purges any
residual cleaning solvent from the transaxle cooler(s) and
lines. Turn the pump "OFF."

13.Disconnect the alligator clips from the battery. Reconnect

the flusher lines to the cover plate, and remove the flushing
adapters from the cooler lines. Reconnect the cooler lines.

AC611029AB

To cooler

From
cooler

ON-VEHICLE SERVICE

TSB Revision

CVT

23A-143

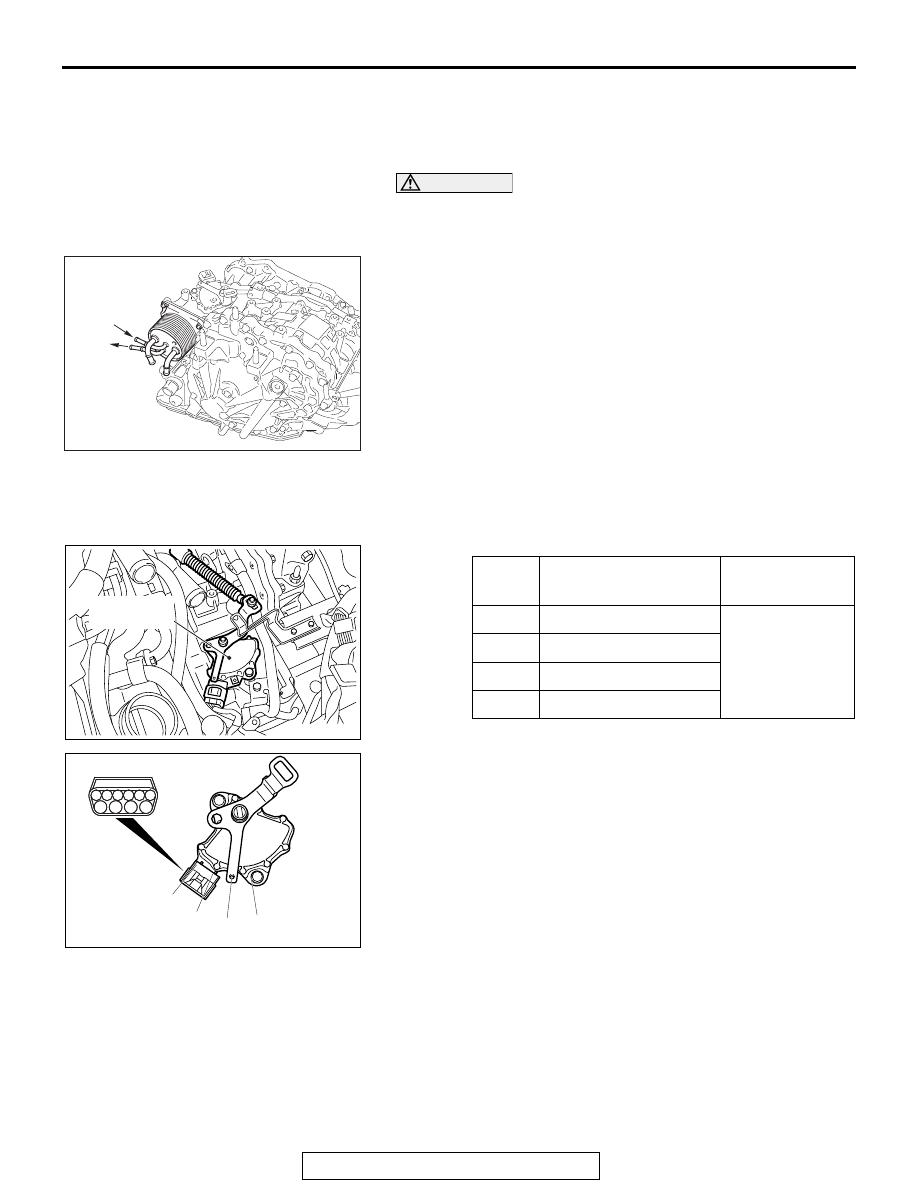

OIL COOLER FLOW CHECK

M1231212800010

After the new or repaired transaxle has been installed, fill to the
proper level with DIA QUEEN CVTF-J1. The flow should be
checked using the following procedure:

CAUTION

With the fluid set at the proper level, transmission fluid
collection should not exceed one quart or internal damage
to the transaxle may occur.
1. Disconnect the OUTLET line (from cooler) at the transaxle

and place a collecting container under the disconnected line.

2. Run the engine at curb idle speed with the shift selector in

neutral.

3. If transmission fluid flow is intermittent or it takes more than

20 seconds to collect one quart of transmission fluid, replace
the cooler.

4. If flow is within acceptable limits, reconnect the cooler line.

Then fill the transaxle to the proper level, using DIA QUEEN
CVTF-J1.

TRANSMISSION RANGE SWITCH CONTINUITY
CHECK

M1231201400320

AC611029AB

To cooler

From
cooler

Item

Terminal number

Resistance
value

P

− 2, 7 − 10

Continuity exists
(2

Ω or less).

R

− 9

N

− 8, 7 − 10

D

− 5

AC506483

Transmission
range switch

AC

AC507184

AE

P

R

N

D

2

2

1

1

7

7

3

3

8

8

5

5

4

4

9

9

6

6

10

10

ON-VEHICLE SERVICE

TSB Revision

CVT

23A-144

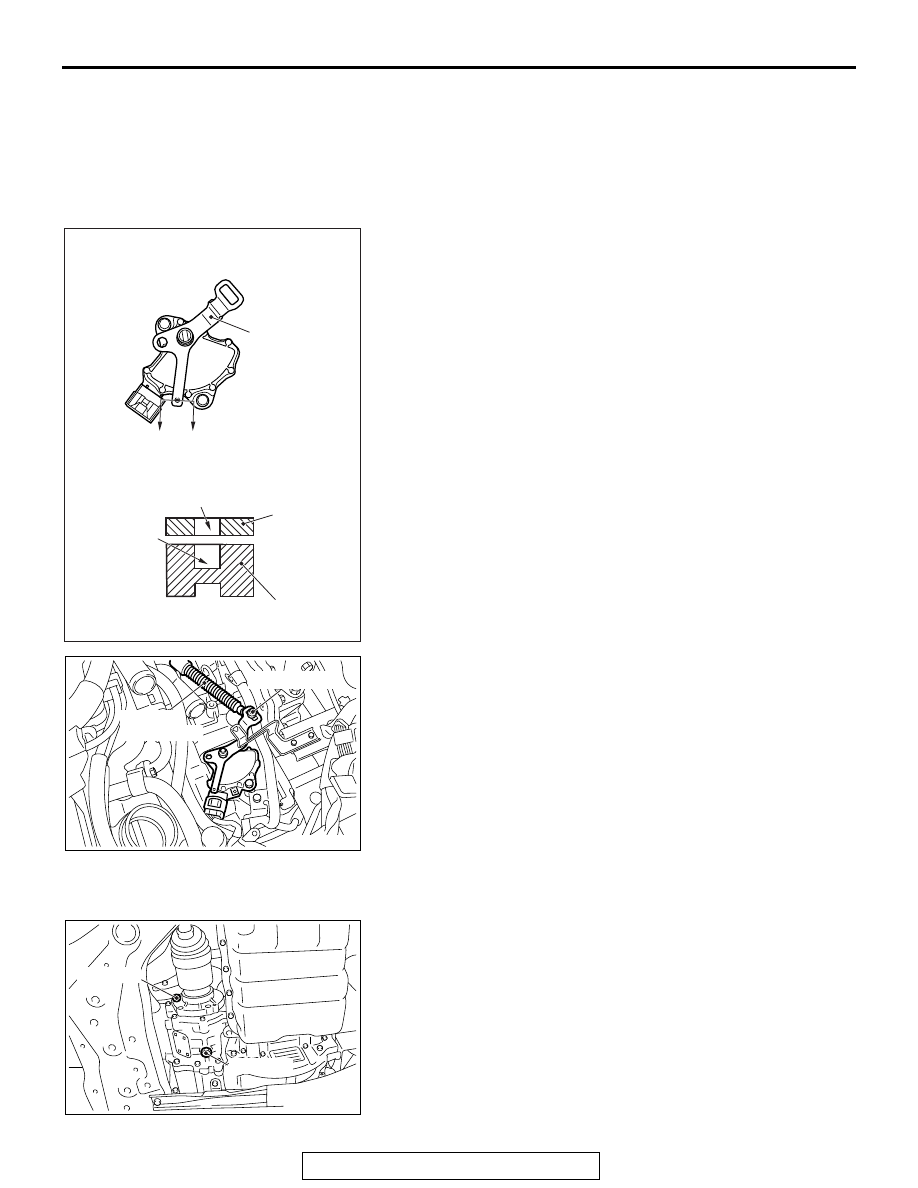

TRANSMISSION RANGE SWITCH AND CONTROL
CABLE ADJUSTMENT

M1231201500286

1. Move the selector lever to the N range.
2. Loosen the adjusting nut so that the manual control lever

moves freely.

3. Move the manual control lever to Neutral position.
4. Align the hole at the end of the manual control lever and the

hole in the transmission range switch body flange (section A
− A).
NOTE: Insert a

φ

5 bar into the aligned holes in the transmis-

sion range switch body flange and on the tip of the manual
control lever to position the transmission range switch body.

5. Use the adjusting nut to tighten the transaxle control cable to

the specified torque.

Tightening torque: 9.5

± 3.5 Nm (84 ± 30 in-lb)

6. Make sure that the selector lever is in the N range.
7. Make sure that the transaxle-side ranges that are

corresponding to the transmission range operate and
function without fail.

TRANSFER OIL CHECK <AWD>

M1231211100502

1. Remove the filler plug and gasket.

AC507417AF

Transmission range
switch body

Section A - A

Manual
control lever

A

A

Manual
control lever

End hole

Flange hole

AC506483

AB

Transaxle
control cable

Adjusting nut

AC506489

AB

Filler plug

Drain plug
