Mitsubishi Outlander GS45X. Manual - part 1649





TRANSAXLE CONTROL

TSB Revision

CVT

23A-153

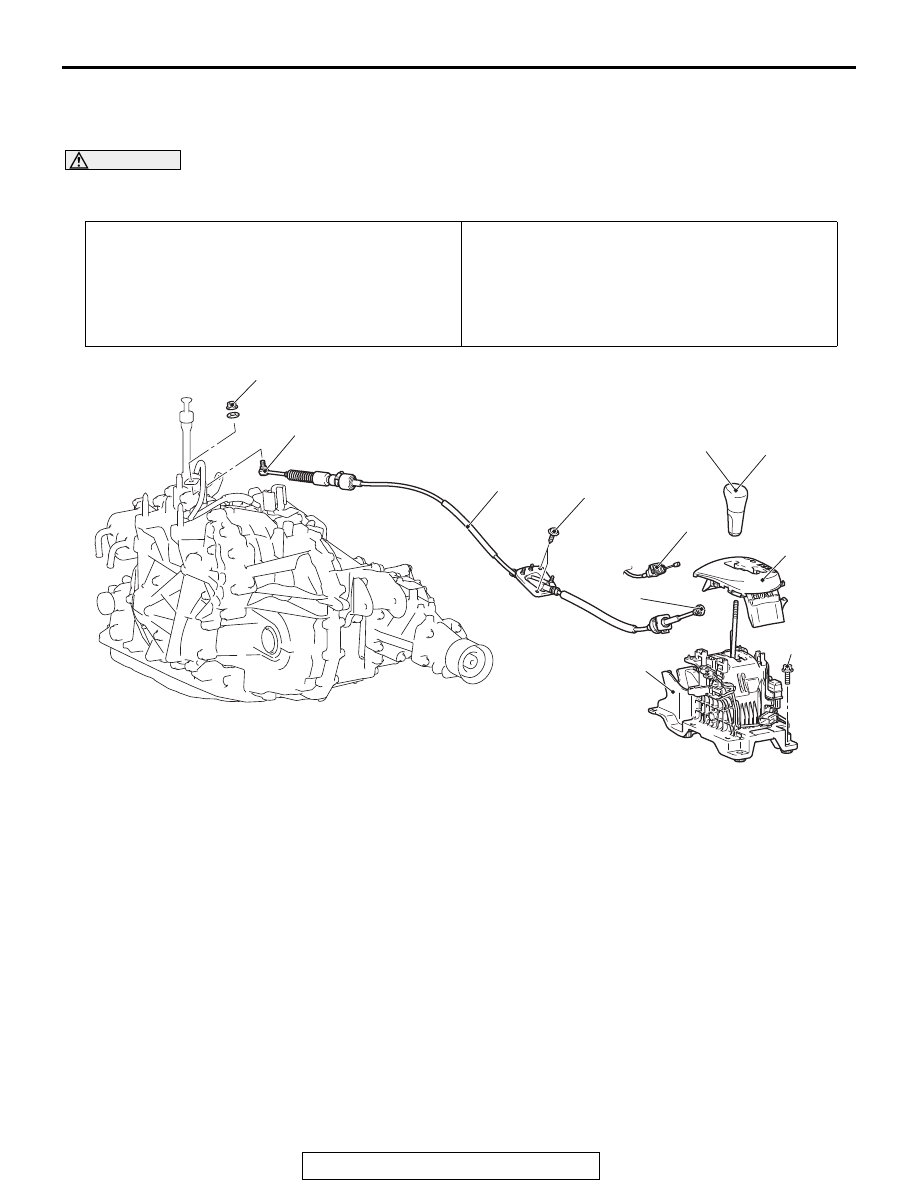

TRANSAXLE CONTROL

REMOVAL AND INSTALLATION

M1231203200720

CAUTION

Before removing the clock spring connector, refer to GROUP 52B

 SRS Air Bag Service Precautions

and Air Bag Module and Clock Spring.

Pre-removal operation
• Front floor console assembly removal (Refer to GROUP

52A

− Floor Console Assembly

P.52A-7

.)

Post-installation operation
• Front floor console assembly installation (Refer to

GROUP 52A

− Floor Console Assembly

P.52A-7

.)

• Key interlock mechanism check (Refer to

P.23A-149

.)

• Shift lock mechanism check (Refer to

P.23A-151

.)

• Transmission range switch and control cable adjustment

(Refer to

P.23A-144

.)

AC505752AG

4

5

2

7

1

6

3

9.5 ± 3.5 N·m
84 ± 30 in-lb

7.0 ± 3.0 N·m
62 ± 26 in-lb

9.5 ± 3.5 N·m
84 ± 30 in-lb

4.3 ± 0.7 N·m
38 ± 6 in-lb

Selector lever assembly and
transaxle control cable assembly
removal steps

• Move the selector lever to the N

position.

1. Selector lever knob
2. Shift indicator panel

>>

A

<< 3. Key interlock cable connection

(selector lever side)

4. transaxle control cable connection

(selector lever side)

• Connectors and harnesses connections

5. Selector lever assembly

• Battery and battery tray (Refer to

GROUP 54A - Battery

P.54A-14

.)

• Air Cleaner (Refer to GROUP 15 − Air

Cleaner

P.15-4

.)

6. transaxle control cable connection

(transaxle side)

• Heater unit assembly (Refer to GROUP

55A - heater unit and front deck
crossmember assembly removal and
installation

P.55A-117

.)

7. transaxle control cable

Selector lever assembly and
transaxle control cable assembly
removal steps (Continued)

TRANSAXLE CONTROL

TSB Revision

CVT

23A-154

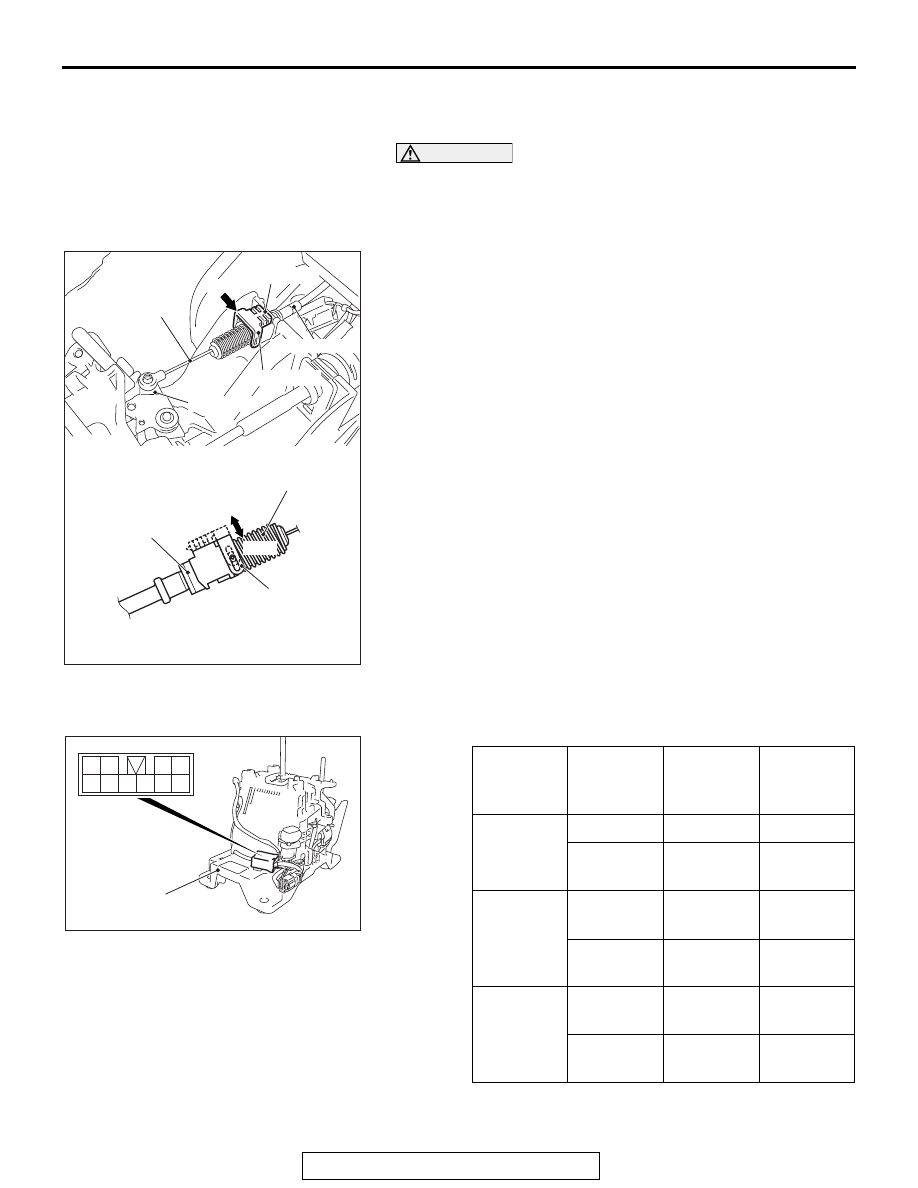

INSTALLATION SERVICE POINT

.

>>A<< KEY INTERLOCK CABLE INSTALLATION

CAUTION

Leave the ignition switch in the LOCK (OFF) position until
the key interlock cable installation is completed.
1. Move the selector lever to the P position and turn the ignition

switch to the LOCK (OFF) position.

2. Install the tip of the key interlock cable to the lock cam of the

selector lever assembly, taking care not to twist the inner
cable.

3. Install the adjuster case with its lock guide pulled up

(unlocked).

4. Securely push down the lock guide to lock it.
NOTE: The lock position of the key interlock cable is automati-
cally adjusted by a spring.

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK

M1231030100552

AC709743

Inner cable

Adjuster case

Key inter lock cable

Lock guide

Lock cam

A

AB

View A

Spring

Lock

Adjuster case

Lock guide

Unlock

Shift
switch
assembly

Transmissi
on range

Terminal
number

Continuity

Select
switch

Sport mode 6

− 8

Continuity

Other than
above

− 8

No
continuity

Shift switch
(UP)

Upshift and
hold

− 10

Continuity

Other than
above

− 10

No
continuity

Shift switch
(DOWN)

Downshift
and hold

− 9

Continuity

Other than
above

− 9

No
continuity

AC507005

9

3

2

1
5 6 7 8

4

10

AB

Selector lever assembly

CVT KEY INTERLOCK AND SHIFT LOCK MECHANISMS

TSB Revision

CVT

23A-155

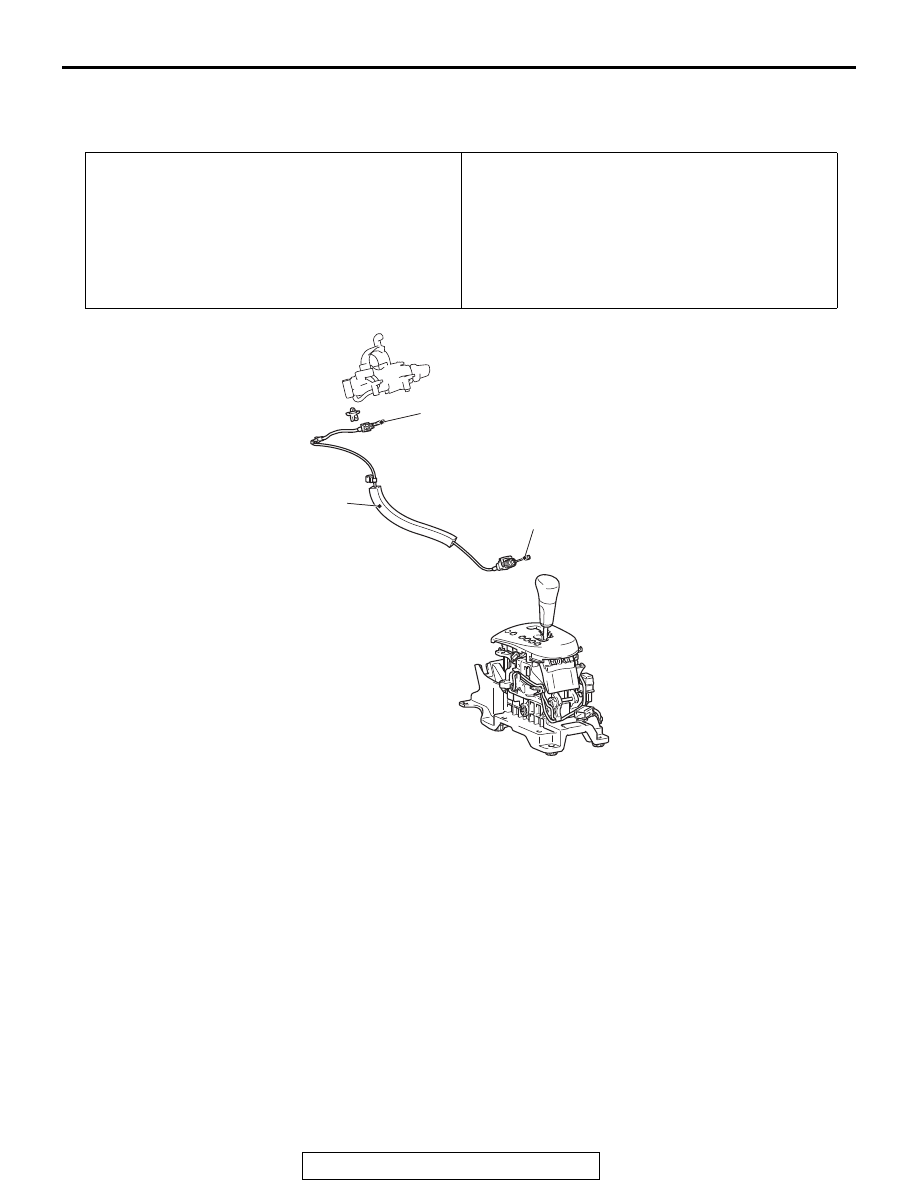

CVT KEY INTERLOCK AND SHIFT LOCK MECHANISMS

REMOVAL AND INSTALLATION

M1231203400315

REMOVAL SERVICE POINT

.

<<A>> KEY INTERLOCK CABLE (STEERING
SIDE) REMOVAL

Turn the ignition switch to the ACC position and then pull the
key interlock cable out from the ignition key cylinder.

Pre-removal operation
• Steering column lower cover and side lower panel assem-

bly removal (Refer to GROUP 52A

− Instrument Panel

Assembly

P.52A-2

.)

• Front floor console assembly removal (Refer to GROUP

52A

− Floor Console Assembly

P.52A-7

.)

Post-installation operation
• Steering column lower cover and side lower panel assem-

bly installation (Refer to GROUP 52A

− Instrument Panel

Assembly

P.52A-2

.)

• Front floor console assembly installation (Refer to

GROUP 52A

− Floor Console Assembly

P.52A-7

.)

• Key interlock mechanism check (Refer to

P.23A-149

.)

• Shift lock mechanism check (Refer to

P.23A-151

.)

• Selector lever operation check (Refer to

P.23A-149

.)

AC607789AB

1

2

3

Removal steps

>>

B

<< 1.

Key interlock cable connection
(selector lever side)

<<

A

>> >>

A

<< 2.

Key interlock cable connection
(steering side)

3.

Key interlock cable

Removal steps (Continued)

CVT KEY INTERLOCK AND SHIFT LOCK MECHANISMS

TSB Revision

CVT

23A-156

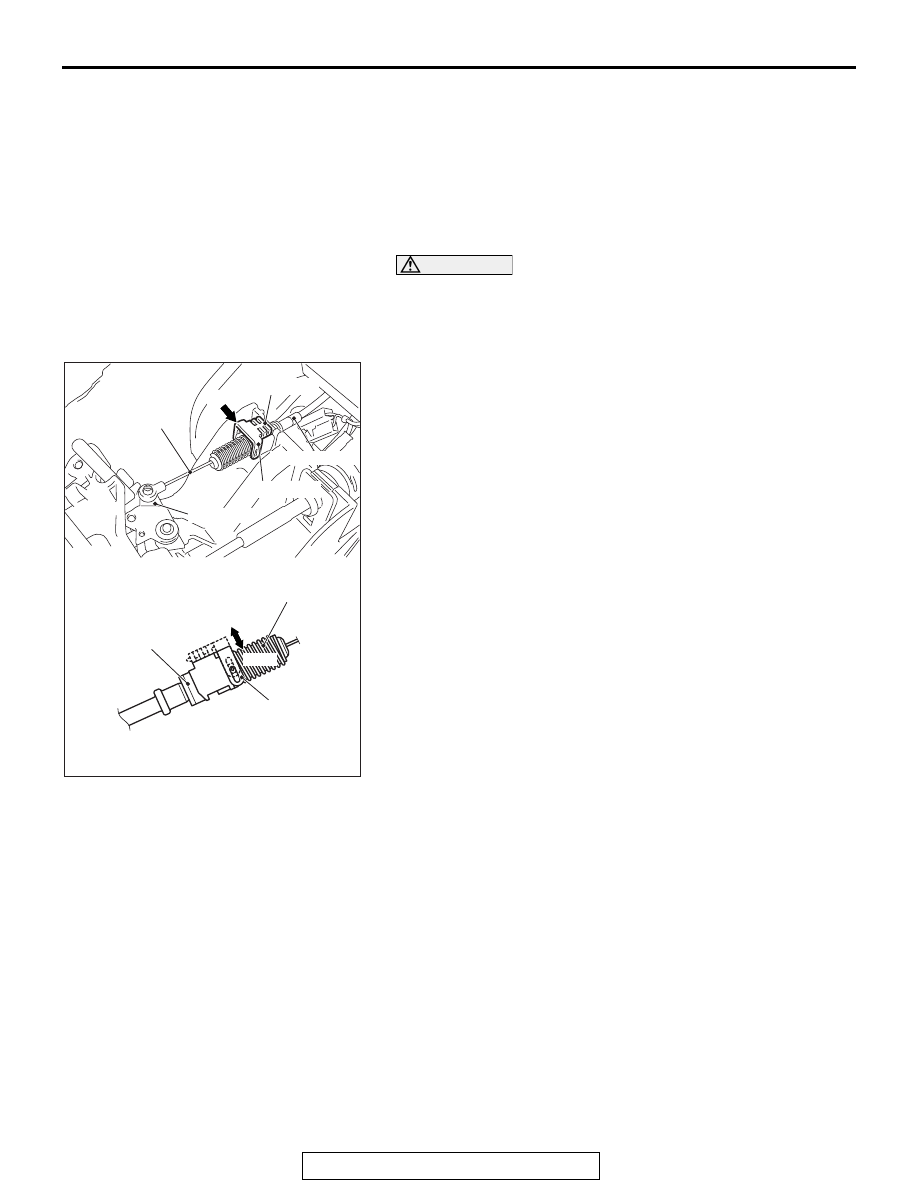

INSTALLATION SERVICE POINTS

.

>>A<< KEY INTERLOCK CABLE (STEERING
LOCK CYLINDER SIDE) INSTALLATION

Turn the ignition switch to the ACC position and then install the
key interlock cable to the ignition key cylinder.

.

>>B<< KEY INTERLOCK CABLE INSTALLATION

CAUTION

Leave the ignition switch in the LOCK (OFF) position until
the key interlock cable installation is completed.
1. Move the selector lever to the P position and turn the ignition

switch to the LOCK (OFF) position.

2. Install the tip of the key interlock cable to the lock cam of the

selector lever assembly, taking care not to twist the inner
cable.

3. Install the adjuster case with its lock guide pulled up

(unlocked).

4. Securely push down the lock guide to lock it.
NOTE: The lock position of the key interlock cable is automati-
cally adjusted by a spring.

AC709743

Inner cable

Adjuster case

Key inter lock cable

Lock guide

Lock cam

A

AB

View A

Spring

Lock

Adjuster case

Lock guide

Unlock
