Mitsubishi Outlander GS45X. Manual - part 1624





DIAGNOSIS

TSB Revision

CVT

23A-53

STEP 4. Check for open circuit and short to ground in
wiring harness between the primary pulley speed sensor
connector and the TCM connector
Between B-126 primary pulley speed sensor connector (termi-
nal No.2) and C-37 TCM connector (terminal No.37)
Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the wiring harness.

STEP 5. Check for open circuit in the wiring harness
between the CVT control relay and the primary pulley
speed sensor connector.
Between A-18X CVT control relay (terminal No.3) and B-126
primary pulley speed sensor connector (terminal No.1)
Q: Is the check result normal?

YES : Go to Step 6.
NO :  Repair the wiring harness.

STEP 6. Primary pulley speed sensor check
Visually check the tip of the sensor for foreign materials or
damage.
Q: Is the check result normal?

YES : Go to Step 7.
NO :  Repair.

STEP 7. Diagnostic trouble code recheck after replacing
the primary pulley speed sensor
Q: Is the check result normal?

YES : The procedure is complete.
NO :  Replace TCM.

DIAGNOSIS

TSB Revision

CVT

23A-54

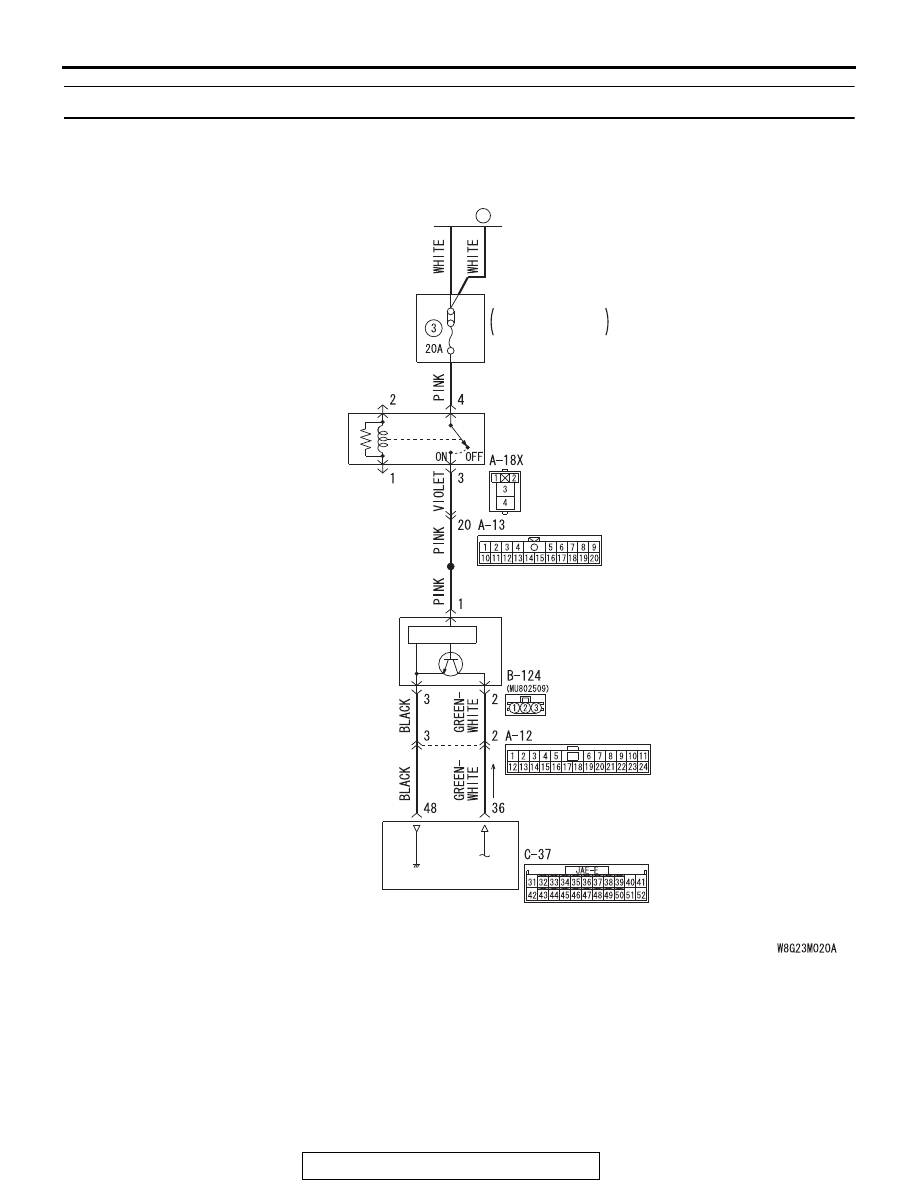

DTC P0720: Malfunction of Secondary Pulley Speed Sensor

RELAY BOX

CVT
CONTROL
RELAY

FUSIBLE
LINK

36

ENGINE
COMPARTMENT

TRANSAXLE
CONTROL MODULE

SECONDARY
PULLEY
SPEED
SENSOR

Secondary pully speed sensor system circuit

DIAGNOSIS

TSB Revision

CVT

23A-55

.

DIAGNOSTIC FUNCTION

TCM determines that the malfunction is present
when the secondary pulley speed sensor value
changes abruptly or when there is a discrepancy
between this sensor and other sensors in sensor
reading.

.

DESCRIPTIONS OF MONITOR METHODS

• The status with the primary pulley speed of 1,000

r/min or more and with the secondary pulley
speed of 150 r/min or less continues for 5 sec-
onds.

• When the vehicle speed computed by CVT has

dropped abruptly from 10 km/h (6.2 mph) or more
to 5 km/h (3.1 mph) or less, and then the comput-
ing value keeps 5 km/h (3.1 mph) or less for 0.5
seconds continuously.

.

MONITOR EXECUTION

• Transmission range: D

• Throttle valve opening : 1/8 or more

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0705: Malfunction of transmission range switch

• P0712, P0713: Malfunction of the transmission

fluid temperature sensor

• P0715: Malfunction of primary pulley speed sen-

sor

• P0725: Malfunction of engine speed

• P0741: Abnormality in lockup function

• P0746: Abnormality in hydraulic control system

function

• P0841: Abnormality in line pressure sensor func-

tion

• P0868: Secondary pressure drop

• P1706: Malfunction of throttle signal

• P1723: Abnormality in speed sensor system

function

Sensor (The sensor below is determined to be

normal)

• Transmission range switch

• Transmission fluid temperature sensor

• Primary pulley speed sensor

• Accelerator pedal position sensor

.

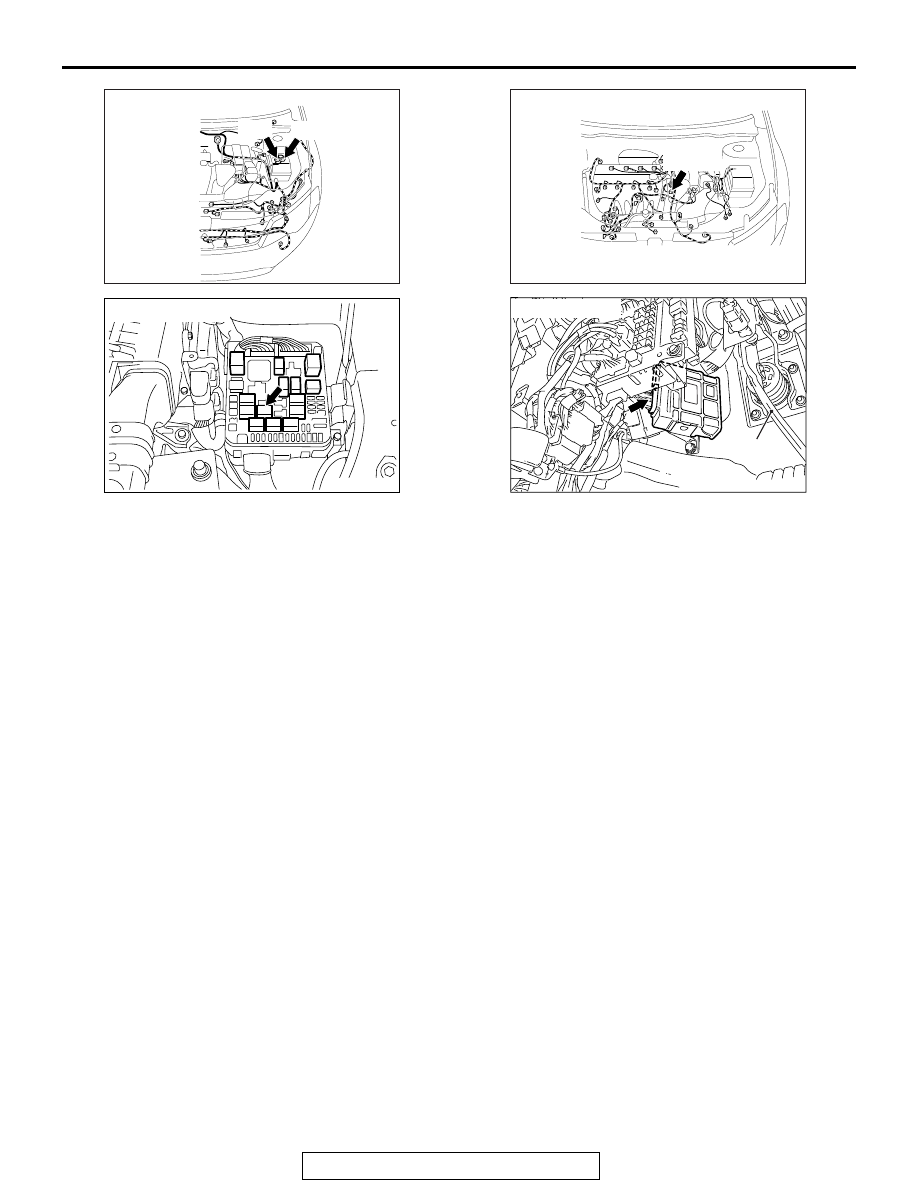

AC709490

Connectors: A-12, A-13

AC

A-12

A-13

AC709650

Connector: A-18X

AB

AC709493

AC

Connector: B-124

B-124 (B)

AC703253

Connector: C-37

Brake pedal

AC

DIAGNOSIS

TSB Revision

CVT

23A-56

LOGIC FLOW CHARTS (Monitor Sequence)

.

AC802623

START

Yes

Yes

No

Primary pulley speed     1,000 r/min

Secondary pulley speed     150 r/min

Continuous for 5 sec

Continuous for 0.5 sec

No

No

Yes

Good

Malfunction

END

Yes

Yes

Yes

Yes

All secondary parameters
are in the enable condition.

No

No

No

Secondary
pulley speed

Secondary pulley
speed at 10 msec
 before

500 r/min

260 r/min
