DIAGNOSIS

TSB Revision

CVT

23A-49

DTC P0715: Malfunction of Primary Pulley Speed Sensor

RELAY BOX

CVT
CONTROL
RELAY

FUSIBLE
LINK

36

ENGINE
COMPARTMENT

PRIMARY
PULLEY
SPEED
SENSOR

TRANSAXLE
CONTROL MODULE

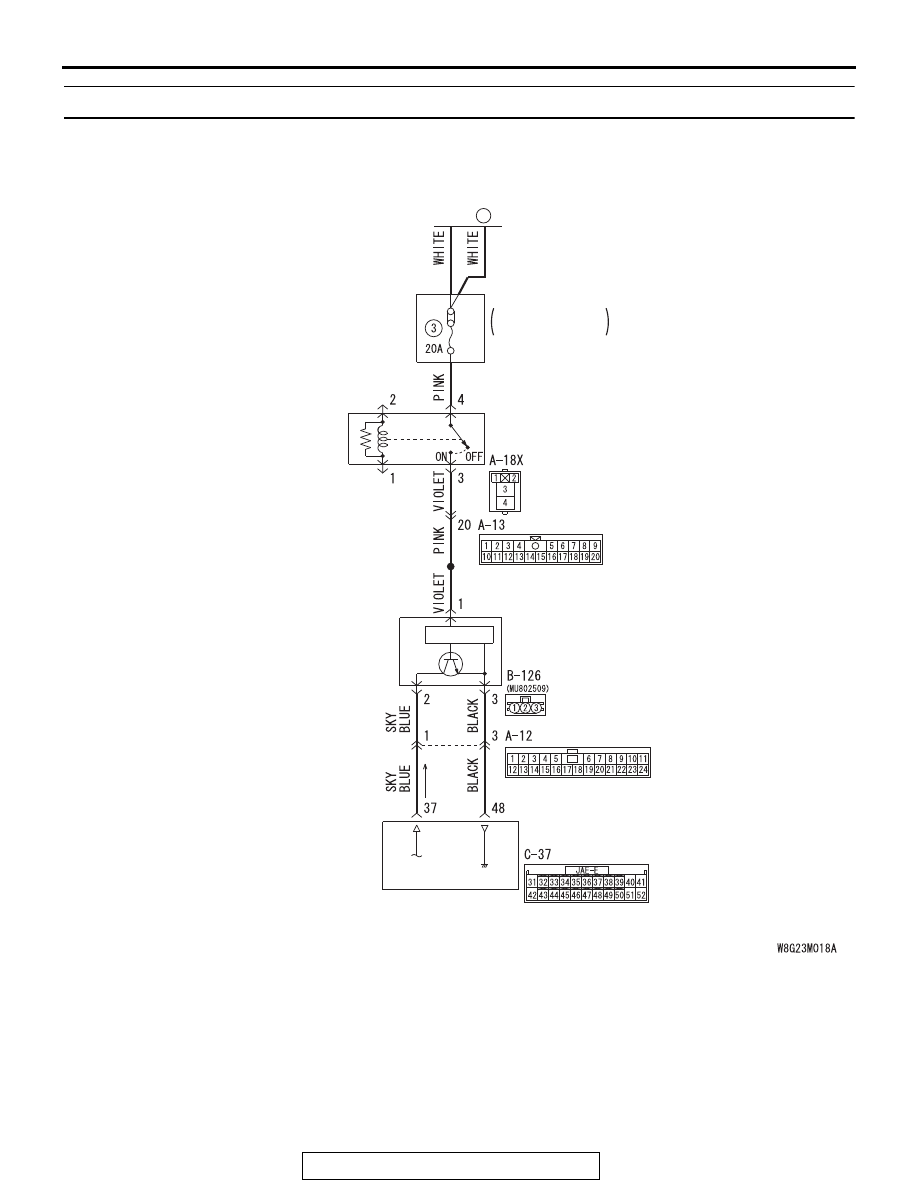

Primary pulley speed sensor switch system circuit

DIAGNOSIS

TSB Revision

CVT

23A-50

.

DIAGNOSTIC FUNCTION

TCM determines that the malfunction is present
when the primary pulley speed sensor value
changes abruptly or when there is a discrepancy
between this sensor and other sensors in sensor
reading.

.

DESCRIPTIONS OF MONITOR METHODS

• The status with the secondary pulley speed of

500 r/min or more and with the primary pulley
speed of 150 r/min or less continues for 5 sec-
onds.

• When the primary pulley speed has dropped

abruptly from 1,000 r/min or more to 300 r/min or
less, and then it keeps 300 r/min or less for 0.5
seconds continuously.

.

MONITOR EXECUTION

• Transmission range: D

• Throttle valve opening : 1/8 or more

• Engine speed : 450 r/min or more

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0712, P0713: Malfunction of the transmission

fluid temperature sensor

• P0720: Malfunction of secondary pulley speed

sensor

• P0725: Malfunction of engine speed

• P0741: Abnormality in lockup function

• P0746: Abnormality in hydraulic control system

function

• P0841: Abnormality in line pressure sensor func-

tion

• P0868: Secondary pressure drop

• P1723: Abnormality in speed sensor system

function

Sensor (The sensor below is determined to be

normal)

• Transmission fluid temperature sensor

• Secondary pulley speed sensor

.

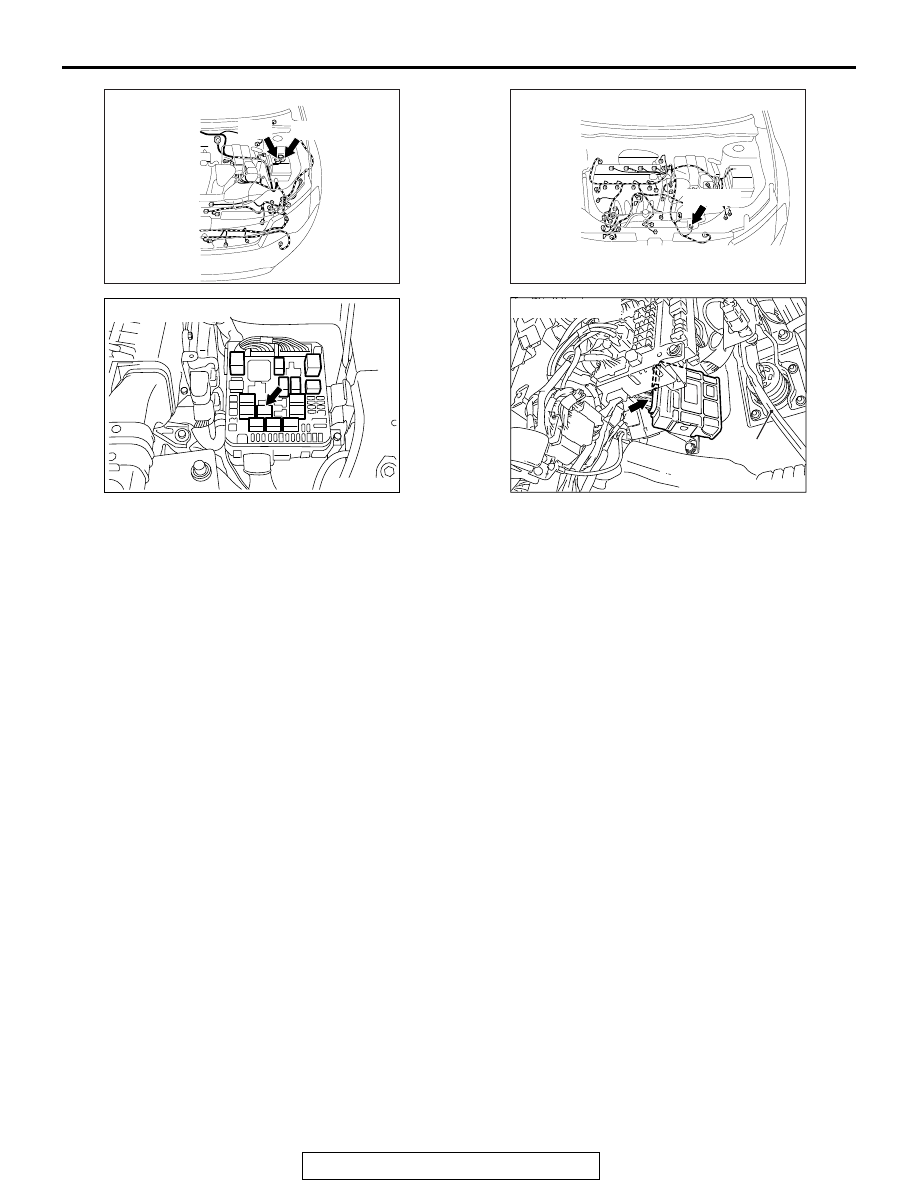

AC709490

Connectors: A-12, A-13

AC

A-12

A-13

AC709650

Connector: A-18X

AB

AC709493

AE

Connector: B-126

B-126 (B)

AC703253

Connector: C-37

Brake pedal

AC

DIAGNOSIS

TSB Revision

CVT

23A-51

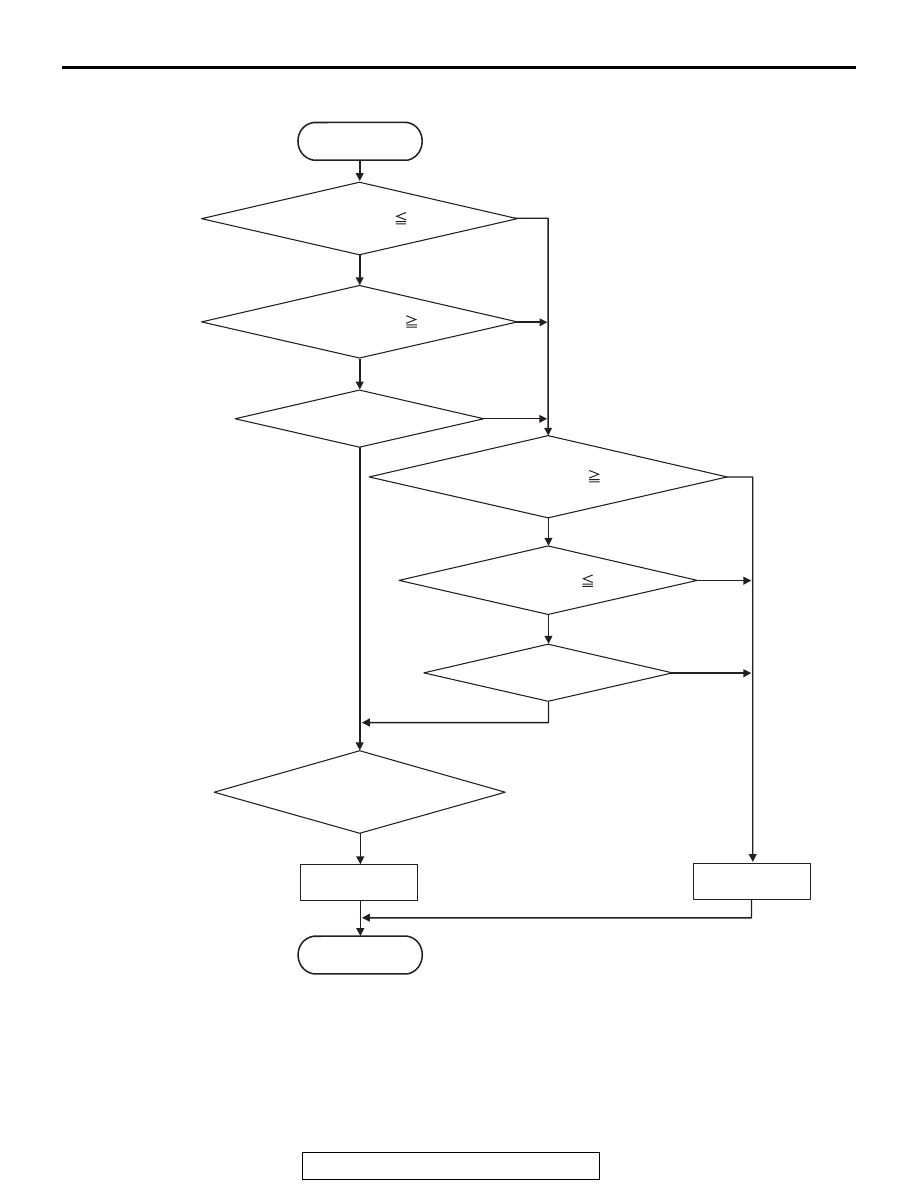

LOGIC FLOW CHARTS (Monitor Sequence)

.

AC710009

START

Yes

Yes

No

Primary pulley speed     300 r/min

Secondary pulley speed     500 r/min

Continuous for 5 sec

Continuous for 0.5 sec

No

No

Yes

Good

Malfunction

END

Yes

Yes

Yes

No

Yes

All secondary parameters
are in the enable condition.

No

No

No

Primary pulley speed     300 r/min

Secondary pulley speed     1000 r/min

DIAGNOSIS

TSB Revision

CVT

23A-52

DTC SET CONDITIONS

Check Conditions

• Transmission range switch position: D.

• Secondary pulley speed: 500 r/min or more.

• Primary pulley speed at 10 millisecond before:

1,000 r/min or more.

• Throttle position sensor voltage: 1.37 volts or

more.

• Engine speed: 450 r/min or more.

• Voltage of battery: 9 volts or more.

• Voltage of battery: 16 volts or less.

JUDGMENT CRITERIA

• Primary pulley speed [secondary pulley speed:

1000 r/min or more]: 300 r/min or less. (5 sec-
onds)

• Primary pulley speed [Primary pulley speed at 10

millisecond before: 1,000 r/min or more]: 300
r/min or less. (0.5 second)

.

OBD-II DRIVE CYCLE PATTERN

Transmission range: D (Drive the vehicle for 20 sec-
onds or more while the accelerator opening angle is
20% or more)

.

PROBABLE CAUSES

• Malfunction of primary pulley speed sensor

• Damaged wiring harness and connectors

• Malfunction of TCM

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list
Item 1: Primary speed sensor signal (Refer to Data List Refer-
ence Table

P.23A-127

.)

Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Go to Step 2.

STEP 2. Check the following connector:

• B-126 Primary pulley speed sensor connector

• C-37 TCM connector

• A-12 Intermediate connector

Check the terminals for a contact status problem and internal
short circuit.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the defective connector.

STEP 3. Check for open circuit in the wiring harness
between the primary pulley speed sensor connector and
the TCM connector
Between B-126 primary pulley speed sensor connector (termi-
nal No.3) and C-37 TCM connector (terminal No.48)
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair the wiring harness.
