DIAGNOSIS

TSB Revision

CVT

23A-37

.

DIAGNOSTIC FUNCTION

TCM monitors the signal from the transmission range
switch, and determines if the abnormal input is
present or not.

.

DESCRIPTIONS OF MONITOR METHODS

• TCM does not detects the inhibitor switch input

signal for 5 seconds when the vehicle speed is 1
km/h (0.6 mph) or more for 10 seconds continu-
ously.

• TCM detects the multiple inputs from the trans-

mission range switch for 2 seconds.

.

MONITOR EXECUTION

• Vehicle speed (no-transmission range switch sig-

nal input):1km/h (0.6 mph) or more for 10 sec-
onds continuously

• Vehicle speed (transmission range switch signal

multiple input) : No conditions

• Throttle valve opening : 1/8 or more

• Engine speed : 450 r/min or more

.

AC709490

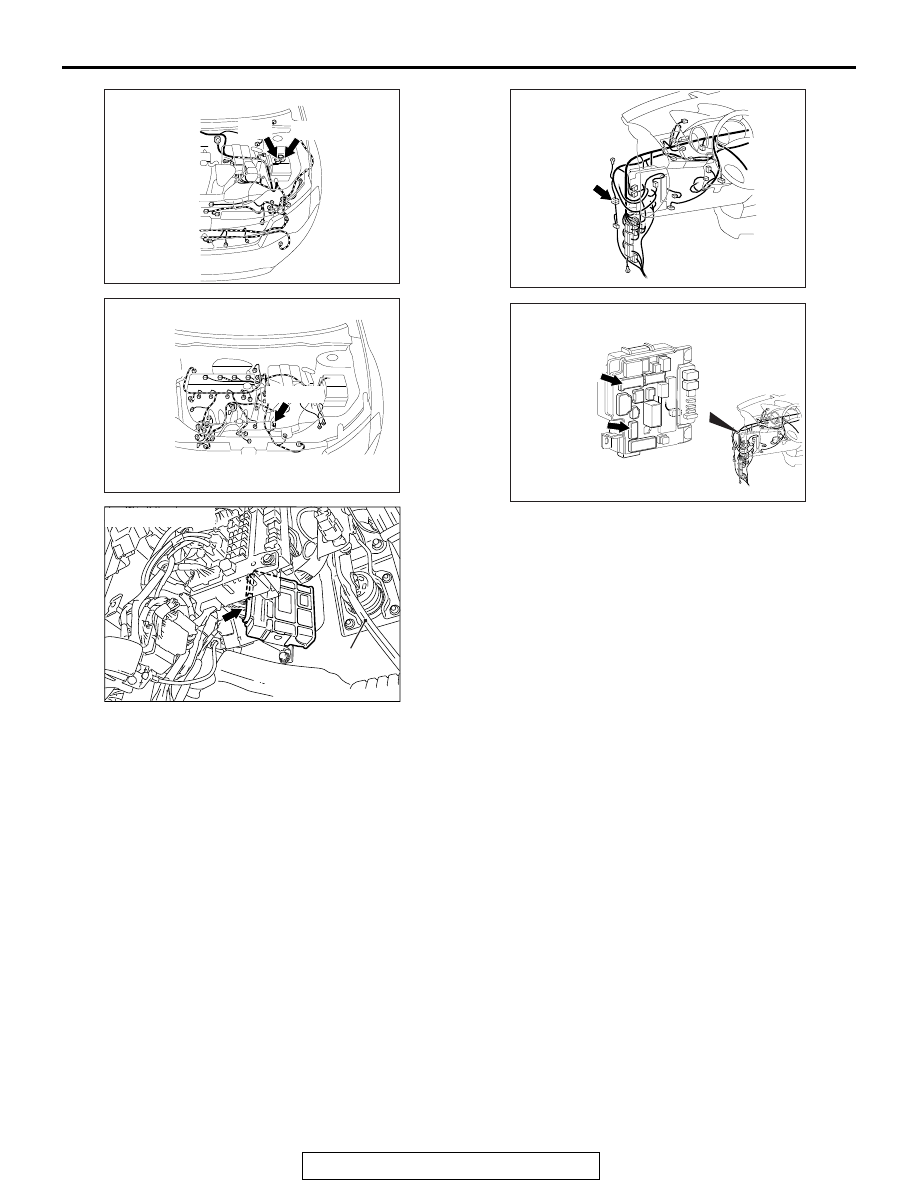

Connectors: A-12, A-13

AC

A-12

A-13

AC709493

AB

Connector: B-110

B-110 (B)

AC703253

Connector: C-37

Brake pedal

AC

AC702815 BD

Connector: C-129

AC702828 AW

Connectors: C-313, C-317

C-313 (BR)

C-317

DIAGNOSIS

TSB Revision

CVT

23A-38

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• P0715: Malfunction of primary pulley speed sen-

sor

• P0720: Malfunction of secondary pulley speed

sensor

• P0725: Malfunction of engine speed

• P0741: Abnormality in lockup function

• P0746: Abnormality in hydraulic control system

function

• P0841: Abnormality in line pressure sensor func-

tion

• P1706: Malfunction of throttle signal

Sensor (The sensor below is determined to be

normal)

• Primary pulley speed sensor

• Secondary pulley speed sensor

• Accelerator pedal position sensor

.

LOGIC FLOW CHARTS (Monitor Sequence)

.

AC710006

START

Yes

No

Multiple signal

Continuous for 2 sec

Continuous for 5 sec

No

Yes

Good

Malfunction

END

Yes

Yes

No

Yes

No signal

All secondary parameters
are in the enable condition.

No

No

DIAGNOSIS

TSB Revision

CVT

23A-39

DTC SET CONDITIONS

Check Conditions

• Vehicle speed over 1 km/h (0.6 mph): 10 seconds

or more.

• Throttle position sensor voltage: 1.37 volts or

more.

• Engine speed: 450 r/min or more.

• Voltage of battery: 9 volts or more.

• Voltage of battery: 16 volts or less.

JUDGMENT CRITERIA

• Transmission range switch: multiple signal. (2

seconds)

• Transmission range switch: no signal. (5 sec-

onds)

.

OBD-II DRIVE CYCLE PATTERN

transmission range: D (Drive the vehicle for 10 sec-
onds or more while the accelerator opening angle is
20% or more)

.

PROBABLE CAUSES

• Malfunction of the transmission range switch

• Improper adjustment of transaxle control cable

• Damaged wiring harness and connectors

• Malfunction of TCM

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list
Item 49: Transmission range switch
Check that the service data changes when the selector lever is
moved to all ranges.

OK: The service data changes in response to the
selector lever operation.

Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Go to Step 2.

STEP 2. Check the following connector:

• B-110 transmission range switch connector

• C-37 TCM connector

Check the terminals for a contact status problem and internal
short circuit.
Q: Is the check result normal?

YES : Go to Step 3.
NO :  Repair the defective connector.

STEP 3. Check for open circuit in wiring harness between
the ETACS-ECU connector and the transmission range
switch connector
Between the C-313 ETACS-ECU connector (terminal No.4) and
the B-110 transmission range switch connector (terminal No.3)
NOTE: Prior to the wiring harness inspection, check the inter-
mediate connectors C-129 and A-13, and repair that if neces-
sary.
Q: Is the check result normal?

YES : Go to Step 4.
NO :  Repair the wiring harness.

DIAGNOSIS

TSB Revision

CVT

23A-40

STEP 4. Check for open circuit in the wiring harness
between the transmission range switch connector and the
TCM connector

• Between B-110 transmission range switch connector (termi-

nal No.2) and C-37 TCM connector (terminal No.32)

• Between B-110 transmission range switch connector (termi-

nal No.5) and C-37 TCM connector (terminal No.45)

• Between B-110 transmission range switch connector (termi-

nal No.8) and C-37 TCM connector (terminal No.34)

• Between B-110 transmission range switch connector (termi-

nal No.9) and C-37 TCM connector (terminal No.33)

Q: Is the check result normal?

YES : Go to Step 5.
NO :  Repair the wiring harness.

STEP 5. Transmission range switch and control cable
adjustment
Refer to

P.23A-144

.

Q: Is the check result normal?

YES : Go to Step 6.
NO :  Adjust the transmission range switch and control

cable.

STEP 6. Transmission range switch continuity check
Refer to

P.23A-143

.

Q: Is the check result normal?

YES : Go to Step 7.
NO :  Replace the transmission range switch.

STEP 7. Symptom recheck after erasing diagnostic trouble
code
Q: Is the check result normal?

YES : Intermittent malfunction
NO :  Replace TCM.
