DIAGNOSIS

TSB Revision

CVT

23A-29

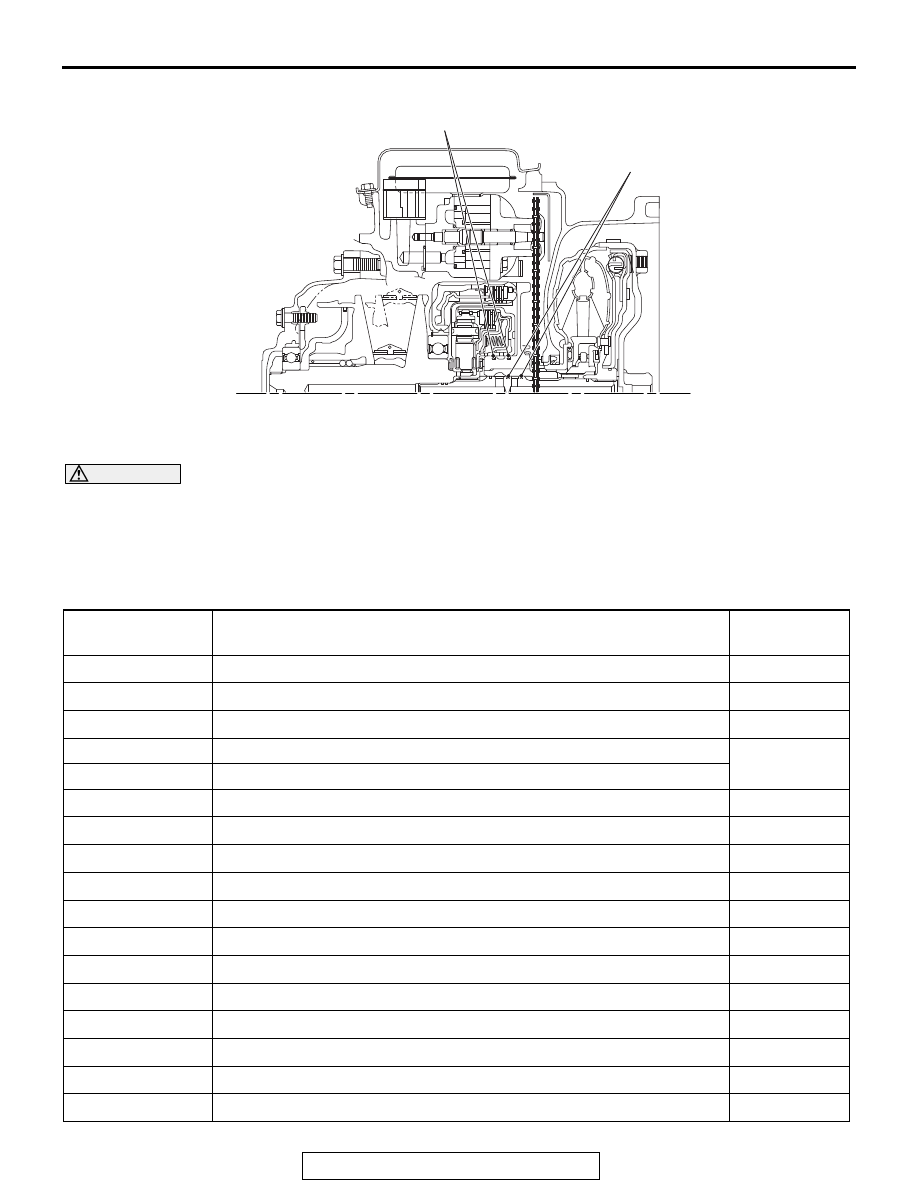

Seal ring location

DIAGNOSTIC TROUBLE CODE CHART

M1231207900550

CAUTION

During diagnosis, a diagnostic trouble code
associated with other system may be set when
the ignition switch is turned on with connector(s)
disconnected. On completion, confirm all sys-
tems for diagnostic trouble code(s). If diagnostic
trouble code(s) are set, erase them all.

AC509098AB

A

B

Diagnostic
trouble code No.

Diagnostic item

Reference
page

P0703

Malfunction of stoplight switch

P.23A-31

P0705

Malfunction of transmission range switch

P.23A-36

P0711

Malfunction of the transmission fluid temperature sensor

P.23A-36

P0712

Malfunction of the transmission fluid temperature sensor (short)

P.23A-44

P0713

Malfunction of the transmission fluid temperature sensor (open)

P0715

Malfunction of primary pulley speed sensor

P.23A-49

P0720

Malfunction of secondary pulley speed sensor

P.23A-54

P0725

Malfunction of engine speed

P.23A-59

P0740

Malfunction of lockup solenoid valve

P.23A-62

P0741

Abnormality in lockup function

P.23A-65

P0745

Malfunction of line pressure solenoid valve

P.23A-67

P0746

Abnormality in hydraulic control system function

P.23A-70

P0776

Abnormality in secondary pressure solenoid valve function

P.23A-73

P0778

Malfunction of secondary pressure solenoid valve

P.23A-74

P0815

Malfunction of paddle shift up switch

P.23A-76

P0816

Malfunction of paddle shift down switch

P.23A-78

P0826

Malfunction of shift switch assembly

P.23A-79

DIAGNOSIS

TSB Revision

CVT

23A-30

TROUBLE SYMPTOM CHART

M1231208000323

CAUTION

During diagnosis, a diagnostic trouble code
associated with other system may be set when
the ignition switch is turned on with connector(s)
disconnected. On completion, confirm all sys-
tems for diagnostic trouble code(s). If diagnostic
trouble code(s) are set, erase them all.

P0840

Malfunction of secondary pressure sensor

P.23A-81

P0841

Abnormality in line pressure sensor function

P.23A-85

P0868

Secondary pressure drop

P.23A-86

P0882

Malfunction of system power supply (Low)

P.23A-89

P0883

Malfunction of system power supply (High)

P1637

Malfunction of memory backup

P.23A-91

P1706

Malfunction of throttle signal

P.23A-93

P1710

Malfunction of vehicle speed signal

P.23A-95

P1723

Abnormality in speed sensor system function

P.23A-97

P1740

Malfunction of lockup/select switching solenoid valve

P.23A-100

P1745

Monitoring of percentage change in pulley ratio

P.23A-103

P1773

Malfunction of ABS

P.23A-105

P1777

Malfunction of stepper motor

P.23A-105

P1778

Abnormality in stepper motor function

P.23A-109

P1902

Malfunction of engine system

P.23A-110

U0001

Malfunction of CAN communication circuit

P.23A-110

U0100

CAN time-out error (Engine)

P.23A-112

U0121

CAN time-out error (ABS)

P.23A-114

U0141

CAN time-out error (ETACS)

P.23A-115

Diagnostic
trouble code No.

Diagnostic item

Reference
page

Trouble symptom

Inspection
procedure
number

Reference
page

TCM cannot communicate with scan tool MB991958.

1

P.23A-116

Vehicle creeps in the N range.

2

P.23A-118

Shock is experienced during N to D and/or N to R shifting operation.

3

P.23A-119

Poor acceleration or incomplete shifting operation.

4

P.23A-119

Cannot be changed in sport mode.

5

P.23A-120

Cannot be changed with paddle shift.

6

P.23A-123

The fluid temperature warning lamp illuminates too frequently

7

P.23A-125

DIAGNOSIS

TSB Revision

CVT

23A-31

DIAGNOSTIC TROUBLE CODE PROCEDURES

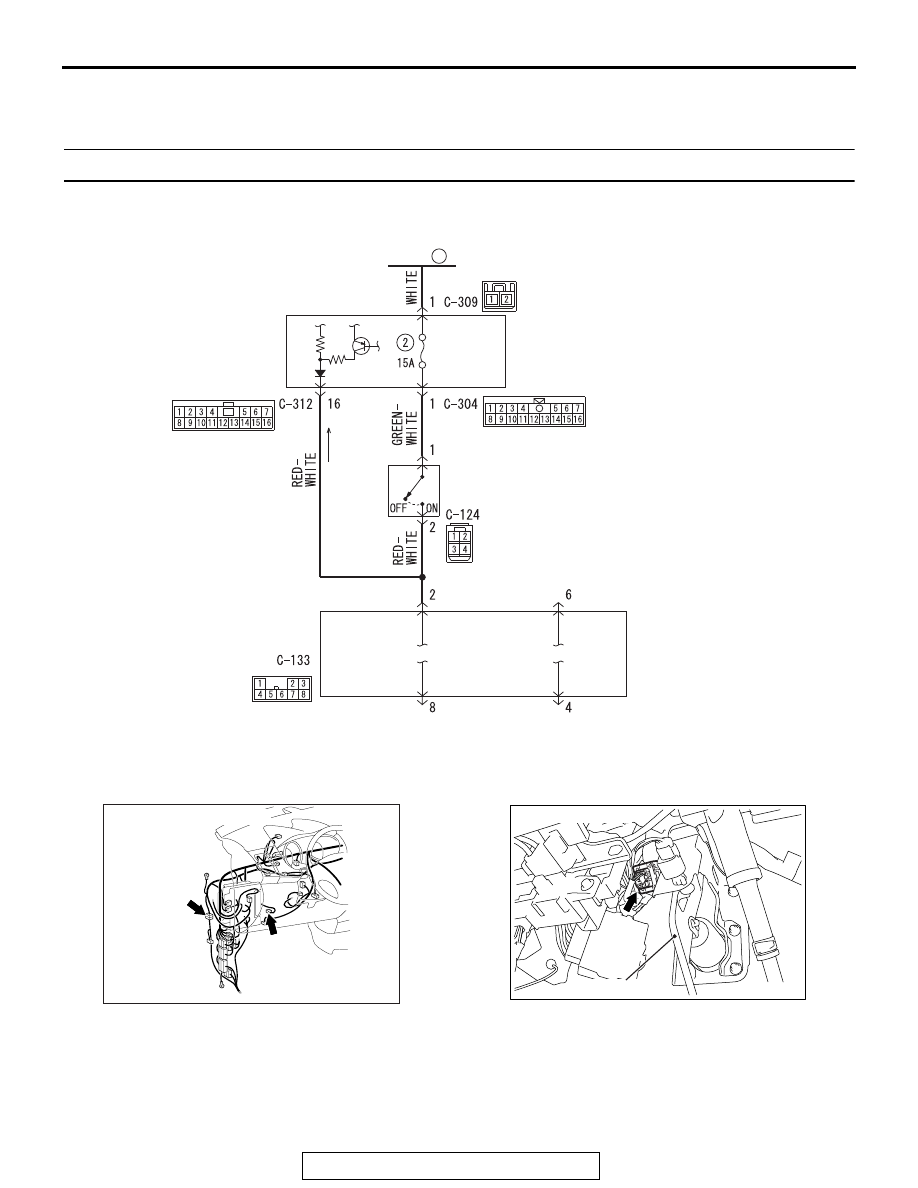

DTC P0703: Malfunction of Stoplight Switch

FUSIBLE
LINK

34

STOPLIGHT
SWITCH

STOPLIGHT
RELAY

Stoplight switch  system circuit

ETACS-ECU

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

AC901223

AC702815 BC

Connectors: C-124, C-129

C-129

C-124

AC900773

AD

Brake pedal

Connector: C-133

DIAGNOSIS

TSB Revision

CVT

23A-32

.

DIAGNOSTIC FUNCTION

TCM detects malfunction using the stoplight switch
signal sent from the ETACS-ECU.

.

DESCRIPTIONS OF MONITOR METHODS

• Drive the vehicle at 30 km/h (19 mph) or more for

10 seconds, and then turn the ignition switch to
the "LOCK" (OFF) position. In this sequential
operation, no variation has been found in the
stoplight switch input signal in two consecutive
times.

.

MONITOR EXECUTION

• Continuous

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

.

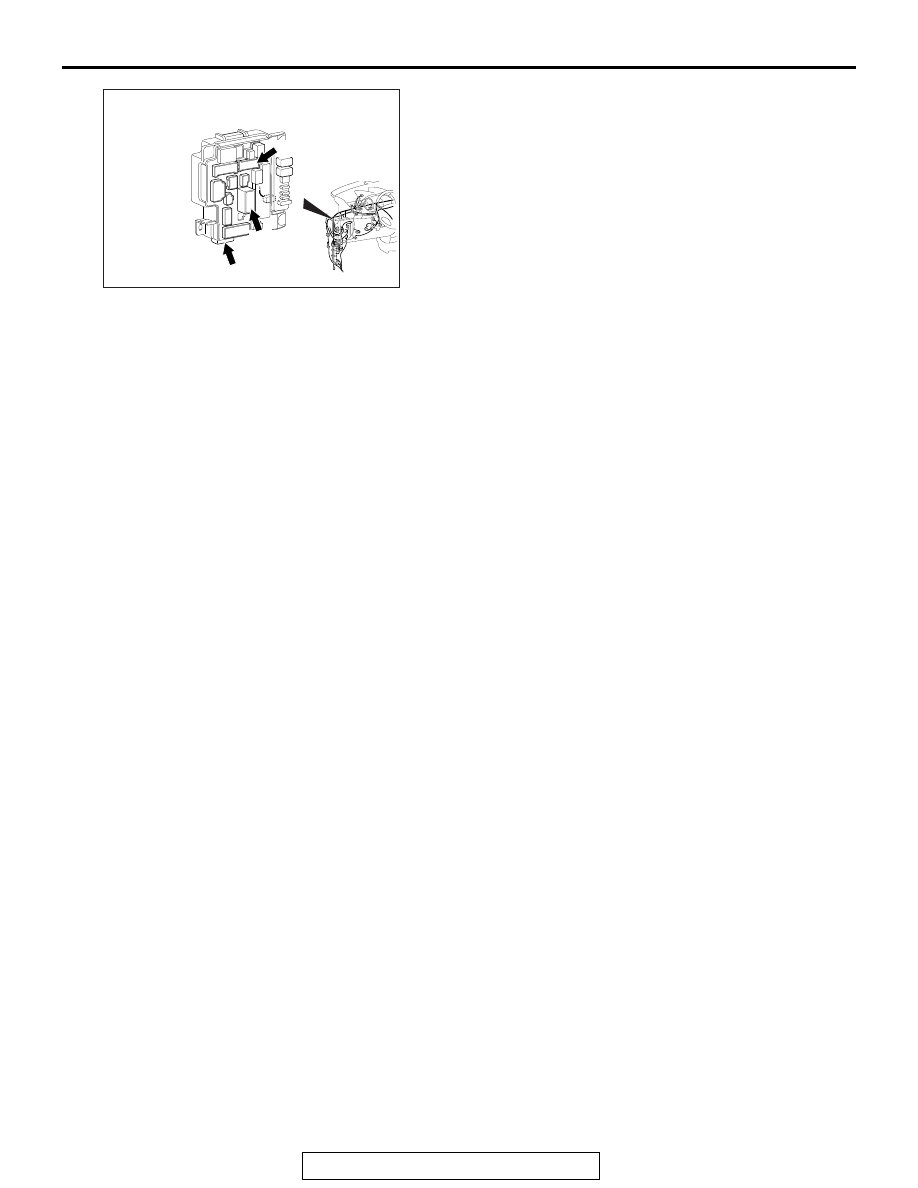

AC702828

C-312

C-304

AV

Connectors: C-304, C-309, C-312

C-309 (B)
