DIAGNOSIS

TSB Revision

CVT

23A-13

DIAGNOSIS

DIAGNOSTIC TROUBLESHOOTING FLOW

M1231213500216

INTRODUCTION TO CVT DIAGNOSIS

M1231212300015

The CVT can exhibit any of the following symptoms:
noise or vibration is generated, Transmission fluid
leaks, the vehicle does not move forward or back-
ward. The causes of these symptoms could come
from: Incorrect mounting, the Transmission fluid may
be low, or a component of the transaxle may be
faulty.

The following items are suspected as causes for the
INVECS-III troubles: malfunction of the TCM, the
sensors, the switches, the harness or connectors.



Gather information from customer.

Check the transmission fluid.

Verify complaint.

Replace or replenish the
transmission fluid.

Communication with the scan tool
MB991958 (M.U.T.-III sub assembly)
not possible in Symptom Chart.

Read the diagnostic trouble code.

Erase the diagnostic trouble code.

Check symptom.

Check the inhibitor switch

Road test

Recheck diagnostic trouble codes
which were read before road test.

To DIAGNOSTIC TROUBLE CODE
CHART

To SYMPTOM CHART

Search for cause.

Repair

Confirmation test (road test)

INTERMITTENT MALFUNCTIONS
(Refer to GROUP 00, How to Use
Troubleshooting/Inspection
Service Points.)

Completed

NG

OK

Communication with the scan tool
MB991958 (M.U.T.-III sub assembly)
not possible

Diagnostic trouble code
displayed.

No diagnostic trouble code
displayed.

Abnormality exists
(no diagnostic trouble code)

Abnormality exists
(diagnostic trouble
 code present)

No abnormality

No diagnostic trouble code
displayed.

Diagnostic trouble code
displayed.

Found

Not found

OK

OK

NG

AC807916

NG

DIAGNOSIS

TSB Revision

CVT

23A-14

CVT DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1231207600010

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will find most CVT mal-
functions.
1. Gather as much information as possible about the

complaint from the customer.

2. Verify that the condition described by the

customer exists.

3. Check the vehicle for any CVT Diagnostic Trouble

Codes (DTCs).

4. If you can not verify the condition and there are no

DTCs, the malfunction is intermittent. For
information on how to cope with intermittent
malfunctions, refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How

to Cope with Intermittent Malfunction

P.00-15

.

5. If you can verify the condition but there are no

DTCs, or the system can not communicate with
scan tool, refer to the Symptom Chart

P.23A-30

.

6. If there is a DTC, record the number of the code,

then erase the code from memory using scan tool.

7. Reconfirm the symptom with a Road Test.
8. If a DTC is set again, go to the Inspection Chart

for Diagnostic Trouble Codes.

9. If a DTC is not set again, the malfunction is

intermittent. For information on how to cope with
intermittent malfunctions, refer to GROUP 00,
How to Use Troubleshooting/Inspection Service
Points

− How to Cope with Intermittent

Malfunction

P.00-15

.

10.After repairs are completed, conduct a Road Test

duplicating the complaint conditions to confirm the
malfunction has been eliminated.

DIAGNOSTIC FUNCTION

M1231219000297

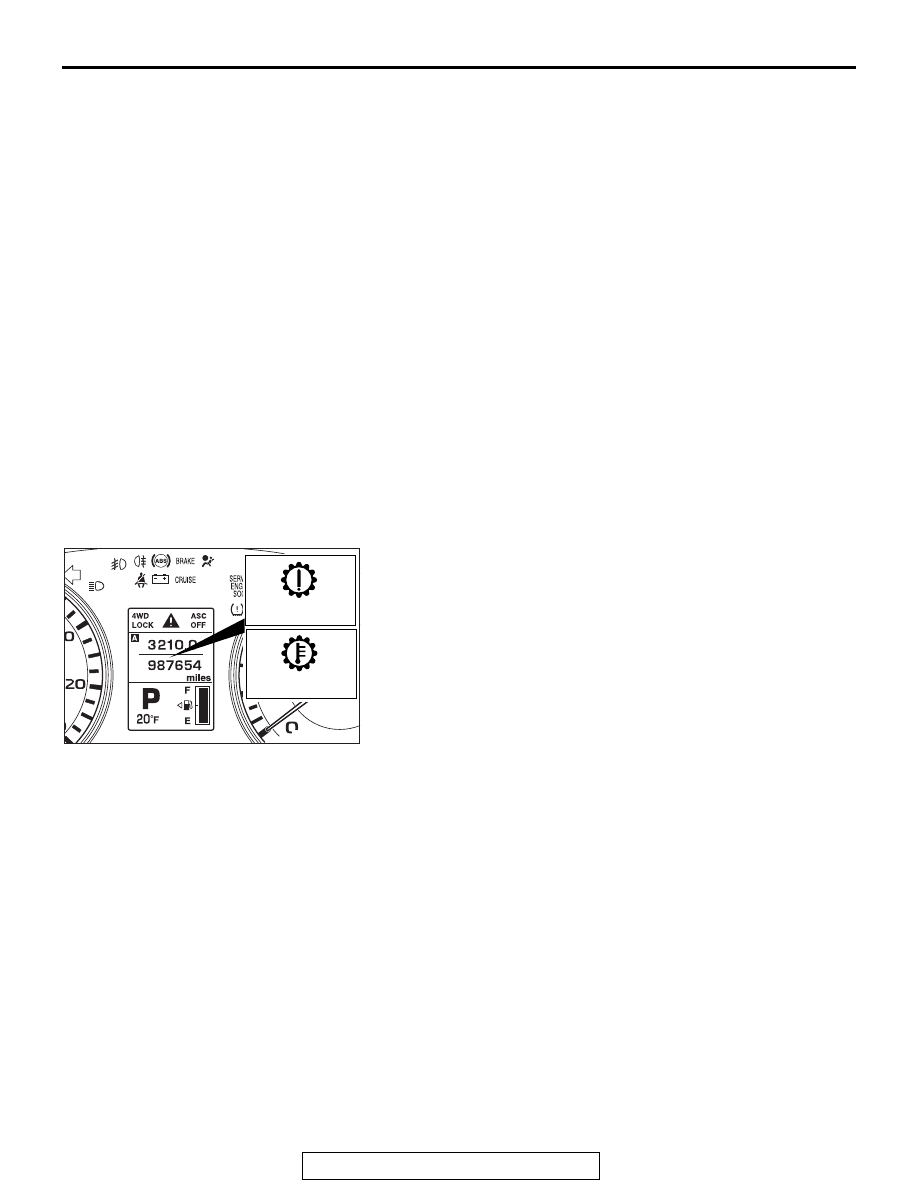

WARNING INDICATOR

When any malfunction occurs in the items related to the CVT
system, which are described below, the symbol (A) continues
being displayed in the information screen in the multi informa-
tion display.
Check if the diagnostic trouble code is set when the symbol (A)
continues being displayed in the information screen in the multi
information display.
NOTE: When the symbol (B) is displayed in the information
screen in the multi information display, the transmission fluid
temperature is high. (Symbol (B) is turned on when the fluid
temperature is approximately 140

°

C (284

°

F) or higher and

turned off automatically when the fluid temperature drops
below approximately 137

°

C (279

°

F).)

ON-BOARD DIAGNOSTICS

The transaxle control module (TCM) monitors its
input/output signals (some signals all the time and
others under specified conditions). When an irregular
signal is initially monitored, the TCM decides that a
malfunction has occurred and records the occur-
rence as a diagnostic trouble code. There are 33
diagnostic items. The diagnostic results can be read
with scan tool. Diagnostic trouble codes are kept in
memory by direct battery feed. The codes are

retained in memory even if the ignition switch is in
the "LOCK" (OFF) position. DTCs are not erased
even after the battery terminals and the TCM con-
nector are disconnected. In addition, the diagnostic
trouble code can also be erased by scan tool.
NOTE: If a sensor is disconnected when the ignition
switch is in the "ON" position, a diagnostic trouble
code is stored in memory. In this case, erase the
DTC using scan tool.
The 33 diagnostic items are displayed in numeric
order.

SLOW DOWN

SERVICE
         REQUIRED

AC607727

(A)

(B)

AB

DIAGNOSIS

TSB Revision

CVT

23A-15

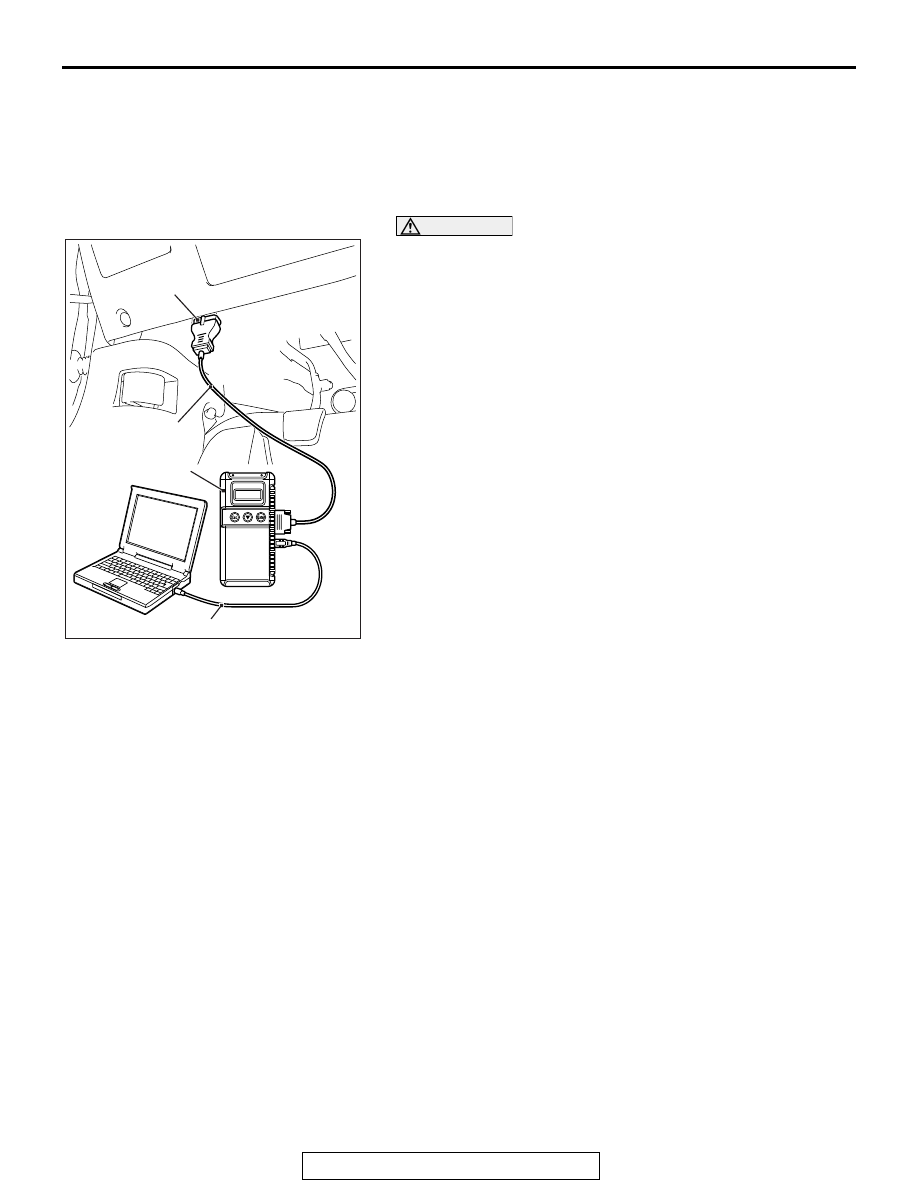

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.
5. Connect special tool MB991910 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON"

position.
NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator light will be illuminated in a green
color.

7. Start the M.U.T.-III system on the personal computer.
NOTE: Disconnecting scan tool MB991958 is the reverse of the
connecting sequence, making sure that the ignition switch is at
the "LOCK" (OFF) position.

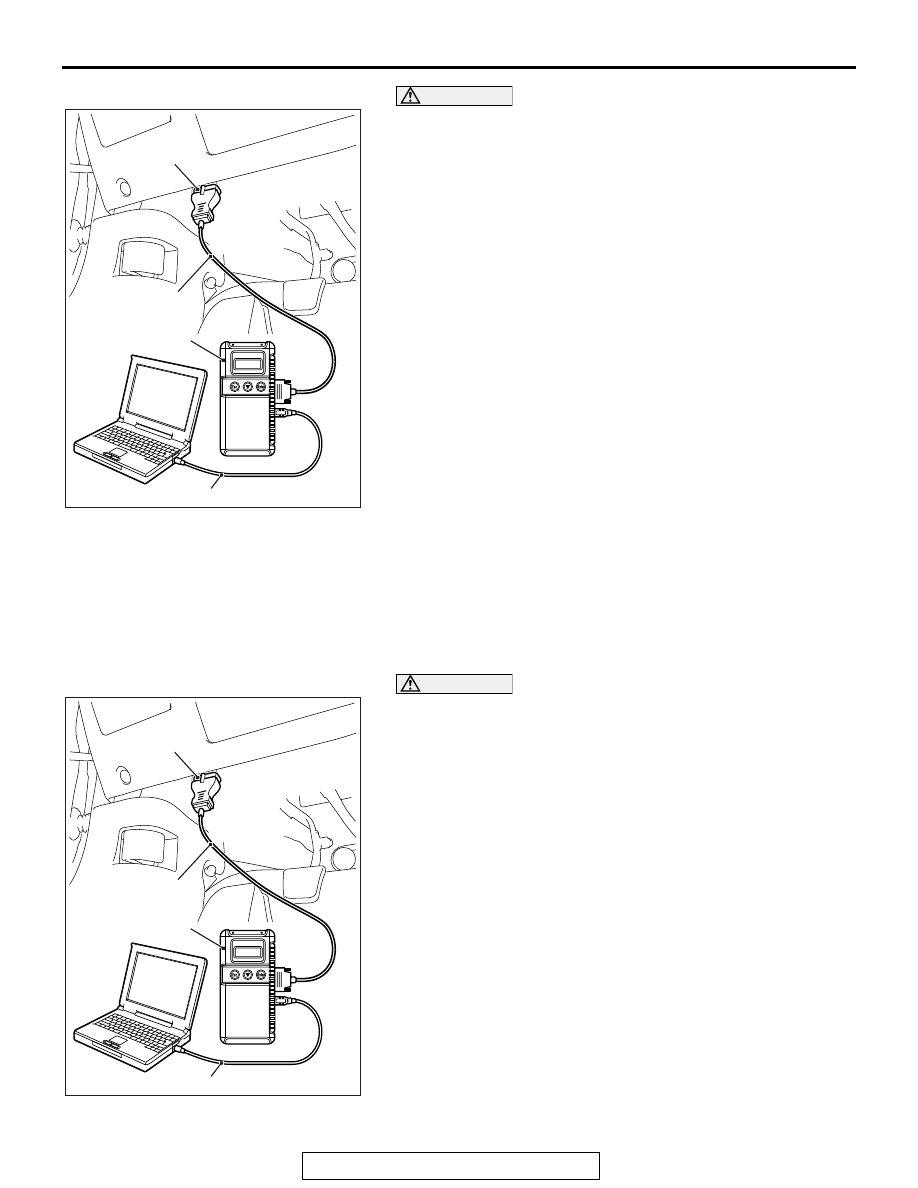

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

DIAGNOSIS

TSB Revision

CVT

23A-16

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

NOTE: If the battery voltage is low, diagnostic trouble codes
will not be set. Check the battery if scan tool MB991958
does not display.

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 06 MY."
5. Make sure vehicle information is correct.
6. Select "AT/CVT/A-MT/TC-SST" to read the DTC.
7. Select "Diagnostic Trouble Code."
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC.

HOW TO READ DATA LIST

Required Special Tools:

• MB991958 : Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "System select" from the start-up screen.
4. Select "From 06 MY."
5. Make sure vehicle information is correct.
6. Select "AT/CVT/A-MT/TC-SST."
7. Select "Data List."
8. Choose an appropriate item and select the "OK" button.

AC608435

Data link connector

MB991827

MB991824

MB991910

AB

AC608435

Data link connector

MB991827

MB991824

MB991910

AB
