GENERAL INFORMATION

TSB Revision

CVT

23A-9

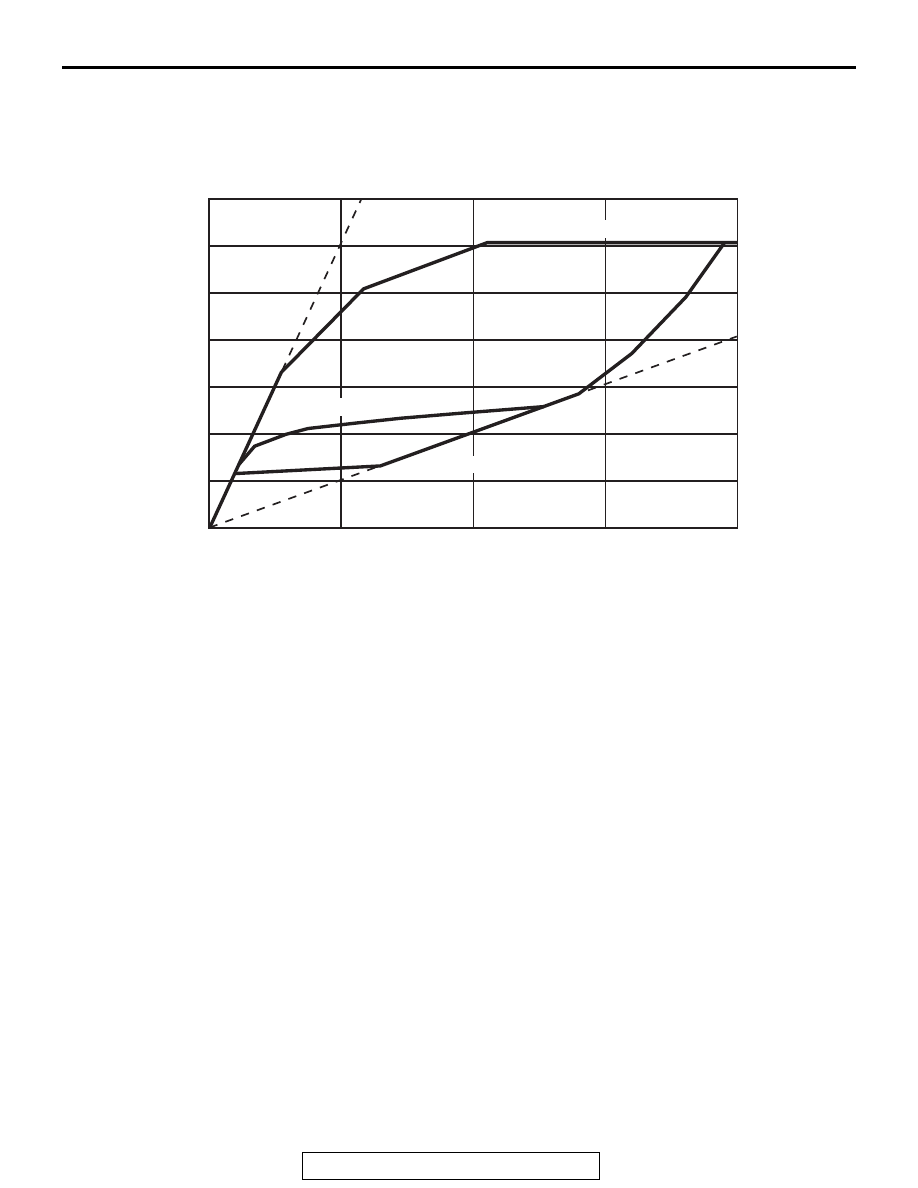

RATIO PATTERN
<D RANGE>

The shift change is performed in the entire shift
range from the lowest to the highest pulley ratio.

.

AC611605AB

OD

Low

Engine speed (r/min)

Vehicle speed km/h (mph)

0 (0)

100 (62)

150 (93)

50 (31)

1,000

2,000

4,000

3,000

5,000

7,000

6,000

200 (124)

Throttle opening 0%

Throttle opening100%

Throttle opening 50%

GENERAL INFORMATION

TSB Revision

CVT

23A-10

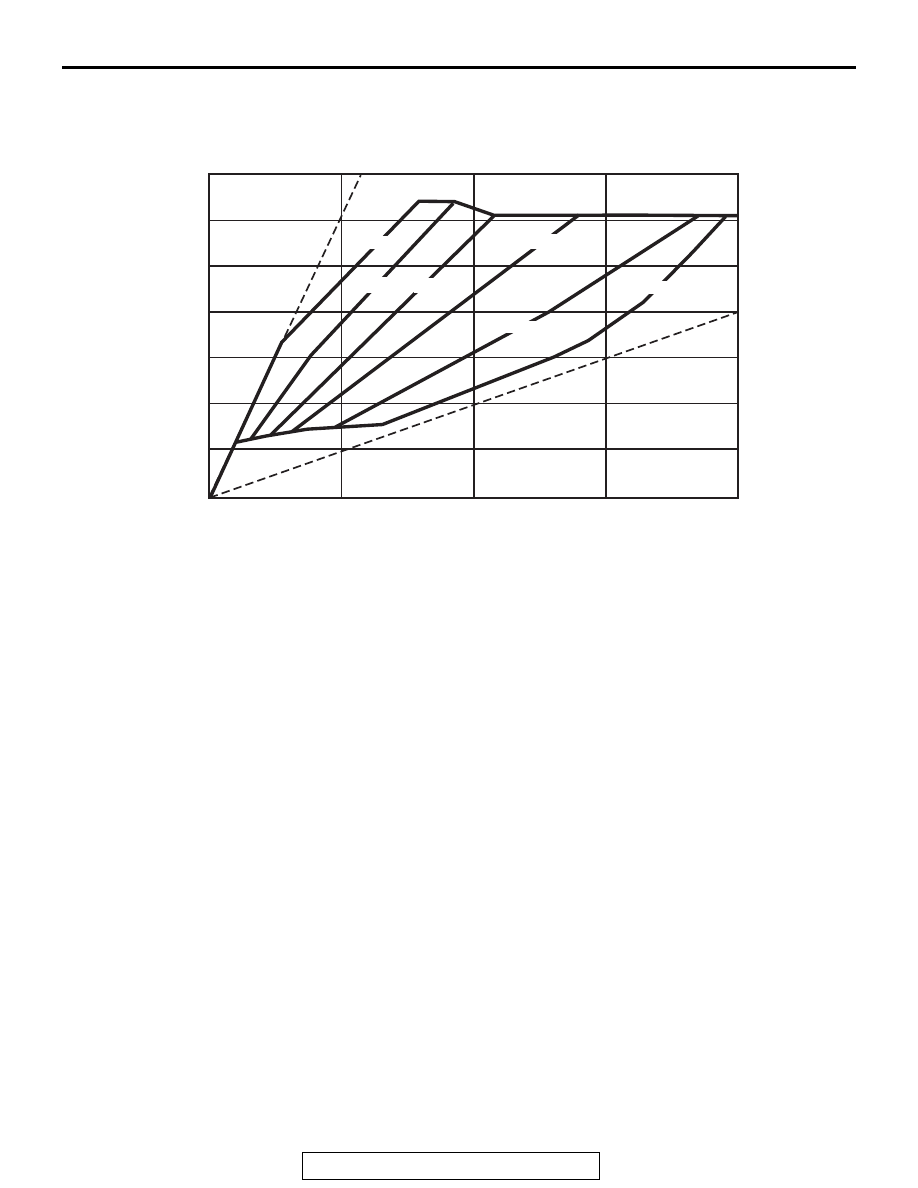

<SPORT MODE>

When the sport mode is switched ON with the selec-
tor lever or paddle shift, the fixed shifting line is
determined. The upshift/downshift operation enables
to shift in steps according to the predetermined shift-
ing line, providing M/T-like shifting. The 6-speed
transmission which is suitable for sporty driving is
adopted.

.

AC709693AB

OD

Low

Engine speed (r/min)

Vehicle speed km/h (mph)

0 (0)

100 (62)

150 (93)

50 (31)

1,000

2,000

4,000

3,000

5,000

7,000

6,000

200 (124)

1st

2nd

3rd

4th

5th

6th

GENERAL INFORMATION

TSB Revision

CVT

23A-11

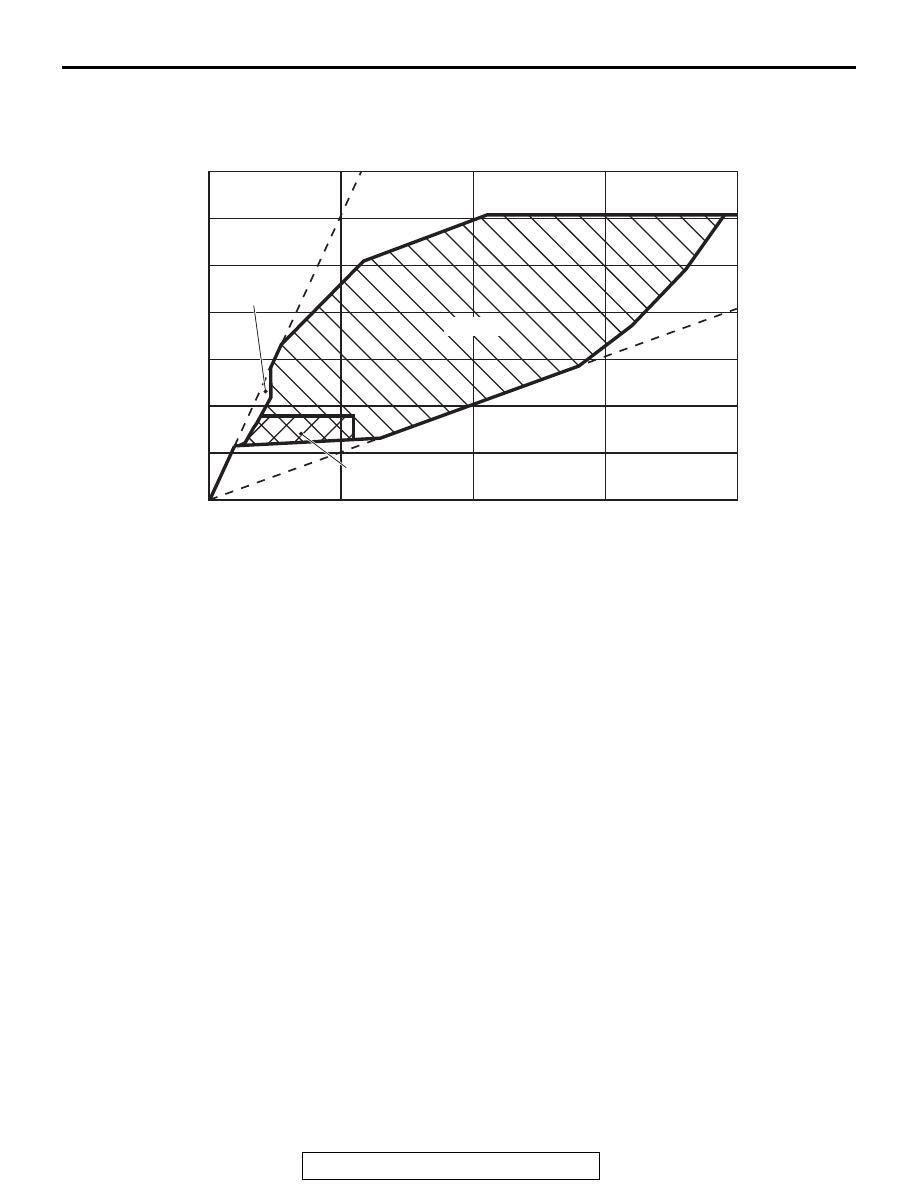

DIRECT CONTROL (TORQUE CONVERTER CLUTCH CONTROL)

By carefully controlling the direct operating pressure
depending on the driving conditions, the shock-free
direct operation from low speed has been achieved.

AC900981AB

OD

Low

Engine speed (r/min)

Vehicle speed km/h (mph)

0 (0)

100 (62)

150 (93)

50 (31)

1,000

2,000

4,000

3,000

5,000

7,000

6,000

200 (124)

Disengaged

Partial lock-up zone

Lock-up

SERVICE SPECIFICATIONS

TSB Revision

CVT

23A-12

SERVICE SPECIFICATIONS

M1231200300546

LUBRICANTS

M1231200400606

Item

Standard value

Transmission fluid temperature sensor resistance k

Ω

at 0

°C (32°F)

Approximately 15.5

at 20

°C (68°F)

Approximately 6.5

at 40

°C (104°F) Approximately 3.1

at 60

°C (140°F) Approximately 1.6

at 80

°C (176°F) Approximately 0.9

at 100

°C

(212

°F)

Approximately 0.5

Line pressure solenoid valve coil resistance [fluid temperature: 20

°C (68°F)] Ω

Approximately 5.6 to
6.6

Secondary pressure solenoid valve coil resistance [fluid temperature: 20

°C (68°F)]

Ω

Approximately 5.6 to
6.6

Lockup/select switching solenoid valve coil resistance [fluid temperature: 20

°C

(68

°F)] Ω

Approximately 25.5 to
29.3

Lockup solenoid valve coil resistance [fluid temperature: 20

°C (68°F)] Ω

Approximately 5.6 to
6.6

Shift lock solenoid resistance

Ω

24

± 1.2

Engine stall speed r/min

D range

2,400

− 2,900

R range

2,400

− 2,900

Opening temperature of thermo valve

°C (°F)

75

± 1.5 (167 ± 2.7)

Full opening temperature of thermo valve

°C (°F)

95 (203) or more

Amount of thermo valve lift when it is fully opened mm (in)

3 (0.12) or more

Item

Specified lubricant

Quantity dm

3

 (qt)

Transmission fluid

DIA QUEEN CVTF-J1

7.1 (7.5)

Transfer oil <AWD>

Hypoid gear oil API classification GL-5 SAE80

0.49 (0.52)
