CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-61

MB991223

a. MB991219
b. MB991220
c. MB991221
d. MB991222

Harness set

a. Test harness
b. LED harness
c. LED harness adaptor
d. Probe

General service tools

Checking the continuity
and measuring the
voltage at the harness
connector

MB992006
Extra fine probe

General service tool

Continuity check and
voltage measurement at
harness wire or connector
for loose, corroded or
damaged terminals, or
terminals pushed back in
the connector.

MB992110
Power plant ECU check
harness

−

Measuring the terminal
voltage at the ECM

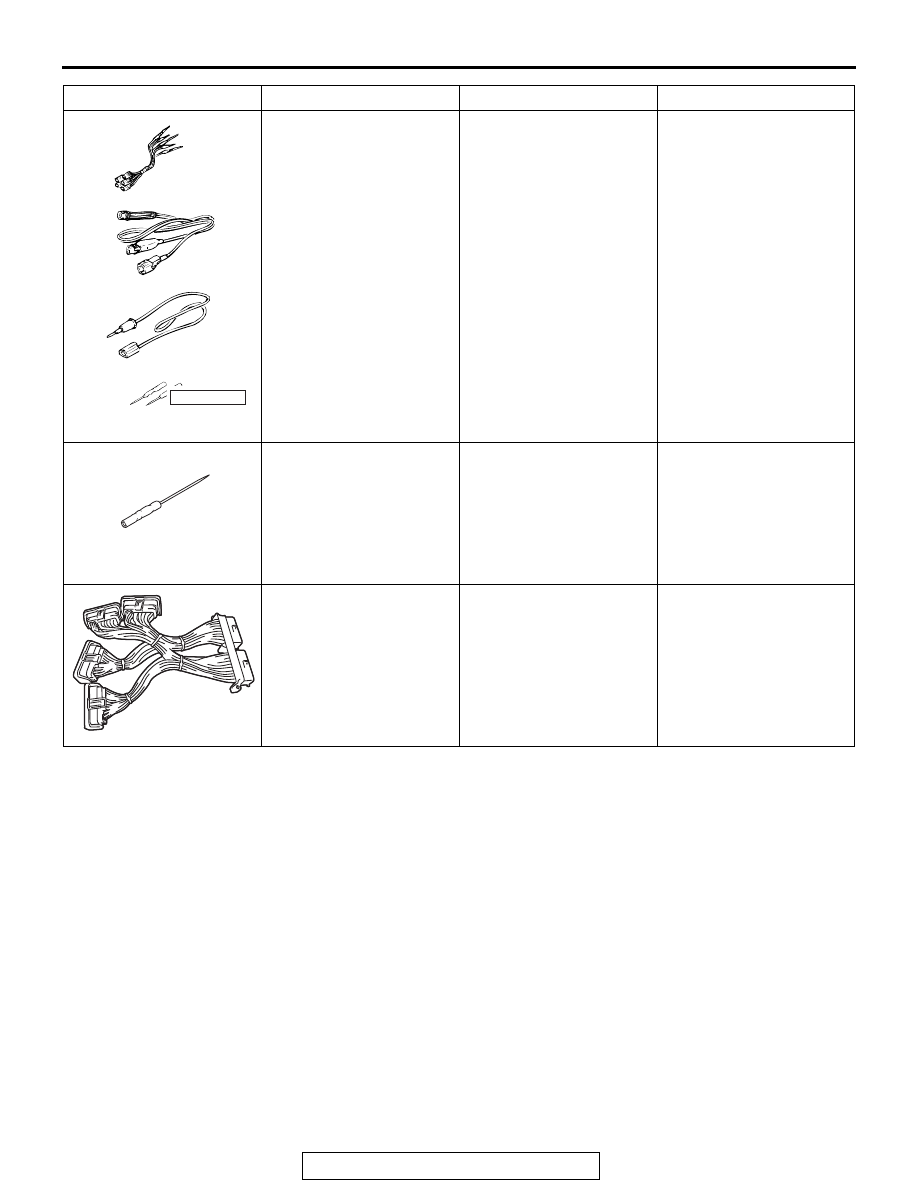

Tool

Tool number and name Supersession

Application

MB991223

a

d

c

b

DO NOT USE

BA

MB992006

AB

MB992110

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-62

ON-VEHICLE SERVICE

CRUISE CONTROL SYSTEM OPERATION CHECK

M1172001600193

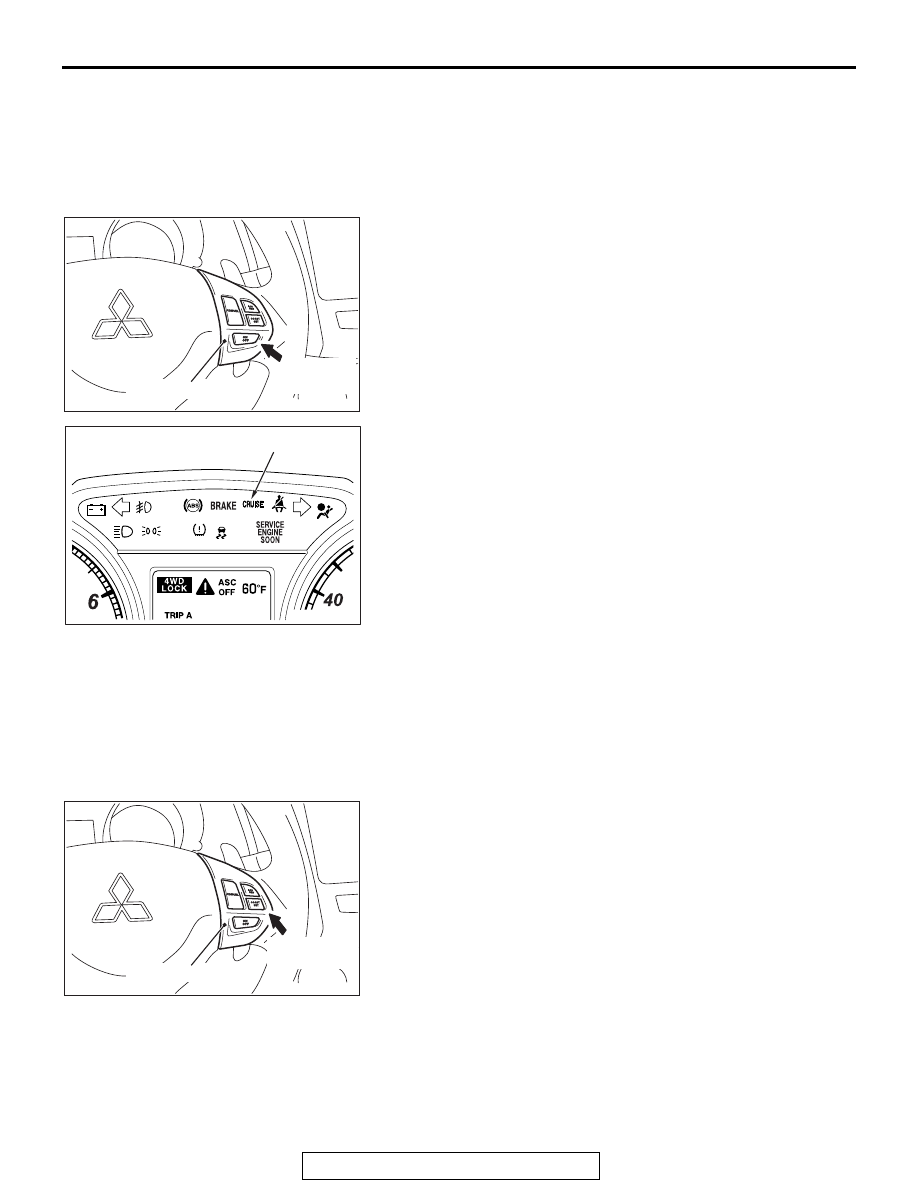

CRUISE CONTROL "ON/OFF" SWITCH CHECK

1. Turn the ignition switch to the "ON" position.
2. Check that the "CRUISE" indicator light within the

combination meter illuminates when the "ON/OFF" switch is
pressed (cruise control system: ON).

3. Press the "ON/OFF" switch again (cruise control system:

OFF), and check that the "CRUISE" indicator light within the
combination meter goes out.

CRUISE CONTROL SETTING

1. Start the engine.
2. Press the "ON/OFF" switch (cruise control system: ON,

"CRUISE" indicator light: illuminated).

3. Drive at the desired speed, above approximately 40 km/h

(25 mph).

4. Press the "COAST/SET" switch.
5. Check to be sure that when the "COAST/SET" switch is

released the speed is the constant speed.
NOTE: If the vehicle speed decreases to approximately 15
km/h (9 mph) below the set speed because of climbing a hill
for example, it is normal for the cruise control to be can-
celled. When the vehicle speed becomes low-speed limit
[approximately 40 km/h (25 mph)] or less, driving at constant
speed will be cancelled even if the vehicle speed does not
decrease 15 km/h (9 mph) or more.

AC601371AQ

Cruise control switch

"ON/OFF"
switch: ON

ACA03397

AB

"CRUISE" indicator light

AC601371AS

Cruise control switch

"COAST/SET"
switch: ON

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-63

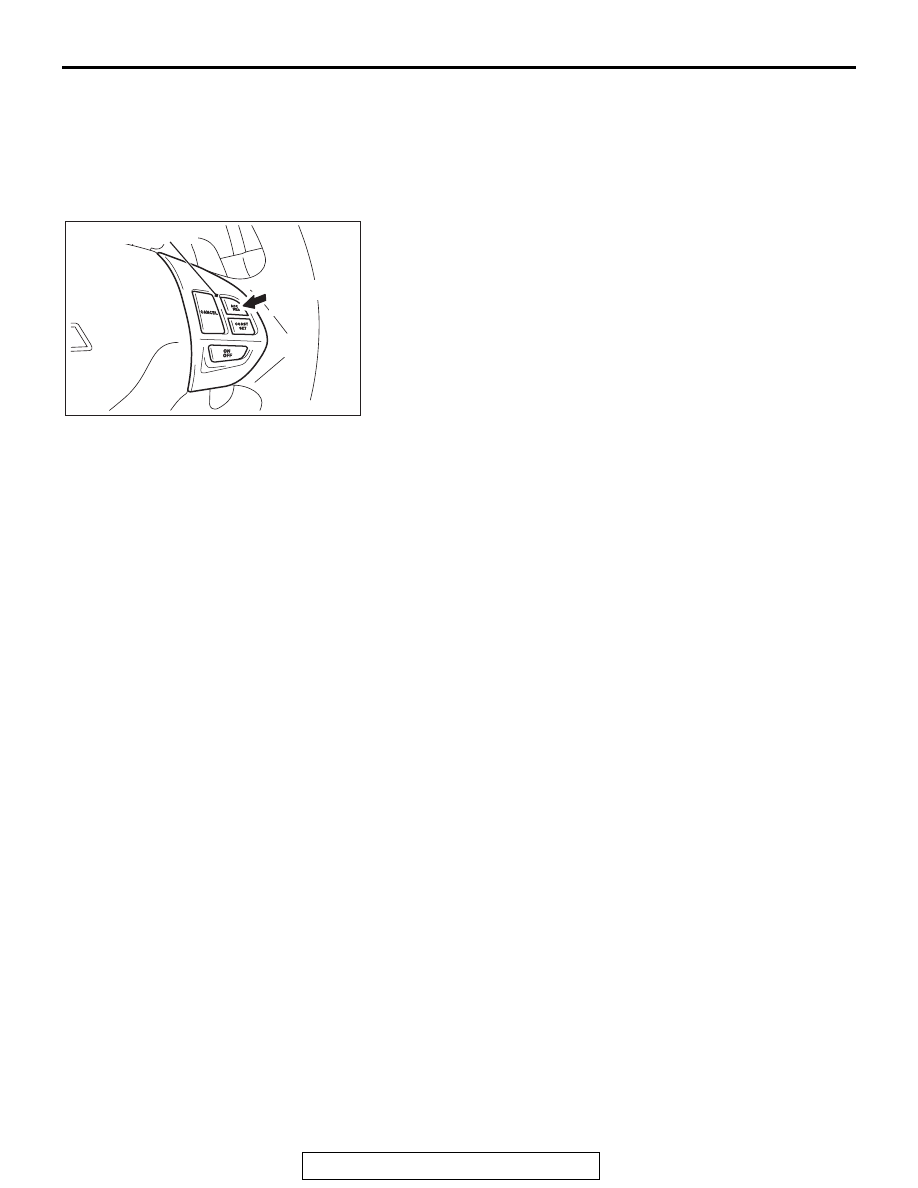

SPEED-INCREASE SETTING

1. Start the engine.
2. Press the "ON/OFF" switch (cruise control system: ON,

"CRUISE" indicator light: illuminated).

3. Set to the desired speed, above approximately 40 km/h (25

mph).

4. Press the "ACC/RES" switch.
5. Check to be sure that acceleration continues while the

"ACC/RES" switch is pressed, and that the speed at the time
it was released becomes the constant driving speed.
NOTE: Acceleration can be continued even if the vehicle
speed has passed the high-speed limit [approximately 160
km/h (100 mph)]. But the constant driving speed when the
"ACC/RES" switch is released will be recorded as the
high-speed limit.

SPEED-REDUCTION SETTING

1. Start the engine.
2. Press the "ON/OFF" switch (cruise control system: ON,

"CRUISE" indicator light: illuminated).

3. Set to the desired speed, above approximately 40 km/h (25

mph).

4. Press the "COAST/SET" switch.
5. Check to be sure that deceleration continues while the

"COAST/SET" switch is pressed, and that the speed at the
time it was released becomes the constant driving speed.
NOTE: When the vehicle speed reaches the low limit
[approximately 40 km/h (25 mph)] during deceleration, the
cruise control will be cancelled.

RETURN TO THE SET SPEED BEFORE
CANCELLATION AND CRUISE CONTROL
CANCELLATION

1. Start the engine.
2. Press the "ON/OFF" switch (cruise control system: ON,

"CRUISE" indicator light: illuminated).

3. Set to the desired speed, above approximately 40 km/h (25

mph).

4. When any of the following operations are performed while at

constant speed during cruise control, check if normal driving
is resumed and deceleration occurs.

AC705702AJ

Cruise control switch

"ACC/RES"
switch

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-64

(1) The "CANCEL" switch is pressed.
(2) The brake pedal is depressed.

5. At a vehicle speed of approximately 40 km/h (25 mph) or

higher, check if when the "ACC/RES" switch is pressed, the
vehicle speed returns to the speed before cruise control
driving was cancelled, and constant speed driving occurs.

6. When the "ON/OFF" switch is pressed again (cruise control

system: OFF) while driving at constant speed, check if
normal driving is resumed and deceleration occurs.

CRUISE CONTROL SYSTEM COMPONENT
CHECK

M1172001701847

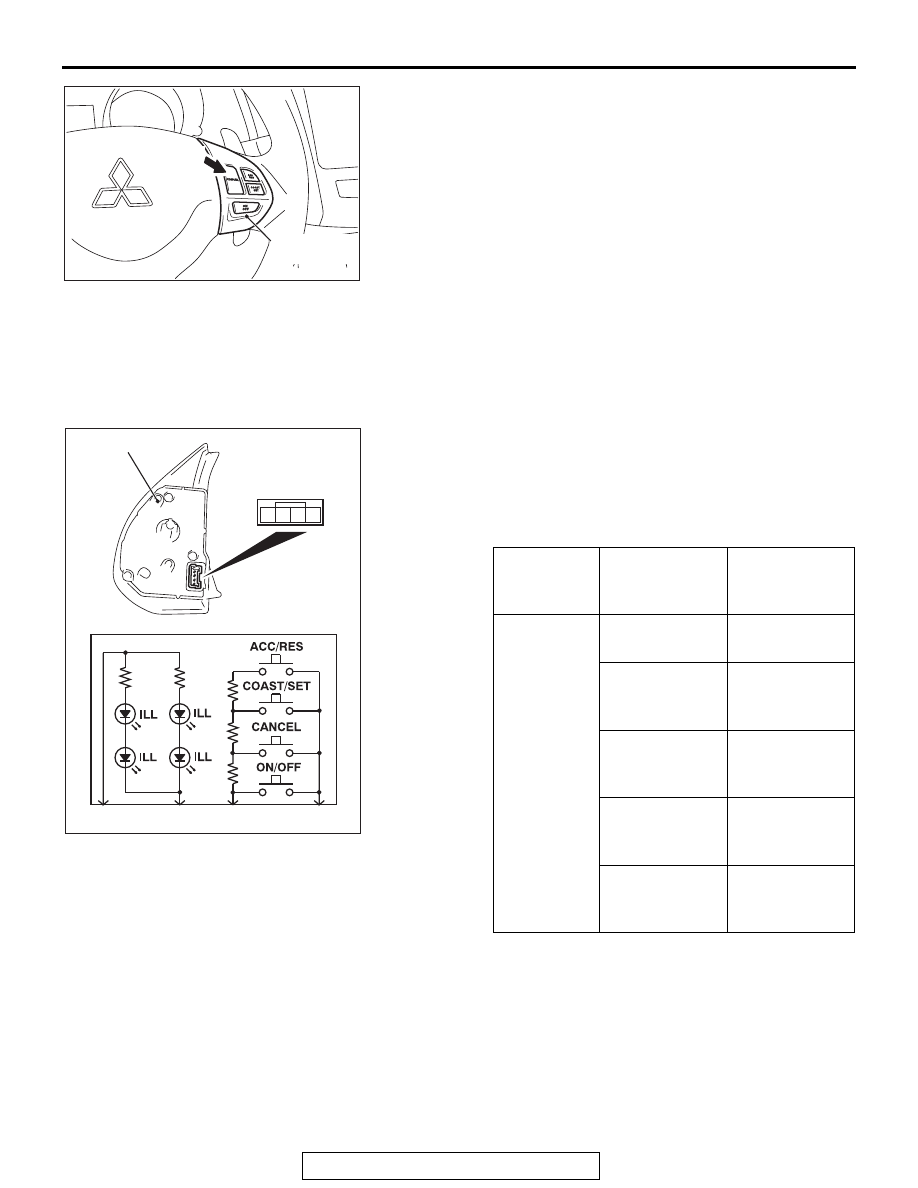

CRUISE CONTROL SWITCH CHECK

1. Remove the cruise control switch (Refer to

P.17-65

.)

2. Measure the resistance between terminal number 2 and

terminal number 3 when each of the "ON/OFF", "CANCEL",
"COAST/SET" and "ACC/RES" switches is pressed. If the
values measured at the time each switch is pressed
correspond to those in the table below, the resistance values
are correct.

3. Check that the cruise control switch illuminates when a

positive battery terminal is connected to the connector
terminal number 4, and terminal number 1 is grounded.

STOPLIGHT SWITCH CHECK

Refer to GROUP 35A, Brake Pedal, Inspection

− Stoplight

Switch Check

P.35A-27

.

AC601371AT

"CANCEL"
switch

Cruise control
switch

Terminal
connector
of tester

Switch
position

Specified
condition

2

− 3

All switches are
released.

Open circuit

"ON/OFF"
switch is
pressed

Continuity (less
than 2 ohms)

"CANCEL"
switch is
pressed

202.5 - 208

Ω

"COAST/SET"
switch is
pressed

610.5 - 624.5

Ω

"ACC/RES"
switch is
pressed

1838 - 1877

Ω

AC800937

4

1 2 3

2

1

3

4

AJ

Cruise control switch
