CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-53

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

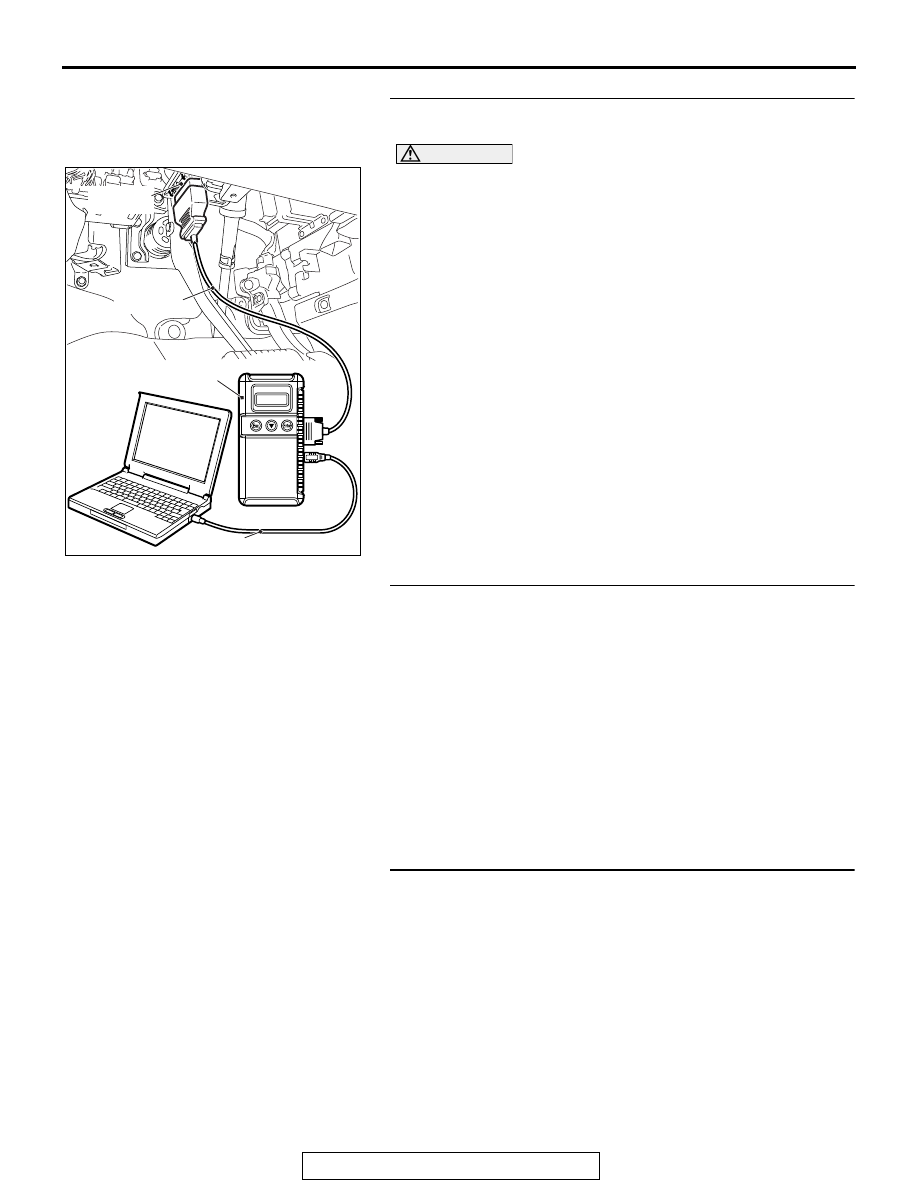

(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to diagnose the CAN bus line

(Refer to

P.17-12

Q: Is the check result satisfactory?

YES : Go to Step 2 <2.4L Engine>.
YES : Go to Step 3 <3.0L Engine>.
NO : Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis

− CAN Bus Diagnostics Chart

P.54C-19

Then go to Step 7.

STEP 2. Using scan tool MB991958, read the CVT system
DTC <2.4L Engine>.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to check for CVT system DTC

(Refer to GROUP 23A, Diagnosis

− Diagnostic Function

P.23A-13

Q: Is any DTC set?

YES : Repair the CVT system (Refer to GROUP 23A,

Diagnosis

− Diagnostic Trouble Code Chart

P.23A-27

). Then go to Step 7.

NO : Go to Step 4.

STEP 3. Using scan tool MB991958, read the A/T system
DTC <3.0L Engine>.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to check for A/T system DTC

(Refer to GROUP 23C, Automatic Transaxle Diagnosis

−

Diagnostic Function

P.23C-20

Q: Is any DTC set?

YES : Repair the A/T system (Refer to GROUP 23C,

Automatic Transaxle Diagnosis

− Diagnostic Trouble

Code Chart

P.23C-166

). Then go to Step 7.

NO : Go to Step 4.

ZC501967

AC404789

AC703911AB

MB991824

MB991827

MB991910

Data link

connector

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-54

STEP 4. Using scan tool MB991958, read the MFI system
DTC.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.54C-19

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to check for MFI system DTC

(Refer to GROUP 13A, MFI Diagnosis

− Diagnostic

Function

P.13A-11

) <2.4L Engine> or (Refer to GROUP

13B, MFI Diagnosis

− Diagnostic Function

P.13B-11

) <3.0L

Engine>.

Q: Is any DTC set?

YES : Repair the MFI system (Refer to GROUP 13A, MFI

Diagnosis

− Diagnostic Trouble Code Chart

P.13A-49

) <2.4L Engine> or (Refer to GROUP 13B,

MFI Diagnosis

− Diagnostic Trouble Code Chart

P.13B-50

) <3.0L Engine>. Then go to Step 7.

NO : Go to Step 5.

STEP 5. Using scan tool MB991958, check the data list
item 4: vehicle speed signal.
(1) Connect scan tool MB991958 to the data link connector

(Refer to

P.17-12

(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to data reading mode for cruise

control system (Refer to

P.17-12

• Item 4: Vehicle speed signal.

• When road test the vehicles, check the display on

scan tool MB991958 and speedometer.

Q: Is the check result satisfactory?

YES : Go to Step 6.
NO : Replace the ECM [Refer to GROUP 13A, Engine

Control Module (ECM)

P.13A-887

] <2.4L Engine> or

[Refer to GROUP 13B, Engine Control Module (ECM)

P.13B-904

] <3.0L Engine>. Then go to Step 7.

STEP 6. Check the symptom.
Q: Does hunting occur?

YES : Replace the ECM [Refer to GROUP 13A, Engine

Control Module (ECM)

P.13A-887

] <2.4L Engine> or

[Refer to GROUP 13B, Engine Control Module (ECM)

P.13B-904

] <3.0L Engine>. Then go to Step 7.

NO : It can be assumed that this malfunction is intermittent

(Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-15

STEP 7. Check the symptom.
Q: Does hunting occur?

YES : Return to Step 1.
NO : The procedure is complete.

CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-55

Inspection Procedure 6: When "ON/OFF" Switch is Turned ON, "CRUISE" Indicator Light Inside
Combination Meter does not Illuminate (However, Cruise Control System is Normal).

CIRCUIT OPERATION

• The ECM detects "ON/OFF" switch ON signal to

illuminate the "CRUISE" indicator light within the
combination meter.

• The "CRUISE" indicator light illuminate signal is

transmitted from the ECM to the combination
meter via CAN bus line.

COMMENT

• The CAN bus line between the ECM and the

ETACS-ECU and between the ETACS-ECU and
the combination meter may be defective.

• The combination meter, ETACS-ECU or ECM

may also be defective.

TROUBLESHOOTING HINTS

• Malfunction of CAN bus system.

• Damaged harness or connector.

• Malfunction of the combination meter.

• Malfunction of the ETACS-ECU

• Malfunction of the ECM

DIAGNOSTIC PROCEDURE

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A

CAUTION

If there is any problem in the CAN bus lines, an incorrect
DTC may be set. Prior to this diagnosis, diagnose the CAN
bus lines (Refer to GROUP 54C, Trouble code diagnosis

P.54C-11
