Mitsubishi Outlander GS45X. Manual - part 1604





CRUISE CONTROL

TSB Revision

ENGINE AND EMISSION CONTROL

17-65

TRANSMISSION RANGE SWITCH CHECK

Refer to GROUP 23A, On-vehicle Service

− Essential Service

P.23A-138

 <2.4L Engine>.

Refer to GROUP 23C, On-vehicle Service

− Essential Service

P.23C-269

 <3.0L Engine>.

THROTTLE ACTUATOR CONTROL MOTOR
CHECK

Refer to GROUP 13A, On-vehicle Service

− Throttle Actuator

Control Motor Check

P.13A-877

 <2.4L Engine>.

Refer to GROUP 13B, On-vehicle Service

− Throttle Actuator

Control Motor Check

P.13B-895

 <3.0L Engine>.

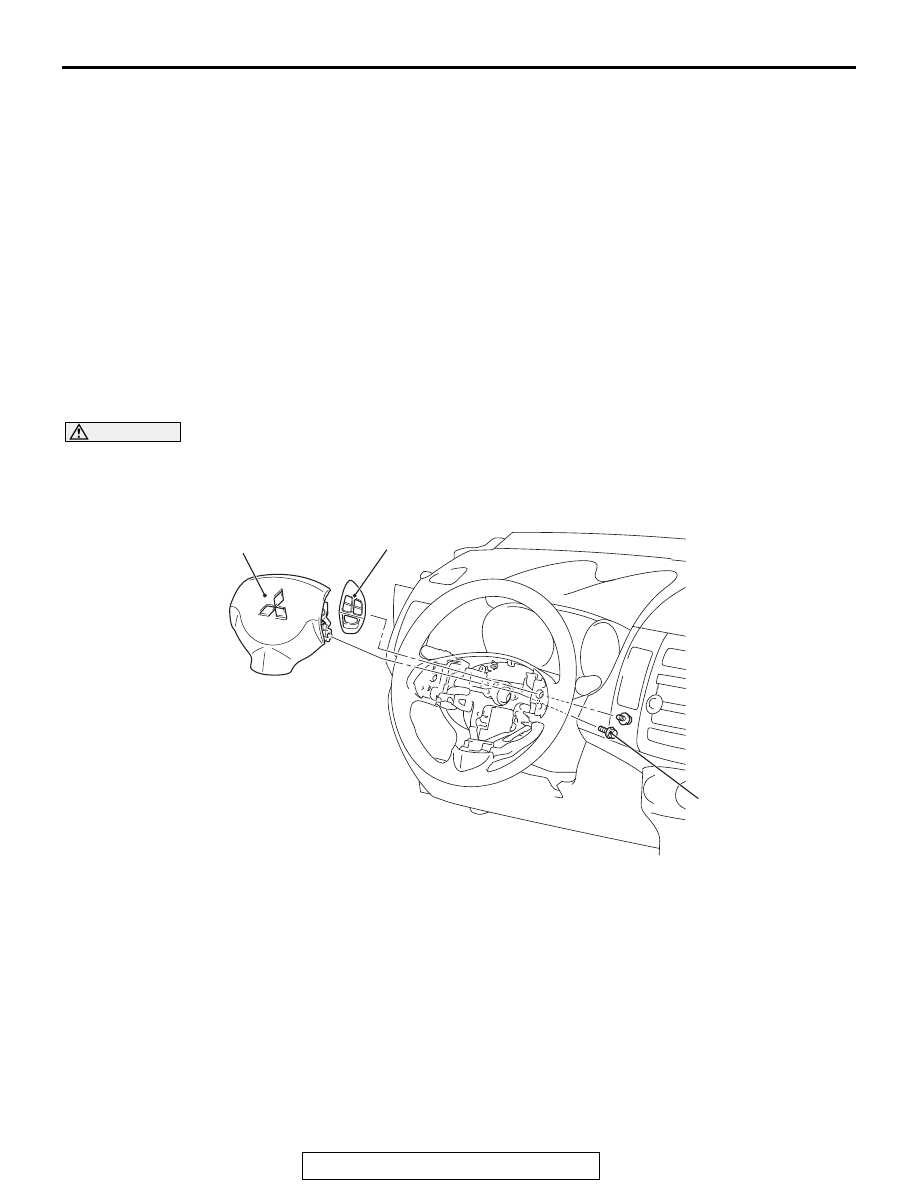

CRUISE CONTROL SWITCH

REMOVAL AND INSTALLATION

M1172007600953

WARNING

Before removing the driver’s air bag module assembly, refer to GROUP 52B, Service Precau-
tions

P.52B-25

 and Driver’s Air Bag Module and Clock Spring

P.52B-439

.

AC707853

AC

1

2

9.5 ± 2.5 N·m
84 ± 22 in-lb

Removal steps

1. Driver’s air bag module (Refer to

GROUP 52B, Air Bag Modules and
Clock Spring

P.52B-439

).

2. Cruise control switch

EMISSION CONTROL <MFI>

TSB Revision

ENGINE AND EMISSION CONTROL

17-66

EMISSION CONTROL <MFI>

GENERAL INFORMATION

M1173000101061

The emission control system consists of the fol-

lowing subsystems:

• Positive crankcase ventilation system

• Evaporative emission system

• Exhaust emission control system

SERVICE SPECIFICATIONS

M1173000301270

DIAGNOSIS

M1173000700220

Item

Standard value

Emission control system
EGR valve (Stepper Motor) connector resistance [at 20

°C (68°F)] Ω

20

− 24

Evaporative emission purge solenoid coil resistance [at 20

°C (68°F)] Ω

22

− 26

Evaporative emission ventilation solenoid coil resistance [at 20

°C (68°F)] Ω

17

− 21

Purge flow cm

3

/s (SCFH) [at 80

− 95°C (176 − 205°F) with sudden revving]

20 (2.5)

SYMPTOM

PROBABLE CAUSE

REMEDY

Engine will not start or hard
to start

Vacuum hose disconnected or damaged

Repair or replace

The EGR valve (Stepper Motor) is not
closed.

Repair or replace

Malfunction of the evaporative emission
purge solenoid

Repair or replace

Rough idle or engine stalls

The EGR valve (Stepper Motor) is not
closed.

Repair or replace

Vacuum hose disconnected or damaged.

Repair or replace

Malfunction of the positive crankcase
ventilation valve

Replace

Malfunction of the purge control system

Check the system; If there is a
problem, check its component
parts.

Engine hesitates or poor
acceleration

Malfunction of the exhaust gas recirculation
system

Check the system; If there is a
problem, check its component
parts.

Excessive oil consumption

Positive crankcase ventilation line clogged

Check positive crankcase
ventilation system

Poor fuel mileage

Malfunction of the exhaust gas recirculation
system

Check the system; If there is a
problem, check its component
parts.

EMISSION CONTROL <MFI>

TSB Revision

ENGINE AND EMISSION CONTROL

17-67

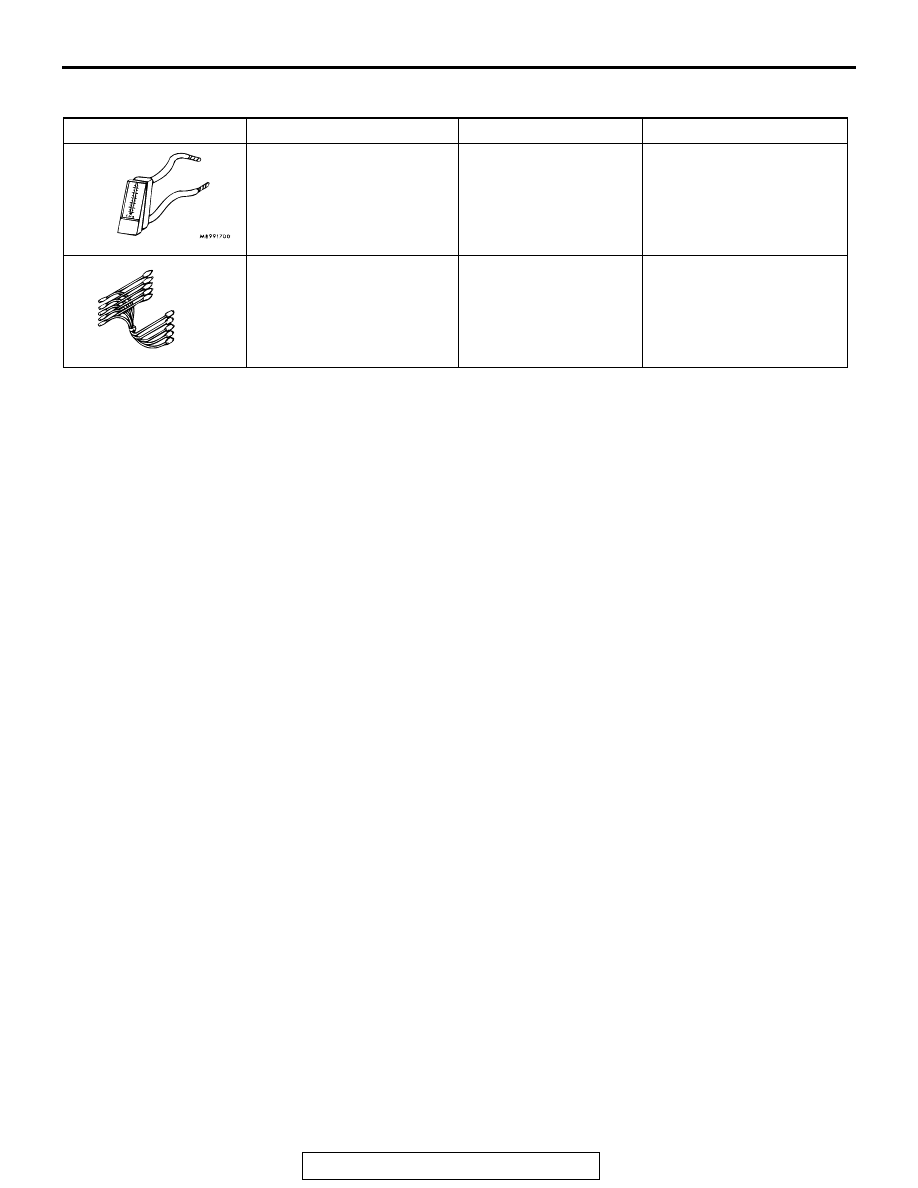

SPECIAL TOOLS

M1173000600900

Tool

Tool number and name

Supersession

Application

MB995061
Purge flow indicator

MLR6890A
Part of MIT280220

Inspection of purge control
system

MB991658
Test harness set

Tool not available

Inspection of EGR valve
(Stepper Motor)

MB991658

EMISSION CONTROL <MFI>

TSB Revision

ENGINE AND EMISSION CONTROL

17-68

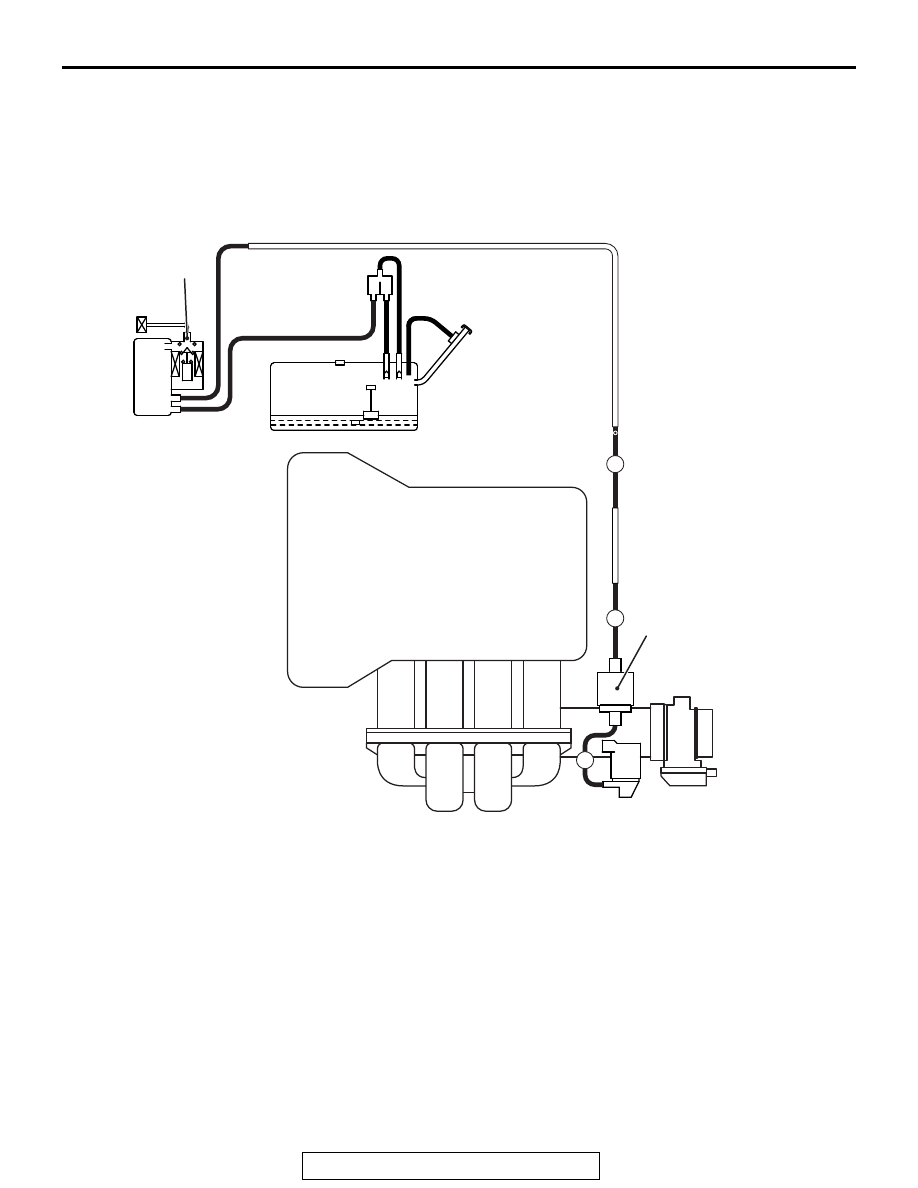

VACUUM HOSES

VACUUM HOSE ROUTING

M1173000902123

<2.4L Engine>

AKA00467

Evaporative emission
canister

Evaporative emission
ventilation solenoid

AB

Evaporative emission
purge solenoid

Chamber

B

B

B

*1

B:

*1:

Black
White paint mark
