Mitsubishi Outlander GS45X. Manual - part 1563





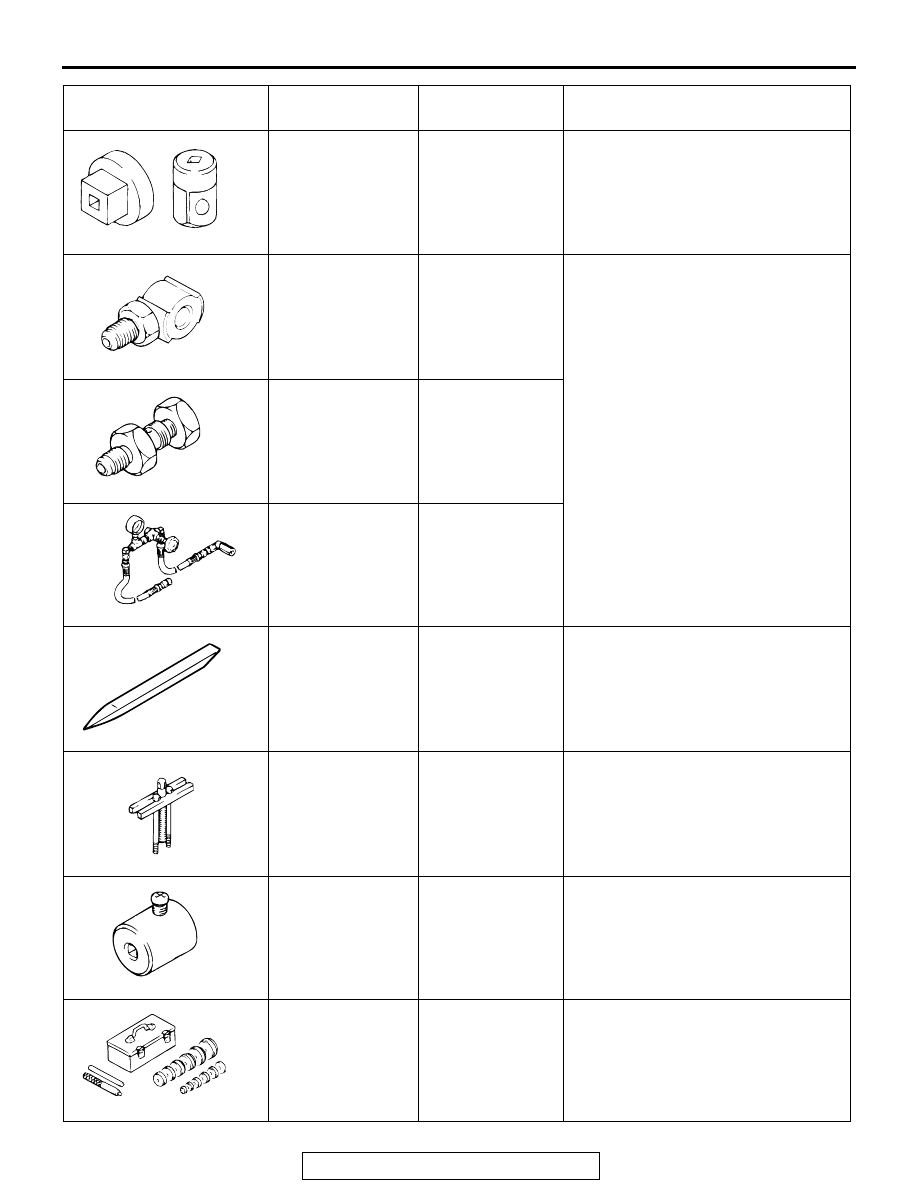

SPECIAL TOOLS

TSB Revision

POWER STEERING

37-15

MB990326
Preload socket

General service
tool

Tie rod end ball joint breakaway
torque check

MB991548
Power steering oil
pressure gauge
adapter (Pump
side)

MB991548-01

Oil pump pressure test

MB991549
Power steering oil
pressure gauge
adapter (Hose
side)

MB991549-01

MB990662
Power steering oil
pressure gauge

MB990662-01

MB990784
Ornament remover

General service
tool

Cover removal

MB990803
Steering wheel
puller

Steering wheel removal

MB990228 or
MB991006
Preload socket

MB990228-01

Steering gear total pinion torque
check

MB990925
Bearing and oil
seal installer set

MB990925-01 or
general service
tool

• Oil seal and bearing installation

• MB990927, MB990938, MB990939

Tool

Tool number



and name

Supersession

Application

MB990326

MB991548

MB991549

MB990662

MB990784

MB990803

MB991006

MB990925

ON-VEHICLE SERVICE

TSB Revision

POWER STEERING

37-16

ON-VEHICLE SERVICE

STEERING WHEEL FREE PLAY CHECK

M1372001000979

1. With the engine running (hydraulic pressure applied),

position the front wheel in the straight ahead direction.

2. Measure the side to side steering wheel play until the front

wheels actually start moving while turning the steering wheel
slightly in the left and right directions.

Limit: 30 mm (1.2 inch) or less

3. If the steering wheel play exceeds the limit value, check the

steering shaft joint or steering linkage for looseness, and
replace or repair the faulty components if necessary.

4. If the steering wheel play still exceeds the limit value after

Step 3 is performed, position the steering wheel in the
straight ahead position, and then apply the force
(approximately 5 N) in the circumferential direction.



At this time, check if the steering wheel play is within the
standard value.

Standard value : 16.5 mm (0.65 inch) or less

5. If the steering wheel play is outside the standard value after

Step 4 is performed, remove the steering gear and linkage,
and check and adjust the pinion total rotation torque.(Refer
to

P.37-44

.)

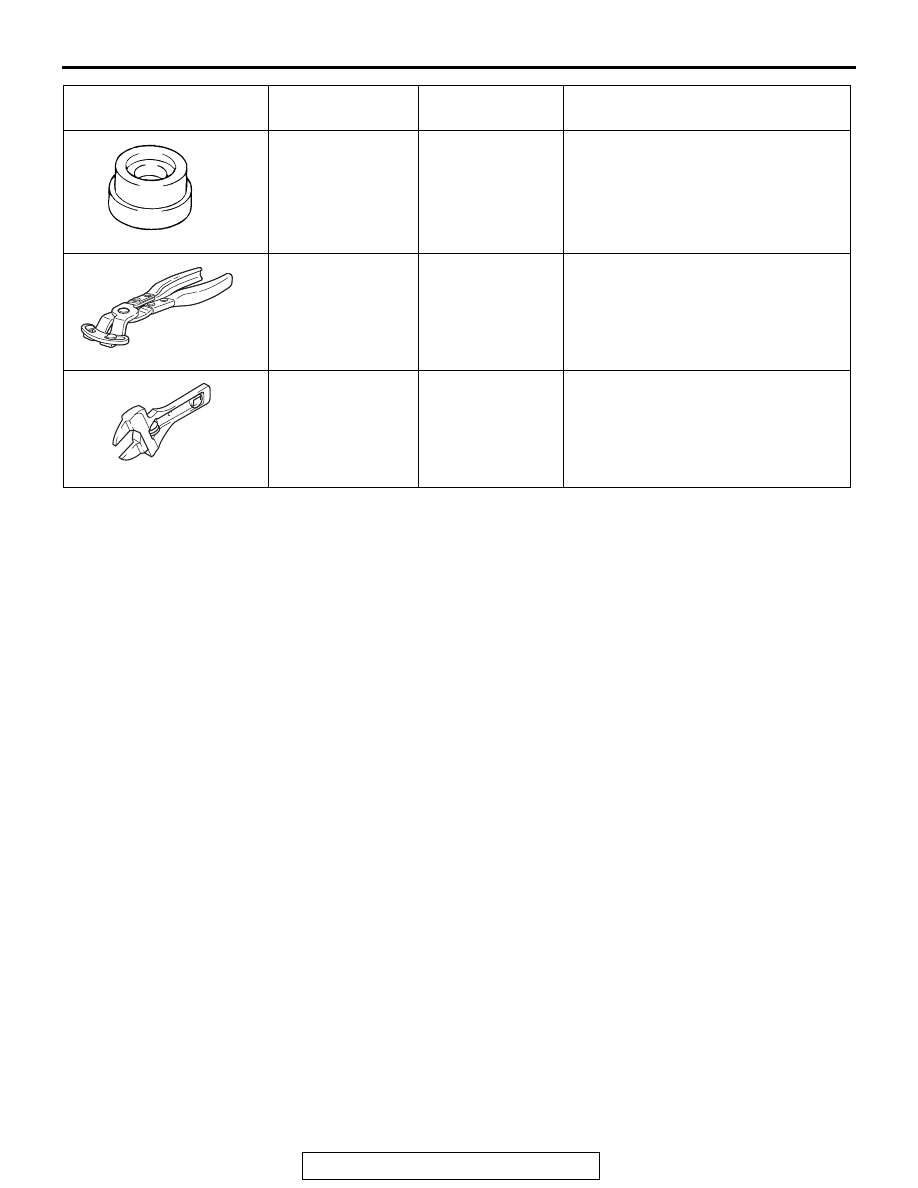

MB991203
Oil seal and
bearing installer

Tool not available Oil seal and bearing installation

MB992209



Bellows band
clipping tool

MB992209

Tie-rod bellows band installation

MB992249

Variable spanner

Tie-rod removal and installation

Tool

Tool number



and name

Supersession

Application

MB991203

MB992209

MB992249

ON-VEHICLE SERVICE

TSB Revision

POWER STEERING

37-17

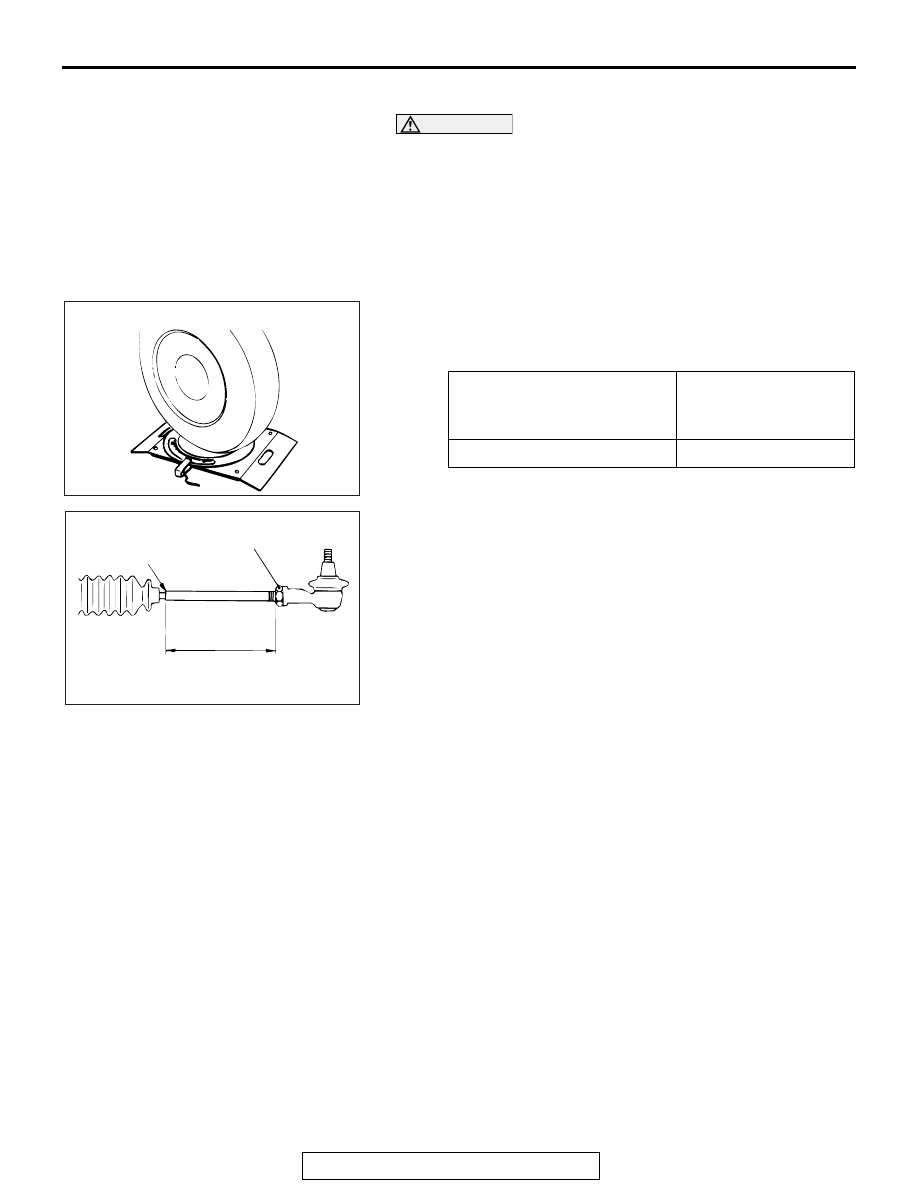

STEERING ANGLE CHECK

M1372001101582

CAUTION

After adjusting the steering angle, always perform calibra-
tion to make ABS/ASC-ECU learn the neutral position of
the steering wheel sensor. (Refer to GROUP 35C

 On-vehi-

cle Service

 Steering Wheel Sensor Calibration

P.35C-283

). <Vehicles with ASC>

1. Check that the wheel alignment is normal. (Refer to GROUP

33

− On-vehicle Service, Wheel Alignment Check and

Adjustment

P.33-8

.)

2. Place the front wheel onto the turning radius gauge, and

measure the steering angle.

Standard value:

3. If not within the standard value, adjust the tie-rods (right and

left), and repeat Steps 1 and 2.

4. If the measured value exceeds the standard range by

performing Step 3, replace the steering gear and linkage
assembly. (Refer to

P.37-40

.)

TIE-ROD LOOSENESS CHECK

M1372018200298

When an abnormal noise is generated by the steer-
ing system, check the tie-rod for looseness. For the
tie-rod looseness check, using a push-pull gauge
and a spring scale, carry out the items below.

• Install a dial gauge.

• Check the points to load for a push-pull gauge

and a spring scale.

• Operate to stabilize the load and fluctuation with

a push-pull gauge and a spring scale.

• Carry out the dial gauge measurement and calcu-

lation with a push-pull gauge and a spring scale.

When the push-pull gauge is used

1. Before the looseness check, check the items below.

(1) Check that the Mitsubishi genuine wheel with specified

size is mounted. Also check that the wheel bearing is not
loose. (Refer to GROUP 26

− On-vehicle Service −

Wheel Bearing Check for Looseness in the Axial
Direction

P.26-11

.)

(2) Raise the vehicle at the jack up point on the side sill of

the inspection side, and lift the tyre for approximately 30
mm (1.2 in). At this time, check that the tyre of the
opposite side is grounded.

Inner wheel

38

°40’ ± 1°30’

(Left/right deviation
within 2

°00’)

Outer wheel (reference value) 32

° 20'

AC000756AB

AC703636

207 mm (8.1 in)

AC

Edge of bellows
assembly groove

Lock nut

ON-VEHICLE SERVICE

TSB Revision

POWER STEERING

37-18

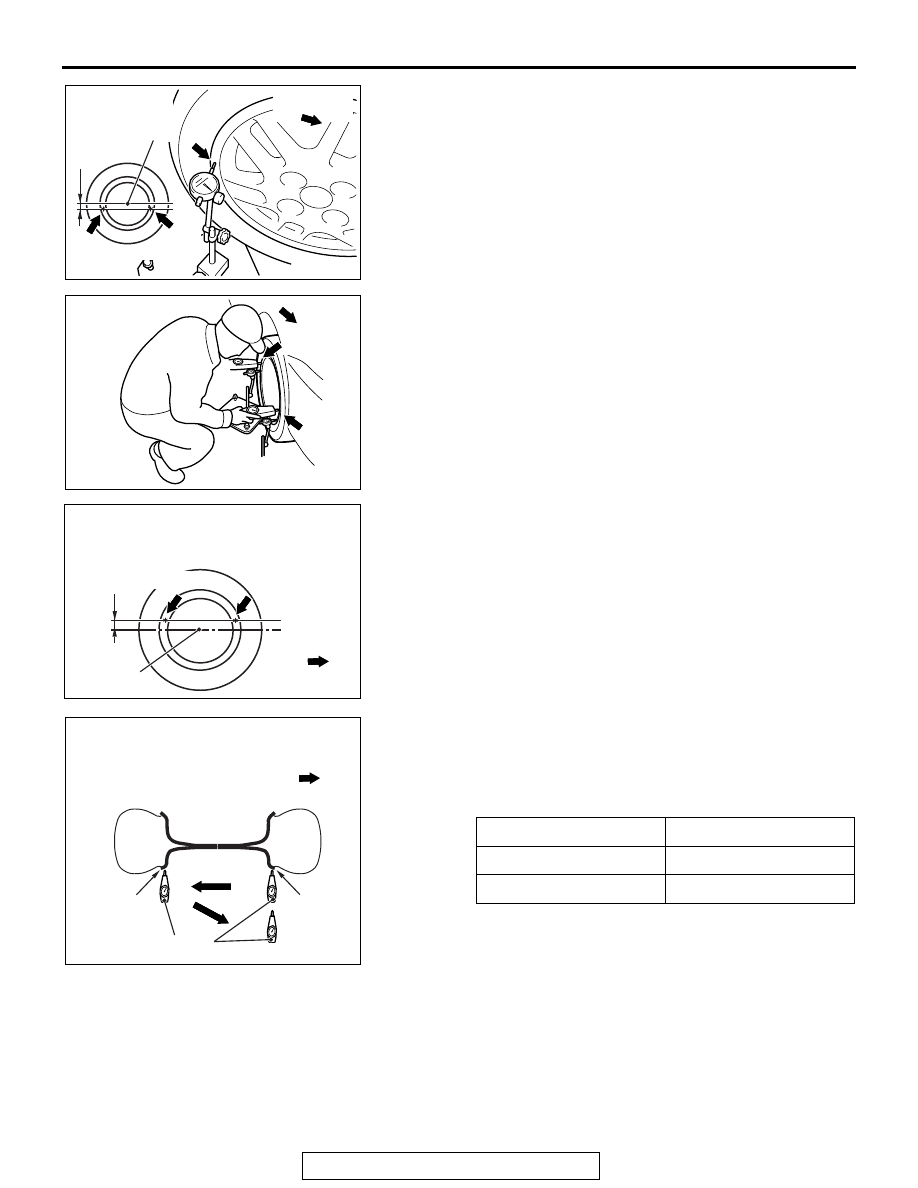

2. Install a dial-gauge respectively to the "Position a (front side

position)" and "Position b (rear side position)" on the wheel
rim, 25 mm (1.0 in) below from the wheel centre. (Install the
dial gauges to the smooth position that is around the edge of
the tyre.)

3. The push-pull gauge shall be set to the smooth position that

is 25 mm (1.0 in) above from the wheel centre and the edge
of the tyre on the wheel rim. Then the position on the vehicle
front side shall be the "Position A" and the vehicle rear side
shall be the "Position B".

4. To stabilize the relationship between the load and

fluctuation, push with the specified load by wheel size in the
order of "Position A, "Position B", and "Position A" using the
push-pull gauge. Note that the pushed load on each position
shall be extracted.

5. Using the push-pull gauge, carry out the procedure below to

read the value on the dial gauge and calculate the
looseness.
NOTE: The +/

 sign acquired with the calculation result shall

be used as it is.

Wheel size

Specified load

16 inches

120 N

18 inches

100 N

AC701745

AF

Measurement
position

Position b

Vehicle front

Position a

Wheel center

25 mm
(1.0 in)

AC808016

Front of
vehicle

AB

A

B

AC808583

AB

Wheel center

25 mm
(1.0 in)

Point of load

· Smooth position around the edge of
  the tire on the wheel rim

Position B

AB

Vehicle front

Position A

AC901674

AB

Push-pull gauge

Point of load for the push-pull gauge

Vehicle front

Position B

Position A
