REAR DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE

35A-41

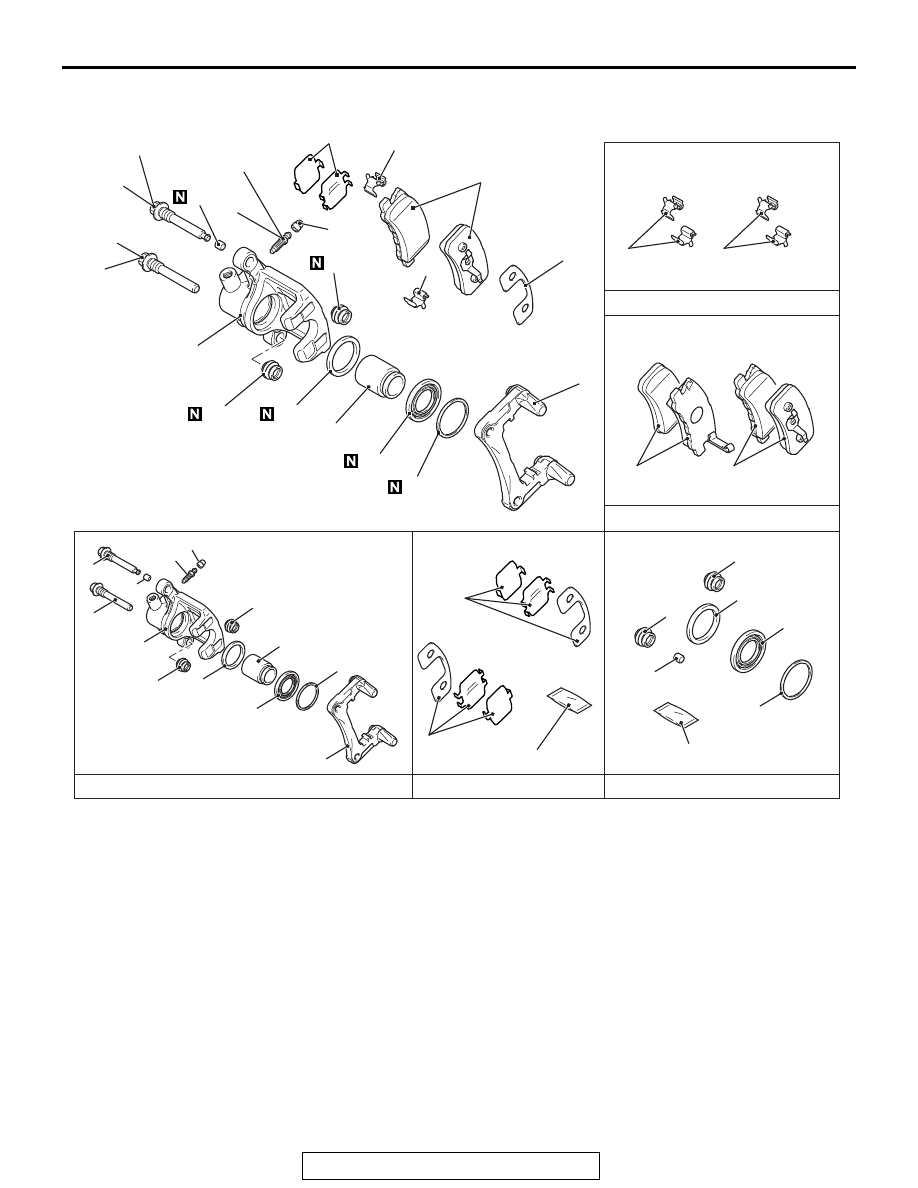

DISASSEMBLY AND ASSEMBLY

M1351007201184

NOTE: Install the brake pad assembly (with wear
indicator) to the inner side of the brake disk, making
sure that the wear indicator is located on the bottom.

AC900736

5

4

6

9

9

10

10

8

7

3

14

13

12

11

15

4

6

3

5

5

15

10

11

14

12

10

10

10

14

12

13

11

9

9

8

8

7

7

AB

2

1

7

1

2

Repair kit grease

Repair kit grease

<Right side>

<Left side>

<Right side>

<Left side>

<Right side>

<Left side>

Rear brake caliper seal kit

Rear brake caliper kit

Rear brake clip set

Rear brake pad set

Rear brake shim set

44 ± 5 N·m
32 ± 4 ft-lb

44 ± 5 N·m
32 ± 4 ft-lb

7.9 ± 0.9 N·m
70 ± 8 in-lb

Disassembly steps

1.

Bleeder cap

2.

Bleeder

3.

Guide pin

4.

Lock pin

5.

Bushing

6.

Caliper support

7.

Shim

8.

Brake pad assembly

9.

Clip



10. Pin boot

11. Boot ring

<<A>>

12. Piston boot

<<A>>

13. Piston

<<B>>

14. Piston seal
15. Caliper body

Disassembly steps (Continued)

REAR DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE

35A-42

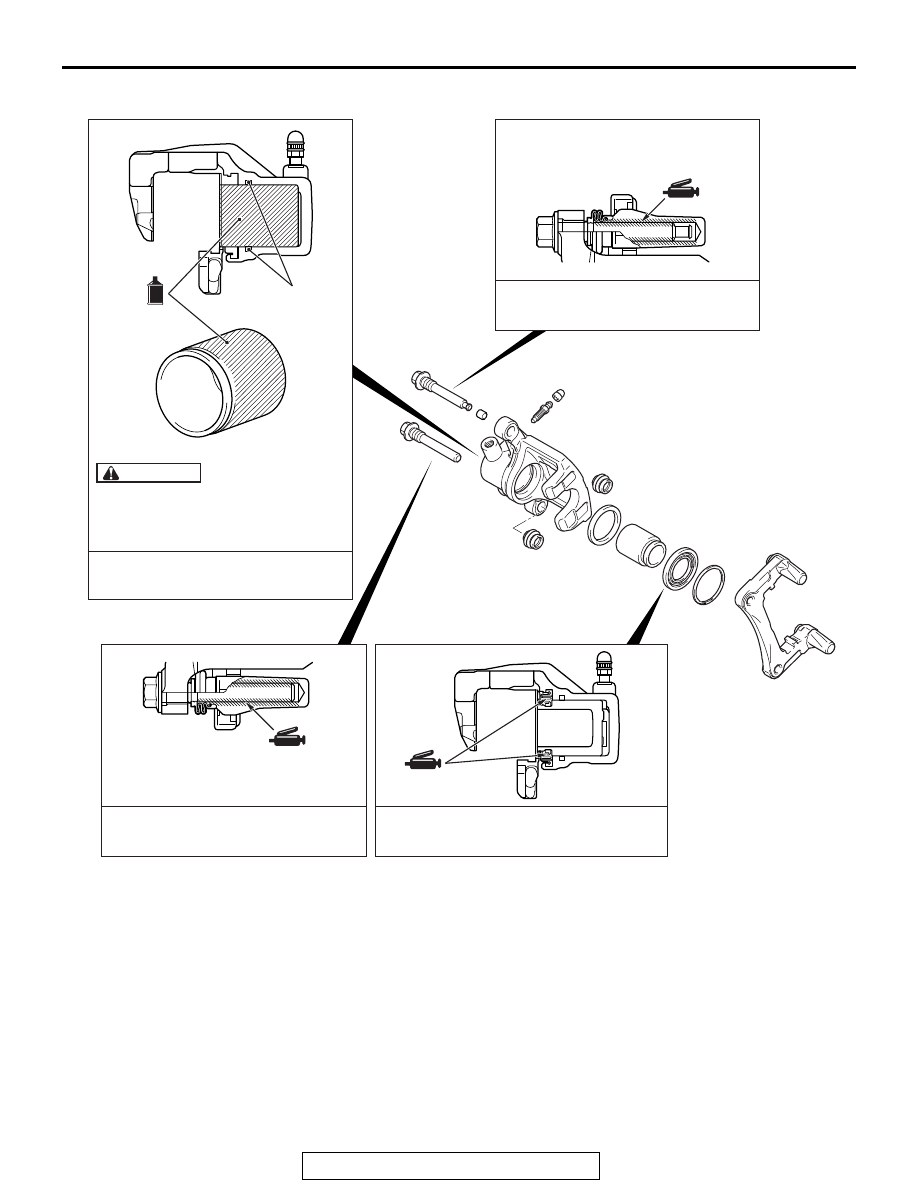

LUBRICATION POINTS

AC802115AE

Brake fluid: DOT3 or DOT4

The piston seal inside the caliper seal
kit is coated with a special grease.
Do not wipe this grease off.

CAUTION

Piston seal

Grease: Repair kit grease (Color: Translucent
              red), Niglube RX-2 or equivalent

Grease: Niglube RM or equivalent

Grease: Niglube RM or equivalent

REAR DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE

35A-43

DISASSEMBLY SERVICE POINTS

.

<<A>> PISTON BOOT/PISTON REMOVAL

CAUTION

Blow air gradually to remove the pistons. The pistons will
rush out if a force of air is applied suddenly.
Cover the caliper body outer side with a cloth or similar materi-
als. Blow compressed air through the brake hose installation
area to remove the piston and piston boot.

.

<<B>> PISTON SEAL REMOVAL

CAUTION

Do not use a flat-tipped screwdriver or similar tool to
remove the piston seal. These may damage the inner side
of the cylinder.
1. Remove the piston seal with your finger tip.
2. Clean the piston surface and cylinder inner face with alcohol

or specified brake fluid.

Brake fluid: DOT3 or DOT4

AC900737AB

Grease: Repair kit grease (Color: Yellow)

ACX00697

ACX00689

REAR DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE

35A-44

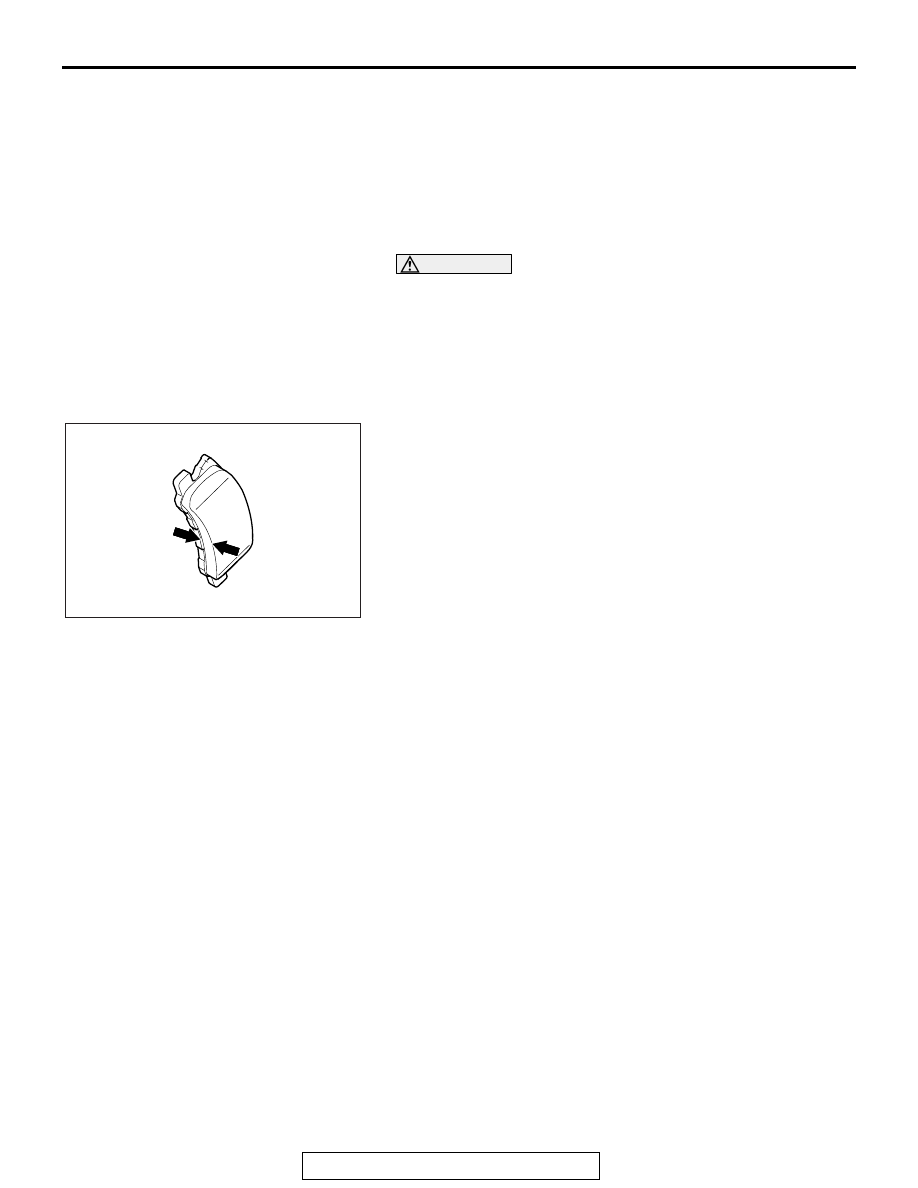

INSPECTION

M1351015000580

• Check the cylinder for wear, damage or rust.

• Check the piston surface for wear, damage or rust.

• Check the caliper body for wear.

• Check the pad for damage or adhesion of grease, check the

backing metal for damage.

.

BRAKE PAD WEAR CHECK

WARNING

•

Always replace both brake pads on each wheel as
a set (both front wheels or both rear wheels). Fail-
ure to do so will result in uneven braking, which
may cause unreliable brake operation.

•

If there is significant difference in the thickness of
the pads on the left and right sides, check the
moving parts.

Measure thickness at the thinnest, most worn area of the pad.
Replace the pad assembly if pad thickness is less than the limit
value.

Standard value: 10.0 mm (0.39 inch)
Limit: 2.0 mm (0.08 inch)

AC303231
