ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE

35A-17

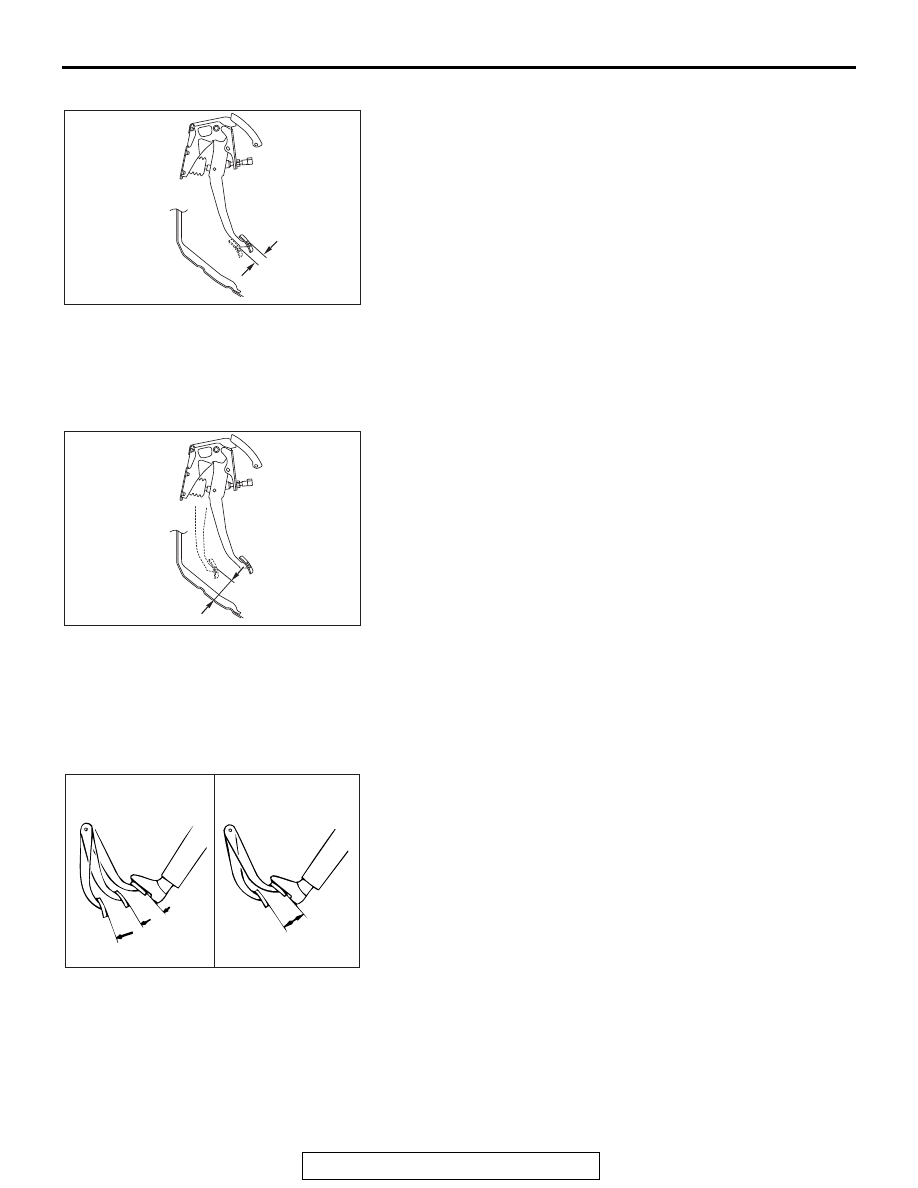

BRAKE PEDAL PLAY CHECK AND ADJUSTMENT

1. With the engine stopped, depress the brake pedal 2 or 3

times to relieve the vacuum in the brake booster. Then,
press the brake pedal with your finger and check if the pedal
stroke until the pedal becomes heavy (play) is within the
standard value.

Standard value (B): 3

 8 mm (0.12  0.31 inch)

2. When the brake pedal play is not within the standard value,

check the brake pedal-to-clevis pin looseness, clevis
pin-to-booster operating rod looseness, brake pedal height,
and stoplight switch position, and adjust or replace as
necessary.

.

BRAKE PEDAL-TO-FLOOR PANEL CLEARANCE
CHECK AND ADJUSTMENT

1. Turn up the floor carpet under the brake pedal.
2. Start the engine and depress the brake pedal with

approximately 500 N (112 pounds), and measure clearance
between the brake pedal and the floor panel.

Standard value (C): 80 mm (3.15 inch) or more

3. When the clearance is not within the standard value, check

for the air in the brake line and thickness of the disc brake
pad, and correct or replace as necessary.

4. Recover the floor carpet under the brake pedal.

BRAKE BOOSTER OPERATION CHECK

M1351001001256

.

INSPECTION WITHOUT USING TESTER

1. Carry out the simplified brake booster operation check in the

following procedure:

(1) Run the engine for 1 to 2 minutes, and then stop.

Depress the brake pedal with normal depression force.
The result is judged as "Good" when the pedal stroke is
great at the first depression, and becomes smaller as you
repeat depressing the pedal. If the pedal stroke does not
change, the result is judged as "No Good."

AC505506AC

B

AC505506AI

C

AC000870AC

Good

No good

Once

Second

Third

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE

35A-18

(2) With the engine stopped, depress the brake pedal

several times. Keep the brake pedal depressed and start
the engine. At this time, when the pedal moves down
slightly, the result is judged as "Good." The result is
judged as "No Good" if the pedal does not moves down.

(3) With the engine running, depress the brake pedal. Stop

the engine in this condition. The result is judged as
"Good" when the pedal height does not change for
approximately 30 seconds. The result is judged as "No
Good" if the pedal moves up.

2. The brake booster is judged as normal when the results of

all the above checks are "Good."
When one or more of the above check results are "No
Good," then the check valve, vacuum hose, or brake booster
is suspected faulty.

.

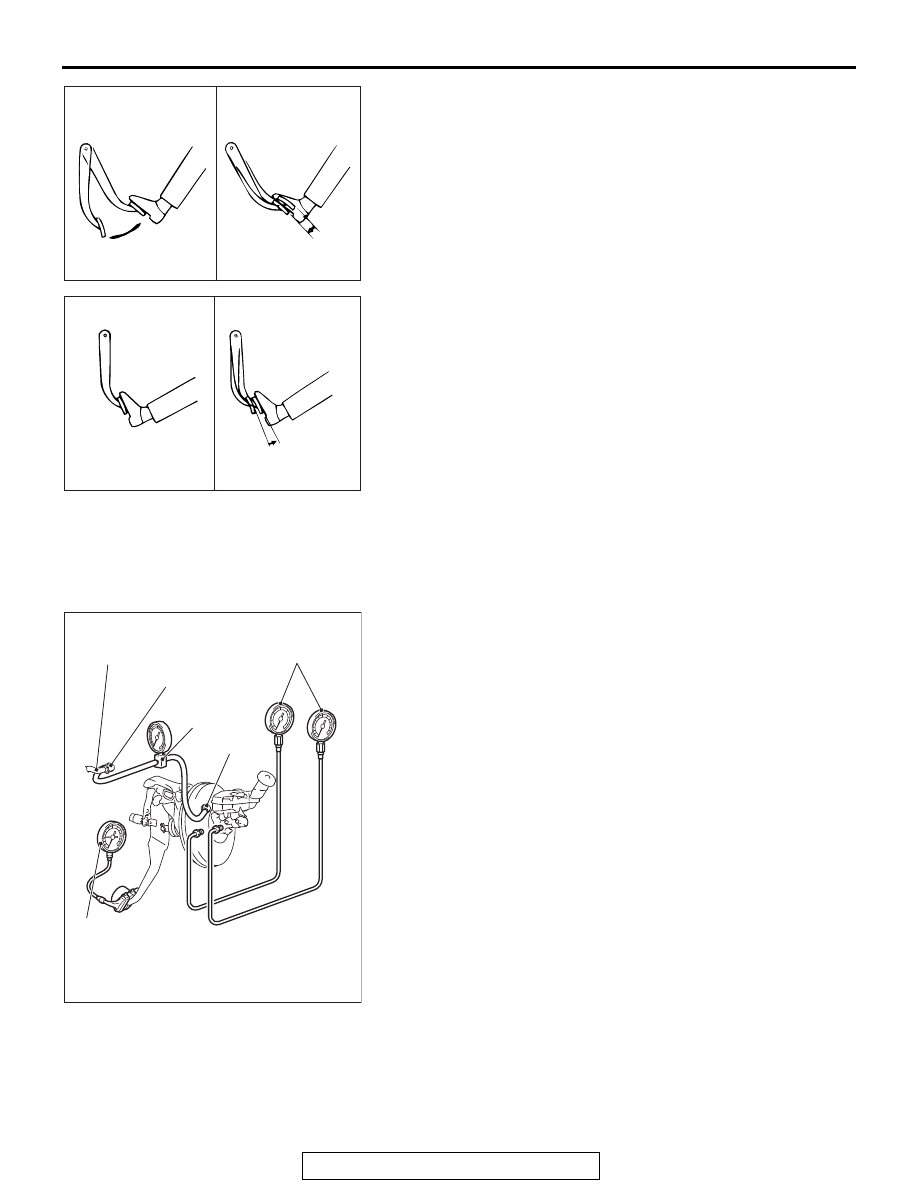

INSPECTION USING SIMPLIFIED TESTER

1. Before starting this inspection, remove the brake booster

check valve from the vehicle and check its operation.(Refer
to

P.35A-30

.)

2. After checking, install the check valve to the vacuum hose

and connect it to the vacuum gauge. Install the booster test
adapter (Special tool: MB992146) to the brake booster and
connect it to the vacuum gauge. Connect the pressure
gauge and pedal depression gauge as shown in the figure.
Bleed the pressure gauge and then perform the following
tests:

(1) Airtightness test with no load

Start the engine, and stop it when the vacuum gauge
indicator has reached approximately

−67 kPa (−9.7 psi).

The result is judged as "Good" when the drop of the
vacuum approximately 15 seconds after the engine was
stopped is within

−3.3 kPa (−0.5 psi).

(2) Airtightness test with load

Start the engine and depress the brake pedal with 200 N.
Stop the engine when the vacuum gauge indicator
reached approximately

−67 kPa (−9.7 psi). The result is

judged as "Good" when the drop of the vacuum
approximately 15 seconds after the engine was stopped
is within

−3.3 kPa (−0.5 psi).

When one or more of the above check results are judged
as "No Good," the vacuum hose or brake booster is
suspected faulty.

AC000871AC

When engine
is stopped

When engine
is started

AC000872 AC

Good

No good

AC610136

Pressure gauge

Vacuum
gauge

Vacuum hose

Checkvalve

MB992146

Pedal depression
gauge

AB

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE

35A-19

(3) Brake booster characteristics test

Perform this test after the above (1) and (2) were
performed.
a. Non-servo effecnt test

With the engine stopped, make sure that the vacuum
gauge reading is 0 kPa (0 psi). Depress the brake
pedal with 100 N and 300 N, and measure the fluid
pressure generated.

Standard value:

b. Servo effect test

Start the engine. Depress the brake pedal with 100 N
and 300 N when the vacuum gauge indicator reached
approximately

−67 kPa (−9.7 psi), and measure the

fluid pressure generated.

Standard value:

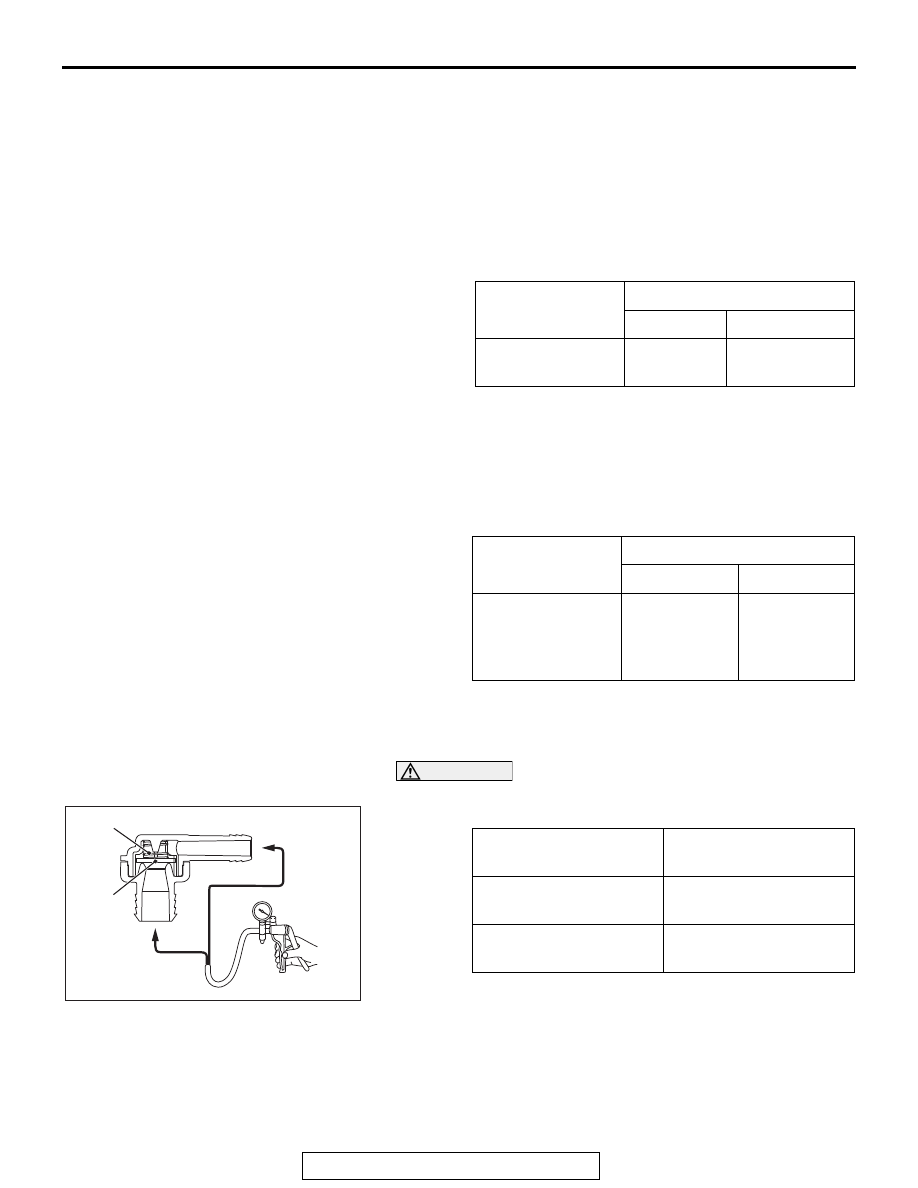

CHECK VALVE OPERATION CHECK

M1351009000837

1. Remove the check valve (Refer to

P.35A-30

).

CAUTION

Replace the check valve when it is faulty.
2. Using a vacuum pump, check operation of the check valve.

Item

Pedal depression force

100 N

300 N

Generated fluid
pressure kPa (psi)

− 600

(0

− 87.0)

1,030

− 2,220

(149.4

− 322.0)

Item

Pedal depression force

100 N

300 N

Generated fluid
pressure kPa (psi)

6,030

− 7,780

(874.5

−

1,128.4)

10,370

−

11,560
(1,504.0

−

1,676.6)

Vacuum pump
connection

Normal condition

When connected to the
booster side (1)

Vacuum is generated
and maintained.

When connected to the
engine side (2)

No vacuum is generated.

AC508114

Valve

Spring

Intake
manifold
side

Booster side

(1)

(2)

AB

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE

35A-20

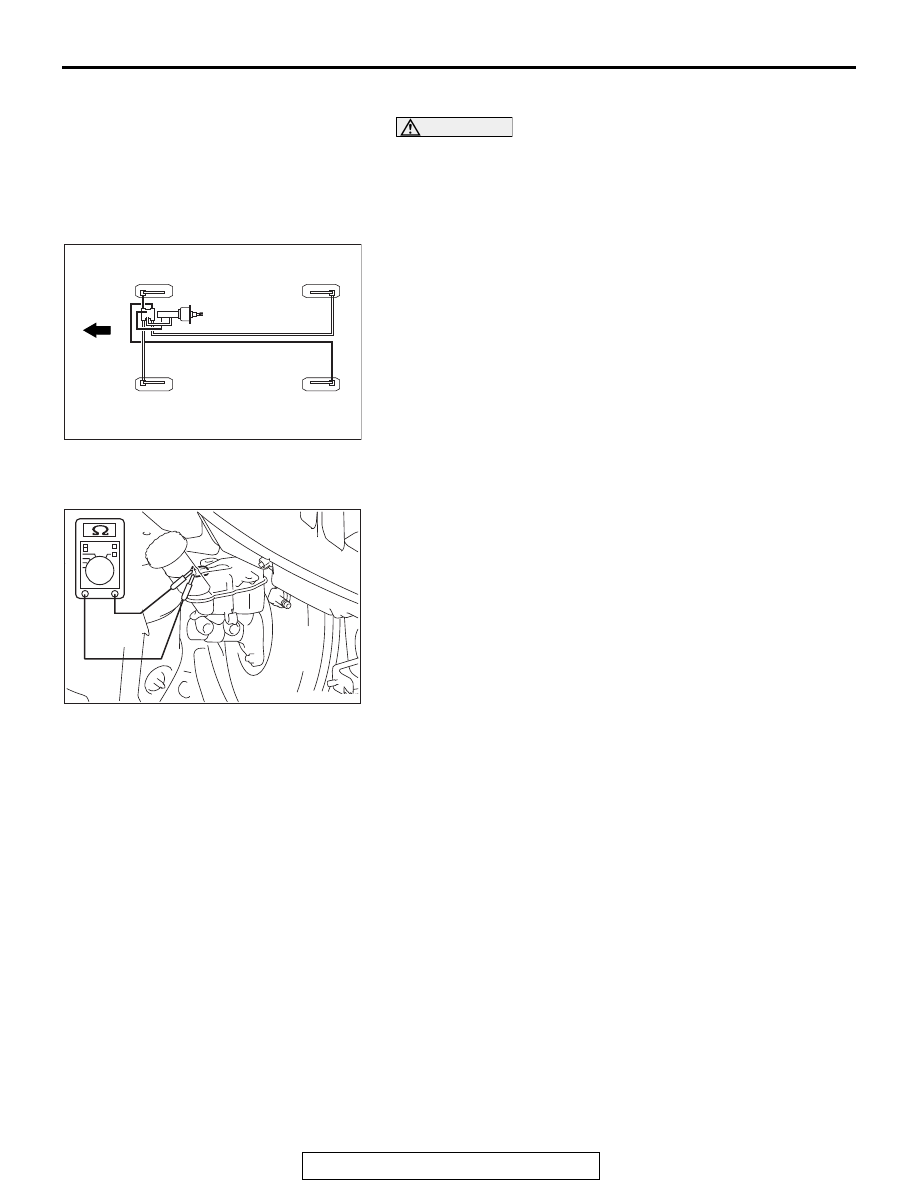

BLEEDING

M1351001401049

CAUTION

Be sure to use the specified brand and type of brake fluid.
Avoid mixing with other type of brake fluid.

Brake fluid: DOT3 or DOT4

.

BLEEDING OF BRAKE PIPELINE

Perform the bleeding in the order shown in the figure.

BRAKE FLUID LEVEL SWITCH CHECK

M1351009100834

The brake fluid level switch is normal when the following condi-
tions are met: When the brake fluid level is above "MIN," conti-
nuity is detected; and when the level is below "MIN," no
continuity is detected.

AC507892AB

1

2

3

4

Front of
vehicle

AC505508AB
