BASIC BRAKE SYSTEM DIAGNOSIS

TSB Revision

BASIC BRAKE

35A-13

STEP 8. Adjust the brake pedal.
Refer to

P.35A-15

.

Q: Is the brake pedal adjusted correctly?

YES : Go to Step 9.
NO :  Adjust the brake pedal. Then go to Step 9.

STEP 9. Recheck symptom.
Q: Is the symptom eliminated?

YES : The procedure is complete.
NO :  Start over at step 1. If a new symptom surfaces, refer

to the symptom chart.

INSPECTION PROCEDURE 8: Groaning, Clicking or Rattling Noise when Brakes are not Applied.

DIAGNOSIS

.

STEP 1. Check whether foreign material has entered the
wheel covers.
Q: Is there any foreign material?

YES : Remove it. Then go to Step 5.
NO :  Go to Step 2.

STEP 2. Check for looseness of the wheel nuts.
Q: Are the wheel nuts loose?

YES : Tighten to 98

± 10 N⋅m (73 ± 7 ft-lb). Then go to Step

5.

NO :  Go to Step 3.

BASIC BRAKE SYSTEM DIAGNOSIS

TSB Revision

BASIC BRAKE

35A-14

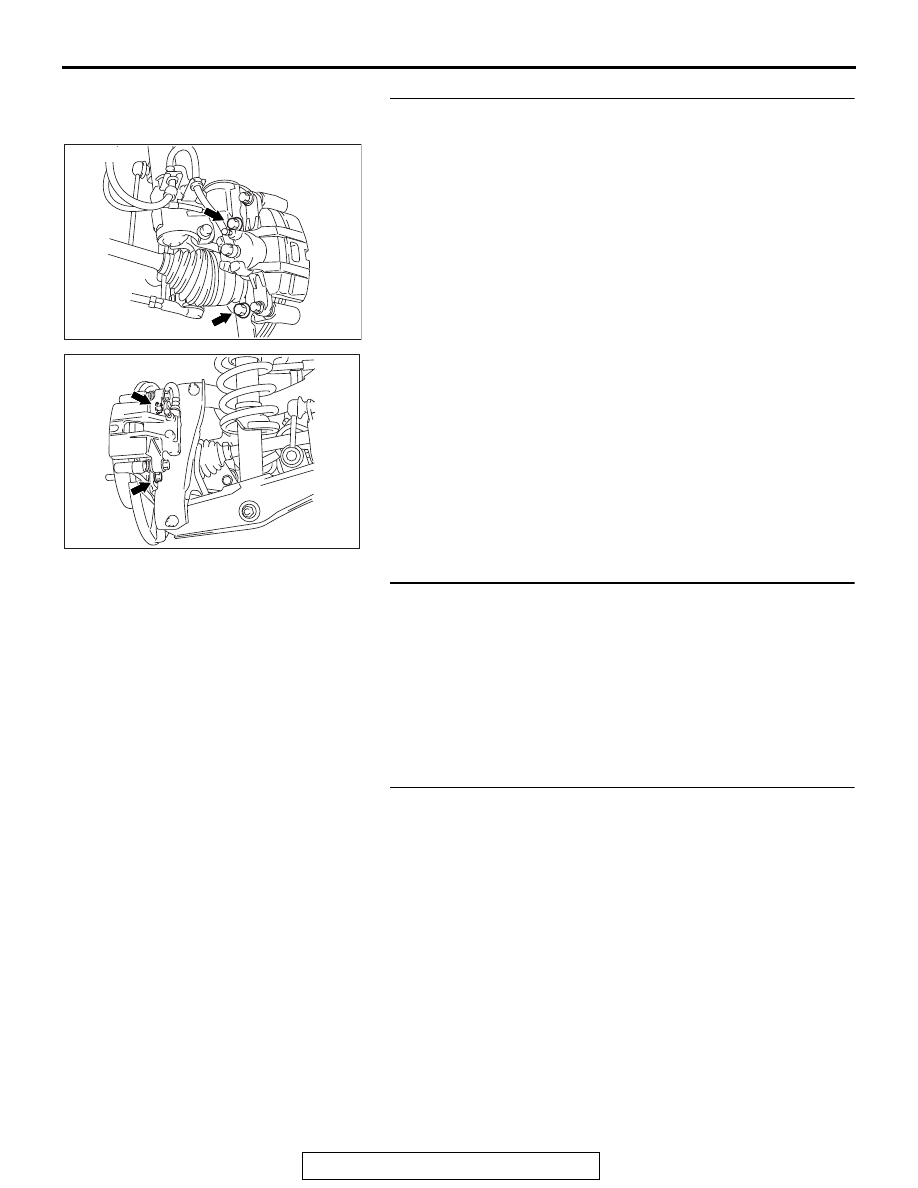

STEP 3. Check for looseness of the caliper installation
bolt.
Q: Is the caliper installation bolt loose?

YES : Tighten to 100

± 10 N⋅m (74 ± 7 ft-lb) for the front

caliper. Tighten to 55

± 5 N⋅m (41 ± 3 ft-lb) <2.4L

Engine: 5 persons seat> or 58

± 7 N⋅m (43 ± 5 ft-lb)

<2.4L Engine: 7 persons seat, 3.0L Engine> for the
rear caliper. Then go to Step 5.

NO :  Go to Step 4.

STEP 4. Check the wheel bearings for end play.
Refer to GROUP 26

− On-vehicle Service, Wheel bearing end

play check

P.26-11

 <Front>, GROUP 27A

− On-vehicle Ser-

vice, Wheel bearing end play check

P.27A-6

 <Rear (FWD)> or

GROUP 27B

− On-vehicle Service, Wheel bearing end play

check

P.27B-17

 <Rear (AWD)>.

Q: Does the measured end play exceed the limit?

YES : Replace the faulty hub assembly. Then go to Step 5.
NO :  Go to Step 5.

STEP 5. Recheck symptom.
Q: Is the symptom eliminated?

YES : The procedure is complete.
NO :  Start over at step 1. If a new symptom surfaces, refer

to the symptom chart.

AC610134

<Front>

AB

AC610135

<Rear>

AB

SPECIAL TOOLS

TSB Revision

BASIC BRAKE

35A-15

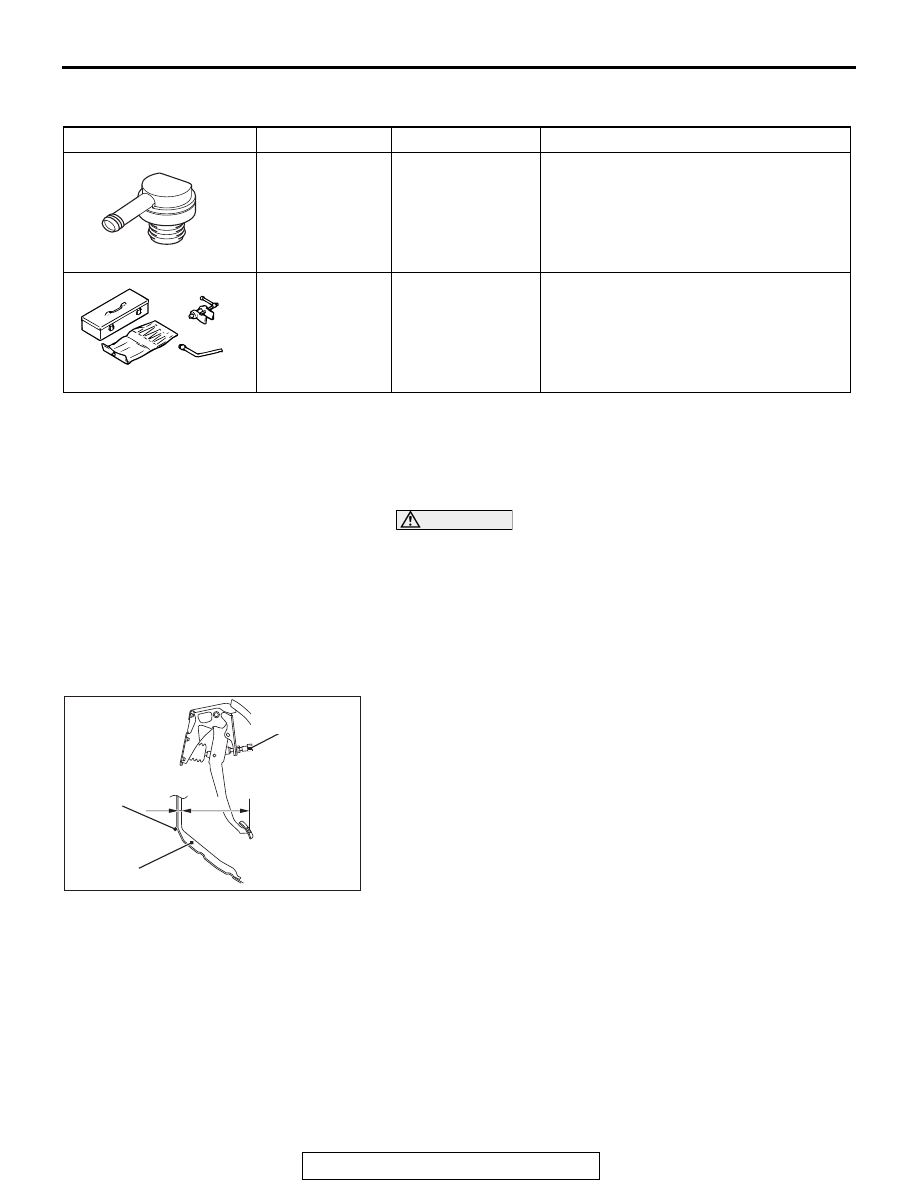

SPECIAL TOOLS

M1352000601548

ON-VEHICLE SERVICE

BRAKE PEDAL INSPECTION

M1351003500793

CAUTION

Do not apply grease or lubricant to the switch and the
switch installation section to avoid malfunction of the
switch. In addition, do not use gloves which have grease
on them.

.

BRAKE PEDAL HEIGHT CHECK

1. Turn up the floor carpet under the brake pedal.
2. Remove the stoplight switch (Refer to

P.35A-28

).

3. Use a needle or similar tool to measure the dimension A in

the figure (distance from the dash panel pad surface to the
dash panel).

4. Measure the dimension B in the figure (distance from the

pedal pad surface to the dash panel pad surface).

5. Make sure that the total of the dimensions A and B

measured in Steps 2 and 3 (brake pedal height) is within the
standard value.

Standard value (A+B): 221.8

− 227.8 mm (8.7 − 9.0 inch)

6. When the brake pedal height is not within the standard

value, inspect the brake pedal in the following procedure.

(1) Remove the brake pedal assembly (Refer to

P.35A-28

).

(2) Check the removed brake pedal assembly for distortion,

and replace it when deformed (Refer to

P.35A-29

).

(3) Install the brake pedal assembly (Refer to

P.35A-28

).

NOTE: When installing, compress the dash panel pad.

Tool

Number

Name

Use

MB992146

Booster test
adapter

Inspection using a simplified tester

MB990964

A: MB990520

Brake tool set
A: Piston expander

Disk brake piston pushing back

MB992146

MB990964

A

B

AC505506AE

B

A

Dash panel

Dash panel pad

Stoplight
switch

ON-VEHICLE SERVICE

TSB Revision

BASIC BRAKE

35A-16

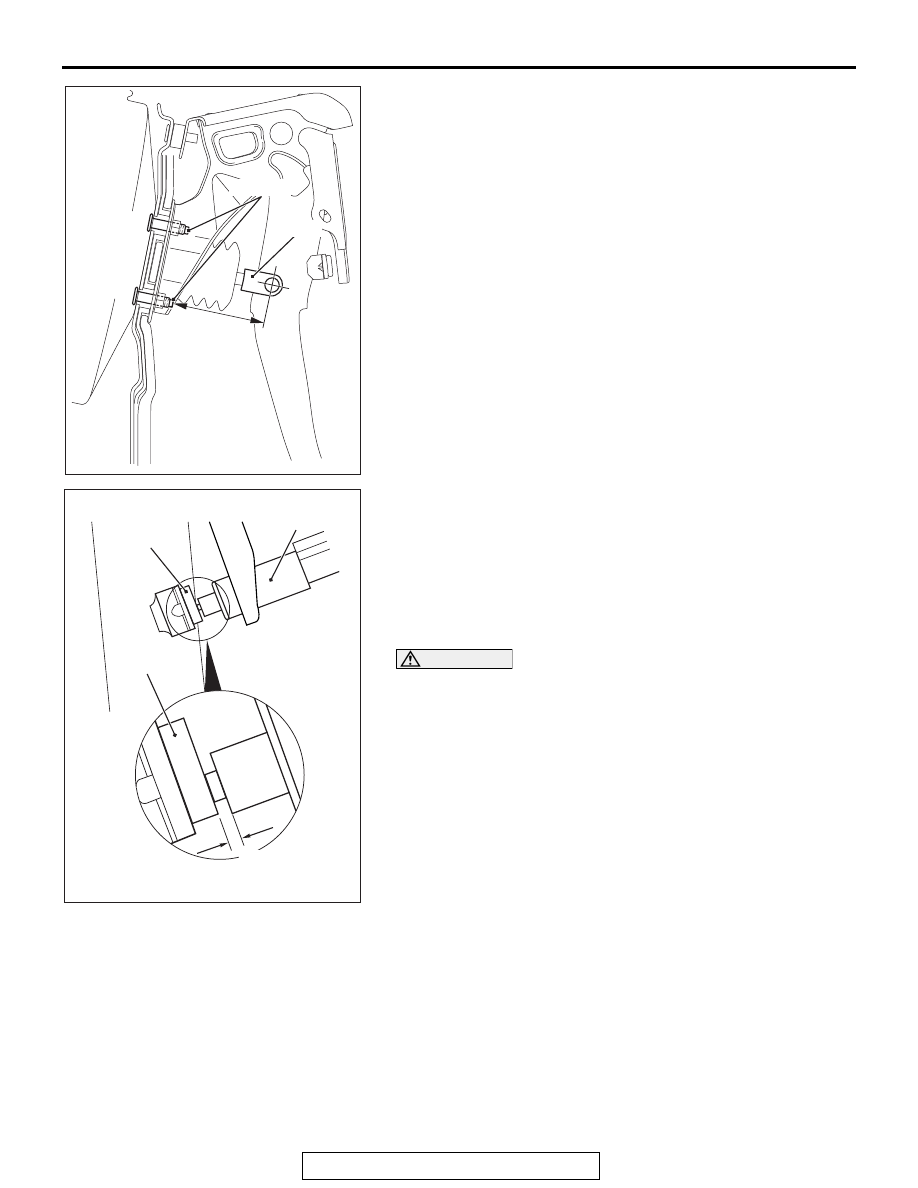

(4) Measure the brake pedal height again, and make sure

that it is within the standard value (A+B).



When the measured value is not within the standard
value, measure the dimension C in the figure (distance
from the stud bolt end to the clevis hole center), and
make sure it is within the standard value (C).

Standard value (C): 75.8

− 80.2 mm (2.98 − 3.16 inch)

(5) When the measured value is not within the standard

value (C), replace the brake booster (Refer to

P.35A-30

).

7. After checking the brake pedal height, install the stoplight

switch in the following procedure:

(1) Screw in the stoplight switch until its thread contacts the

pedal stopper, then turn the switch approximately one
eighth of a clockwise turn to fix it. While doing this, pull
and hold the brake pedal by hand.

(2) Check that the clearance between the stoplight switch

and the pedal stopper is as shown in the figure.

CAUTION

Make sure that the stoplight is not illuminated when the
brake pedal is not depressed.

(3) Connect the stoplight switch connector.

8. Check the key interlock mechanism and the shift lock

mechanism (Refer to GROUP 23A

− On-vehicle Service,

Key Interlock Mechanism Check

P.23A-149

, Shift Lock

Mechanism Check

P.23A-151

).

9. Recover the floor carpet under the brake pedal.

.

AC508163AB

C

Clevis

Stud bolt

AC309282 AG

0.5 to 1.5 mm
(0.02 to 0.06 in)

Pedal stopper

Pedal stopper

Stoplight switch
