REAR AXLE DIAGNOSIS
TSB Revision
REAR AXLE <AWD>
27B-9
INSPECTION PROCEDURE 3: Gear Noise while Driving <DIFFERENTIAL>
DIAGNOSIS

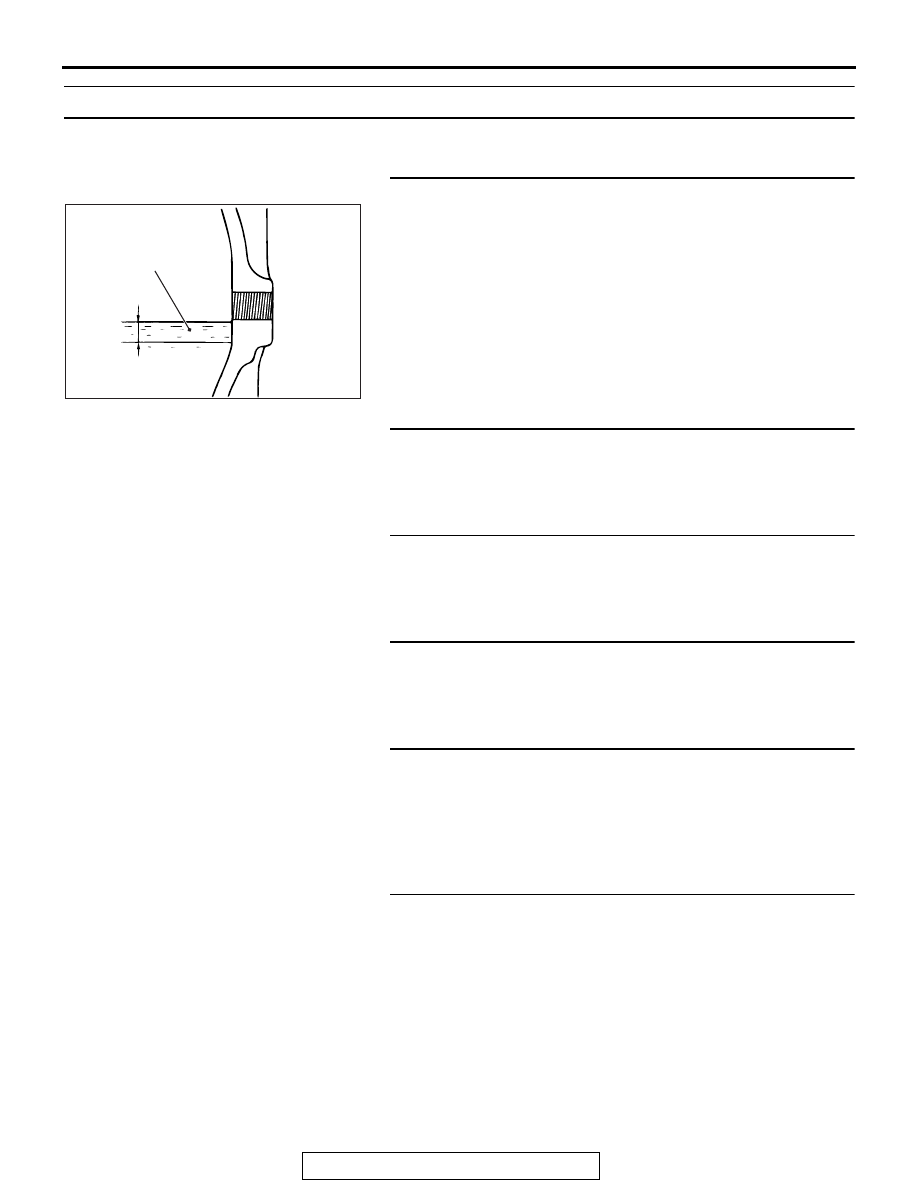

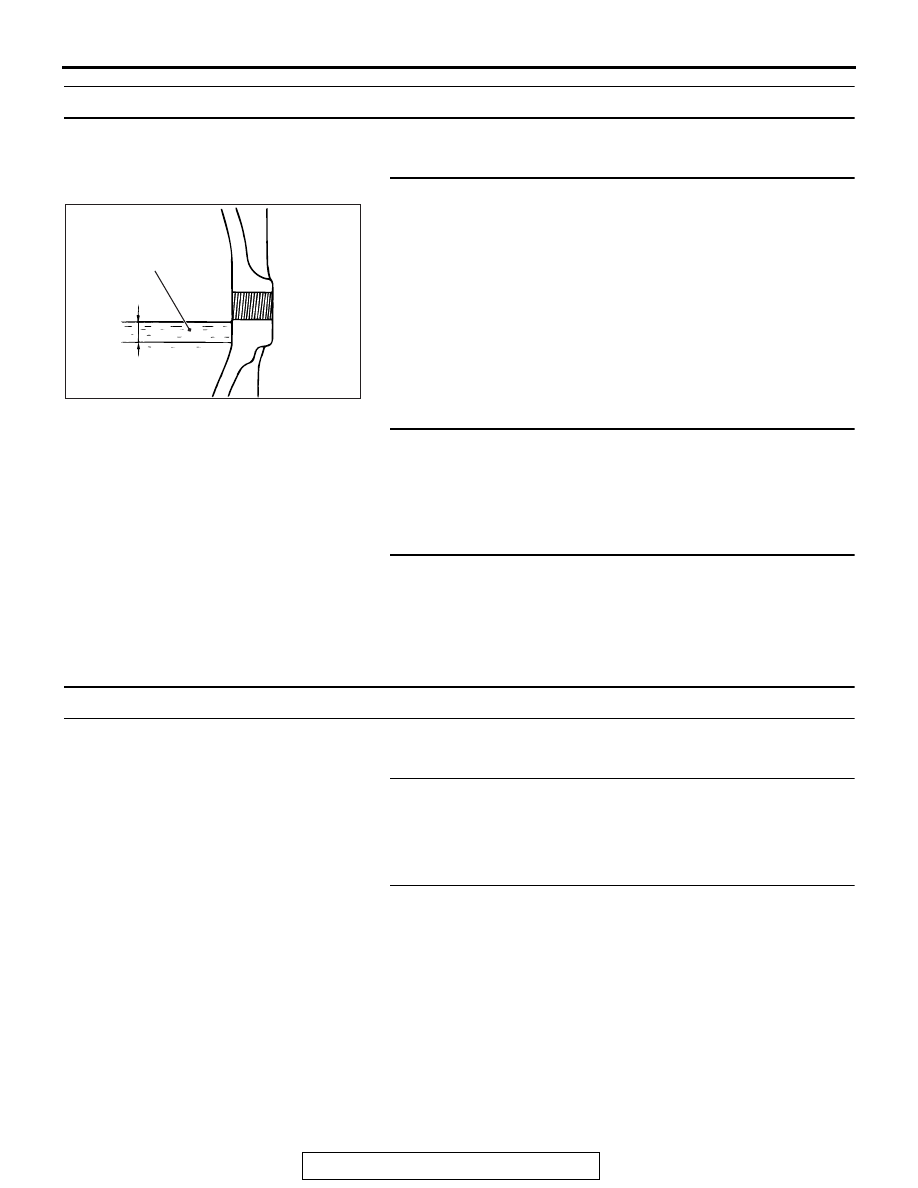

STEP 1. Check the oil level.
Remove the filler plug and check the gear oil level.
Q: Is the gear oil level more than 8 mm (0.3 inch) below the
bottom of the filler plug hole?
YES : Check the oil leakage from differential carrier, and
repair if necessary. Then, refill Hypoid gear oil API
classification GL-5 or higher, SAE80. Then go to Step
6.
NO : Go to Step 2.
STEP 2. Check the gear engagement.
Q: Is the gear engagement in good condition?
YES : Go to Step 3.
NO : Adjust or replace the part. Then go to Step 6.
STEP 3. Check the drive pinion turning torque.
Q: Is the drive pinion turning torque correct?
YES : Go to Step 4.
NO : Adjust the turning torque. Then go to Step 6.
STEP 4. Check the gear for damage.
Q: Is the gear damaged?
YES : Replace the gear. Then go to Step 6.
NO : Go to Step 5.
STEP 5. Check for foreign material.
Q: Is foreign material found?
YES : Remove the foreign material and then inspect for
damage. If necessary, replace the part. Then go to
Step 6.
NO : Go to Step 6.
STEP 6. Retest the system.
Q: Is the abnormal noise eliminated?
YES : The procedure is complete.
NO : Start over at Step 1.
AC703480 AB
8 mm
(0.3 in)
Upper
limit
Lower
limit
Gear oil
