27B-1

GROUP 27B

REAR AXLE <AWD>

CONTENTS

GENERAL INFORMATION . . . . . . . .

27B-2

GENERAL SPECIFICATIONS . . . . . .

27B-4

SERVICE SPECIFICATIONS. . . . . . .

27B-5

LUBRICANTS  . . . . . . . . . . . . . . . . . .

27B-5

SEALANT AND ADHESIVE. . . . . . . .

27B-5

COMPONENT IDENTIFICATION. . . .

27B-5

REAR AXLE DIAGNOSIS . . . . . . . . .

27B-6

INTRODUCTION. . . . . . . . . . . . . . . . . . . . .

27B-6

TROUBLESHOOTING STRATEGY . . . . . .

27B-6

SYMPTOM CHART. . . . . . . . . . . . . . . . . . .

27B-6

SYMPTOM PROCEDURES . . . . . . . . . . . .

27B-6

SPECIAL TOOLS. . . . . . . . . . . . . . . .

27B-12

ON-VEHICLE SERVICE. . . . . . . . . . .

27B-15

REAR AXLE TOTAL BACKLASH CHECK  .

27B-15

GEAR OIL LEVEL CHECK . . . . . . . . . . . . .

27B-16

GEAR OIL REPLACEMENT . . . . . . . . . . . .

27B-16

WHEEL BEARING END PLAY CHECK  . . .

27B-17

HUB BOLT REPLACEMENT. . . . . . . . . . . .

27B-17

DIFFERENTIAL CARRIER OIL SEAL



REPLACEMENT . . . . . . . . . . . . . . . . . . . . .

27B-18

REAR AXLE HUB ASSEMBLY  . . . . .

27B-19

REMOVAL AND INSTALLATION  . . . . . . . .

27B-19

INSPECTION. . . . . . . . . . . . . . . . . . . . . . . .

27B-23

DRIVESHAFT ASSEMBLY. . . . . . . . .

27B-24

REMOVAL AND INSTALLATION  . . . . . . . .

27B-24

DISASSEMBLY AND ASSEMBLY  . . . . . . .

27B-28

DIFFERENTIAL CARRIER



ASSEMBLY. . . . . . . . . . . . . . . . . . . . .

27B-31

REMOVAL AND INSTALLATION  . . . . . . . .

27B-31

DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . .

27B-33

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . .

27B-39

GENERAL INFORMATION

TSB Revision

REAR AXLE <AWD>

27B-2

GENERAL INFORMATION

M1271000101114

The rear axle has the following features.

• The wheel bearing is a unit ball bearing (dou-

ble-row angular contact ball bearing) which incor-
porates the oil seals and is highly resistant to a
thrust load.

• The number of parts has been reduced by inte-

grating the magnetic encoder for ABS wheel
speed detection into the wheel bearing.

• ETJ-type on the differential side and EUJ-type on

the hub side constant velocity joints are featured
in the driveshaft.

• Adoption of the electronic control AWD optimizes

the size of the driveshaft constant velocity joint
and achieves the weight saving.

• Adoption of the Super All Wheel Control (S-AWC)

<Vehicles with S-AWC>

• Lead-free grease for the constant velocity joint

has been adopted.

• Hexavalent chromium has been eliminated from

the dust cover material.

• The electronic control coupling installed in front of

the differential, which transfers the drive force to
the rear wheels by pushing the clutch in accord-
ing to the strength of the magnetic attraction gen-
erated by the magnetic coil (For more details,
refer to Electronic Control AWD).

• Aluminum differential carrier is used for weight

saving.

• Optimization of the hypoid gear ratio reduces the

torque loss.

• Adoption of the hypoid gear with the same teeth

height realizes the downsizing and increases the
strength of the coupling.

NOTE:

.

EUJ (High Efficiency Compact Undercut Joint): The

lighter and smaller constant velocity joint com-
pared with the conventional BJ has been
achieved by adopting the eight small balls.

ETJ (High Efficiency Compact Tripod Joint): The

lighter and smaller constant velocity joint com-
pared with the conventional TJ has been
installed.

For the Super All Wheel Control (S-AWC), refer to

GROUP 23

−

 Super All Wheel Control (S-AWC)

−



Information of construction and operation.

.

GENERAL INFORMATION

TSB Revision

REAR AXLE <AWD>

27B-3

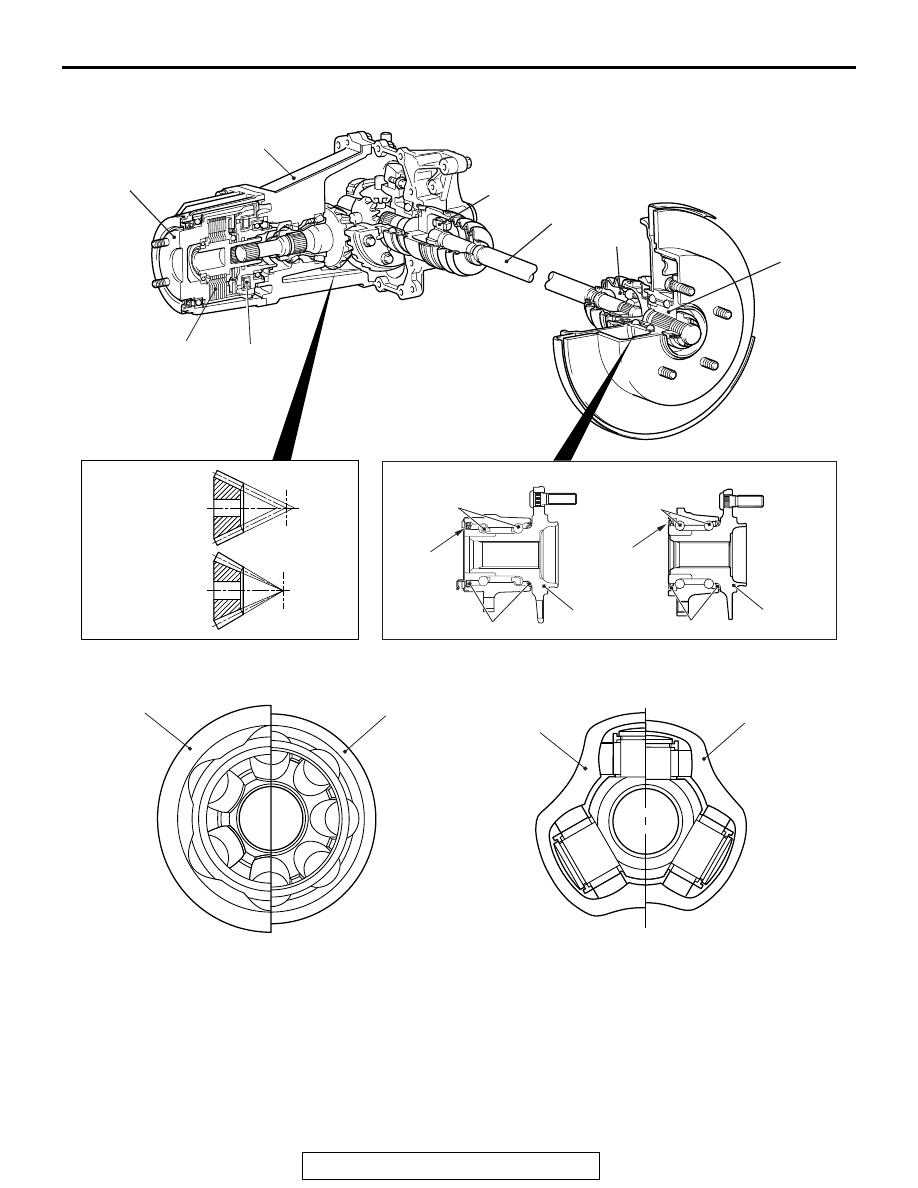

CONSTRUCTION DIAGRAM

AC703478AB

ETJ

EUJ

Magnetic
encoder

Oil seal

Rear hub

Equal altitude
toothed gear

Rear hub

Electronic control
coupling

Clutch

Electro
magnet

Differential
carrier

Driveshaft

Ball bearing

Bevel gear

Magnetic
encoder

Oil seal

Rear hub

Ball bearing

<2.4L Engine: 5 persons
seat>

<2.4L Engine: 7 persons seat,
3.0L Engine>

AC703479 AB

TJ

ETJ

BJ

EUJ

EUJ compared with BJ

ETJ compared with TJ

GENERAL SPECIFICATIONS

TSB Revision

REAR AXLE <AWD>

27B-4

GENERAL SPECIFICATIONS

M1271000200196

NOTE: *: Indicates the distance between the center
of each joint.

Item

Specification

Rear axle
Wheel bearing

Type

Unit ball bearing (double-row angular
contact ball bearing)

Driveshaft Joint

Type

Outer

EUJ

Inner

ETJ

Shaft length* x Shaft
diameter mm (in)

2.4L Engine: 5
persons seat

LH

496.0

× 23 (19.53 × 0.91)

RH

576.4

× 23 (22.69 × 0.91)

2.4L Engine: 7
persons seat,
3.0L Engine

LH

505.5

× 23 (19.90 × 0.91)

RH

586

× 23 (23.07 × 0.91)

Differential
Reduction gear type

Hypoid gear

Reduction ratio

2.352

Differential gear type (Type

× number of gears)

Side
gear

Straight bevel gear

× 2

Pinion
gear

Straight bevel gear

× 2

Number of teeth

Drive gear

40

Drive pinion

17

Side gear

14

Pinion gear

10

Bearings (Outside diameter

× Inside diameter) mm (in)

Side

72

× 35 (2.83 × 1.38)

Front

55

× 30 (2.17 × 1.18)

Rear

68

× 40 (2.68 × 1.57)
