DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-31

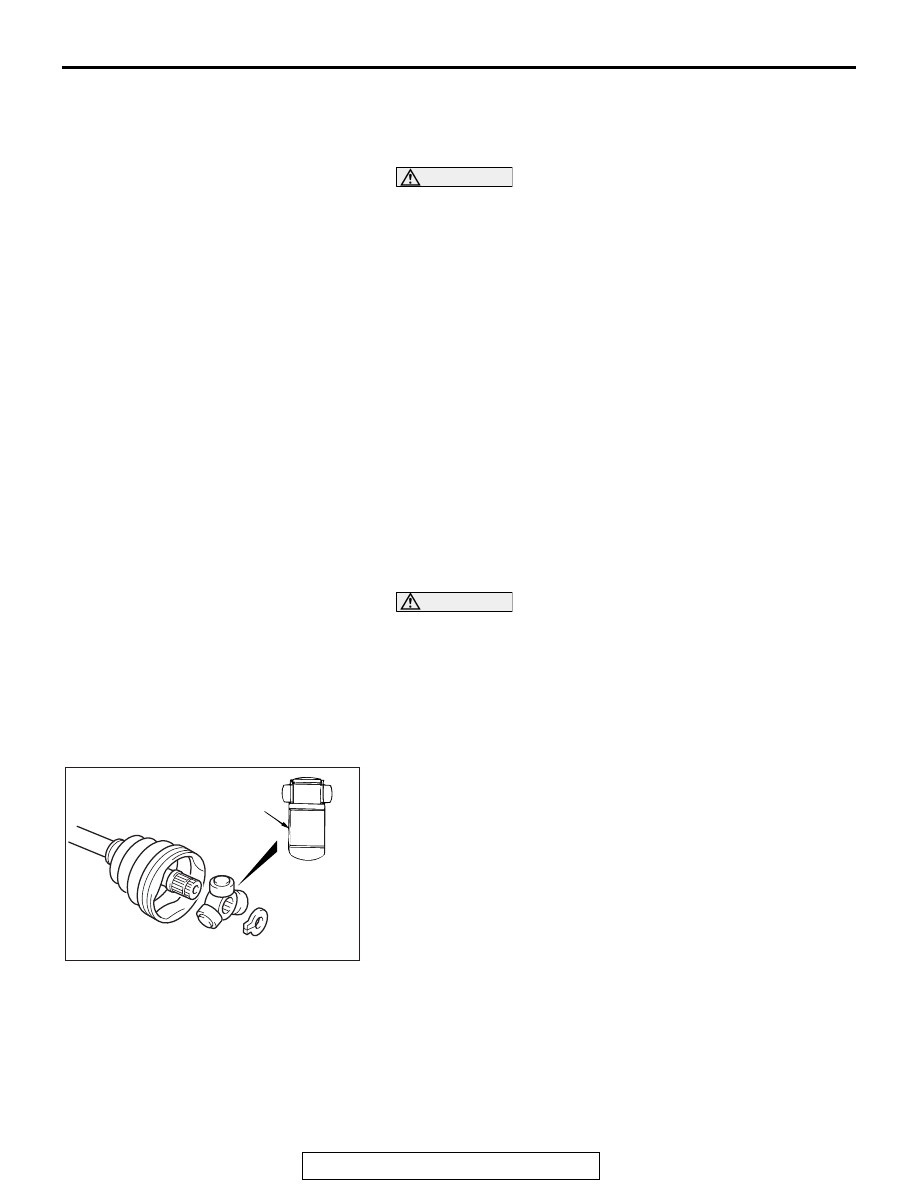

DISASSEMBLY SERVICE POINTS

.

<<A>>PTJ CASE/INNER SHAFT ASSEMBLY
REMOVAL

CAUTION

When removing the PTJ case and inner shaft assembly, be
careful not to drop off the roller part of spider assembly,
because it easily departs from the spider assembly.

.

<<F>> PTJ BOOT REMOVAL

1. Wipe off grease from the shaft spline.
2. When reusing the PTJ boot, wrap plastic tape around the

shaft spline to avoid damaging the boot.

ASSEMBLY SERVICE POINTS

.

>>A<< EBJ BOOT INSTALLATION

Wrap plastic tape around the shaft spline, and then install the
EBJ boot.

.

>>B<< PTJ BOOT INSTALLATION

Wrap plastic tape around the shaft spline, and then install the
PTJ boot.

.

>>C<< SPIDER ASSEMBLY INSTALLATION

CAUTION

• The drive shaft joint use special grease. Do not mix old

and new or different types of grease.

• If the spider assembly has been cleaned, take special

care to apply the specified grease.

1. Apply the specified grease furnished in the repair kit to the

spider assembly between the spider axle and the roller.

Specified grease: Repair kit grease

2. Install the spider assembly to the shaft from the direction of

the spline chamfered side.

.

AC102654AD

Chamfered side

DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-32

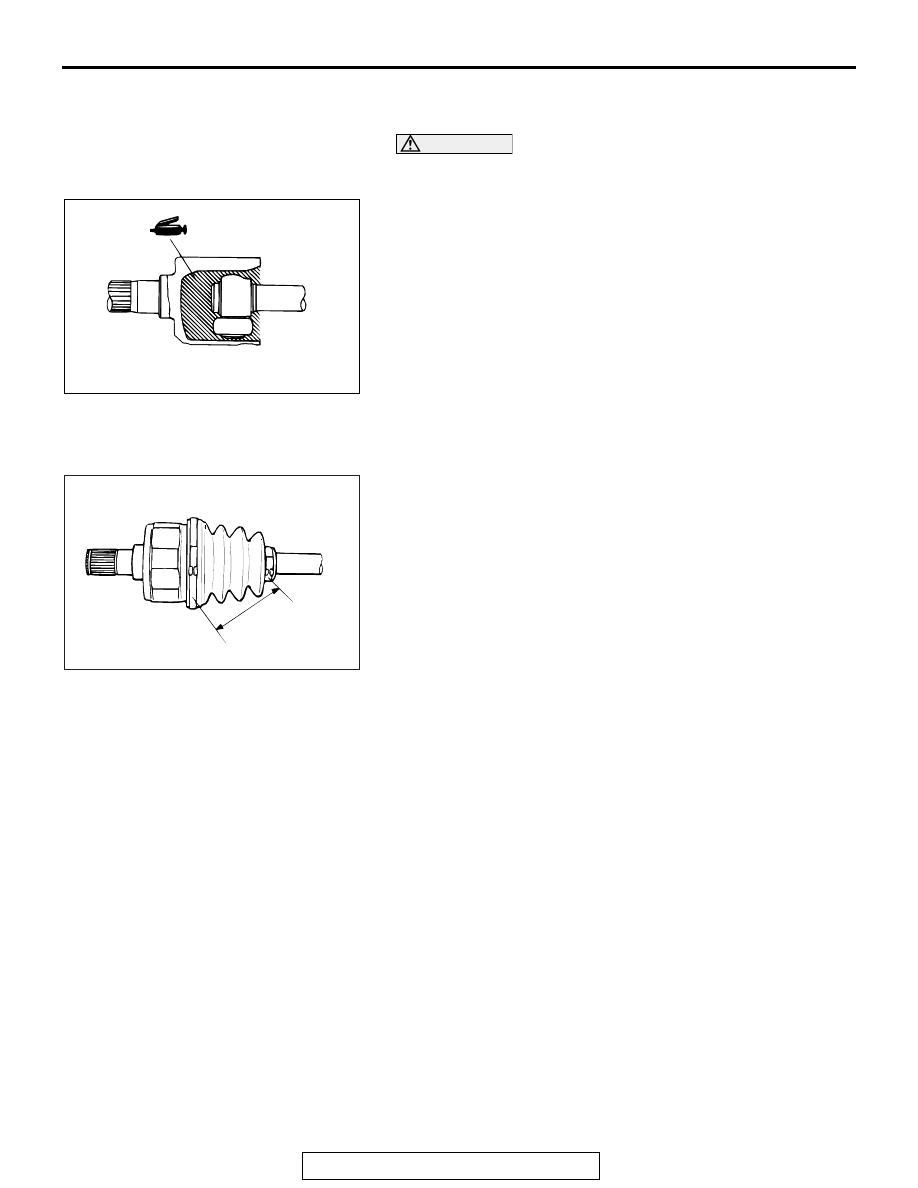

>>G<<PTJ CASE/INNER SHAFT ASSEMBLY
INSTALLATION

CAUTION

The driveshaft joint uses special grease. Do not mix old
and new or different types of grease.
After applying the specified grease to the PTJ case, insert the
driveshaft and apply grease again.

Specified grease: Repair kit grease

Amount to use: 210

± 10 g (7.4 ± 0.3 ounce) <LH>,

225

± 10 g (7.9 ± 0.3 ounce) <RH>

NOTE: The grease in the repair kit should be divided in half for
use, respectively, at the joint and inside the boot.

.

>>H<< PTJ BOOT BAND (SMALL)/PTJ BOOT
BAND (LARGE) INSTALLATION

Set the PTJ boot bands at the specified distance in order to
adjust the amount of air inside the PTJ boot, and then tighten
the PTJ boot band (small), PTJ boot band (large) securely.

Standard value (A): 85

± 3 mm (3.35 ± 0.12 inches)

AC102656 AC

AC102657

A

AC

DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-33

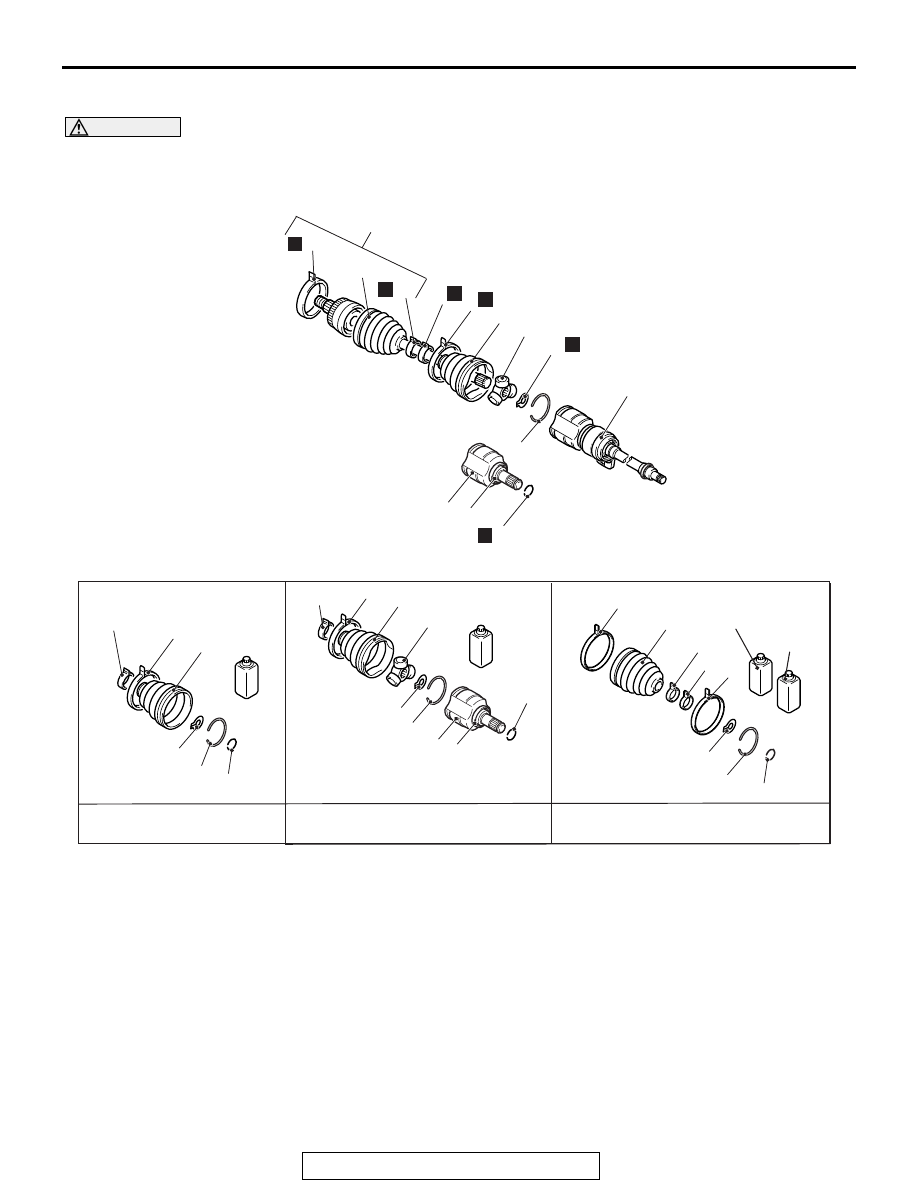

DISASSEMBLY AND ASSEMBLY <3.0L ENGINE- FWD>

M1261003701653

CAUTION

As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassem-
bled.

Required Special Tools:

• MB990810: Side Bearing Puller

• MB990890: Rear Suspension Bushing Base

• MB990930: Installer Adapter

• MB990932: Installer Adapter

• MB990934: Installer Adapter

• MB990938: Installer Bar (snap-in type)

• MB991172: Inner Shaft Installer Base

• MD998369: Bearing Installer

• MD998801: Remover

ACA01262

6

3

2

N

1

N

<RH>

<LH>

13

14

12

N

8

4

7

9

N

N

11

N

PTJ boot repair kit

3

1

PTJ repair kit <LH>

AC

EBJ boot repair kit

Grease
for PTJ

Grease
for EBJ

5

10

2

10

8

7 <LH>

3

1

2

10

8

7

9

14

13

12

1

2

3

8

6 5

7 <LH>

Disassembly steps

>>

H

<<

1.

PTJ boot band (large)

>>

H

<<

2.

PTJ boot band (small)

3.

Circlip

<<

A

>>

>>

G

<< 4.

PTJ case and inner shaft
assembly <RH>

5.

Dust cover <LH>

<<

A

>>

>>

G

<< 6.

PTJ case <LH>

7.

Circlip

8.

Snap ring

>>

C

<<

9.

Spider assembly

<<

F

>>

>>

B

<<

10. PTJ boot
11. EBJ assembly
12. EBJ boot band (small)

13. EBJ boot band (large)

>>

A

<<

14. EBJ boot

Disassembly steps (Continued)

DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-34

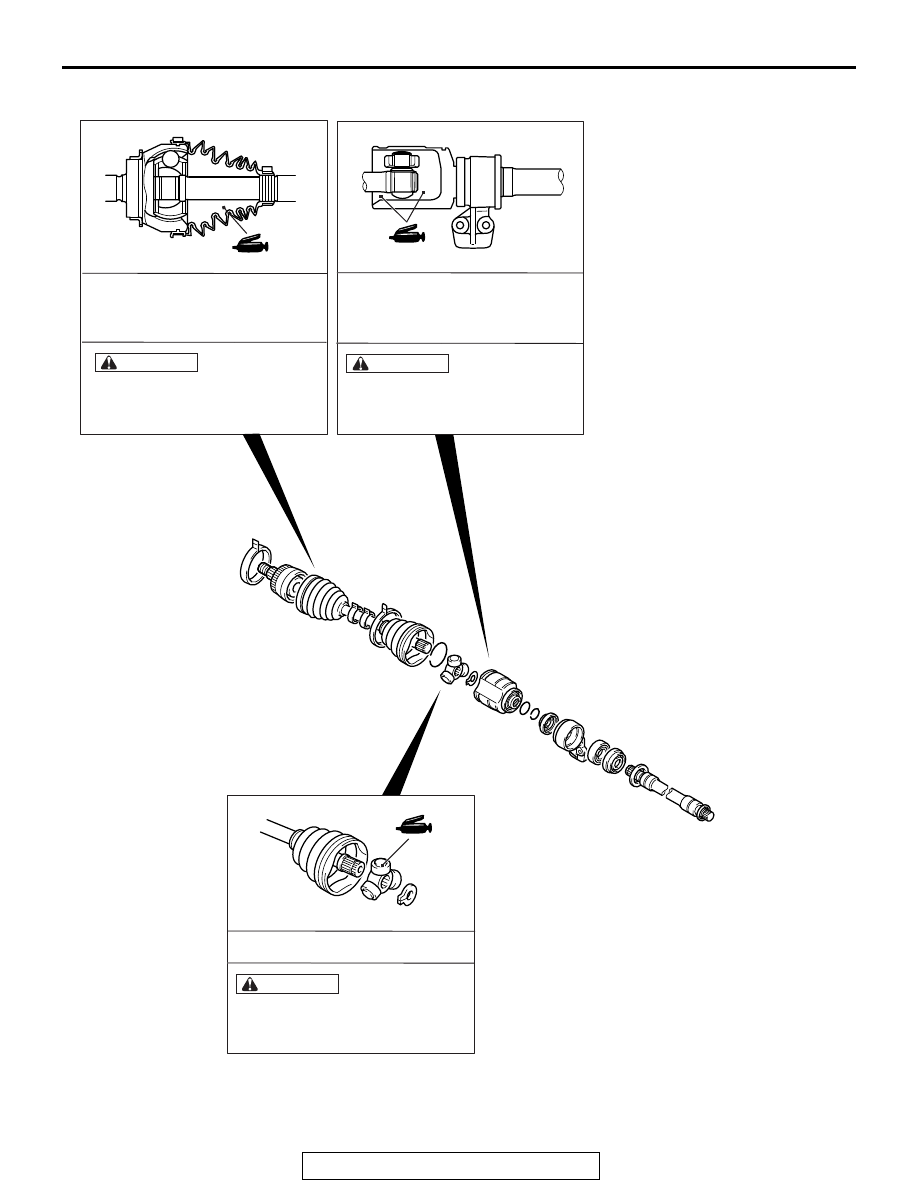

LUBRICATION POINTS

ACA02744AB

140 ± 10 g (4.9 ± 0.3 oz)

CAUTION

<RH> 255 ± 10 g (9.0 ± 0.3 oz)

<LH> 245 ± 10 g (8.6 ± 0.3 oz)

CAUTION

Grease: Repair kit grease
Amount used:

The drive shaft joint uses special
grease, do not mix old and new or
different types of grease.

Grease: Repair kit grease

The drive shaft joint uses special
grease, do not mix old and new or
different types of grease.

Grease: Repair kit grease
Amount used:

CAUTION

The drive shaft joint uses special
grease, do not mix old and new or
different types of grease.
