DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-35

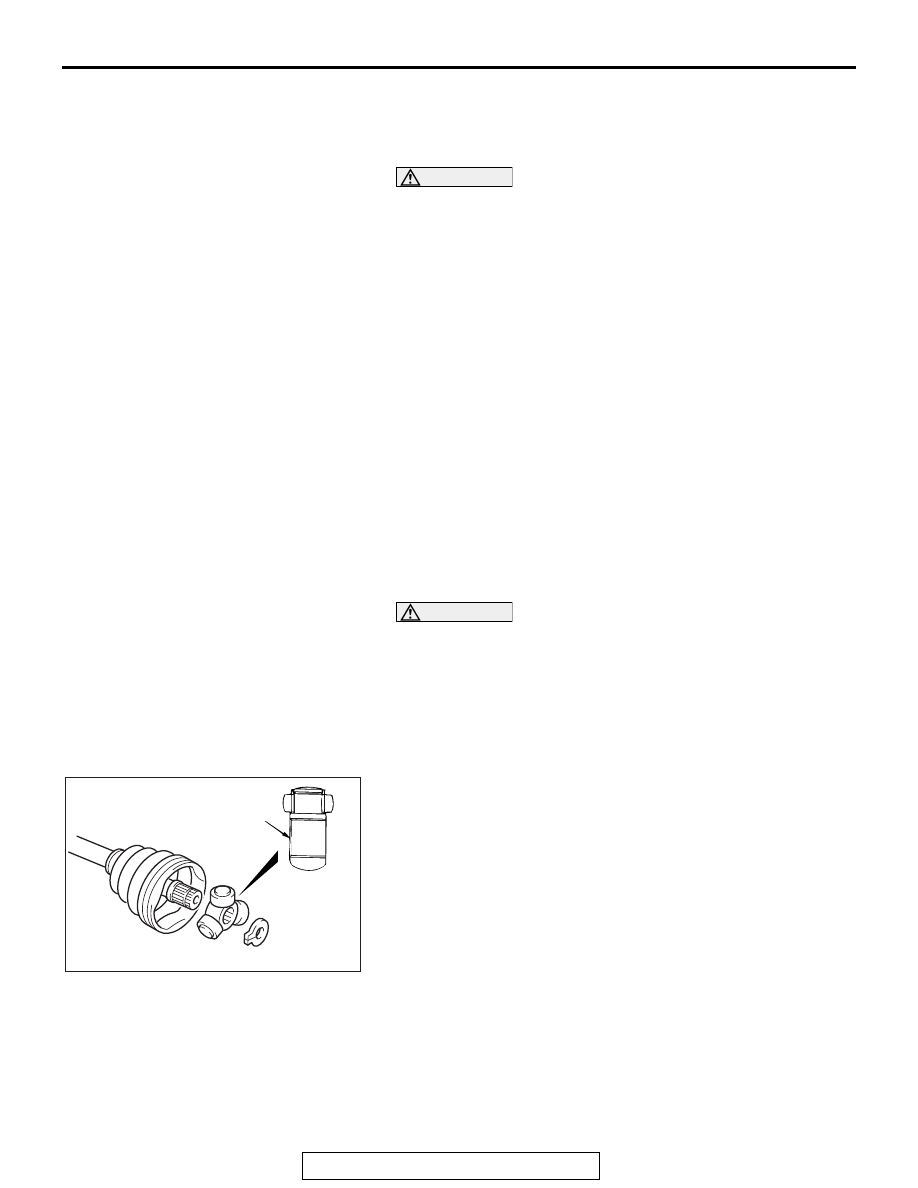

DISASSEMBLY SERVICE POINTS

.

<<A>>PTJ CASE/INNER SHAFT ASSEMBLY
REMOVAL

CAUTION

When removing the PTJ case and inner shaft assembly, be
careful not to drop off the roller part of spider assembly,
because it easily departs from the spider assembly.

.

<<F>> PTJ BOOT REMOVAL

1. Wipe off grease from the shaft spline.
2. When reusing the PTJ boot, wrap plastic tape around the

shaft spline to avoid damaging the boot.

ASSEMBLY SERVICE POINTS

.

>>A<< EBJ BOOT INSTALLATION

Wrap plastic tape around the shaft spline, and then install the
EBJ boot.

.

>>B<< PTJ BOOT INSTALLATION

Wrap plastic tape around the shaft spline, and then install the
PTJ boot.

.

>>C<< SPIDER ASSEMBLY INSTALLATION

CAUTION

• The driveshaft joint use special grease. Do not mix old

and new or different types of grease.

• If the spider assembly has been cleaned, take special

care to apply the specified grease.

1. Apply the specified grease furnished in the repair kit to the

spider assembly between the spider axle and the roller.

Specified grease: Repair kit grease

2. Install the spider assembly to the shaft from the direction of

the spline chamfered side.

.

AC703329AB

Chamfered side

DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-36

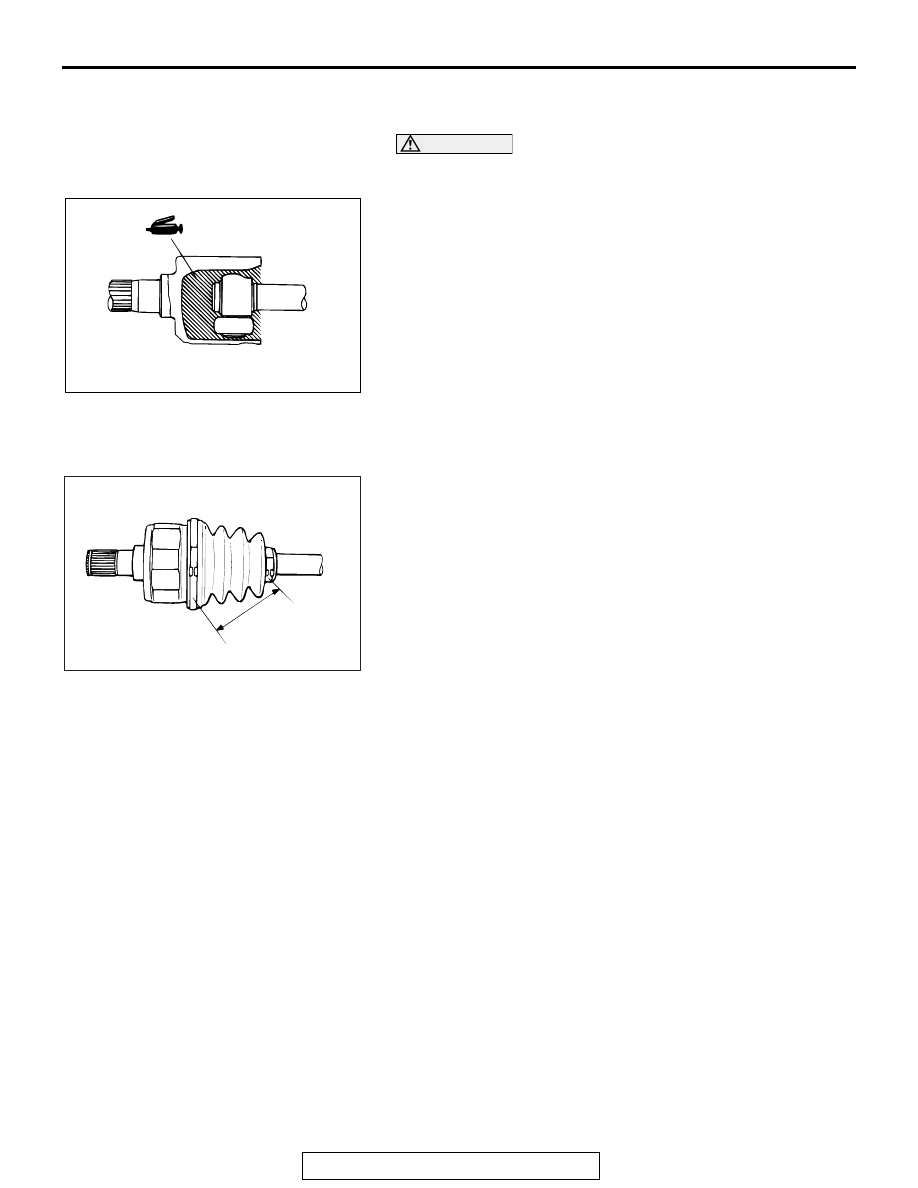

>>G<< PTJ CASE AND INNER SHAFT ASSEMBLY
INSTALLATION

CAUTION

The driveshaft joint use special grease. Do not mix old and
new or different types of grease.
After applying the specified grease the PTJ case, insert the
driveshaft and apply grease one more time.

Specified grease: Repair kit grease
Amount to use:
245

± 10 g (8.6 ± 0.3 ounce) <LH>

255

± 10 g (9.0 ± 0.3 ounce) <RH>

NOTE: The grease in the repair kit should be divided in half for
use, respectively, at the joint and inside the boot.

.

>>H<< PTJ BOOT BAND (SMALL)/PTJ BOOT
BAND (LARGE) INSTALLATION

Set the PTJ boot bands at the specified distance in order to
adjust the amount of air inside the PTJ boot, and then tighten
the PTJ boot band (small), PTJ boot band (large) securely.

Standard value (A):

 95

± 3 mm (3.74 ± 0.12 inches)

AC703336AB

AC703337 AB

A

DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-37

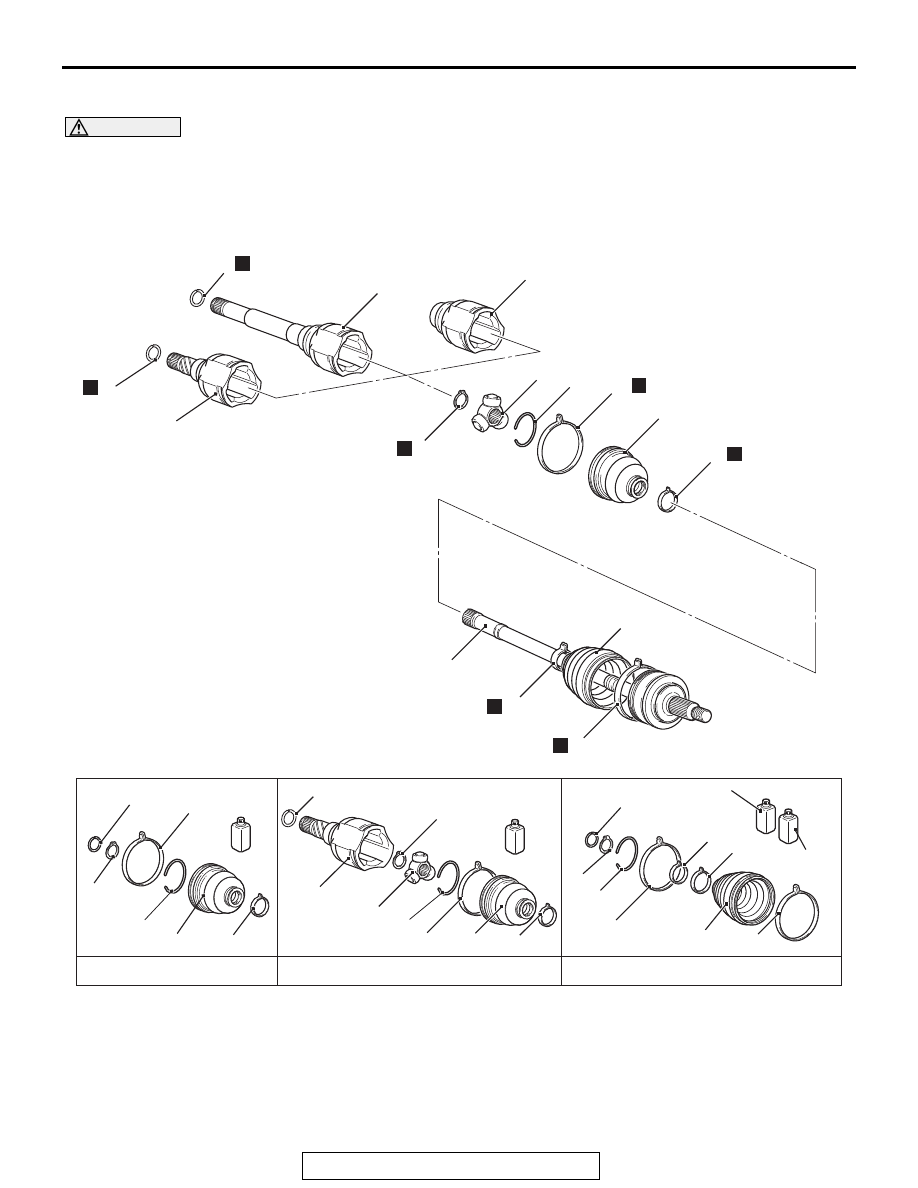

DISASSEMBLY AND ASSEMBLY <AWD>

M1261003702106

CAUTION

• As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disas-

sembled.

• The EBJ boot for 3.0L Engine-RH is not replaceable.

AC809231

EBJ grease

PTJ grease

1

2

3

1

4

6

2

3

1

3

2

EBJ boots repair kit

PTJ Boots repair kit

PTJ repair kit

3

1

2

5

N

N

N

N

N

1

N

<RH (Vehicles without
S-AWC)>

<LH>

AC

8

10

11

8

8

4

7

5

6

12

9

9

4

6

10

4

7

5

6

11

N

5

<RH (Vehicles with
S-AWC)>

Disassembly steps

1.

Circlip

>>

C

<< 2.

PTJ boot band (large)

>>

C

<< 3.

PTJ boot band (small)

4.

Circlip

<<

A

>> >>

B

<< 5.

PTJ case

6.

Snap ring

<<

A

>> >>

B

<< 7.

Spider assembly

<<

B

>> >>

A

<< 8.

PTJ boot

9.

EBJ boot band (large)

10. EBJ boot band (small)
11. EBJ boot
12. EBJ assembly

Disassembly steps (Continued)

DRIVESHAFT ASSEMBLY

TSB Revision

FRONT AXLE

26-38

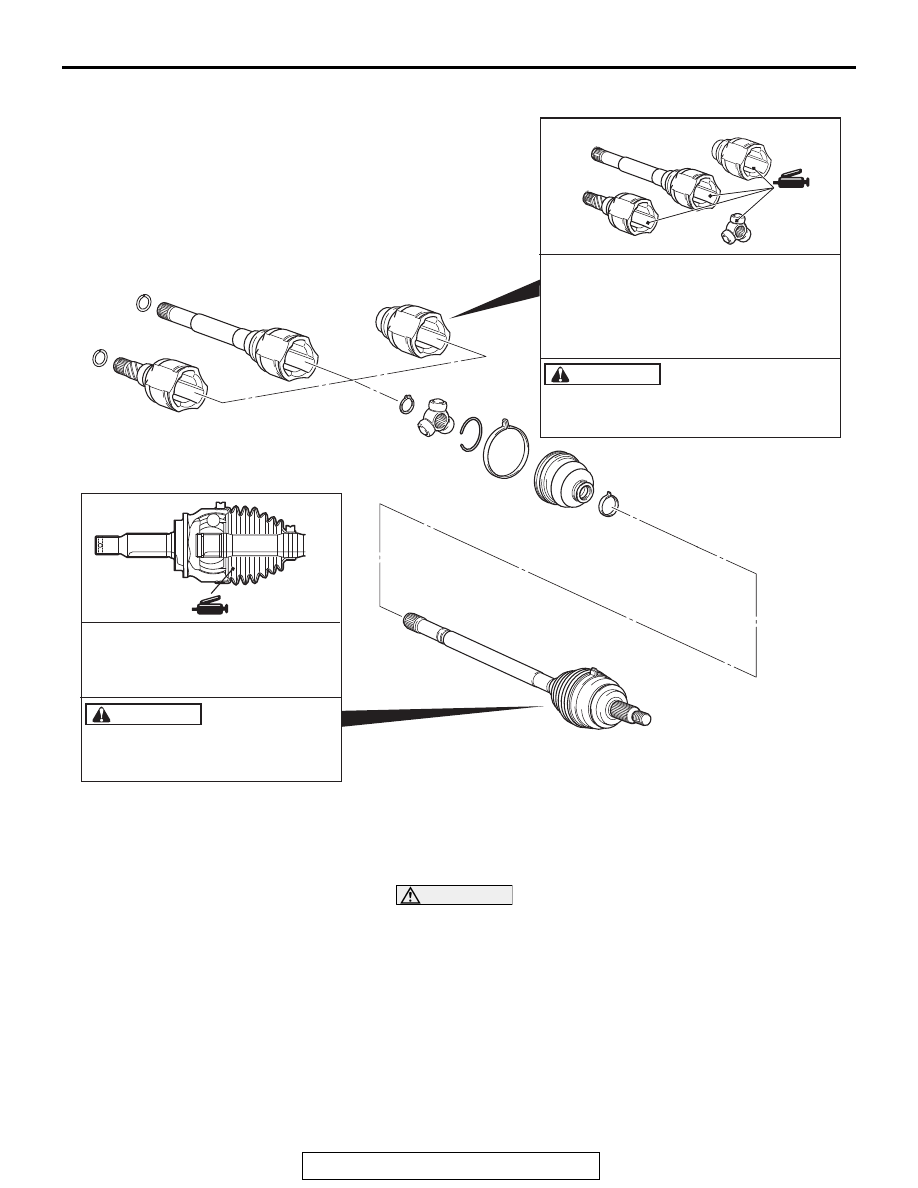

LUBRICATION POINTS

DISASSEMBLY SERVICE POINT

.

<<A>> PTJ CASE/SPIDER ASSEMBLY REMOVAL

CAUTION

When removing the PTJ case, be careful not to drop off the
roller part of spider assembly, because it easily departs
from the spider assembly.
1. Wipe off grease from the spider assembly and the inside of

the PTJ case.

2. Always clean the spider assembly when the grease contains

water or foreign material.

.

AC901051AB

The drive shaft joint uses special
grease. Do not mix old and new or
different types of grease.

CAUTION

NOTE:
* Indiactes Vehicles with S-AWC.

Grease: Repair kit grease
Amount used: 120 ± 10 g (4.2 ± 0.3 oz)
<2.4L>, 140 ± 10 g (4.9 ± 0.3 oz) <3.0L>,
135 ± 10 g (4.8 ± 0.3 oz) <3.0L*>

The drive shaft joint uses special grease.
Do not mix old and new or different types of
grease.

CAUTION

Grease: Repair kit grease
Amount used: 210 ± 10 g (7.4  ± 0.3 oz)
<2.4L-LH>, 200 ± 10 g (7.0 ± 0.3 oz) <2.4L-RH>,
245 ±10 g (8.6  ± 0.3 oz) <3.0L-LH>, 255 ± 10 g
(9.0 ± 0.3 oz) <3.0L-RH>, 250 ± 10 g (8.8 ± 0.3
oz) <3.0L-RH*>
