FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-19

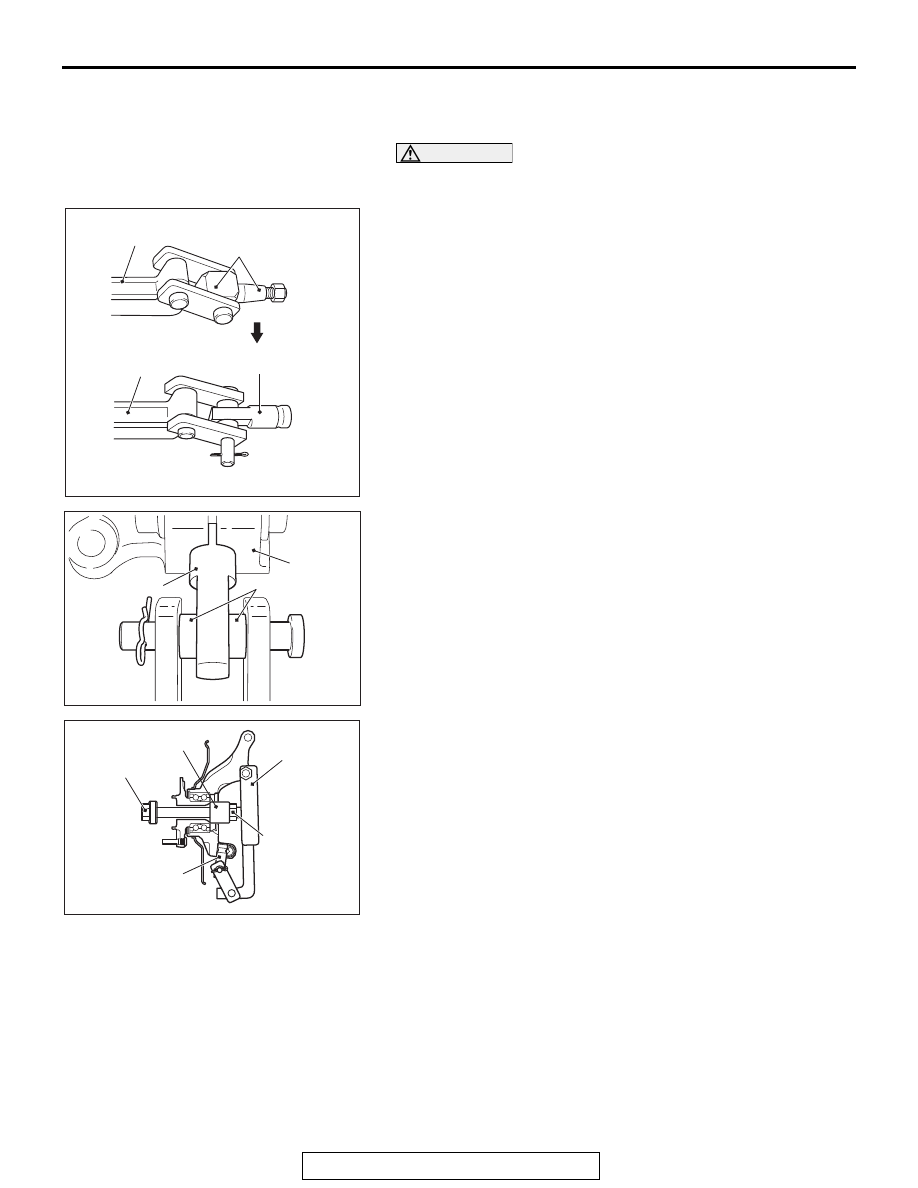

DISASSEMBLY SERVICE POINTS

.

<<A>> HUB REMOVAL

CAUTION

In the hub removal operation, make sure to replace the
wheel bearing with new one.
1. Replace special tool MB992250 with a guide of special

MB991355 as shown in the figure.

2. Insert special tool MB992250 in the knuckle and tighten it

with a bolt and nut.
NOTE: Set the spacers of special tool MB992250 as shown
in the figure.

3. Use special tools MB991000, MB991017, MB991355 and

MB992250 to remove the hub.

.

AC709343

Guide

MB991355

MB992250

MB991355

AD

AC709110AD

Spacers

MB992250

Knuckle

AC702984

AC709106

Tighten the nut
with the bolt
secured

MB991355

MB991017

MB991000

AD

MB992250

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-20

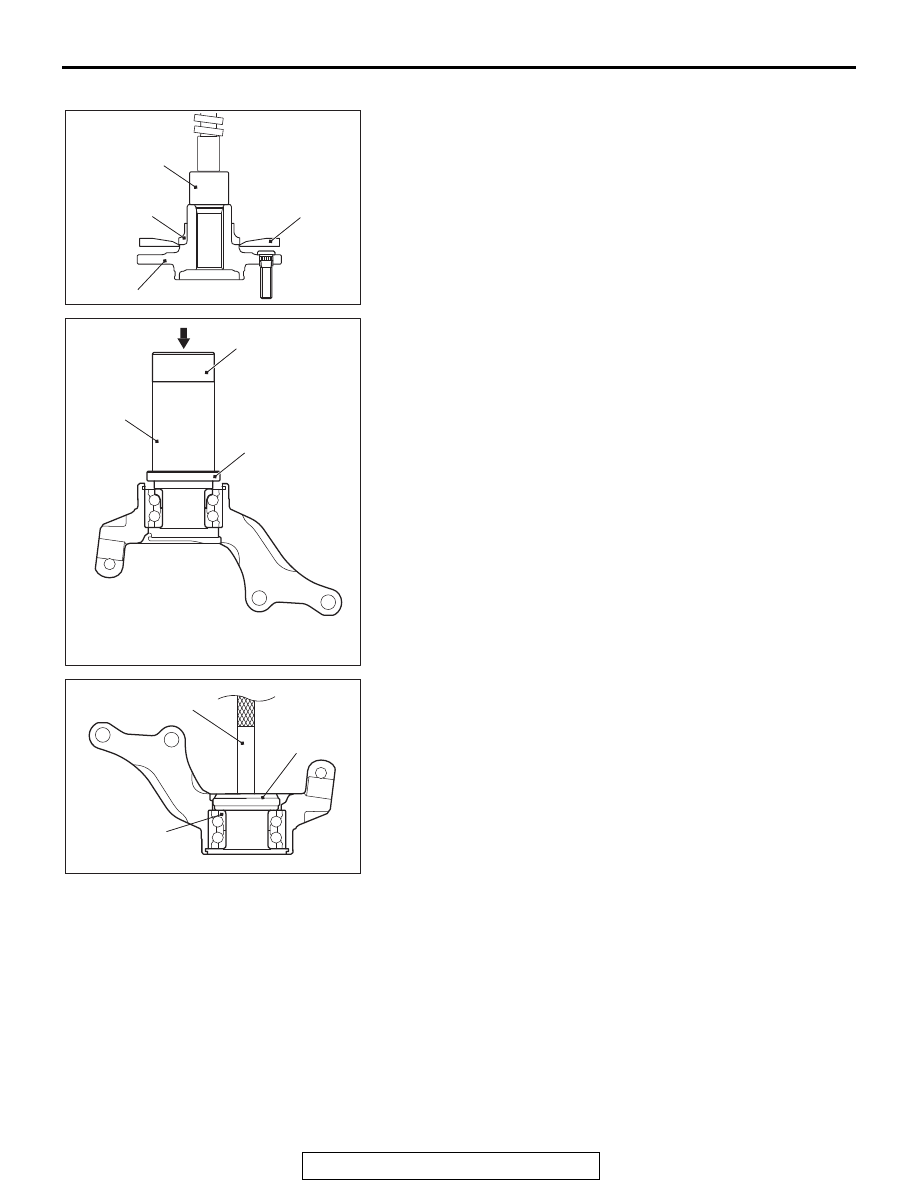

<<B>> WHEEL BEARING REMOVAL

1. Use special tools MD998801 and MB991000 to remove the

wheel bearing inner race (outside) from the hub.

2. Use special tools MB992150, MD998812 and MD998813 to

assemble the inner race (outside) removed from the hub to
the wheel bearing.

3. Use special tools MB990935 and MB990938 to remove the

wheel bearing.

AC703309 AB

MB991000

MD998801

Hub

Inner race

AC703310 AB

MD998812

MB992150

MD998813

AC703311AB

MB990938

MB990935

Inner race
(outside)

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-21

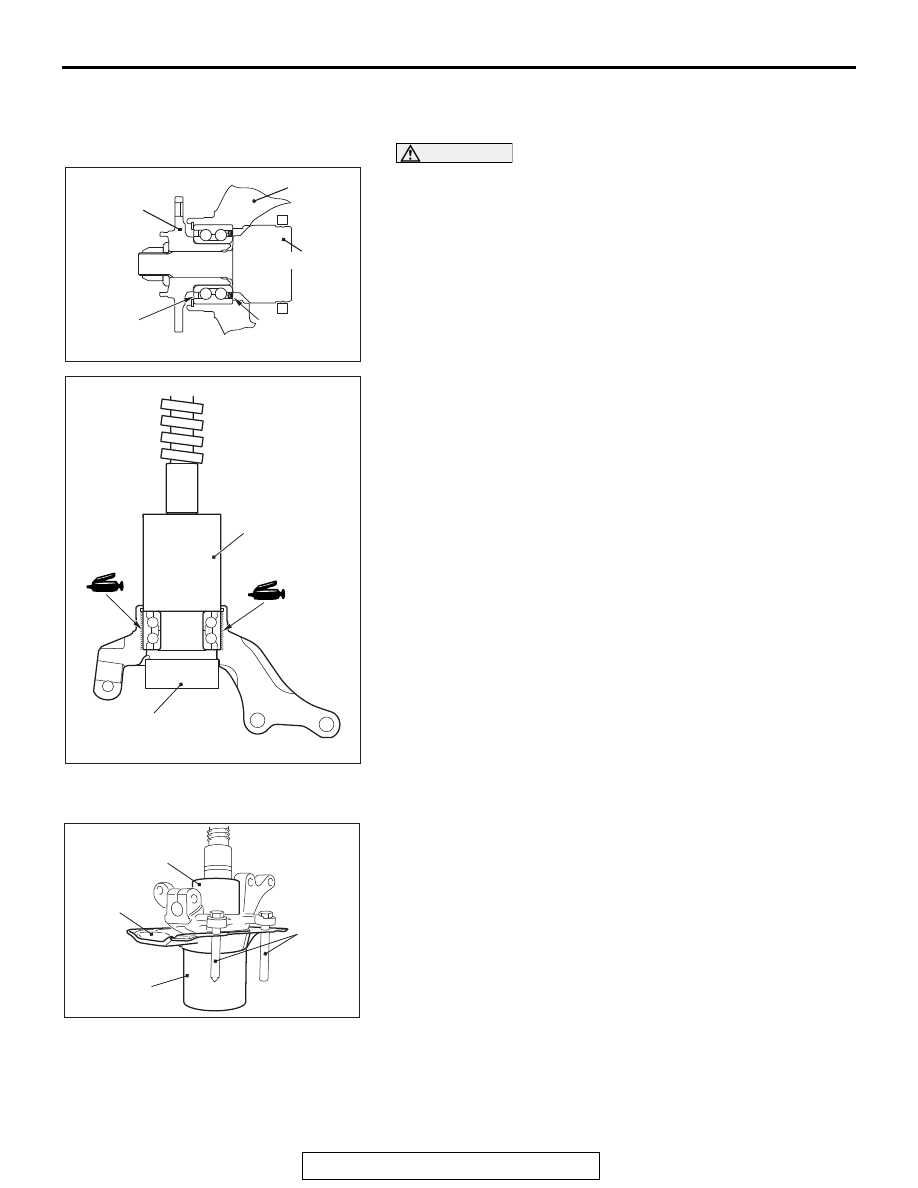

ASSEMBLY SERVICE POINTS

.

>>A<< WHEEL BEARING INSTALLATION

CAUTION

• The magnetic encoder for wheel speed sensor is

installed in the wheel bearing. Install the wheel bearing
so that the encoder is positioned in the direction shown
in the figure.

• When press-fit the wheel bearing, push the outer race.
• After press-fit the wheel bearing, wipe off the extra

grease in order not to remain on the magnetic encoder.

1. Remove grease and foreign material cleanly from the inside

of knuckle bore.

2. Apply the specified grease thinly and evenly to the inside of

knuckle as shown in the figure.

Specified grease: Dowcorning/Molykote BR2 Plus
Amount to use: as required {1.0

− 1.5 g (0.04 −0.05

ounce)}

3. Use special tools MB990883 and MB 990890 to press-fit the

wheel bearing.

4. Remove excessive grease seeped out between knuckle and

wheel bearing outer race after press-fitting the wheel
bearing.

.

>>B<< DUST SHIELD INSTALLATION

Use special tools MB991388 and MB991576 to press-fit the
knuckle into the dust shield.
NOTE: Use the bolts (M12) to align the caliper mounting holes.

.

AC703312

Hub

Oil seal
(light gold or
silver)

Encoder
(dark brown)

AB

Knuckle

Driveshaft

AC703313 AB

MB990890

MD999528

AC703314AB

MB991576

MB991388

Bolt

Dust cover

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-22

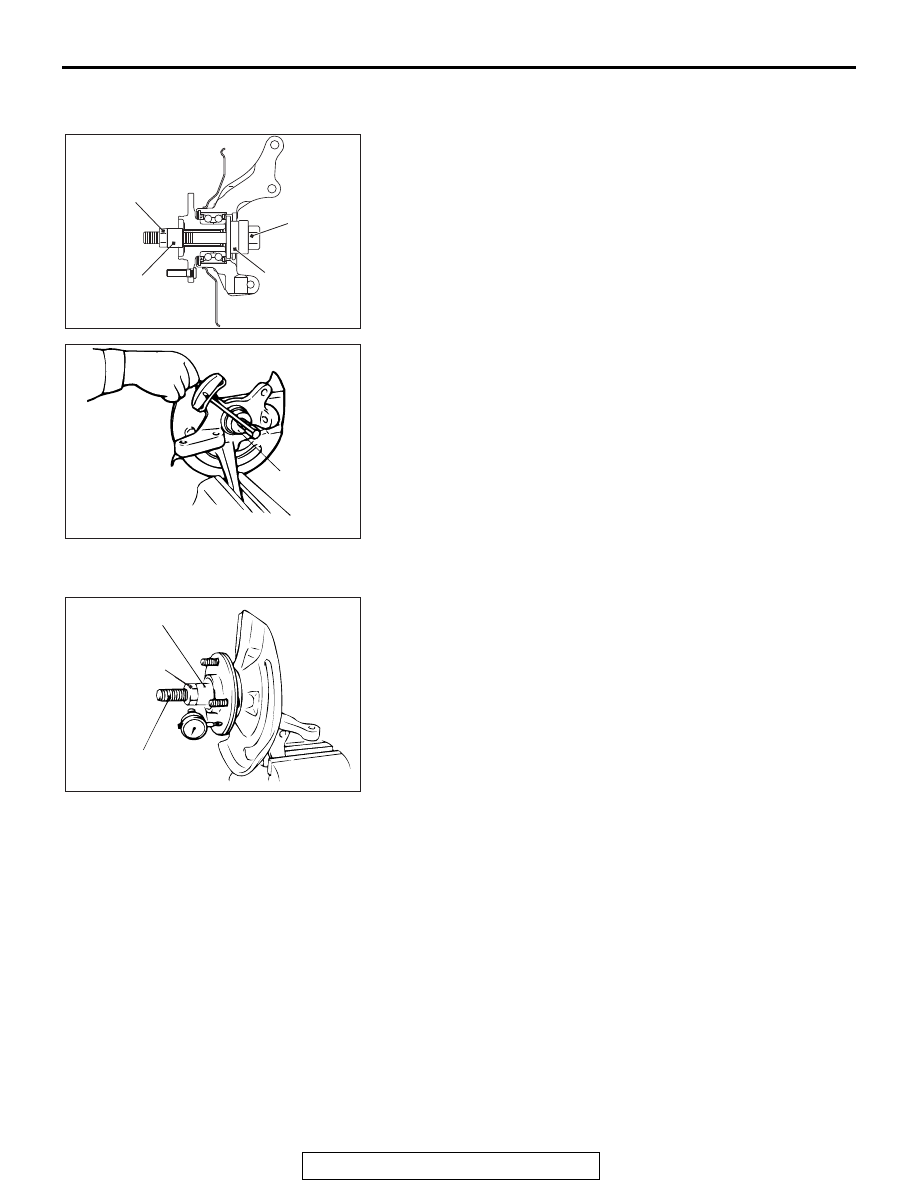

>>C<< HUB ROTATION STARTING TORQUE
CHECK

1. Set special tools MB991000 and MB991017 as shown in the

figure, tighten the nut to the specified torque, and press-fit
the hub into the knuckle.

Tightening torque: 144

− 176 N⋅m (107 − 129 ft-lb)

2. Rotate the hub to make the bearing well-greased.

3. Use Special tool MB990326 to measure the hub rotation

starting torque.

Limit: 1.5 N

⋅m (13 in-lb)

4. Hub rotation starting torque should be within the limit value,

and there should be no roughness and gritty feeling in
rotation.

.

>>D<< WHEEL BEARING END PLAY CHECK

1. Use special tools MB991000 and MB991017 to measure to

determine whether the wheel bearing end play is within the
specified limit or not.

Limit: 0.05 mm(0.002 inch)

2. If the end play is not within the limit range while the nut is

tightened to specified torque, the bearing, hub and/or
knuckle have probably not been installed correctly. Replace
the bearing and re-install.

Tightening torque: 144

− 176 N⋅m (107 − 129 ft-lb)

INSPECTION

M1261002000142

• Check the front hub and brake disc mounting surfaces for

galling and contamination.

• Check the knuckle inner surface for galling and cracks.

AC703315 AB

MB991017

MB991099

MB991000

144 - 176 N·m
(107 - 129 ft-lb)
Tighten the nut
with the bolt
secured

AC703316 AB

MB990326

AC703317AB

MB991017

MB991000

Tighten the nut
with the bolt
secured
