Mitsubishi Outlander GS45X. Manual - part 1501

FRONT AXLE DIAGNOSIS

TSB Revision

FRONT AXLE

26-7

STEP4. Check the driveshaft assembly for wear or
damage.
Q: Is the driveshaft assembly worn or damaged?

YES : Replace the driveshaft assembly. Then go to Step 5.
NO :  There is no action to be taken.

STEP 5. Retest the system.
Q: Is the abnormal noise eliminated?

YES : The procedure is complete.
NO :  Repeat from Step 1.

INSPECTION PROCEDURE 2: Noise Due to Excessive Play of Wheel in Turning Direction

DIAGNOSIS

STEP 1. Check for play in the inner shaft and side
gear serration, the driveshaft and side gear
serration, or the driveshaft and front hub
serration.

Q: Is the play found?

YES :

Replace the part. Then go to Step 2.

NO :

The procedure is complete.

STEP 2. Retest the system.

Q: Is the abnormal noise eliminated?

YES :

The procedure is complete.

NO :

Repeat from Step 1.

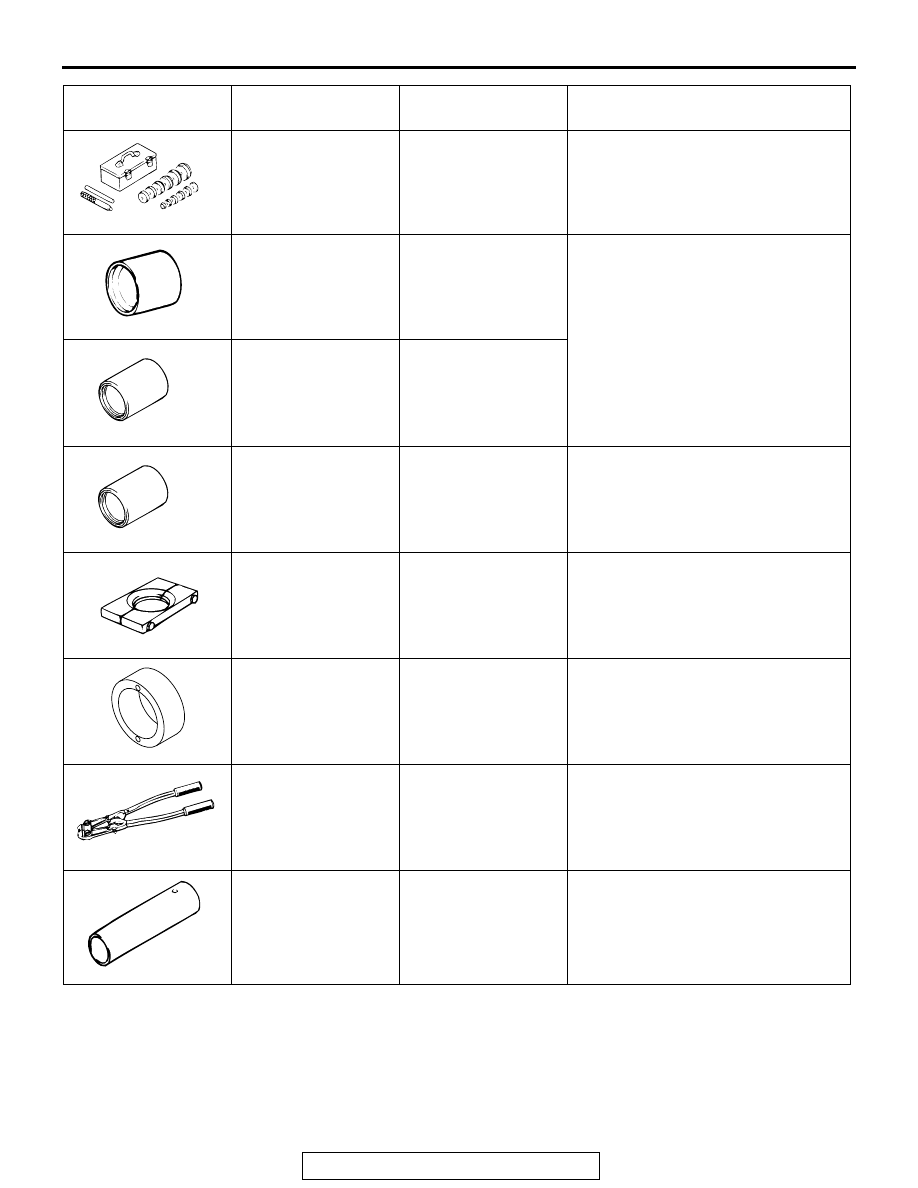

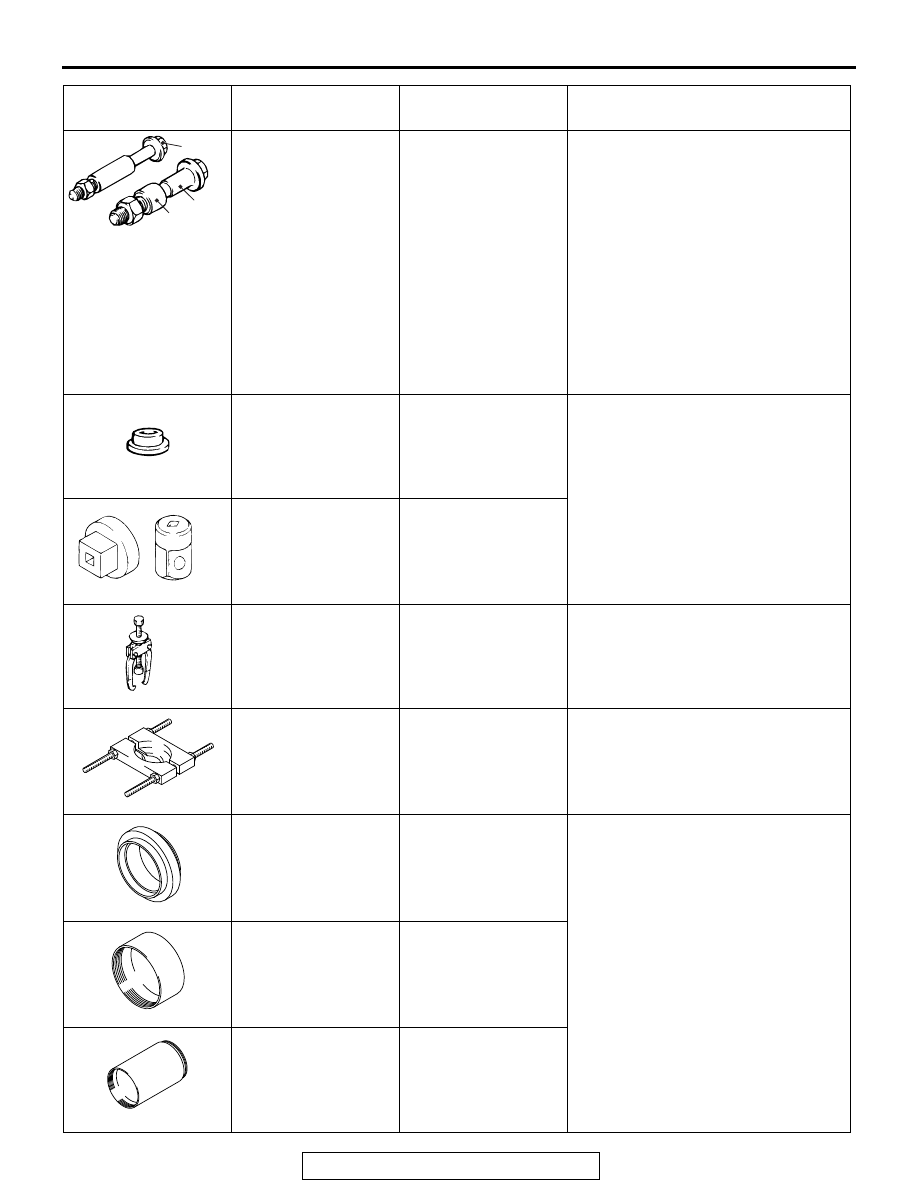

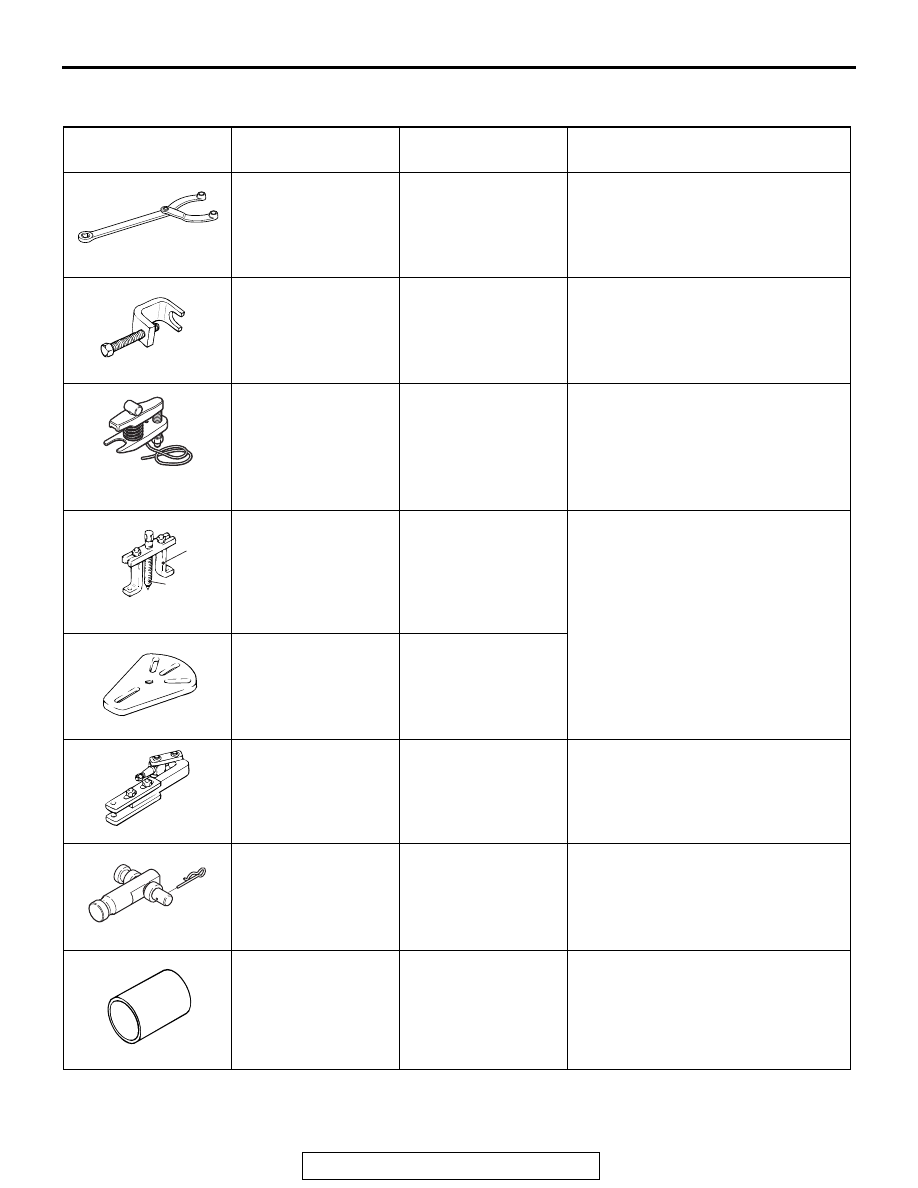

SPECIAL TOOLS

TSB Revision

FRONT AXLE

26-8

SPECIAL TOOLS

M1261000601259

Tool

Tool number and
name

Supersession

Application

MB990767
Front hub and flange
yoke holder

MB990767-01

Fixing of the hub

MB991618
Hub bolt remover

General service tool

Removal of the hub bolt

MB991897 or
MB992011
Ball joint remover

MB991113-01,
MB990635-01 or
General service tool

Knuckle and tie rod end ball joint
disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113)is also
used to disconnect knuckle and tie
rod end ball joint.

MB990241
Axle shaft puller

A: MB990242

Puller shaft

B: MB990244

Puller bar

MB990241-01 or
General service tool

Removal of the driveshaft

MB991354
Puller body

General service tool

MB991056 or
MB991355
Knuckle arm bridge

MB991056-01

• Removal of the hub

• Removal of the wheel bearing

MB992250
Knuckle arm bridge
attachment

−

Removal of the hub
NOTE: Replace this attachment with
a guide of MB991355 and use them.

MB991172
Inner shaft installer
base

−

Press-fitting of the inner shaft

B990767

MB991618

MB991897

MB990241AD

B

A

MB991354

B992250

SPECIAL TOOLS

TSB Revision

FRONT AXLE

26-9

A: MB991017
B: MB990998
C: MB991000
A, B: Front hub

remover and
installer

C: Spacer

MB990998-01

• Removal of the hub

• Provisional holding of the wheel

bearing

• Measurement of hub starting

torque

• Measurement of wheel bearing

end play
NOTE: MB991000, which belongs
to MB990998, should be used as a
spacer.

• Removal of the wheel bearing

inner race (outside) (Use
MB991000 with MD998801.)

MB991099
Oil seal installer
guide

−

Measurement of hub starting torque

MB990326
Preload socket

General service tool

MB990810
Side bearing puller

General service tool

Removal of the center bearing
bracket

MD998801
Remover

−

Removal of the wheel bearing inner
race (outside)

MB992150
Oil seal installer

−

Installation of the wheel bearing inner
race (outside)

MD998812
Installer cap

−

MD998813
Installer

−

Tool

Tool number and
name

Supersession

Application

A

B

C

MB991017

MB991099

MB990326

MB990810

SPECIAL TOOLS

TSB Revision

FRONT AXLE

26-10

MB990925
Bearing and oil seal
installer set

MB990925-01 or
General service tool

• Removal of the wheel bearing

• Removal and installation of the

center bearing

• Press-fitting of the dust seal outer,

inner

MB991388
Bush remover base

−

Press-fitting of the dust cover

MB991576
Base

−

MB990890
Rear suspension
bushing base

MB990890-01

• Installation of the wheel bearing

• Press-fitting of the dust seal outer,

inner

MB991248
Inner shaft remover

MD998348-01

Removal of the inner shaft

MD999528
Adapter

−

Installation of the wheel bearing

MB991561
Boot band crimping
tool

MB991561

BJ boot (resin boot) band installation

MD998369
Bearing installer

−

Press-fitting of the seal plate

Tool

Tool number and
name

Supersession

Application

MB990925

MB991388

MB991576

MB990890

MB991248

MB991561

MD998369
