SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-335

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U0176 set?

YES : Replace the SRS-ECU (Refer to

P.52B-436

).

NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

DTC U0184: Audio CAN Timeout

CAUTION

• If the DTC U0184 is set, be sure to diagnose

the CAN main bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DTC SET CONDITION

When the signals from radio and CD player or CD
changer cannot be received, the SRS-ECU sets the
DTC U0184.

.

JUDGMENT CRITERIA

Because of the CAN-B bus circuit malfunction, if
SRS-ECU becomes unable to perform the normal
data transmission, SRS-ECU determines that an
abnormality is present.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The radio and CD player or CD changer may be

defective

• The SRS-ECU may be defective

DIAGNOSIS

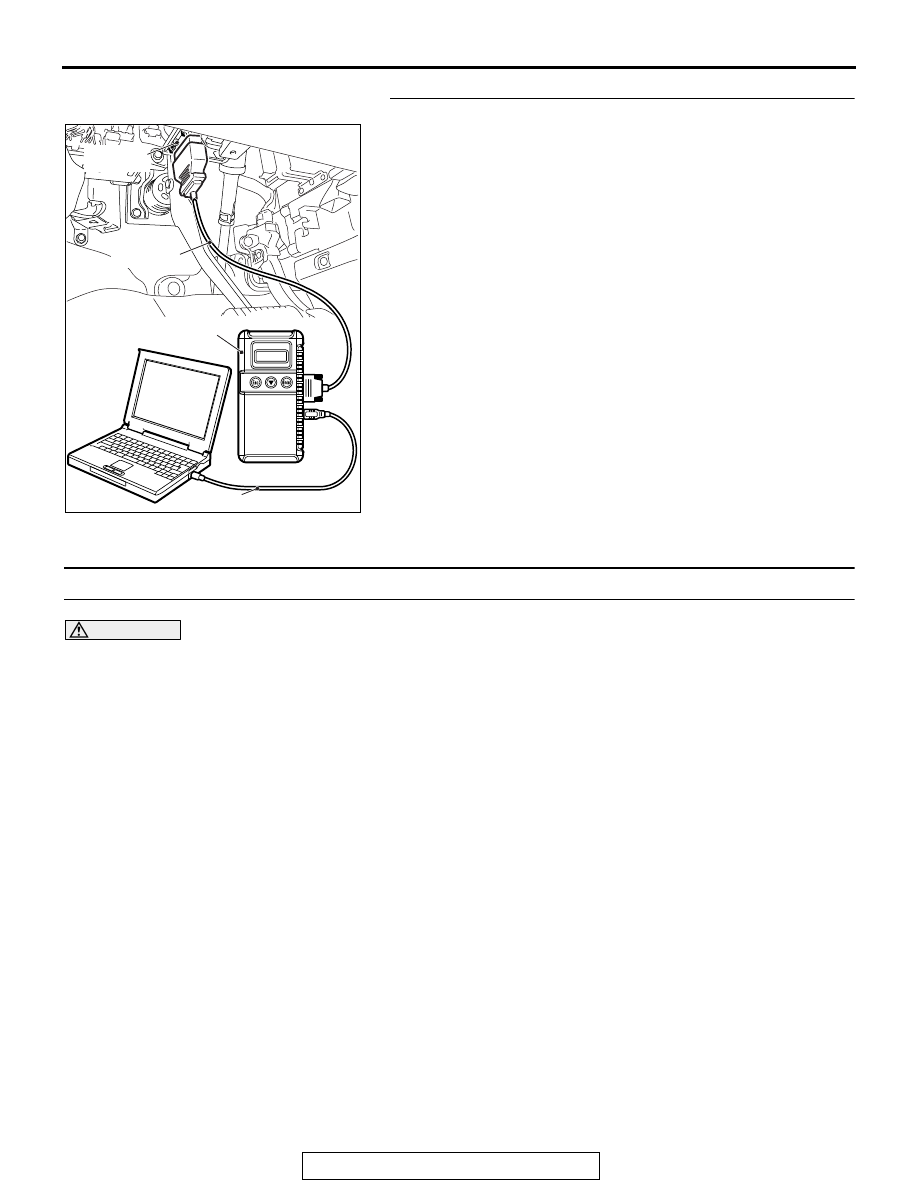

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-336

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the audio
diagnostic trouble code
Check if the DTC is set to the audio.
Q: Is the DTC set?

YES : Diagnose the radio and CD player (Refer to GROUP

54A, Diagnosis

P.54A-658

). Then go to Step 4.

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read diagnostic
trouble code No. U0184 for other system.
Check if the DTC U0184 is set in ETACS-ECU, occupant clas-
sification-ECU, combination meter, A/C-ECU, KOS-ECU or
WCM, hands free module, satellite radio tuner.
Q: Is the DTC set?

YES : Replace the radio and CD player (Refer to GROUP

54A, Radio and CD player

P.54A-423

).

NO :  Go to Step 4.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-337

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the SRS-ECU.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to use Troubleshooting/inspection
Service Points

P.00-15

).

DTC U0195: Satellite Radio Tuner CAN Timeout

CAUTION

• If the DTC U0195 is set, be sure to diagnose

the CAN main bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DTC SET CONDITION

If the signal from satellite radio tuner cannot be
received, the SRS-ECU sets the DTC U0195.

.

JUDGMENT CRITERIA

Because of the CAN-B bus circuit malfunction, if
SRS-ECU becomes unable to perform the normal
data transmission, SRS-ECU determines that an
abnormality is present.

.

TROUBLESHOOTING HINTS

• The CAN bus may be defective.

• The satellite radio tuner may be defective.

• The SRS-ECU may be defective.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-338

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Using scan tool MB991958, read the satellite radio
tuner diagnostic trouble code.
Check if DTC is set to the satellite radio tuner.
Q: Is the DTC set?

YES : Troubleshoot the satellite radio tuner. Then go to Step

4.

NO :  Go to Step 3.

STEP 3. Using scan tool MB991958, read diagnostic
trouble code No. U0195 for other system.
Check if the DTC U0195 is set in ETACS-ECU, occupant clas-
sification-ECU, A/C-ECU, hands free module, CAN box unit,
radio and CD player, WCM.
Q: Is the DTC set?

YES : Replace the satellite radio tuner (Refer to GROUP

54A, Satellite Radio Tuner

P.54A-687

).

NO :  Go to Step 4.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
