SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-299

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.
(1) Erase the DTC.
(2) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the SRS-ECU (Refer to

P.52B-436

).

NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to use Troubleshooting/inspection
Service Points

P.00-15

).

DTC B2255: Occupant Restraint Controller Roll-over Feature Disabled

CAUTION

If DTC B2255 is set in the SRS-ECU, always diag-
nose the CAN main bus line.

.

DTC SET CONDITION

The above DTC is set if an abnormality is detected in the circuit
inside the SRS-ECU.

.

TROUBLESHOOTING HINTS

Malfunction of the SRS-ECU

DIAGNOSIS

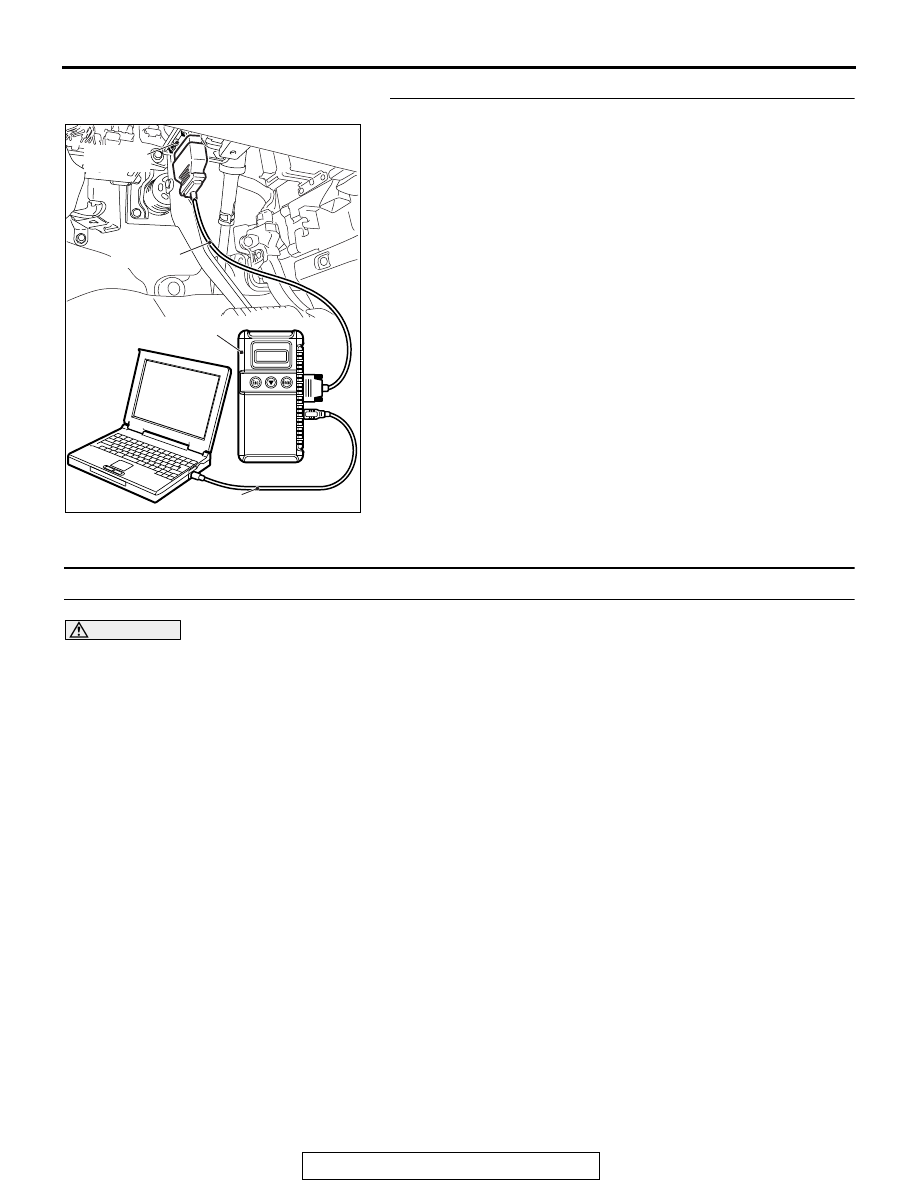

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-300

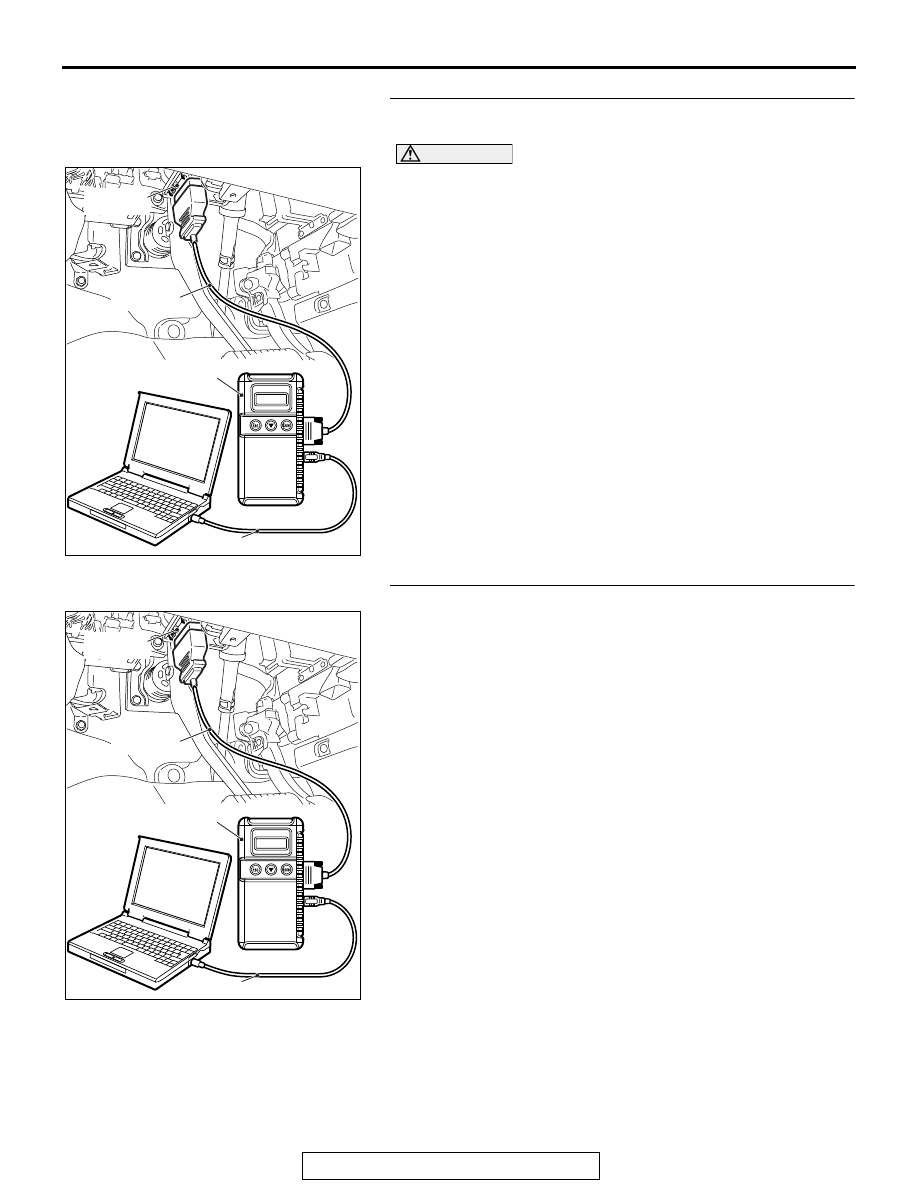

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC output regardless of "Active" or "Stored"

faults?
YES : Replace the SRS-ECU (Refer to

P.52B-436

).

NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-301

DTC U0019: Bus Off (CAN-B)

CAUTION

• If the DTC U0019 is set, be sure to diagnose

the CAN main bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DTC SET CONDITION

If the CAN-B circuit malfunction occurs, the
SRS-ECU sets the DTC U0019.

.

JUDGMENT CRITERIA

Because of the CAN-B bus circuit malfunction, if
SRS-ECU becomes unable to perform the normal
data transmission, SRS-ECU determines that an
abnormality is present.

.

TROUBLESHOOTING HINTS

The CAN bus line may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
(1) Turn the ignition switch from "LOCK" (OFF) position to "ON"

position.

(2) Diagnose the CAN bus line.
(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line. (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-302

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set to the SRS-ECU.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Check if DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Replace the SRS-ECU (Refer to

P.52B-436

).

NO :  The trouble can be an intermittent malfunction (Refer

to GROUP 00

− How to use

Troubleshooting/inspection Service Points

− How to

Cope with Intermittent Malfunction

P.00-15

).

DTC U0141: ETACS CAN Timeout

CAUTION

• If the DTC U0141 is set, be sure to diagnose

the CAN main bus line.

• When replacing the ECU, always check that

the communication circuit is normal.

.

DTC SET CONDITION

If the signal from ETACS-ECU cannot be received,
the SRS-ECU sets the DTC U0141.

.

JUDGMENT CRITERIA

Because of the CAN-B bus circuit malfunction, if
SRS-ECU becomes unable to perform the normal
data transmission, SRS-ECU determines that an
abnormality is present.

.

TROUBLESHOOTING HINTS

• The CAN bus line may be defective

• The ETACS-ECU may be defective

• The SRS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicles Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector
