SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-291

• The SRS-ECU power is supplied from two cir-

cuits. Even if one circuit is shut off, the air bag
can inflate.

.

DTC SET CONDITIONS

This code is set when an open circuit occurs in the
power supply circuit to the SRS-ECU (terminal
No.61) or in the power supply circuit to the SRS-ECU
(terminal No.62). Also, if the code No. B212C and
B212D are set at the same time, the battery voltage
may have dropped. Therefore, check the battery first.

.

TROUBLESHOOTING HINTS

• Open circuit to power supply circuit

• Damaged wiring harnesses or connectors

• Malfunction of the SRS-ECU

• Malfunction of ETACS-ECU

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (M.U.T.-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: M.U.T.-III USB Cable

• MB991910: M.U.T.-III Main Harness A (Vehicles with

CAN communication system)

STEP 1. Power supply fuse number 12,18 check.
Q: Is the fuse in good condition?

YES : Go to Step 3.
NO :  Go to Step 2

STEP 2. Check for a blown fuse.
(1) Replace the fuse.
(2) Turn the ignition switch to the "ON" position, wait for at least

one minute and then turn the switch off.

(3) Check the fuse.
Q: Is the fuse in good condition?

YES : Go to Step 3.
NO :  Repair the wiring harness between the C-313

ETACS-ECU connector terminal No. 4/2 and the C-27
SRS-ECU connector terminal No. 61/62, and replace
the power supply fuse.

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-292

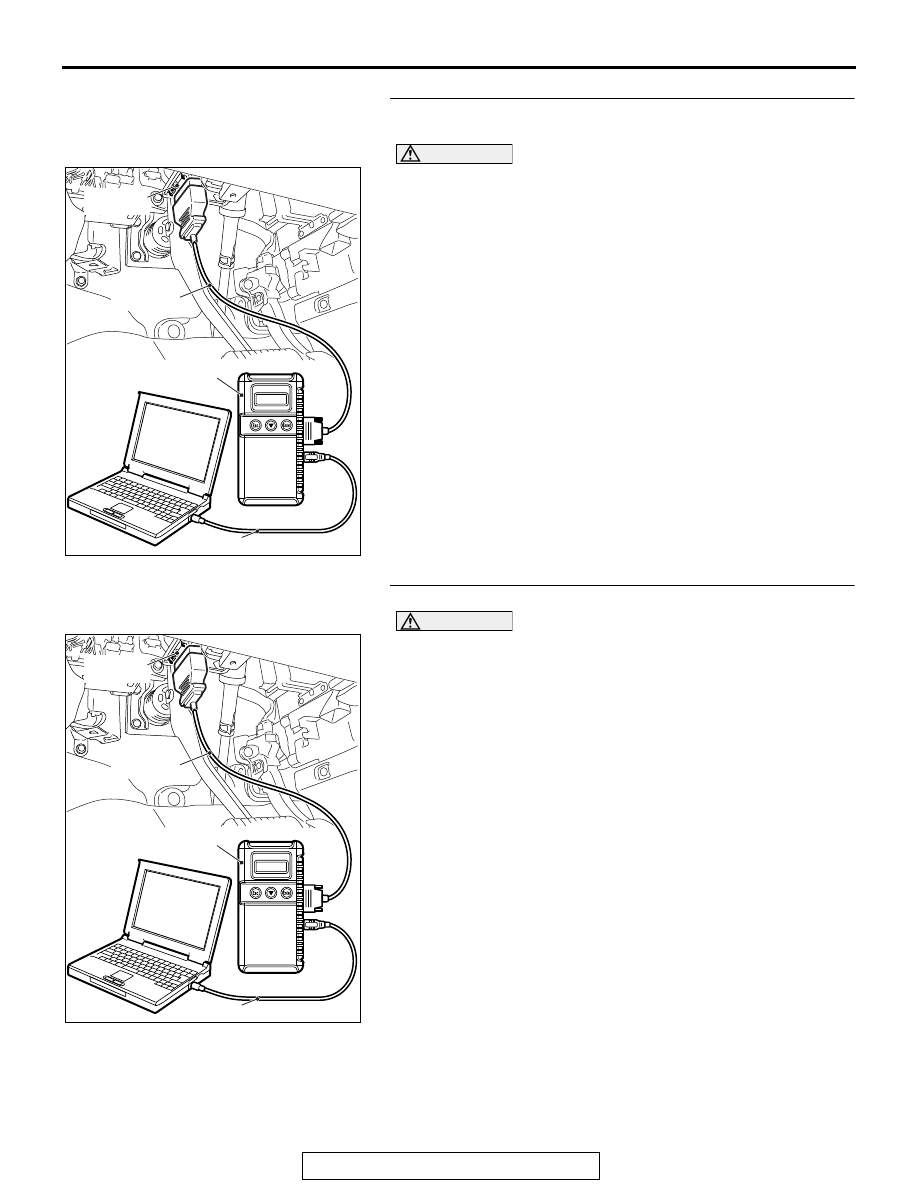

STEP 3. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 4.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-17

).

STEP 4. Using scan tool MB991958, diagnose the ETACS.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-28

."

(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Diagnose the ETACS, (Refer to GROUP 54A,

ETACS, Diagnosis

P.54A-733

.

NO :  Check the input signal of ETACS-ECU ignition switch

(IG1) (Refer to GROUP 54A

− ETACS, Symptom

procedures

P.54A-789

). Than go to step 5.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-293

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 6.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-15

).

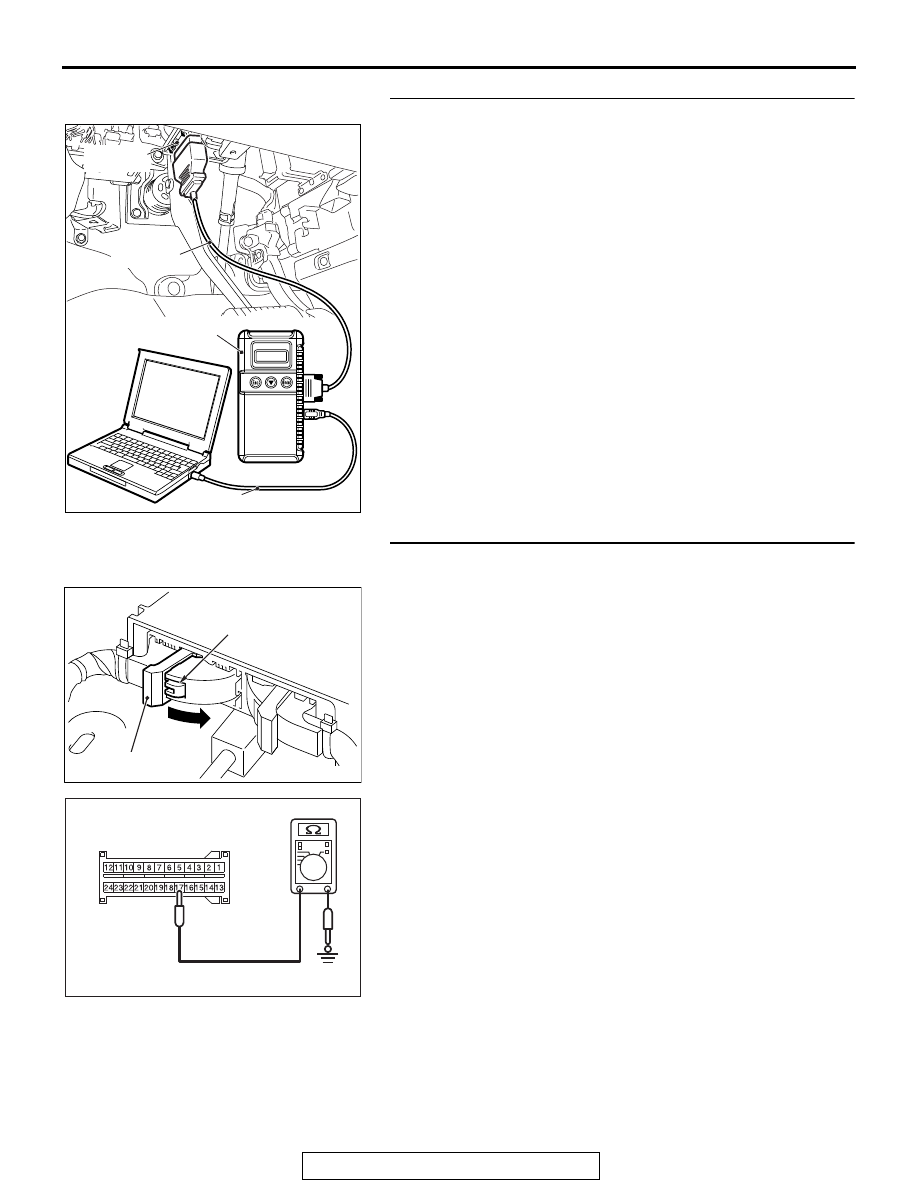

STEP 6. Resistance measurement at the C-28 SRS-ECU
connector.
(1) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-28 SRS-ECU connectors.

(2) Take the measurements below at the C-28 wiring harness

side connectors. It should be less than 2 ohms.

• Continuity between C-28 wiring harness side connector

terminal No. 17 and body ground

Q: Does continuity exist?

YES : Go to Step 7.
NO :  Repair the wiring harness between the C-28

SRS-ECU connector terminal No. 17 and the ground.

ZC501967

AC404789

AC701411AB

MB991824

MB991827

MB991910

Data link
connector

AC506734

A

AD

Lock lever

AC608812

C-28 Harness side
connector (front view)

HD

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-294

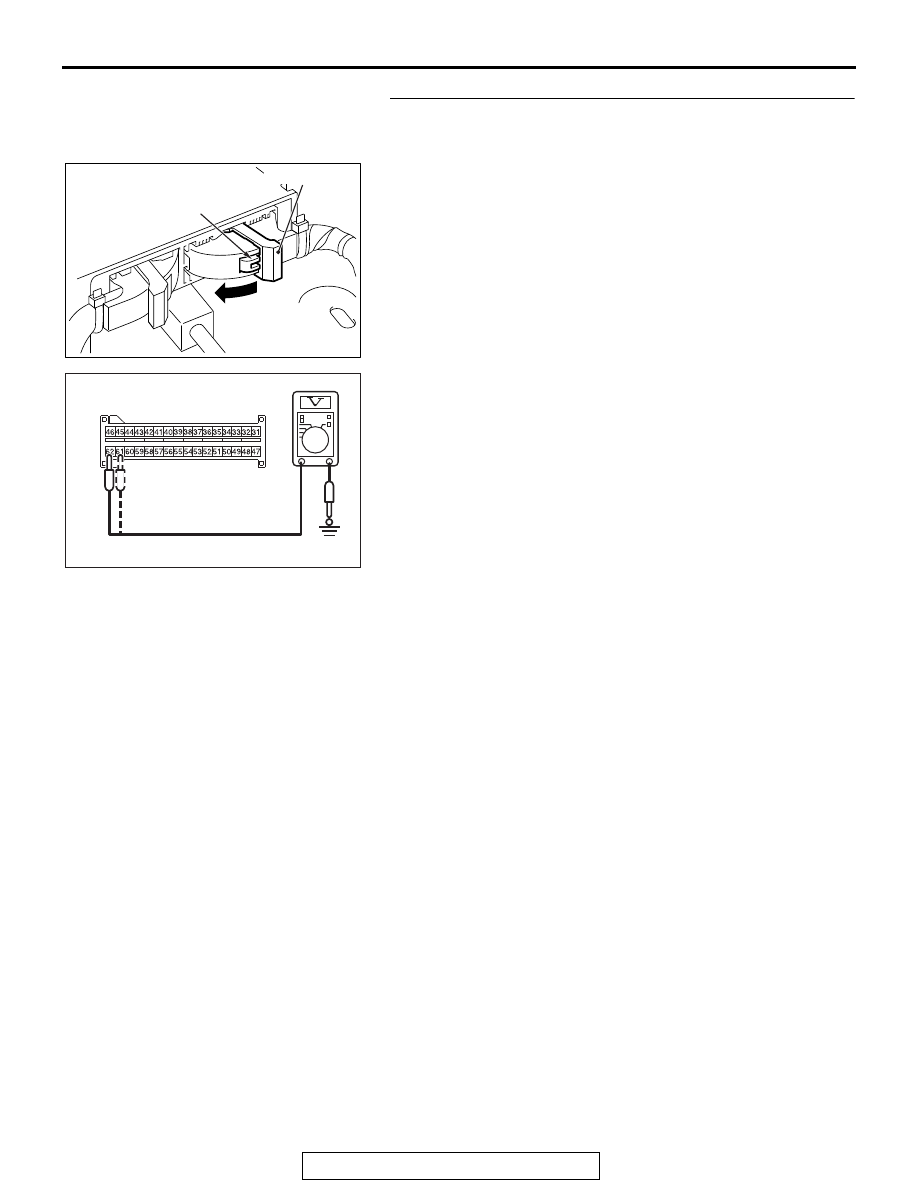

STEP 7. Measure the voltage at the C-27 SRS-ECU
connector.
(1) Disconnect the negative battery terminal.
(2) While pushing the part "A" indicated in the figure of the

harness side connector, turn the lock lever to the direction
of the arrow to release the lock lever, and disconnect the
C-27 SRS-ECU connector.

(3) Connect the negative battery terminal.
(4) Ignition switch: ON

(5) Take the measurements below at the C-27 harness side

connector.

• Voltage between terminal No. 61/62 and body ground

OK: 9 V or more

Q: Is the measured voltage within the specified range?

YES : Go to Step 9.
NO :  Go to Step 8.

AC507645

A

AB

Lock lever

AC608813

C-27 Harness side
connector (front view)

BQ
